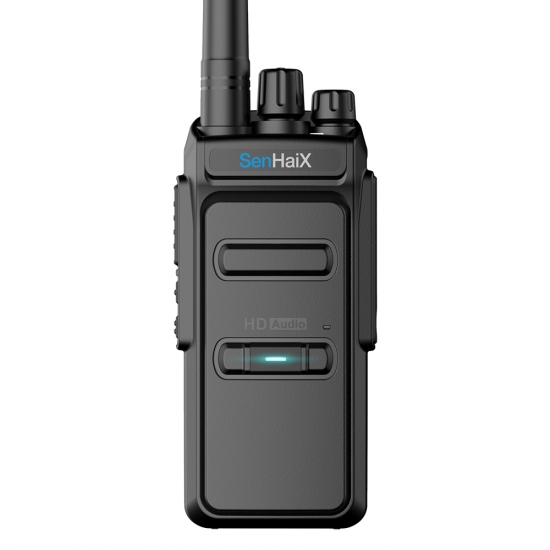

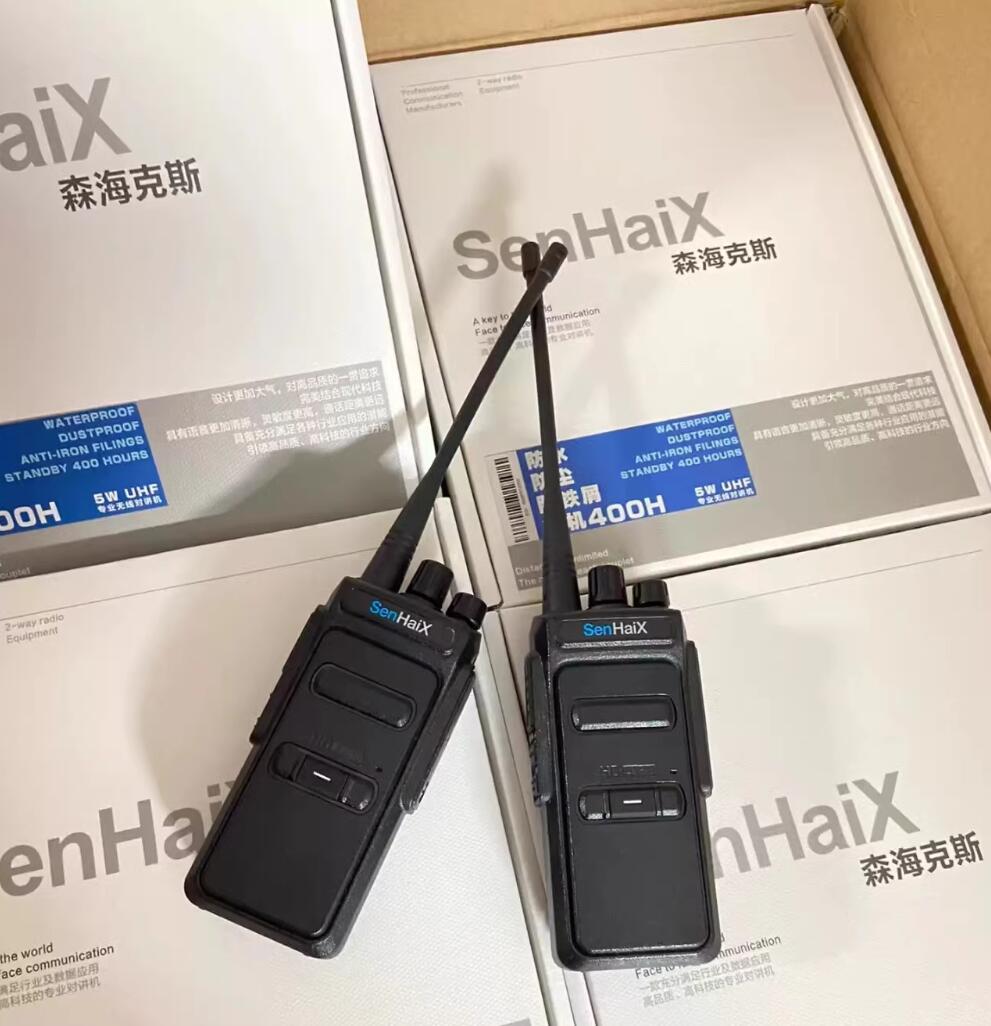

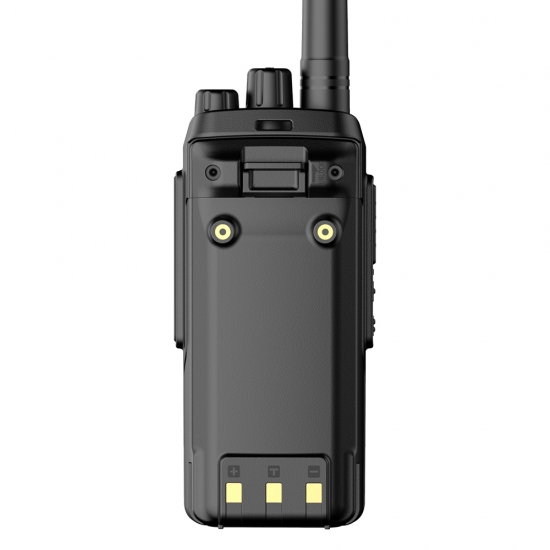

81-(30)PLUS SenHaiX 8130plus IP67 Waterproof Noise-Canceling Professional UHF Radio 16 Channels 5W Standby 400 Hours
PROFESSIONALWATERPROOF IP67 ADAPT To VARIETYOF HARSH ENVIRONMENTS
Functions
1. VOX
2. Scan
3. Scrambler
4. Busy Channel Lockout
5. SOS
6. Battery Voltage Indicator
7. TOT
8. Wide/Narrow Band
9. High/Low Power
10. Waterproof
11. Dustproof
12. Noise Cancellation
| General | |
| Frequency Range | UHF |
| Channel Capacity | 16 Channels |
| Channel Step | 25KHz(Wide Band), 12.5KHz(Narrow Band) |
| Frequency Stability | ±2.5ppm |
| Operating Voltage | 7.4V DC ± 20% |
| Operating Temperature | -20℃ ~ +60 ℃ |
| Antenna Impedance | 50Ω |
| Dimension | 136*60*36mm |
| Weight | 260g |
| Transmitter | |
| Output Power | 5W |
| Modulation Mode | 16K0F3E |
| Adjacent Channel Power | ≥65dB |
| Singal Noise Ratio | ≤-40dB |
| Parasitic Harmonic | ≤65dB |
| Spurious Emission | ≤-36dBm |
| Audio Response | 300Hz-3KHz |
| Audio Distortion | ≤5% |
| Receiver | |
| Sensitivity | -120dBm (20db SINAD) |
| Intermodulation | ≥60dB |
| Adjacent Channel Selectivity | ≥60dB |
| Spurious Rejection | ≥60dB |
| Audio Response | 300Hz-3KHz |
| Signal to Noise Ratio | ≥45dB |
| Audio Distortion | ≤5% |
| Audio Output Power | 1W |
