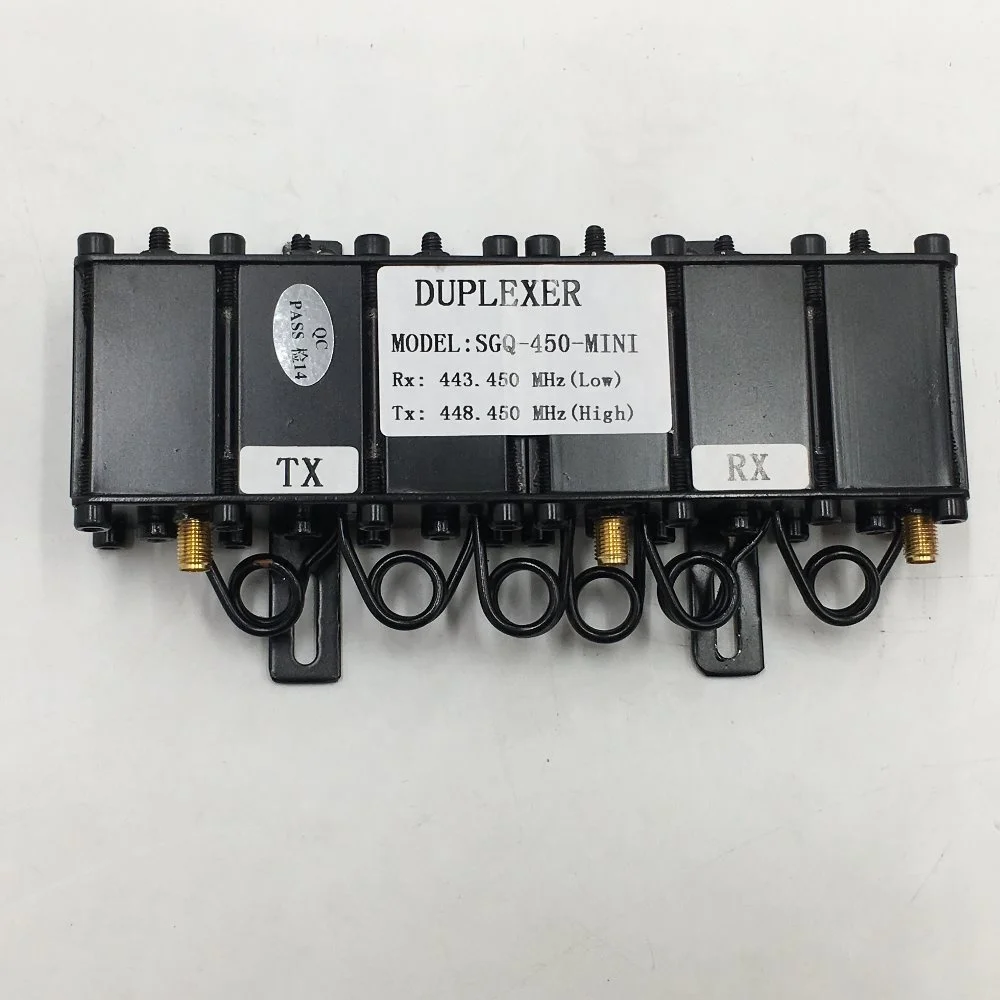

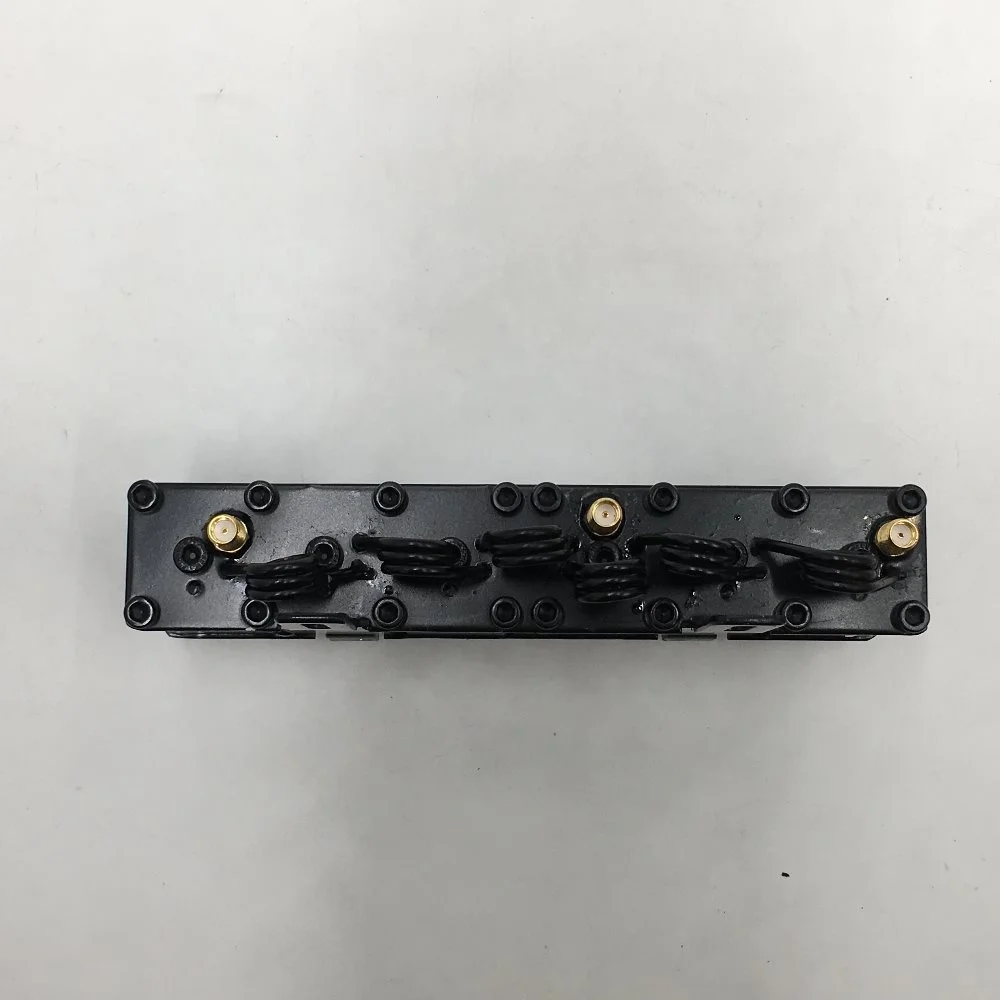

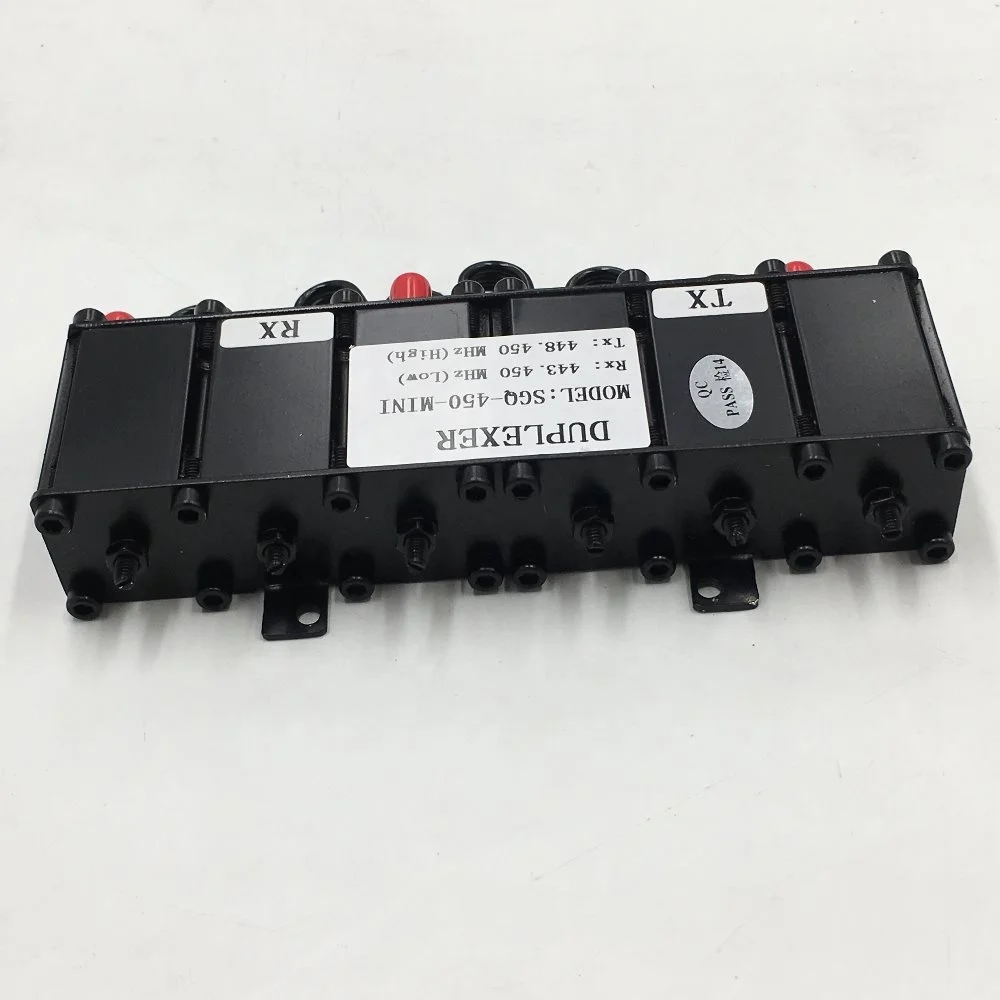

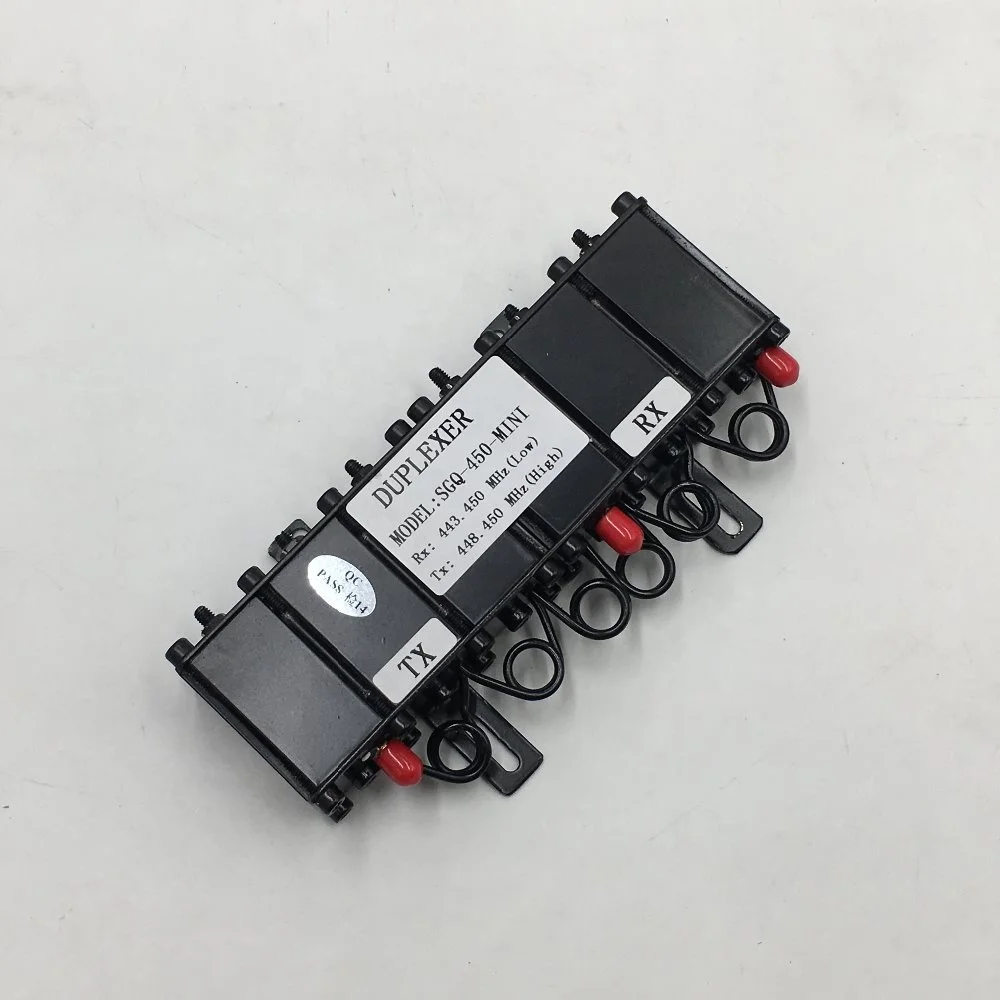

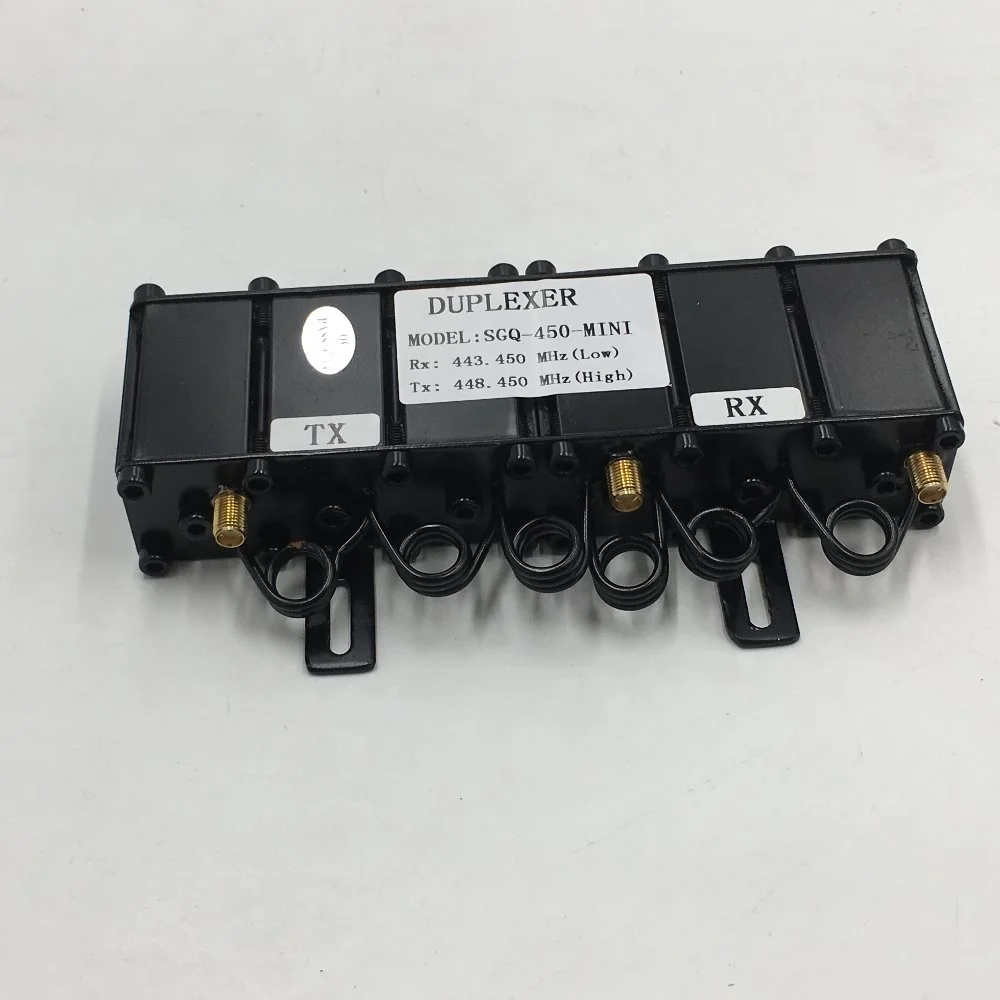

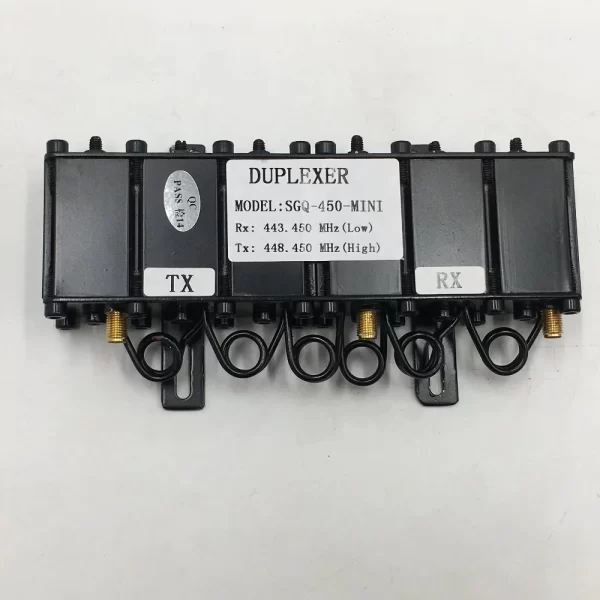

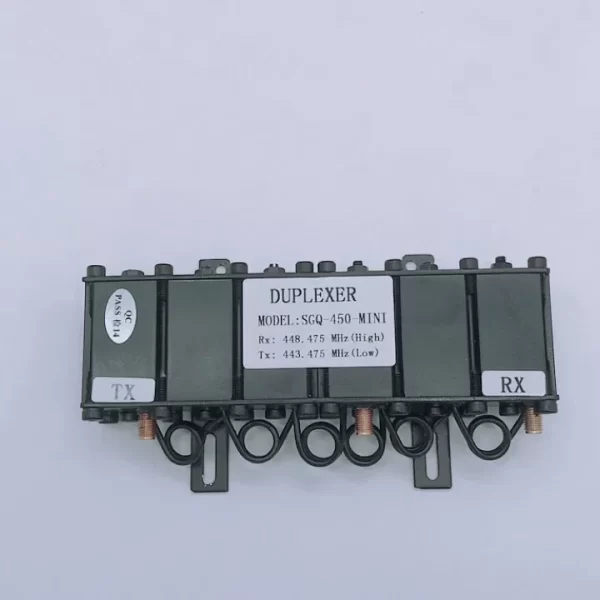

UHF Duplexer 10W 400-470MHz MINI Duplexer for Two Way Radio Repeater

Original price was: $470.02.Current price is: $199.00.

& Free Shipping
Guaranteed Safe Checkout

UHF Duplexer 10W 400-470MHz MINI Duplexer for Two Way Radio Repeater



Product Description

 Low Power UHF 10W 400-470MHz MINI Duplexer  for Hytera Repeater

Please Attention:

*We can provide many kinds of duplexers,customized is acceptable.

We have 10W/30W/50W/100W duplexers.

* We can produce 66-88MHz,137-180MHz,200-280MHz,330-380MHz,380-520MHz,700-800MHz,

    800-900MHz  duplexers.

* Before ordering,please tell us the frequency of TX and RX.

Specifications:

Electrical Specifications
           Type SGQ-450-mini
       Frequency Range 400~470MHz
         VSWR 1.35
       Frequency Spacing(MHz) 5-20
         Bandwidth(KHz) ±1500
        Insertion Loss  2.0dB
        Isolation 65dB
        Maximum Input Power 10W
         Normal Impedance 50
         Connector SMA-F
Mechanical Specifications
         Operating Temperature -20~+50
          Weight(kg) 0.5
       Dimensions

83×154×28.5(±0.5mm)

Weight 0.9 kg
Dimensions 300 × 400 × 80 mm
