TYT TH-9000D 60W Mobile Radio 220-260MHz 136-174Mhz 400-490Mhz


& Free Shipping
Guaranteed Safe Checkout

TYT TH-9000D Mobile Radio

Main Funciton:

■  Frequency Range:   VHF:136-174MHz  / 220-260MHz /  UHF: 400-490MHz
■  Output Power:        VHF: 10W/25W/60W,  UHF: 45W/25W/10W
■  1750Hz Tone ■  CTCSS/DCS setting & scanning
■  0-9 SQL grade setting ■  Frequency/Channel scanning
■  High/Mid/Low power selectable ■  Voice compander
■  Repeater offset shift ■  Keypad lock function
■  Contact book ■  Battery voltage display
■  DTMF/2 tone/5 tone ■  ANI ID
■  Remote kill/ stun/ activate/ revive ■  Emergenvy alarm
■  Wide/Narrow band setting ■  TX inhibit
■  Busy Channel Lock-Out ■  Channel name editing
■  Reverse frequency ■  Talk around
■  Voice prompt
■  Time-out Timer ■  Auto Power off
■  VFO step setting:5/6.25/10/12.5/20/25/50kHz


  Item Number                   TH-9000D
Frequenvy Range VHF:136-174MHz  / 220-260MHz /  UHF: 400-490MHz
Channel Capacity 200
Channel Spacing 5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability 2.5ppm
Operating Temperature -20℃ ~ + 60℃
Operating Voltage 13.8V DC ± 15%
Dimension(HxWxD)                            145mm x190mm x47mm
Weight(with bracket) 1200g
Reference Sensitivity 0.25V / 0.35V
Operating Bandwidth 60dB@12.5KHz /70dB@25KHz
Adjacent Channel Selectivity 60dB@12.5KHz 70dB@25KHz
Inter-modulation Rejection ≥60dB/ ≥65dB
Spurious Response Rejection ≥70dB
Rated Audio Response +1-+3dB
Rated Audio Distortion <5%
FM Hum&Noise ≥40dB@25KHz /≥45KHz @12.5KHz
RF Power 60W/25W/10W(VHF)
Frequency Modulation 11kΦF3E / 16kΦF3E
Modulation Distortion <5%
FM Noise ≥36dB@25KHz /≥40KHz @12.5KHz
Adjacent Channel Power ≥60dB@12.5KHz /≥70KHz @25KHz
Audio Response +1-+3dB
Audio Distortion <5%

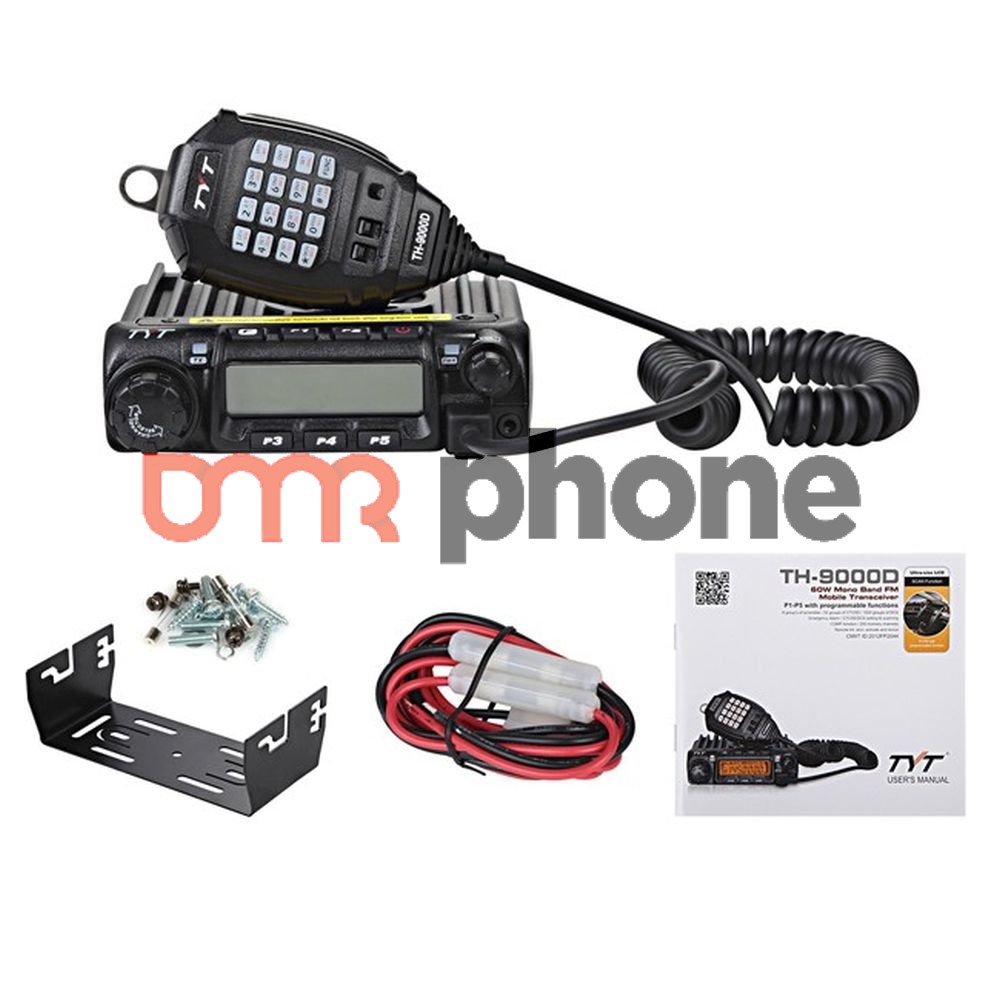

  • 1x TYT TH-9000D Mobile Radio
  • 1x Microphone
  • 1x Mobile Mounting Bracket
  • 1x DC Power Cable
  • 1x Screws, S-Washer,Spare Fuses pack
  • 1x English Manual
Weight 2.9 kg
Dimensions 500 × 400 × 100 mm
Frequency Range

136-174MHz, 220-260MHz, 400-490MHz
