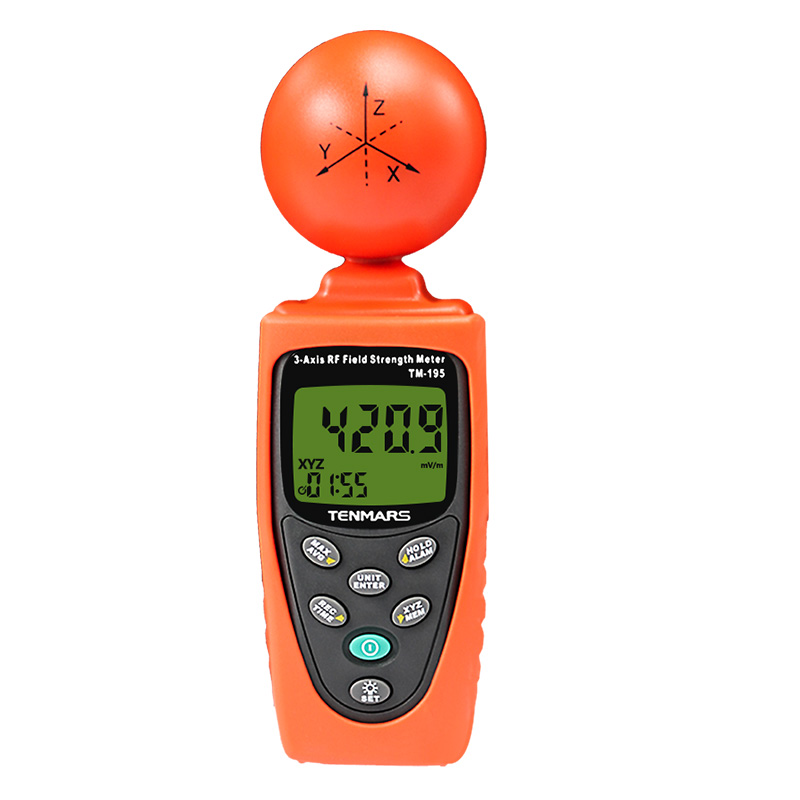

Three-Axis RF Field Strength Meter EMF Meter Measuring and Monitoring Radio Frequency(RF) Electromagnetic Field Strength TM-195

154.00$

SKU: 190967 Category:

Description

3-Axis RF Field Strength Meter EMF Meter Measuring and Monitoring Radio Frequency(RF) Electromagnetic Field Strength TM-195



Product Description:

1.RF range: 38mV to 20V/M
2.Frequency range: 50MHz to 3.5GHz.
3.Sensors: Triple Axis (X, Y, Z)
4.Manual data memory (Max & AVG) records.
5.Calibration factor, Alarm and Clock settings.

Application:

TM-195 is designed for measuring and monitoring Radio Frequency(RF) electromagnetic field strength and capable of measuring the frequency range of 50MHz~3.5GHz.

It’s ideal for the applications of:

1. RF power measurement for transmitters.

2. High frequency(RF)electromagnetic wave field strength measurement.

3. Mobile phone base station antenna radiation power density measurement.

4. wireless bug finder.

5. Wireless communication (CW, TDMA, GSM, DECT) applications.

6. Wireless LAN (Wi-Fi) detection, installation.

7.Cellular /Cordless phone radiation safety level.
8. Microwave oven leakage detection.
9. Personal living environment EMF safety.

Specification:

1.Display type: Liquid-crystal (LCD), 4-1/2 digits maximum reading 19999.

2.Measurement method: Digital, triaxial measurement.

3.Directional characteristic: Isotropic, triaxial.

4.Measurement range selection: one continuous range.

5.Display resolution:0. 1mV/m, 0.1μA/m, 0.001μW/m2, 0.001μW/cm2

6.Setting time: typically 1.5s (0 to 90% measurement value.)

7.Sample rate: 1.5 times per second.

8.Audible alarm: Buzzer.

9.Units: mV/m, V/m, μA/m, mA/m, μW/m2, mW/m2, μW/cm2

10.Display value: Instantaneous measured value, maximum value, average value, or maximum average value.

11.Alarm function: adjustable threshold with ON / OFF

12.Calibration factor CAL: adjustable

13.Manual data memory and read storage:200 data sets.

14.Batteries: 9V NEDA 1604, IEC 6F22 or JIS 006P

15.Battery life: Approximate 15 hours.

16.Auto power off: Default time 15 minutes. Adjustable threshold 0~99 minutes.

17.Operating temperature range: 0°C to + 50°C

18.Operating humidity range: 25% to 75 % RH

19.Storage temperatures range: -10°C to +60°C

20.Storage humidity range: 0% to 80% RH

21.Dimensions: 60(L)*60(W)*195(H) mm.

22.Weight (including battery): Approx.200g.

23.Accessories: User’s manual, Carrying case.

Additional information

Weight 0.6 kg
