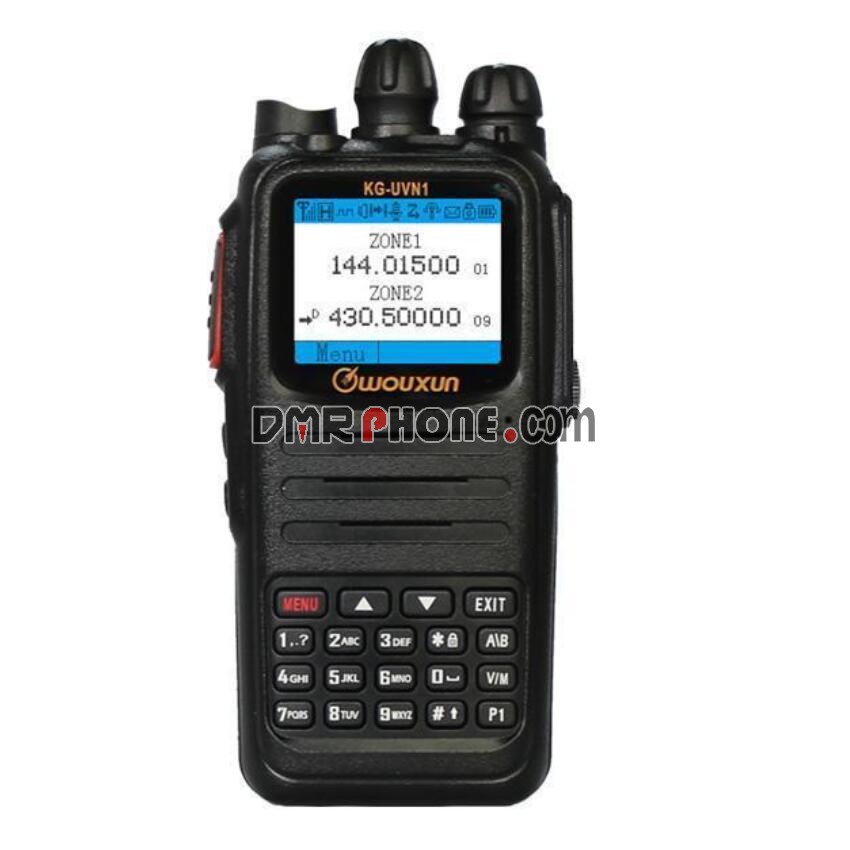

Newest Wouxun KG-UVN1 VHF / UHF Dual Band DMR Radio
Wouxun KG-UVN1 Dual Band Digital FM Tier II DMR Pure VHF / UHF Amateur Walkie Talkie Ham Two Way Radio
Features:
- 3072 Channels
- 1024 Contacts
- 255 Receiving Groups
- 250 Zones
- 16 Scan List
- Radio ID
- Radio TX Contacts
- Duan Band and Dual Display
- Radio Color Code
- Support Frequency Mode
- Program Key
- Digital Voice Encryption
- Emergency Alarm
- VOX Function
- Priority Channel
- Scan TX Designated Channel
- Low Battery Power Off
- One Touch Access / Talk Around
- Radio Program Password
- Menu Encryption or Menu Hide
- Power Save Mode
- Group Scan
- Tail Elimination
- Text Message
- Radio Disable or Enable
- Lone Work
- ARTS Function
- Flash Light
- Call Alert
- CTCSS Encoding and Decoding , Support Non Standard
- Digital Channel Recording , Continuous Record 8 Hours
- Play Recording File
- Customerized Radio Interface
- DTMF Encoding and Decoding
- Transmit Time-out Alert
- FM Radio
- Fimware Upgradable
TECHNICAL SPECIFICATION
| Intergration | |
| Frequency Range | 136-174MHz , 400-480MHz , (FM) 65-108MHz |
| Channel Number | 3072 |
| Operating Temperature | -20℃～+40℃ |
| Antenna Resistance | 50Ω |
| Working Voltage | 7.4 VDC |
| Weight | 300 g |
| Size | 64 x 41 x 130 (mm) |
| Receiver | |
| Analog Receive Sensitivity | 0.25µV@12dB SINAD |
| Digital Receive Sensitivity | 0.25µV(BER:5%) |
| Adjacent Channel Selectivity | ≤60dB@12.5KHz |
| Audio Response | +1dB~-3dB |
| Audio Distortion | ≤5% |
| Audio Power | 1W |
| Inter Modulation | ≥65dB |
| Transmitter | |
| FM Modulation | 12.5KHz : 11KOF3E , 25KHz : 16KOF3E |
| 4FSK Digit Modulation | 12.5KHz(Data Only) : 7K60FXD 12.5KHz(Data+Voice) : 7K60EXE |
| Adjancent Channel Power | ≤-60dB |
| Frequency Stability | ±1 PPM |
| Audio Distortion | ≤5% |
| Vocoder Type | AMBE+2TM |
| Audio Response | +1dB~-3dB |
| Digital Protocol | ETSI-TS102 , 361-1 , 361-2 , 361-3 |
| Bit Error Ratio | ≤5% |
| Modulation Limit | ±2.5KHz@12.5KHz |
| Output Power | UHF (H : 4W , L : 1W) , VHF (H : 5W , L : 1W) |
Each Unit Package Contain:
1 x Wouxun KG-UVN1 DMR Transceiver
1 x BLO-022 Li-ion Battery Pack, 2600mAh
1 x CHA-025 Charger with Power Supply Adaptor
1 x ANO-033 Antenna
1 x OTH-005 Hand Strap
1 x OTH-001 Belt Clip
1 x PTT Earpiece
