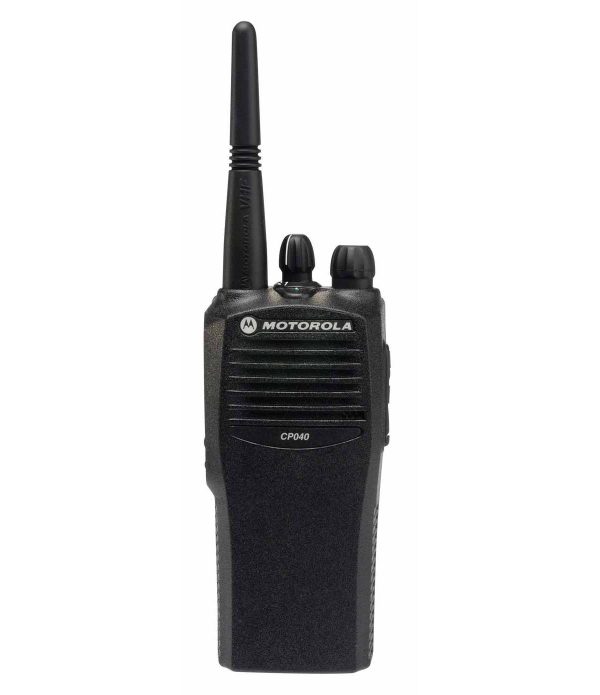

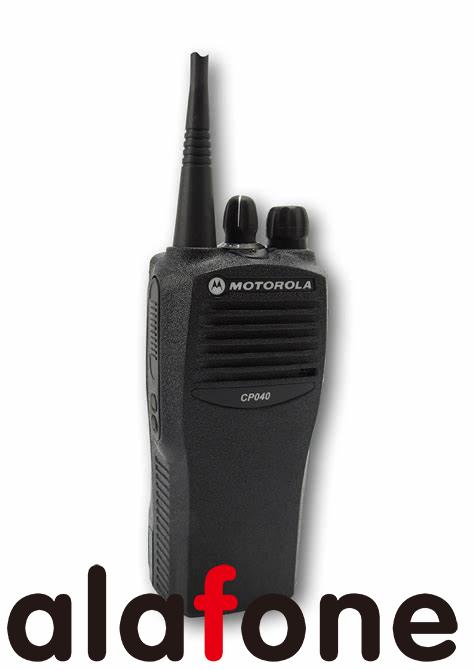

Motorola CP040 UHF VHF Professional Two way Radio
Model Number： CP040
Storage Channel: 16CH
Frequency Range: 136-174MHz/403-470MHz
Output Power: VHF 5W UHF 4W
Channel Spacing: 12.5/25kHz
Talk Range: 1-10KM
Operating Temperature：-30℃ / +60 ℃
Operating Voltage： 7.5V
Dimensions： 57.5 mm *137 mm * 37.5 mm
Using the CP040 is second nature thanks to the tough and textured buttons, chunky rotary channel, volume knobs and tricolour status LED. In addition, two programmable buttons can be set to give immediate access to the four most often used features, making communication even simpler.
Available in two versions, with four or sixteen communication channels, you can use the CP040 to liaise with the whole team or change channel to discuss a more complicated issue one to one.
The CP040 has a high/low power setting that allows users to extend battery life for up to 19 hours2 from a single battery charge. This can be done by switching to low power when the user is in close proximity to other users, as the range is reduced and less power is required. Avoid missed messages with the built-in ‘scan’ function that searches all channels for activity.
Designed and built to the gruelling American standard MIL spec 810F and exceeding the exacting IP54 standard for environmental protection, the CP040 has also passed the Motorola Accelerated Life Test which replicates five years of hard use in the field.
Benefiting from Motorola’s market-leading experience in designing and manufacturing two-way radio, the CP040 provides excellent audio quality thanks to Motorola’s voice compression technology, X-Pand™.Customisable
As you would expect from Motorola, the CP040 is supported by a wide range of energy, audio and carry accessories, changing the CP040 into a customised solution.
Adjustable power levels
Battery life (based on a 05 05 90 duty cycle)
Up to 19 hours
High/low power option for battery management
Dimensions H x W x D (with standard battery)
130 x 62 x 42mm (with Slim Li-Ion battery)
Weight (With 1400mAh LiIon battery)
376g (with Slim Li-Ion Battery)
Number of channels
CTCSS signalling (Private Line)
X-pand voice compression and low level expansion

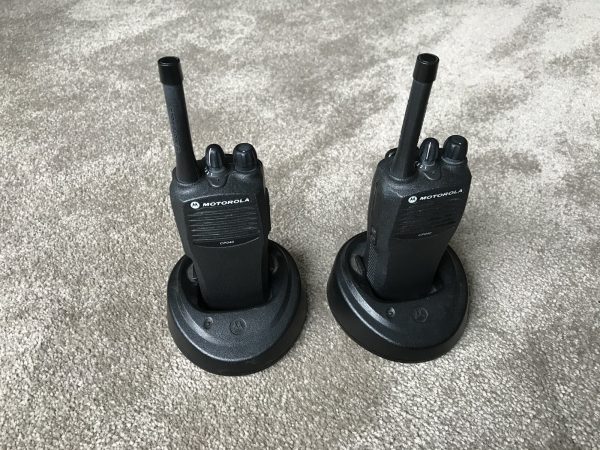

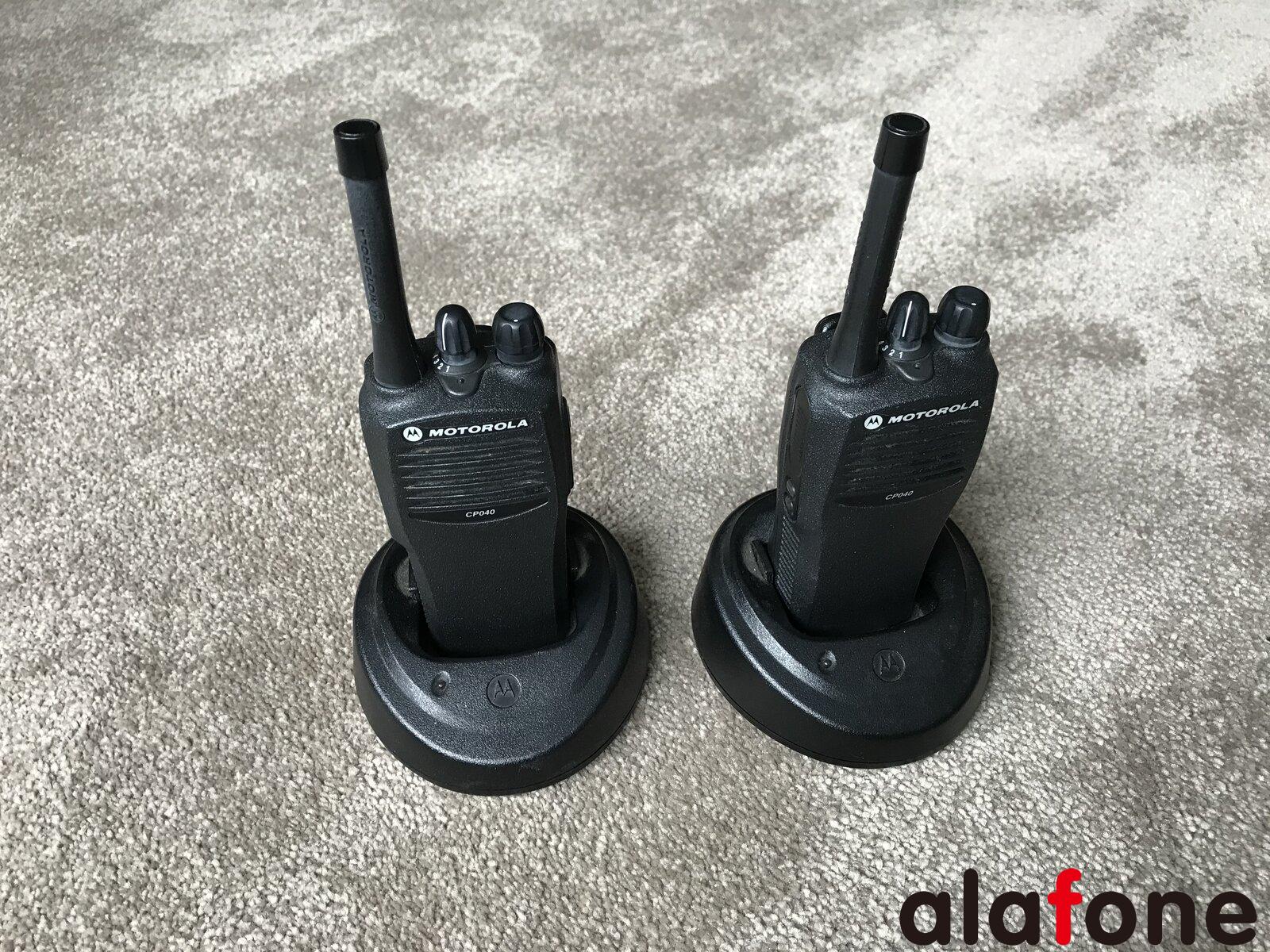

A set of Motorola CP040
