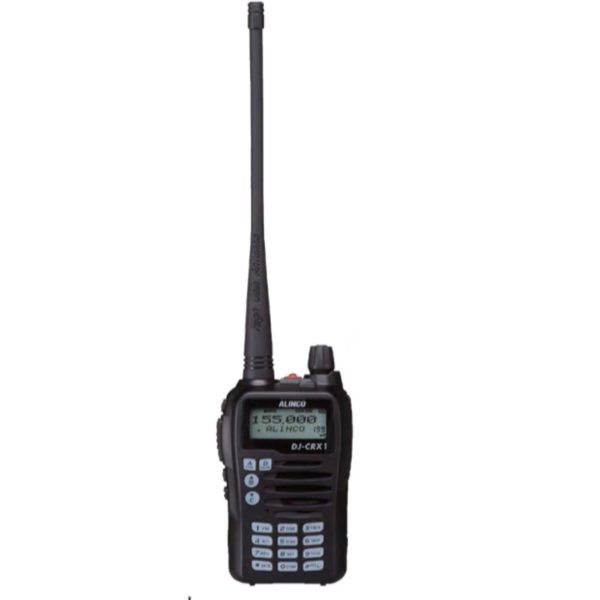

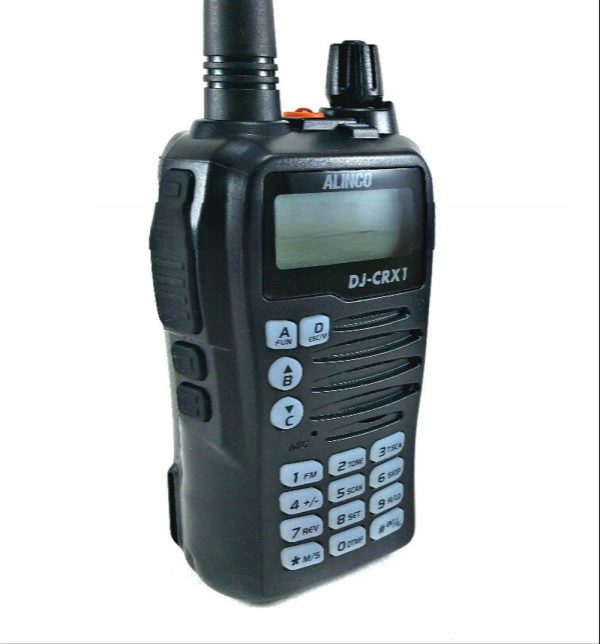

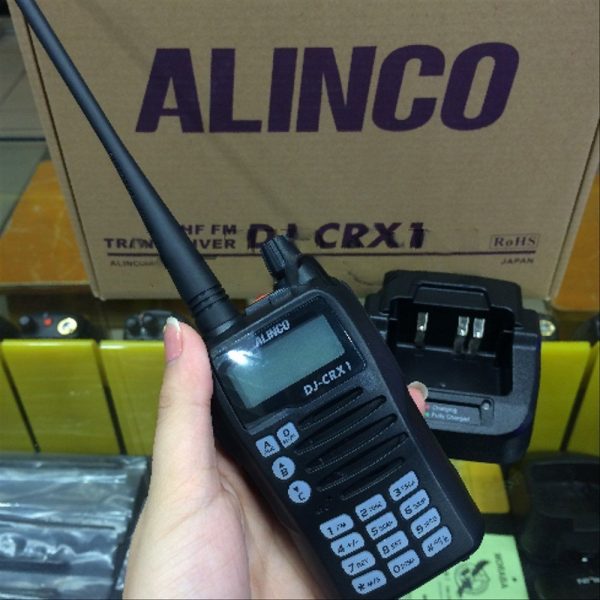

5W 200 CHS HT Alinco DJ-CRX1 VHF 136-174Mhz Handheld Amateur Radio


& Free Shipping
Quantity Discount (%) Price
1 87.00$
2 - 4 1.15 % 86.00$
5 - 9 3.45 % 84.00$
10+ 8.05 % 80.00$
Guaranteed Safe Checkout

Handy Walky Talky 5W HT Alinco DJ-CRX1 VHF 136-174Mhz Portable FM Two way Radio 200 Channels

Alinco DJ-CRX1 is a pretty new HT output of Alinco. It has a great power of fire and modulation.

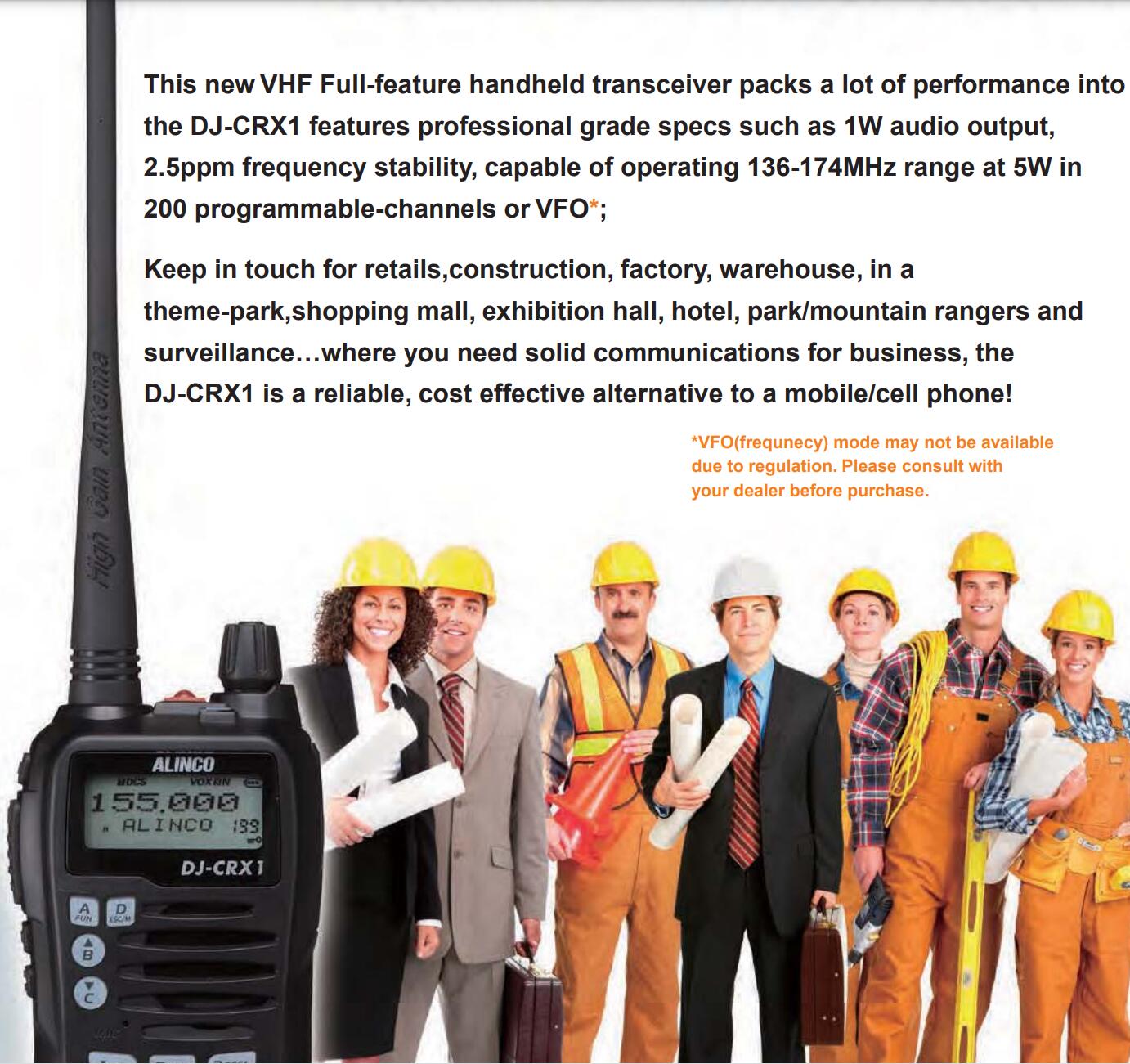

This new VHF Full-feature handheld transceiver packs a lot of performance intothe DJ-CRX1 features professional grade specs such as 1W audio output, 2.5ppm frequency stability, capable of operating 136-174MHz range at 5W in200 programmable-channels or VFO*;

Frequency : VHF 136-174Mhz
Channel capacity : 200 channel
Channel spacing : 25KHz (wide band), 12.5KHz (narrow band)
Phase locked step : 0.1Khz
Operation voltage : 7.4V DC
Battery life : More than 12 hours (1800mAh)
Frequency stability : 2.5ppm
Operation temperature : -20C~+55C
Size : 118 x 61 x 40 mm (with battery pack)

Power output : 5W
Modulation : 16K F3E, 11K F3E
Adjacent channel power : >=65dB, >=60
Hum & Noise : >=40dB, >=40dB
Spurious Emission : <=-36dB, <=-36dB
Audio distortion

Sensitivity (12dB SINAD) : <=0.25uV, <=0.35uV
Adjacent channel selectivity : >=65dB, >=60dB
Intermodulation : >=60dB, >=60dB
Spurious rejection : >=70dB, >=70dB
Hum & Noise : >=45dB, >=40dB
Audio distortion : <=5%

Product Description :

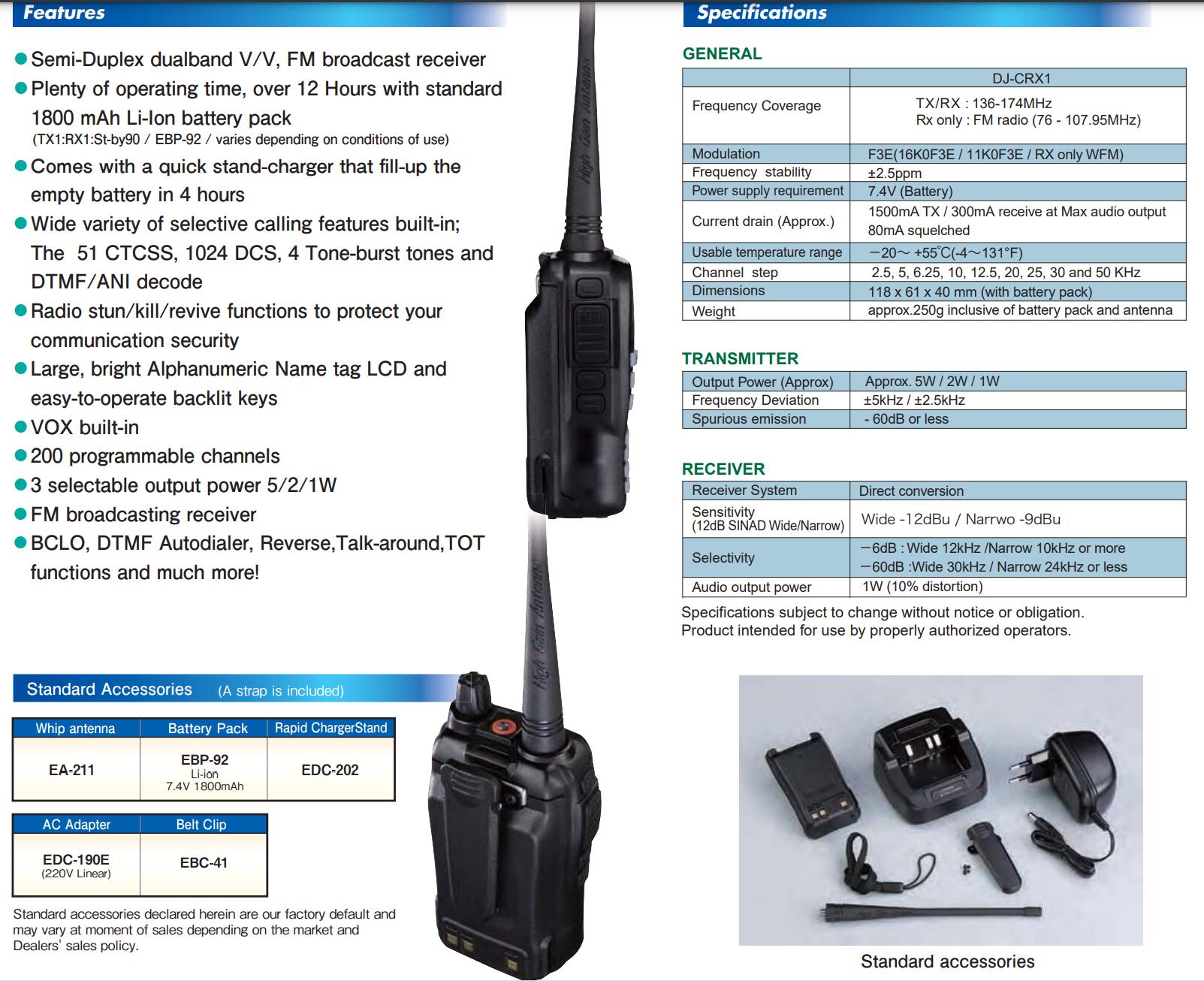

Semi-Duplex dualband V/V, FM broadcast receiver

Plenty of Operating time, over 12 Hour with standard 1800 mAh Li-Ion Battery pack

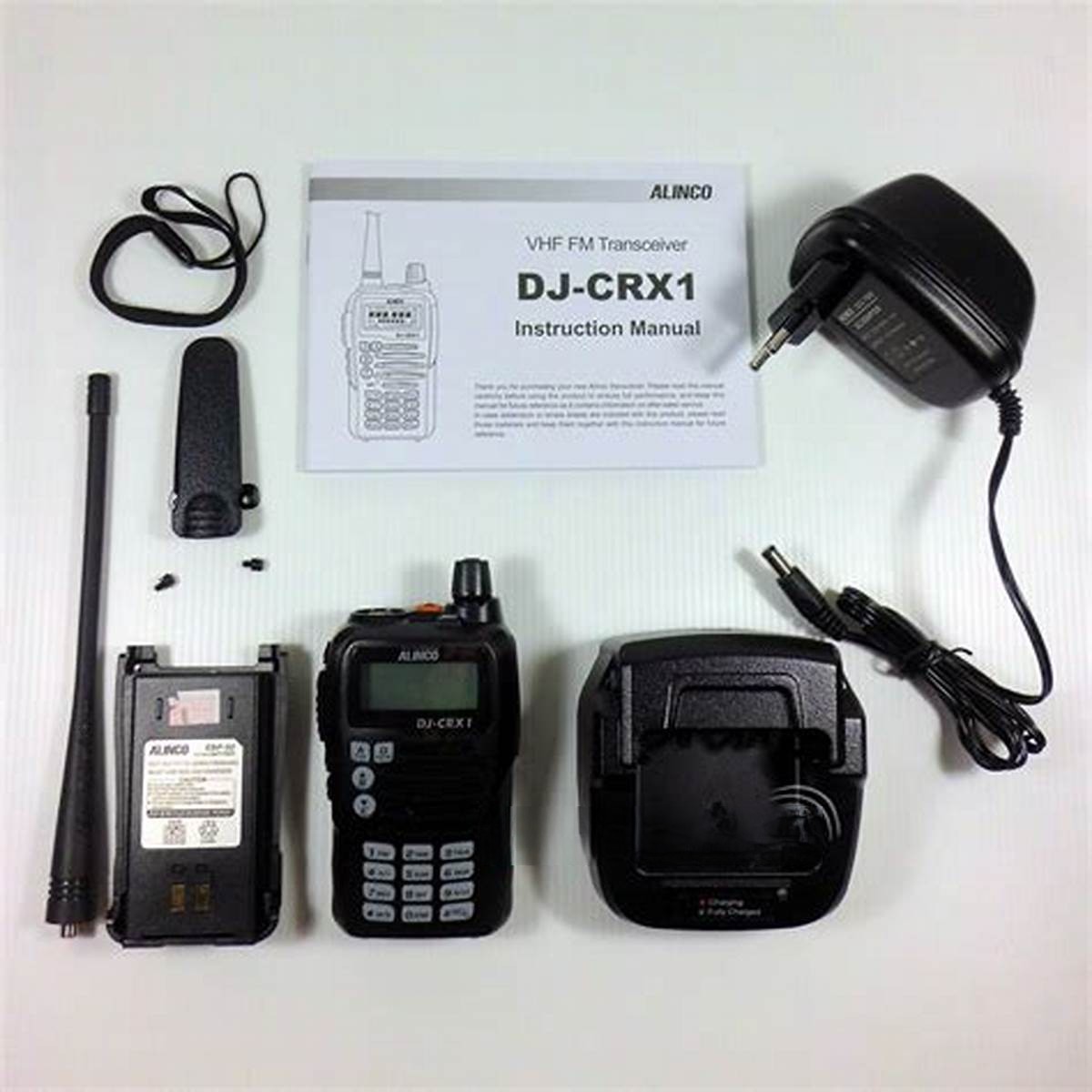

Comes with cuick stand-charger that fill-up the empty battery in 4 hours

Wide variety of selective calling features built-in The 51 CTCSS, 1024 DCS, 4 Tone-burst tones and DTMF/ANI decode

Radio stun/kill/revive function to protect your communication security

Large, bright Alphanumeric Name Tag LCD and easy-to-operate backlit keys

VOX built-in

200 Programabble channels

3 Selectable output power 5/2/1W

FM broadcasting receiver

BCLO, DTMF Autodialer, Reverse, Talk-Around, TOT functions and much more.

Weight 0.8 kg
Dimensions 300 × 400 × 100 mm
