GZV4000 220V 40A Switching Power Supply For DIAMOND ANTENNA Base Station Walkie Talkie

Original price was: 714.80$.Current price is: 429.11$.

& Free Shipping
Guaranteed Safe Checkout

GZV4000 220V 40A Switching Power Supply For DIAMOND ANTENNA Base Station Walkie Talkie


Features:

– Multiple outputs
– Small and light
– 6A small current output
– Voltage and current switch
– 10A cigarette lighter interface
– Adjust output voltage 5~15V via a knob
– 40A continuous current output. Suitable for shortwave communication
– With a built-in loudspeaker. Connected with an audio cable, it can be used as an external speaker for radio station

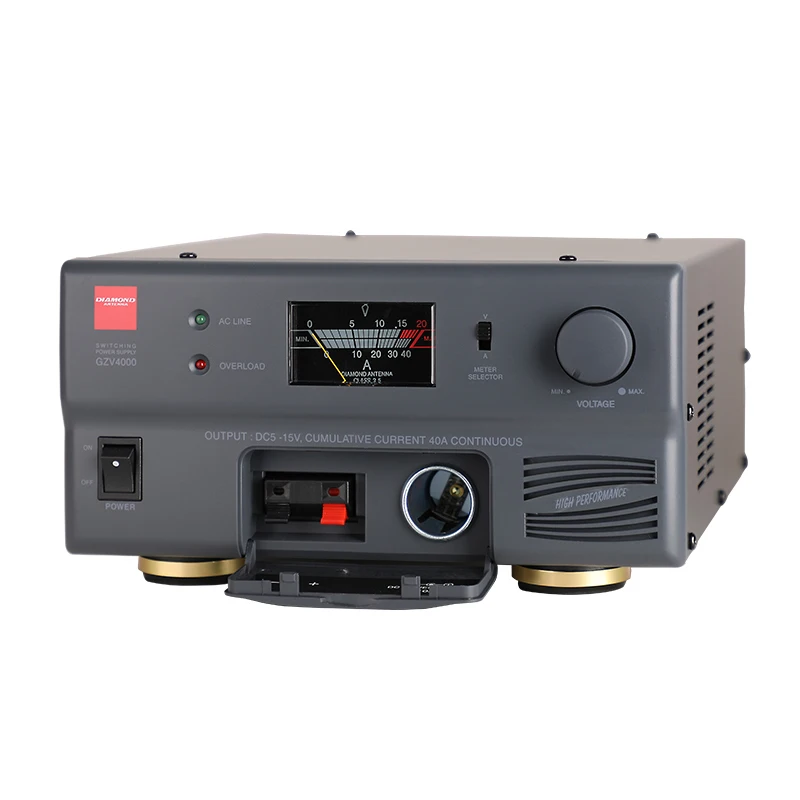

– Hidden front panel design. The front current output interface can be hidden, making it visually more tidy
– Stable performance; high efficiency and energy saving
– Overload protection. With a foldback circuit, its OVERLOAD warning light will light up when overloaded
– With over-temperature protection. Real-time temperature monitoring

Product Parameters:
– Input voltage: 220V AC
– Output voltage: adjustable DC 5-15V
– Output current: 40A (continuous)
– Ripple and noise: ≤ 8mVr.m.s
– Linear adjustment rate: 180mV (±5%)
– Load regulation rate: 180mV (0~100% load change)
– Audio plug: diameter 3.5mm
– Dimensions: 210 x 300 x 110mm/8.3 x 11.8 x 4.3″ (WxDxH)
– Length of power cable: 2.2m/7.2 ft
– Weight: 3.5kg/7.7 lb

Package Included:
– 1 x Set of Switching Power Supply

Weight 2 kg
Dimensions 500 × 400 × 150 mm
