Black Car Radio Antenna VHF UHF PL259 5M Coaxial Cable Magnetic Mount Base and SMA-F SMA-M BNC Connector
Dual Band Antenna Magnetic Mount Base 4 Connector PL259 5M
This is an antenna which is convenient to carry and use; With 50w and 3dBi features, it can enhance the ability to receive signals, what’s more, it also has an significant effect in extending communication distance, 4 Coaxial connectors for easy use of hand-held walkie-talkie in the car.
1. Can install to the antenna base station directly.
2. PL-259 suitable for car mobile radio station.
3. Super short antenna, good concealment,effectively.
4. Ultra short built-in circuit board, signal to send and receive is strong.
VHF UHF Antenna:
Frequency: Dual Band136-174MHz & 400-470MHz
Max Power: 50W
V.S.W.R: LESS 1.5
Connector: PL259 UHF Type
Antenna Height: 9cm

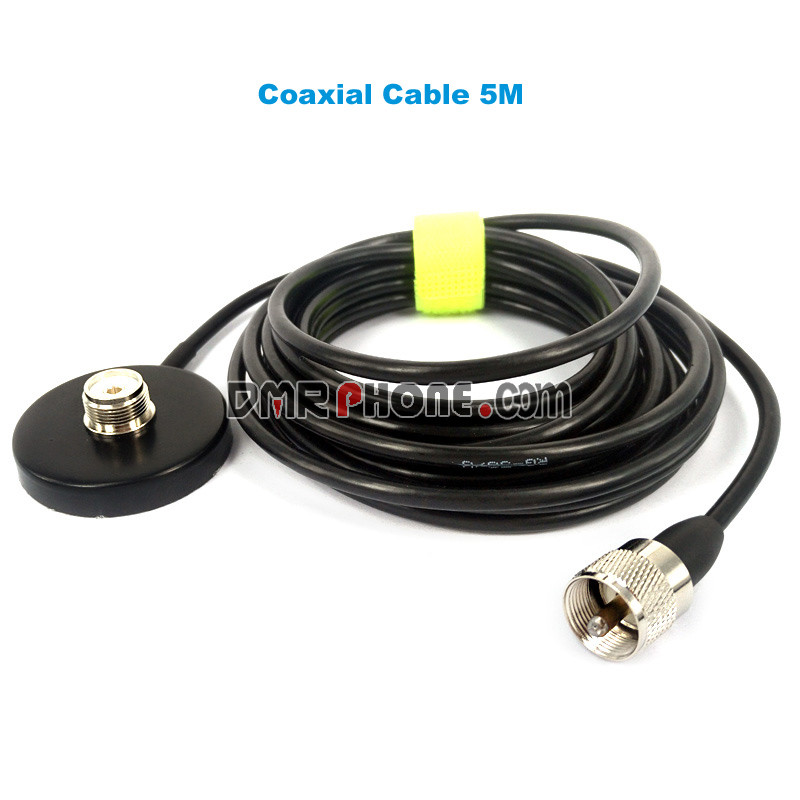

5M Coaxial Cable Magnetic Mount Base:
Length of Coaxial Cable: 5 Meter
Type of Coaxial Cable: RG-58/U
Magnetic Mount Base Diameter: 5.5cm
Material: Copper cord
for YAESU :FT-1802M ,FT-1807, FT-7900R, FT-1900R,FT-2900, FT-2800M, FT-7800R, FT-8800R,…
for Kenwood : TM-271 ,TM-471,TM-281,TM-481,TK760,TK780,TK7160,TK7180,TK7102,TK7150 TK7302U,TK7360,NX700…
for ICOM : IC-2200H,IC-2720H,F121S, F121, F5011, F5021, F5121D, F5061, F1721, F1821, F9511, V8000, V2300H,…
for Vertex: VX2100,VX2200,VX4500,…
for TYT: TH-9800,TH-7800,TH-9000
for BaoFeng: BF-9500..
for WouXun: KG-UV950P,KG-UV920P,…
for BaoJie: BJ-218…
for QYT: KT8900, KT-8900R,KT-UV980,…
And any other radio that uses PL259(SO-239 / SL16 / UHF-M) connector Antennas.
Note: If your radio model not listed above, please see my other item or email us your model number, then, we will help you find one that suit for you
4 Coaxial connectors for easy use of hand-held walkie-talkie in the car.
SMA-Female Connector / SMA-M Male Connector / BNC Connector support various hand-held walkie-talkie.
SO239 Male Connector support male antenna interface of the car radio.
Note: The product is equipped with four additional connectors to support more car radio and hand-held walkie-talkie that can reach 90%, but we can not guarantee support for all 100% of the walkie talkie, Old section and rare style walkie talkie may have no support phenomenon.
1X Dual Band Antenna (Color: Black/ Red / Yellow / White Optional)
1X 5M Coaxial Cable Magnetic Mount Base
1X SMA-F Female Coaxial Connector
1X SMA-M Male Coaxial Connector
1X BNC Coaxial Connector
1X SO239 Male Coaxial Connector
|Dimensions||300 × 200 × 120 mm|
