Black Red White Super Thin WLN KD-C1 UHF 400-470 MHz MINI Two way Radio

$34.00 $19.97

Clear
SKU: 190814 Category:

Description

WLN KD-C1 Walkie Talkie UHF 400-470 MHz 5W Power 16 Channel  MINI-handheld Transceiver Three color Optional



Feature:

50 CTCSS/105 CDCSS

VOX Function

Voice Prompt

PC Programming

Emergency Alarm

Intelligent Charging

Battery Save

Low Voltage Alert

Time-out Timer



20180309_163206_00820180309_163206_00920180309_163206_010

20181128_162238_005

20181128_162238_00420181128_162219_000

Specification:

General Specifications
Frequency Range UHF 400-470MHz
Channel Capacity 16
Channel Spacing 25KHz
Operated Voltage 3.7 V
Battery 1500MAh Li-ion
Battery Life(5-5-90 duty cycle) About 8 hours
Frequency Stability ±2.5ppm
Operated Temperature -30°c-+60°c
Antenna Impedance 50Ω
Dimensions (L×W×H) (with battery,without antenna) 110×50×32 mm
Weight (with battery/antenna) 125g
Communication Range about 6km
Transmitter
RF Power Output
Modulation
<5W
F3E
Spurious Emission ≤65dB
FM Noise ≤-45dB(W) ≤-40dB (N)
Audio Distortion ≤5%
Transmitting Current ≤1.3A
Receiver
Sensitivity (12dB SINAD) ≤0.20 uV
Selectivity 55dB/50dB
Intermodulation ≥65dB
Adjacent Channel Selectivity ≥60dB
Spurious Response ≥60dB
FM Noise 45dB/40dB
Audio Power Output 1000mW
Audio Distortion ≤5%
Standby Current ≈15mA (with battery save on)





20181128_162238_006

20181128_162219_003

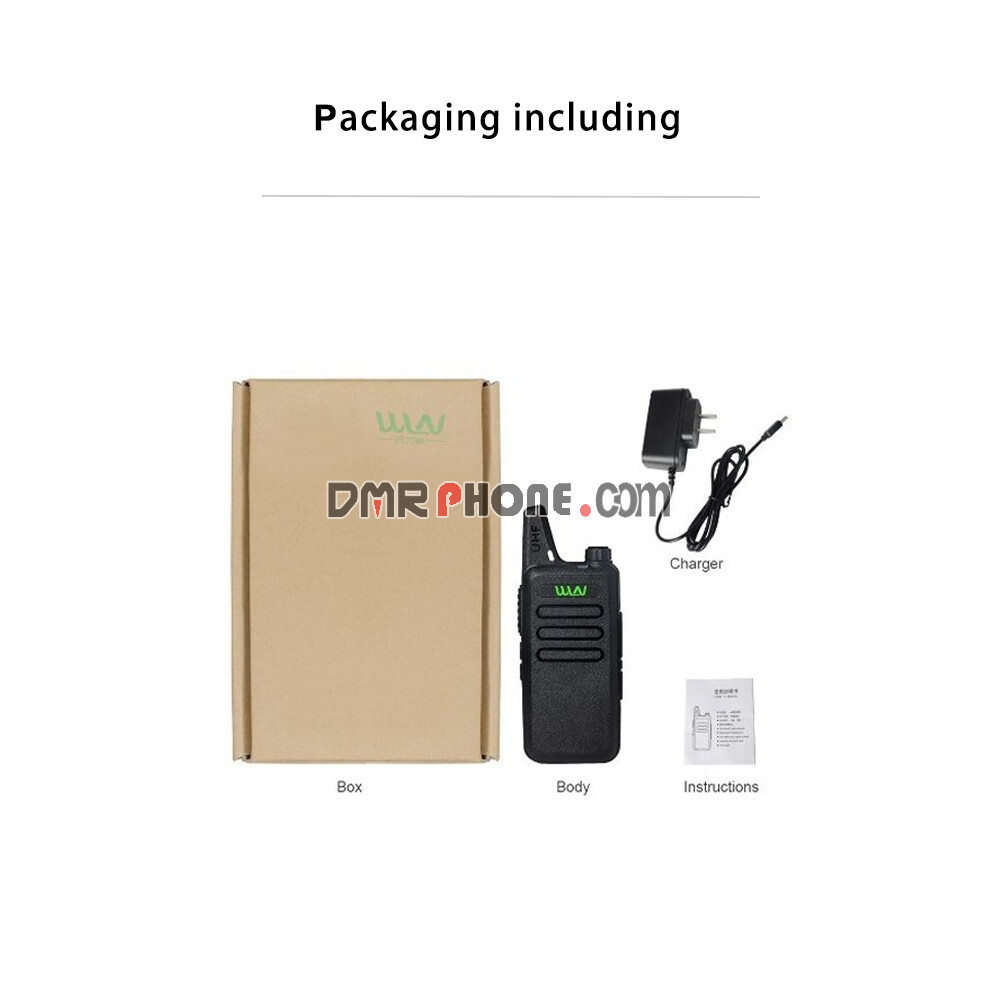

Package contain:

1 x WLN KD-C1 UHF 400-470 MHz MINI two way radio

1 x Li-ion Battery

1 x Belt Clip

1 x User”s Manual

1 x AC Adapter

Additional information

Weight 0.6 kg
Dimensions 400 × 200 × 100 mm
Color

Black, Red, White
