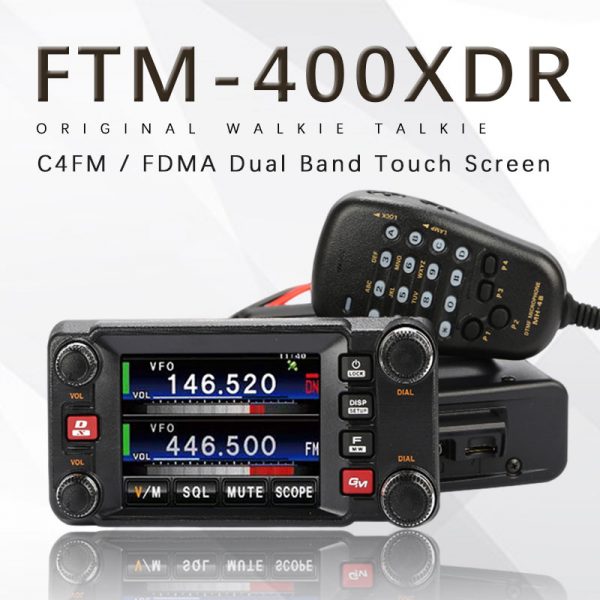

Yaesu FTM-400XDR Digital DMR Mobile Transceiver C4FM FDMA Dual Band Touch Screen


& Free Shipping
Guaranteed Safe Checkout


Yaesu FTM-400XDR dual-segment digital vehicle-mounted walkie-talkie locomotive FTM-400DR upgrade

Frequency range: Launch 137-174 / 400-480MHz
Receive 108-999.990MHz
Number of channels: 1038
Transmit power: 50/20 / 5W (144 / 430MHz)
Operating Mode: C4FM FDMA / FM / AM
Huge 3.5 “TFT color monitor
Altitude display
500 bands
Band range
Double reception
Adjustable power 5/20 / 50W
12.5 kHzC4FM / FDMA
Internal clock – calendar
Four scanning modes
Receive / send picture
Yaesu FTM-400DR dual-band mobile transceiver to work at 2 meters and 70 cm. :

The new FTM-400DR offers four modes:

V / D mode is voice and data communication at the same time. Maintain consistent, reliable digital  voice and data communications using exceptionally powerful error correction capabilities. This mode will be the basic mode of C4FM FDMA digital HAM radio.
Voice FR mode uses the data capacity of full rate voice data. This mode enables you to deliver clear,  high quality voice data.
Data FR Mode The data capacity used to transmit data at full rate. This mode allows you to transfer large amounts of data, text messages, images, voice memo data at double speed in V / D mode.
When the analog FM signal strength is weak, it causes the audio pull-down mode to be effective

in digital mode and to achieve the boundary of the noise level of the communication function.

The radio has an automatic mode selection (AMS) function to determine these four modes and

automatically select when the radio receives the signal!

Can choose any band at 50, 20 or 5 watts of power. Very enjoyable broadband reception from

108-470 and 800-999 MHz (minus the cellular). Four scan modes support: VFO, memory,

programmable memory or selected memory. 500 Memories per band are available. Each memory stores frequency, mode, tag, forwarding information, tone, DCS, antenna mute information, memory skip information, and transmission output. The screen background can be set to any of five colors  (green, blue, orange, purple, or gray). The FTM-400DR can take pictures and videos by connecting USB cameras (not provided) and sending and receiving them. There is a microSD card port.

Intelligent navigation function
Real-time navigation can be positioned at any time
In digital V / D mode, information such as location data is transmitted with the voice signal so that the distance and direction from the opposite station are displayed in real time while communicating with it.
Backtracking enables directional navigation of previously logged in locations
With the touch of a button, you can navigate back to the recorded location using backtracking. For hiking or camping purposes, simply record the starting point or camp before departure, the screen will show its distance from the current location and direction.

Weight 1.2 kg
Dimensions 300 × 500 × 100 mm
