Sale!

Yaesu FT-70D 2-way Radio Dual Band Digital Analog C4FM

279.00$

& Free Shipping
Guaranteed Safe Checkout

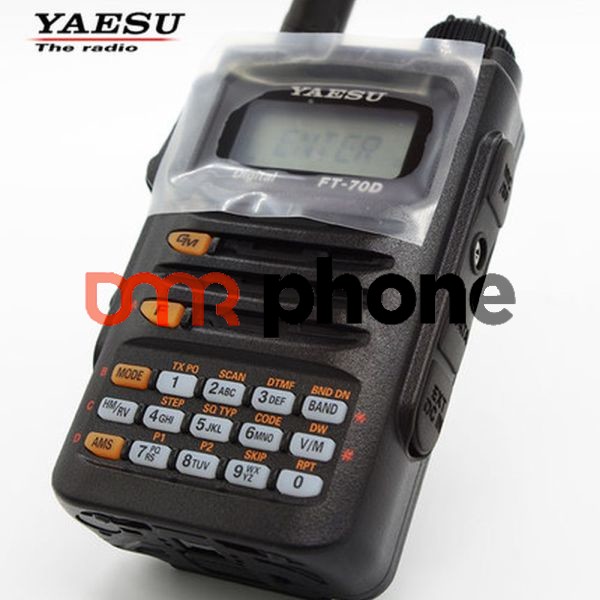

Yaesu FT-70D Walkie Talkie

System compatible C4FM digital mode
Provide clear audio

Compatible with conventional FM mode and YAESU C4FM digital mode. Compared to other digital modes, C4FM digital mode has better bit error rate (BER) characteristics to ensure good voice quality during communication

AMS coexists with traditional FM mode and digital mode friendly
Large size multi-color LED mode indicator

With excellent AMS capabilities, regular FM users and digital C4FM users can communicate bi-directionally. AMS automatically recognizes whether the received signal is a C4FM digital signal or a regular FM signal and switches the handset reception mode. Relative to the manual switch in communication mode, AMS automatic mode switching function, in use without any worries. The striking mode indicator LED shows the receive / transmit status

Numeric ID display
In C4FM digital mode, using the numeric group ID function, each group ID is easily set in a designated group of participants to facilitate communication. The group monitoring (GM) function automatically alerts the user that the group member ID being communicated in the communication sequence
The DG-ID group operation is only available for C4FM digital walkie-talkies with DG-ID group operation. If your C4FM handset or your car’s DG-ID group operation has not been updated, please update your product’s firmware first.

700mW audio power output
Front speakers up to 32mm in size with 700mW of audio power for loud, crisp, clear audio

Up to 1105 storage channels
FT-7D provides the most convenient operating experience and rich information storage, including 900 conventional storage channels, 6 different frequency “HOME” channel, 99 temporary search channels, and 50 pairs of programmable storage scan channel

Other functions
IP54 rating (dust and water protection) structural design
Broadband receive coverage (108-579.995MHz)
Scanning functions: (VFO programming scan, memory scan, priority channel scan)
Meteorological Service Channel (US version)
7.4V 1800mAh Lithium Battery Pack (SBR-24LI)
Equipped with a DC interface for external power supply can also be used to charge the battery
Equipped MINI-USB port, can be used for storage management, but also for software upgrades
Analog audio / digital audio
RF Squelch
Automatic shutdown function (APO)
Time out disable function (TOT)

Frequency range: receive 108-579.995MHz
Launch 140-174 MHz 420-470 MHz
Circuit Type: Double conversion superheterodyne
Modulation type: F2D, F3E, F7W
RF Output Power: 5 W / 2 W / 0.5 W (@ 7.4 V or EXT DC)
AF Audio Output: 700 mW (@ 16 ohms 10% THD: Built-in Speaker)
Dimensions (W x H x D): 60 x 98 x 33 mm without antenna and knob
Weight (approx.): 255g (with SBR-24LI battery and antenna)

Weight 1.2 kg
Dimensions 300 × 200 × 100 mm
