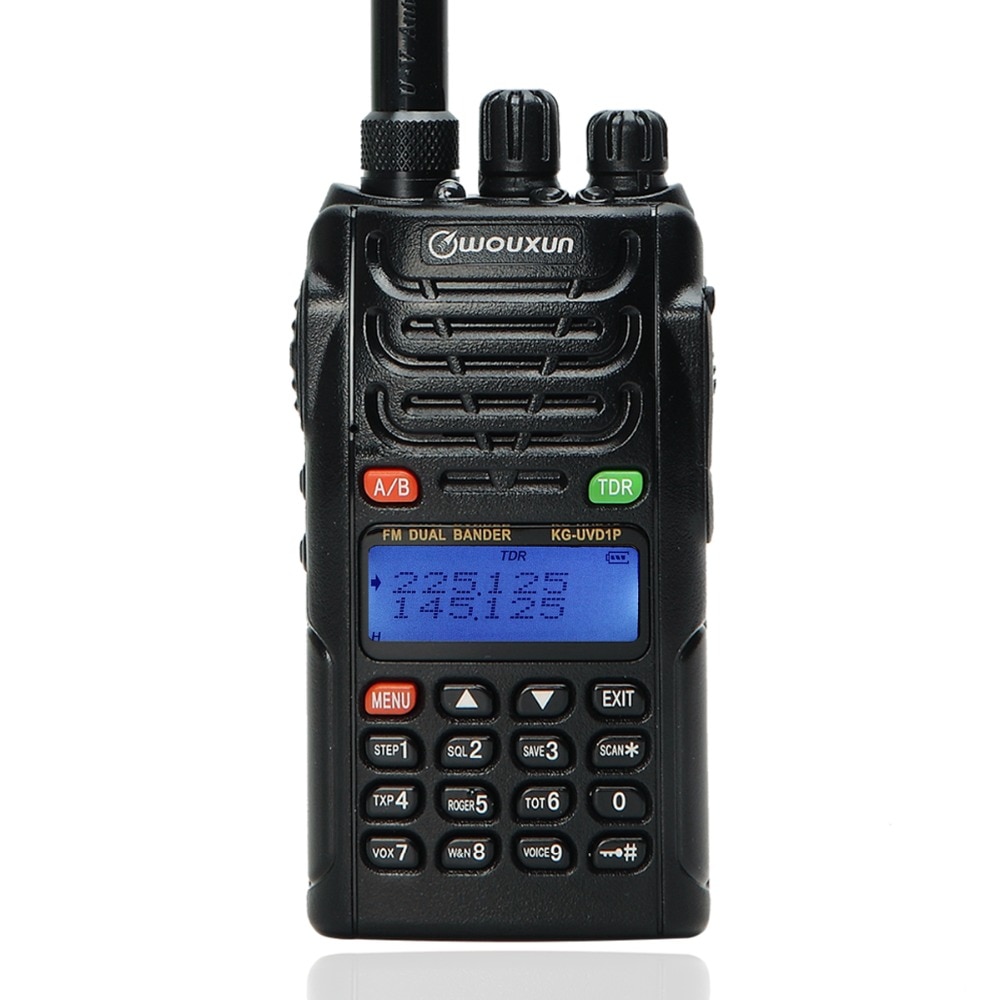

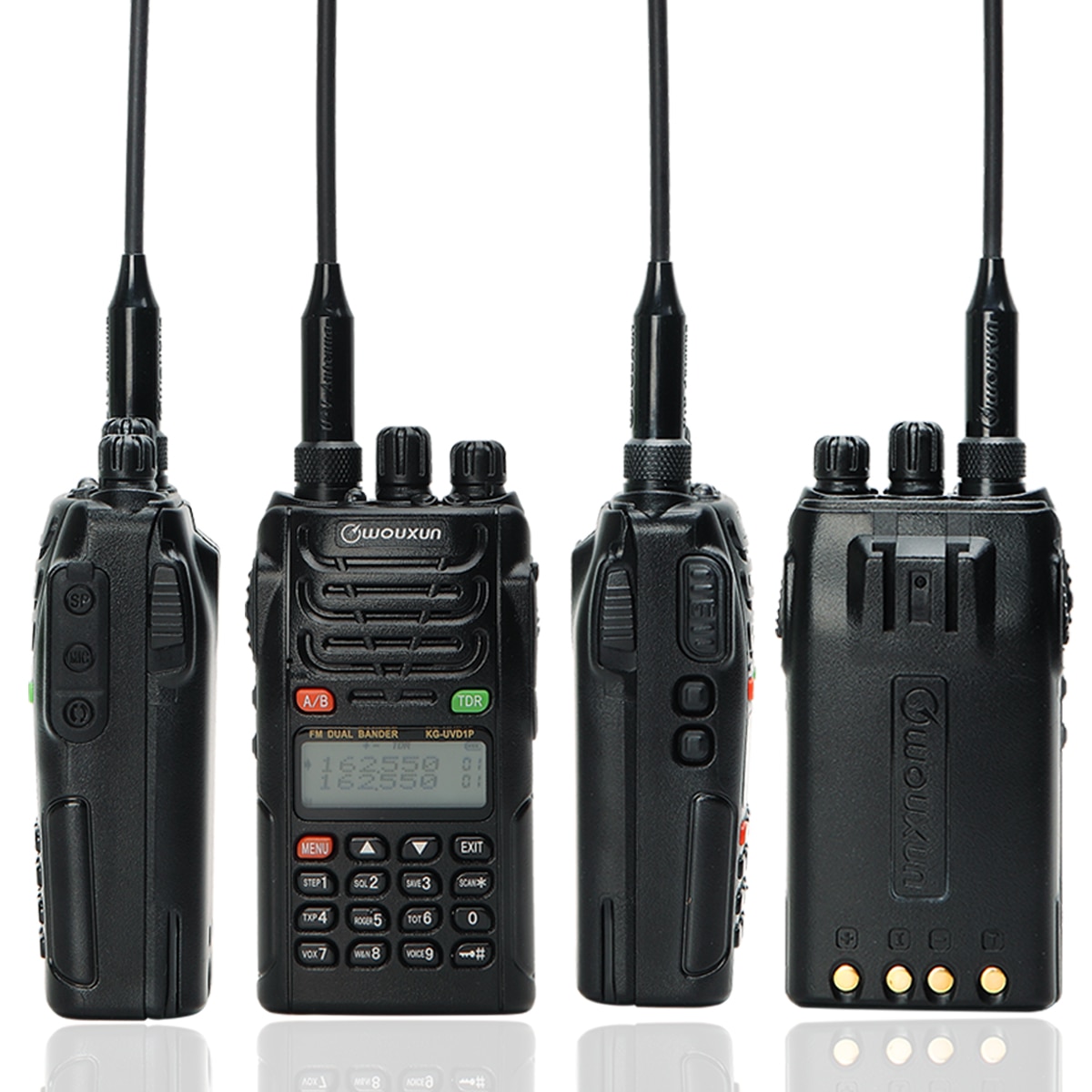

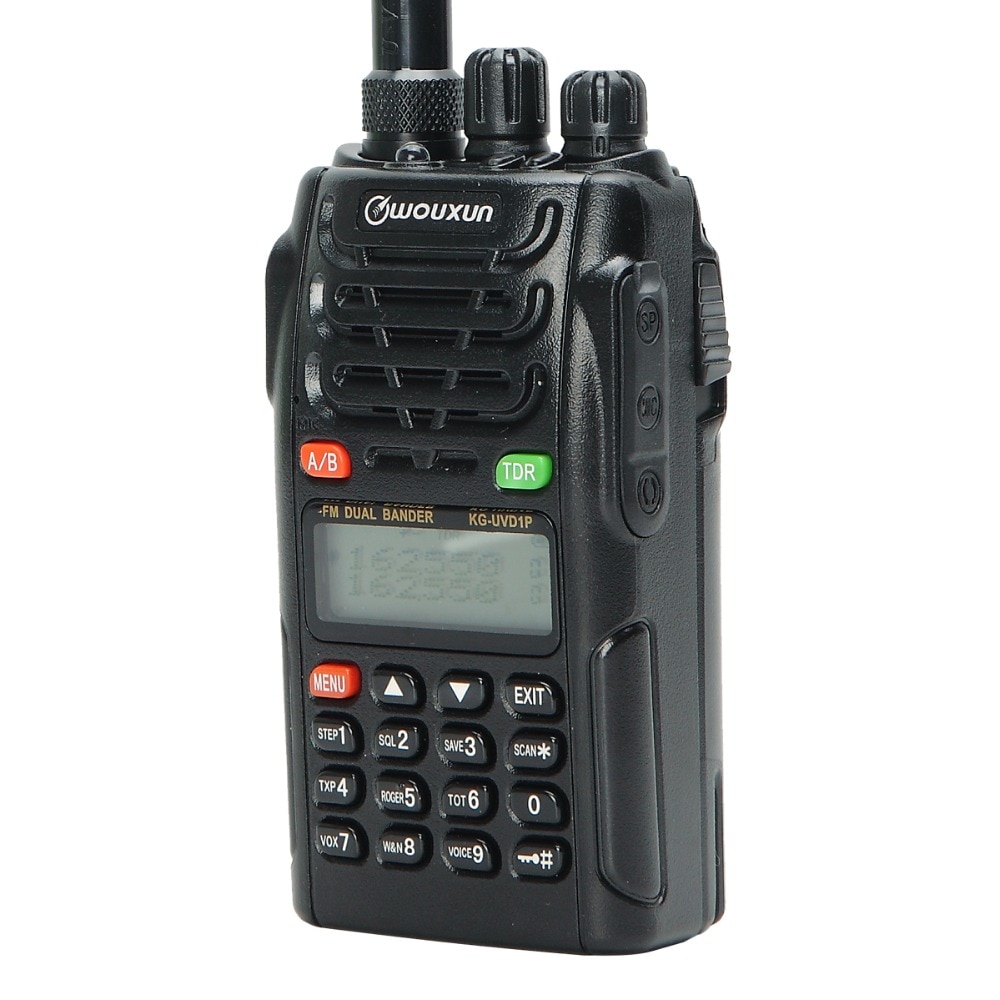

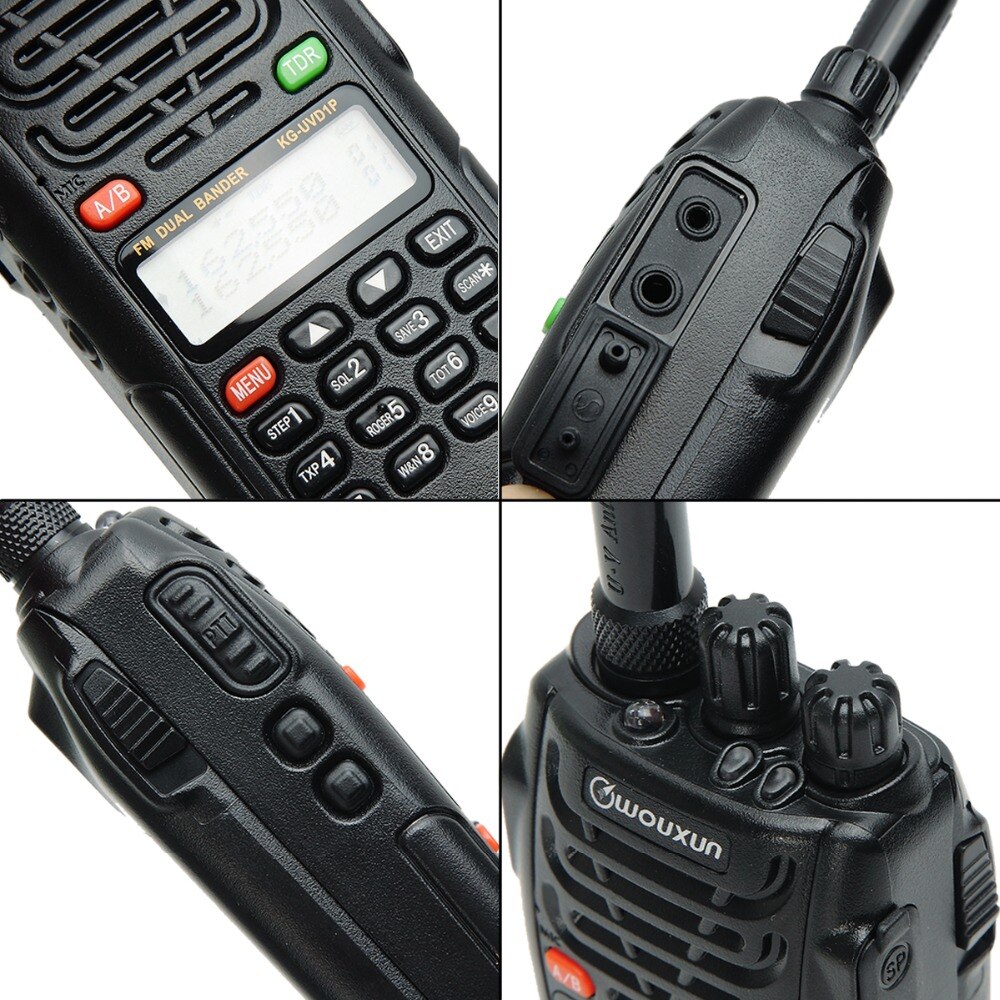

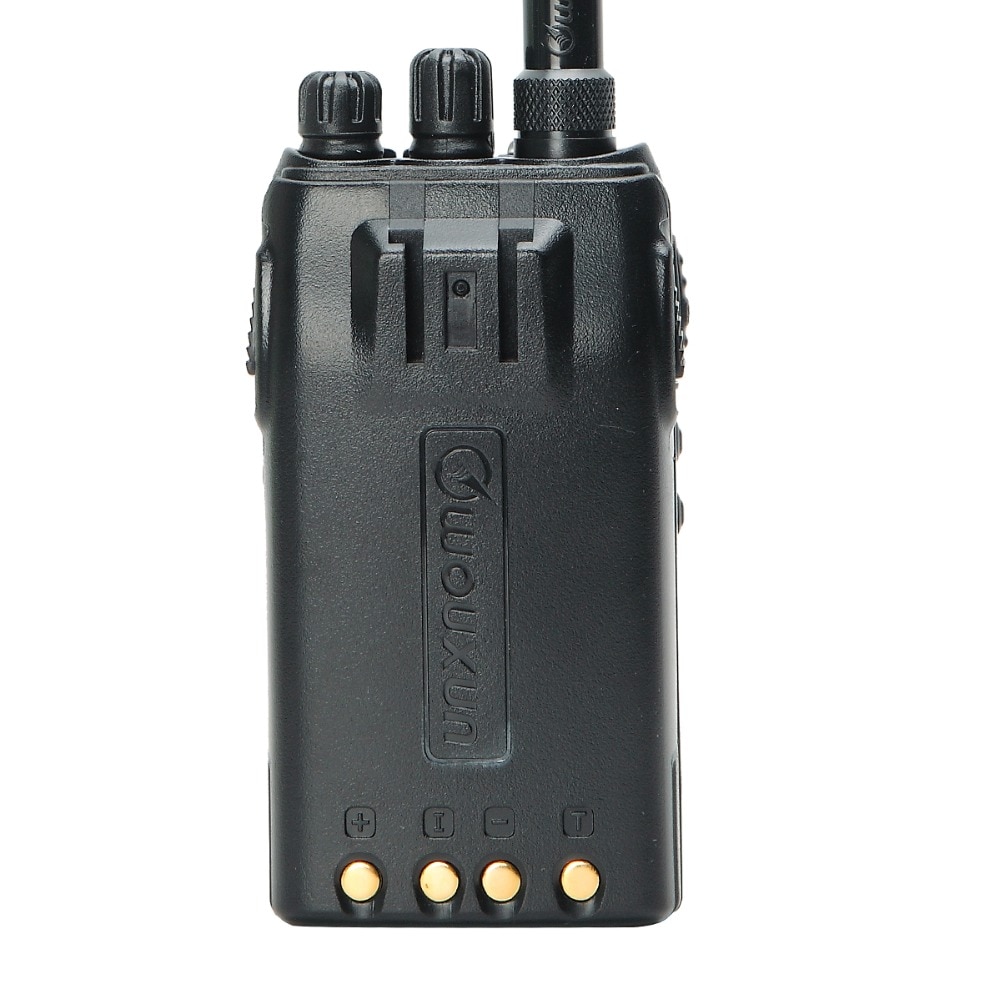

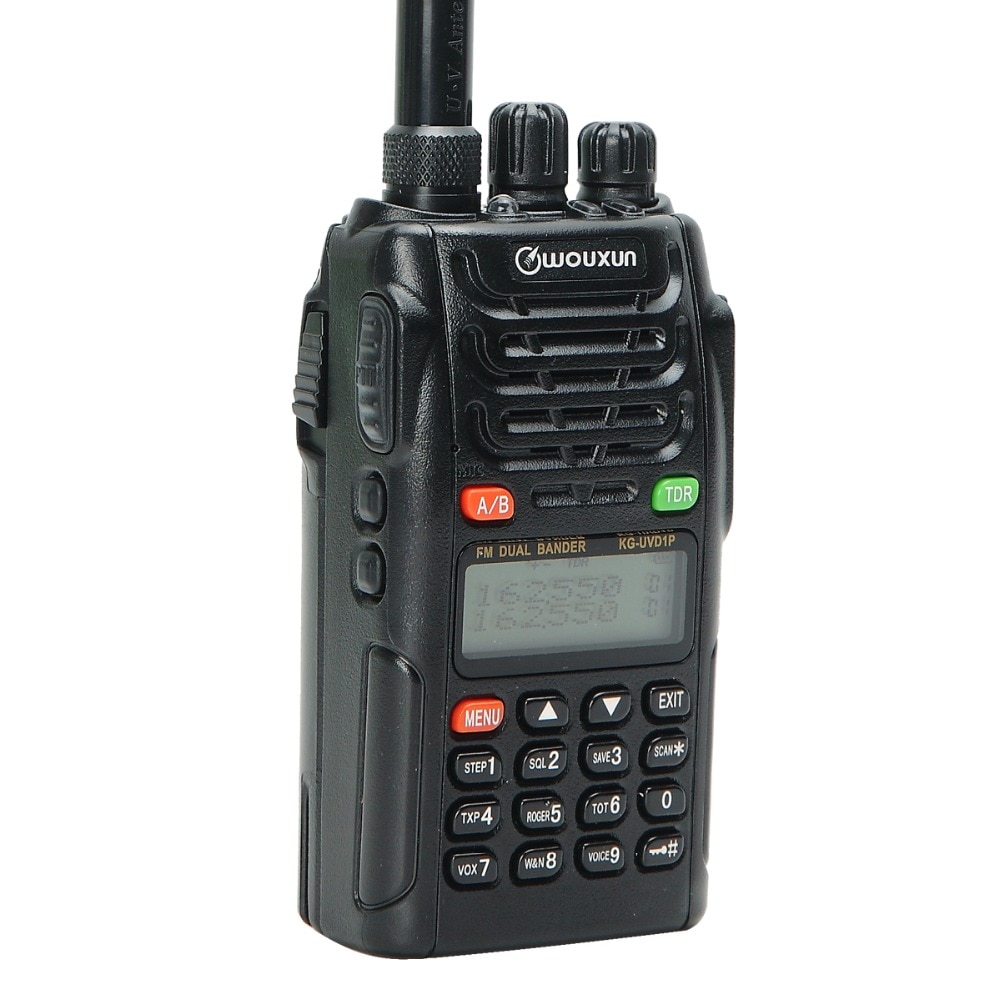

Upgrade Customized Wouxun KG-UVD1P 136-174/216-260MHz Amateur Radios Weather Broadcast DTMF Encoding IP55 Waterproof Ham Radio Walkie Talkie
MAIN FUNCTIONS:

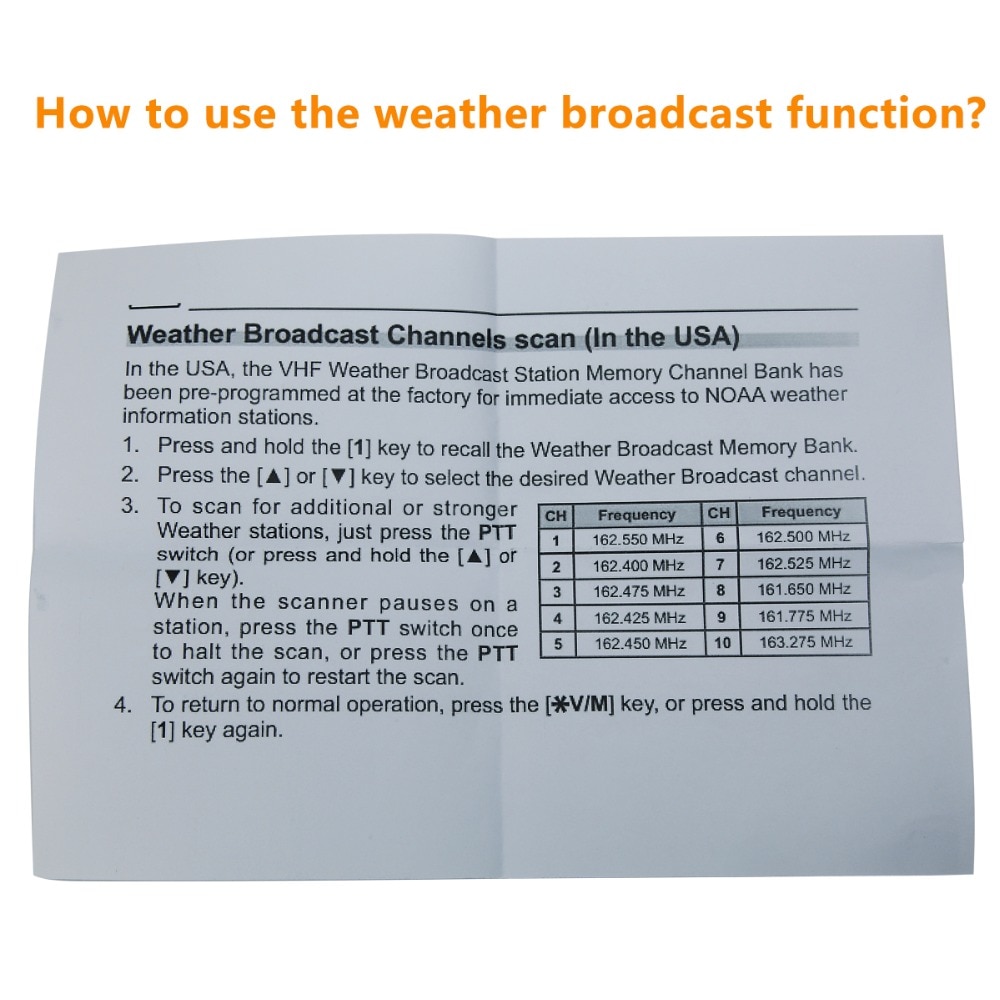

1.Weather BroadcastChannels scan (In the USA)
In the USA,the VHF Weather Broadcast Station Memory Channel Bank has been pre-programmed at the facory for immediate access to NOAA weather information stations.

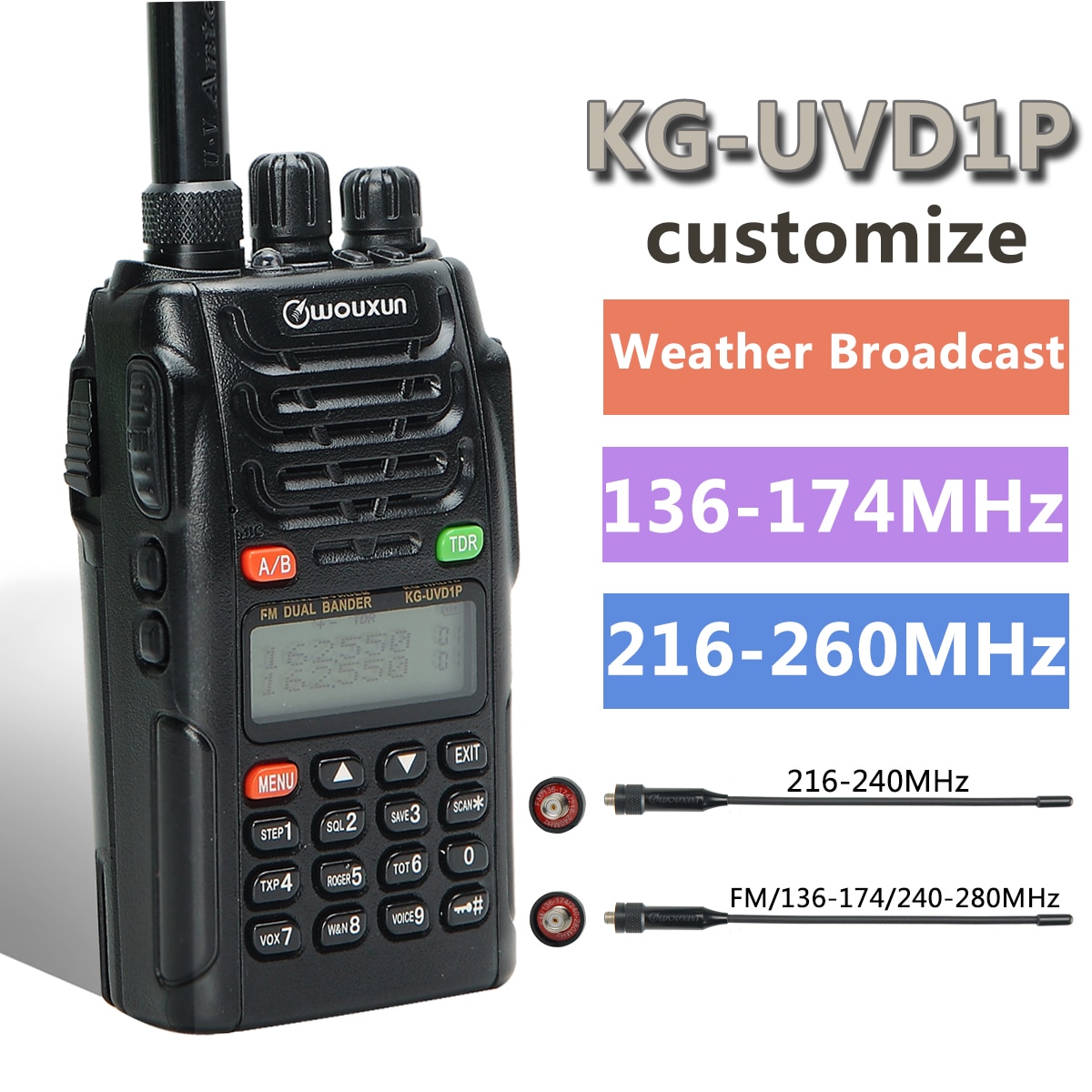

2.136-174/216-260MHz, It is a special frequency, with2 Pcs antennas(136-174/216-240MHz and 136-174/240-280MHz), It is different from normal KG-UVD1P(136-174/400-470NHz
3.1750 Hz Burst Tone
4.DTMF Encoding Function
5.Working Mode :vhf tx-uhf rx or uhf tx-vhf rx can be set freely
6.CTCSS/DCS Scan
7.VOX and SOS Function
8.Bright Flashlight Illumination
9.Digital FM Radio
10.Bandwidth Selection
11.Priority Scan ,Add Scanning Channel “
12.High/Low Power Selection
13.50 Groups CTCSS/105 Groups CCTCSS
14.IP55 Waterproof
Function:
| Frequency Range | Frequency range can be suitable for different countries or areas:
136-174MHz&216-260MHz(Rx/Tx), |
| Memory Channels | 128 Channels |
| Frequency Stability | 2.5ppm |
| Operating Voltage | 7.4V |
| Operating Temperature | -30~+60 |
| Waterproof | IP 55 |
| Antenna Impedance | 50Omega |
| Dimension | 58times105times38(mm) |
| Weight | 250g |
| Transmitter | |
| Frequency Stability | .5PPM |
| RF Carrier Power | UHF: 4W VHF: 5W |
| Effective Radiation Power (ERP) | within pre-determined value 7.5dB |
| Max. Frequency Deviation | Channel Space: 25KHz
Channel Space: 12.5KHz 2 5KHz |
| Audio Modulation | +3dB (pre-emphasis by 6dB between 0.3-3KHz) |
| Adjacent Channel Power | Channel Space: 25KHz ge70 dB Channel Space: 12.5KHz ge60 dB |
| Spurious Radiation | le-30dBm |
| Inter modulation Attenuation | ge40dB |
| Modulation Distortion | le10% |
| Residual FM | le-35dB |
| Residual AM | le3% |
| Receiver | |
| Sensitivity (12dB SINAD) | 0.16microV |
| Squelch Rejection Sensitivity | le0.8microV |
| Squelch Sensitivity | le0.2microV |
| Audio Output power | 500mW |
| Audio Distortion | le5% |
| Audio Response | (300-3000Hz) +1 to -3dB |
| Co-channel Rejection | ge-8.0dB |
| Performance of Amplitude Limiter | le3 |
| Adjacent Channel Selection | Channel Space: 25KHz ge70 dB Channel Space: 12.5KHz ge60 dB |
| Inter-modulation | ge65 dB |
| Resistance | ge84 dB |
| Spurious Radiation | 9KHz-1GHzle-57dBm 1GHz-4GHzle-47dBm |
Factory standard:
1 x Wouxun KG-UVD1P Radio

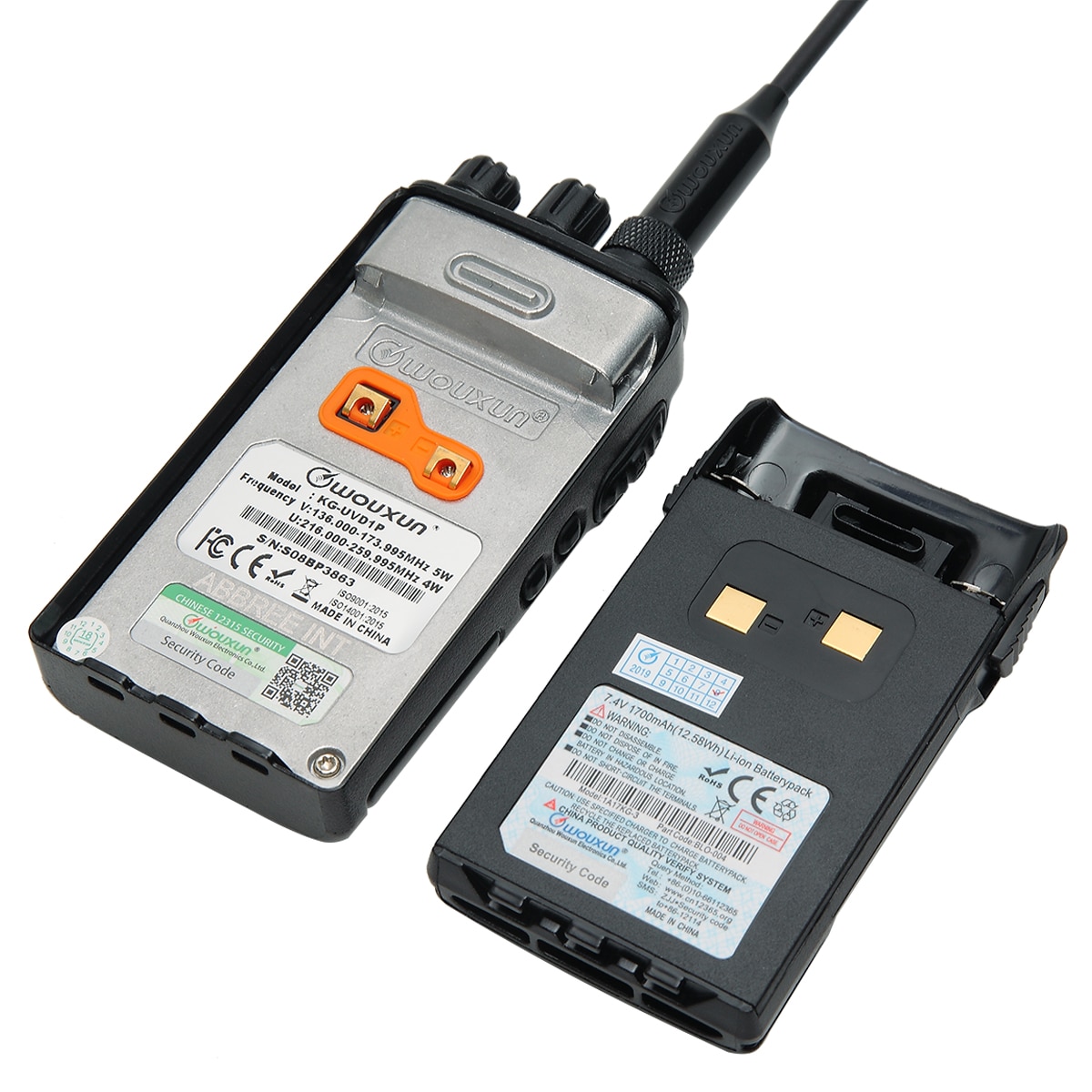

1 x 1700mAh Li-ion Battery
2 x Original High Gain Antenna
1 x Charger
1 x Belt clip
1 x Hand Strap
1 x car charger cable
1 x Userrsquos English Manual Book
