Upgrade 8W Baofeng UV82 10KM Dual PTT Ham Radios
Upgrade 8W Baofeng UV82 10KM Dual PTT Ham Radios - Image 2
Upgrade 8W Baofeng UV82 10KM Dual PTT Ham Radios - Image 3
Upgrade 8W Baofeng UV82 10KM Dual PTT Ham Radios - Image 4

Upgrade 8W Baofeng UV82 10KM Dual PTT Ham Radios

Price range: $29.32 through $55.07

& Free Shipping
Guaranteed Safe Checkout

Upgrade 8W Baofeng UV82 Optionl 5W Baofeng UV 82 Walkie Talkie 10 KM Baofeng 8W Ham Radio 10KM Dual PTT 82HP UV-9R GT-3TP UV-5R

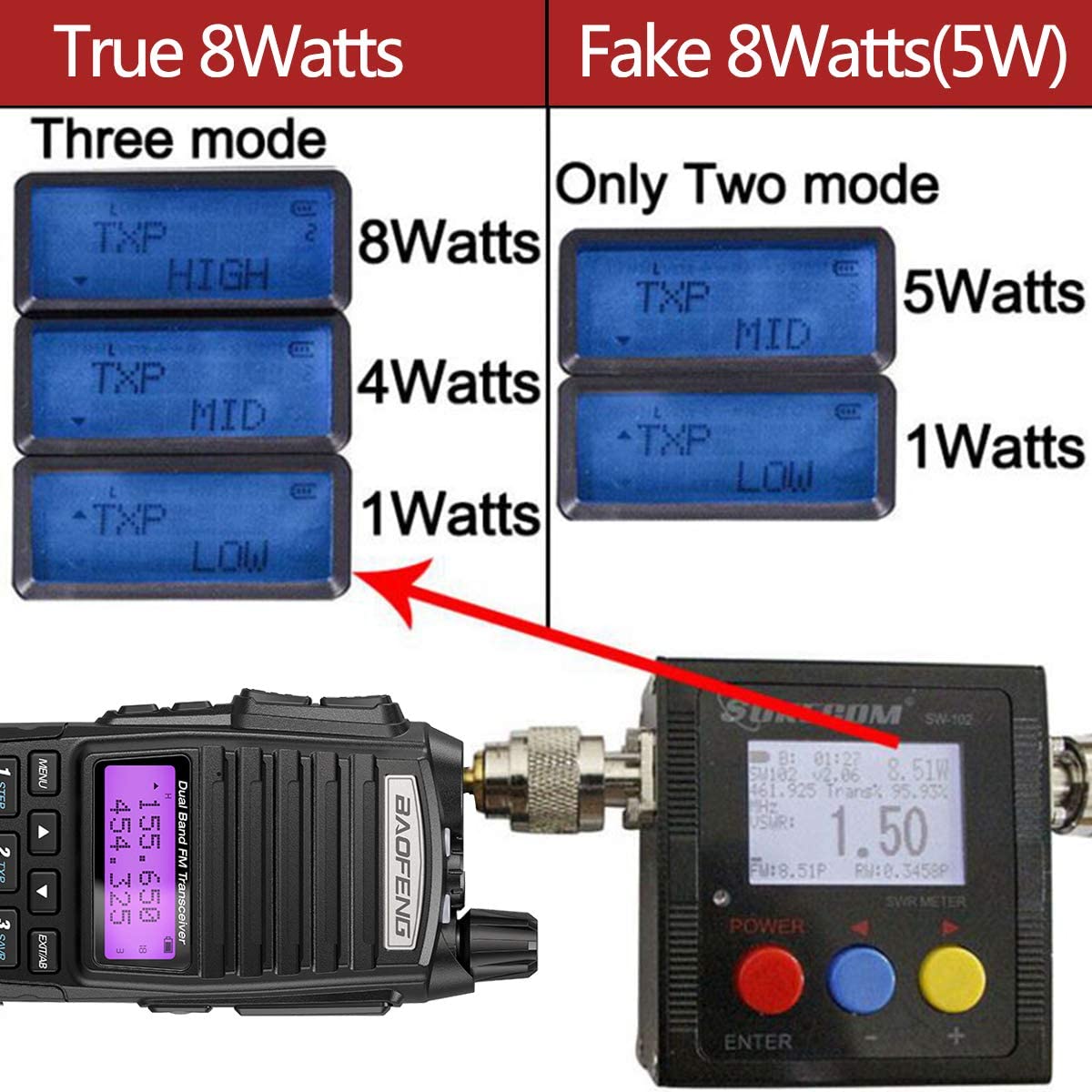

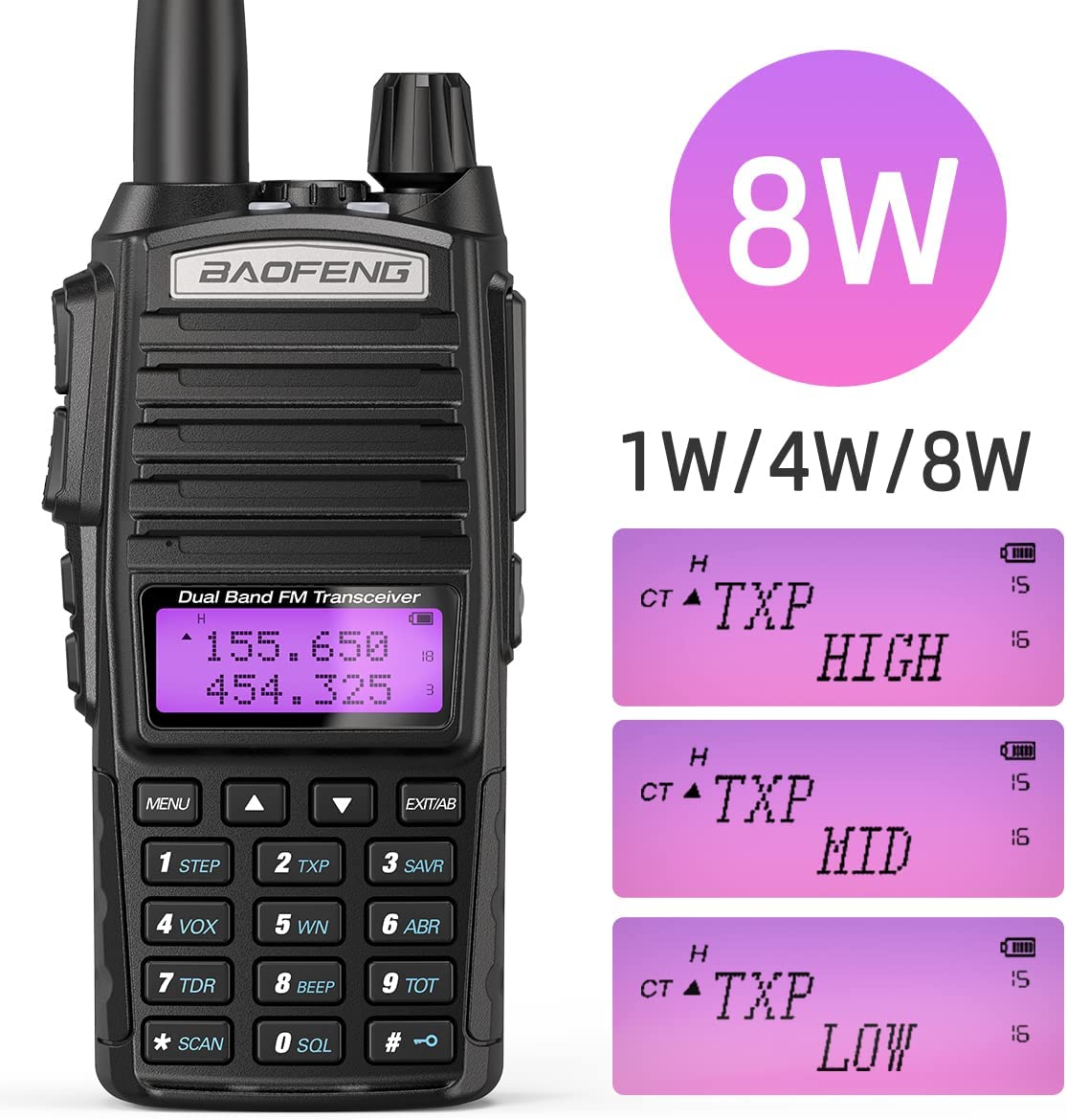

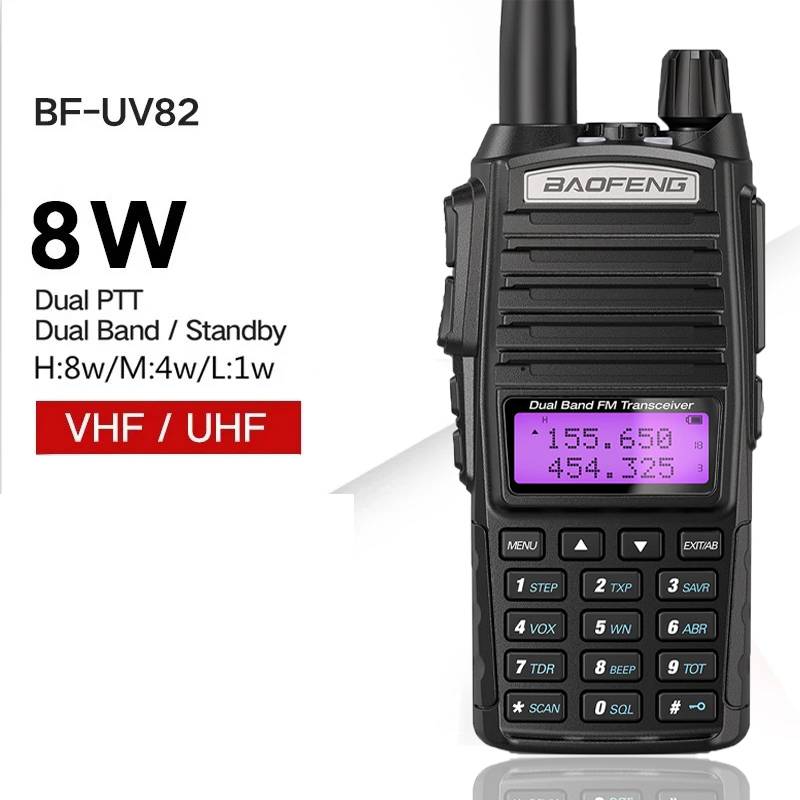

High / Med / Low Power Settings (8W/4W/1W);

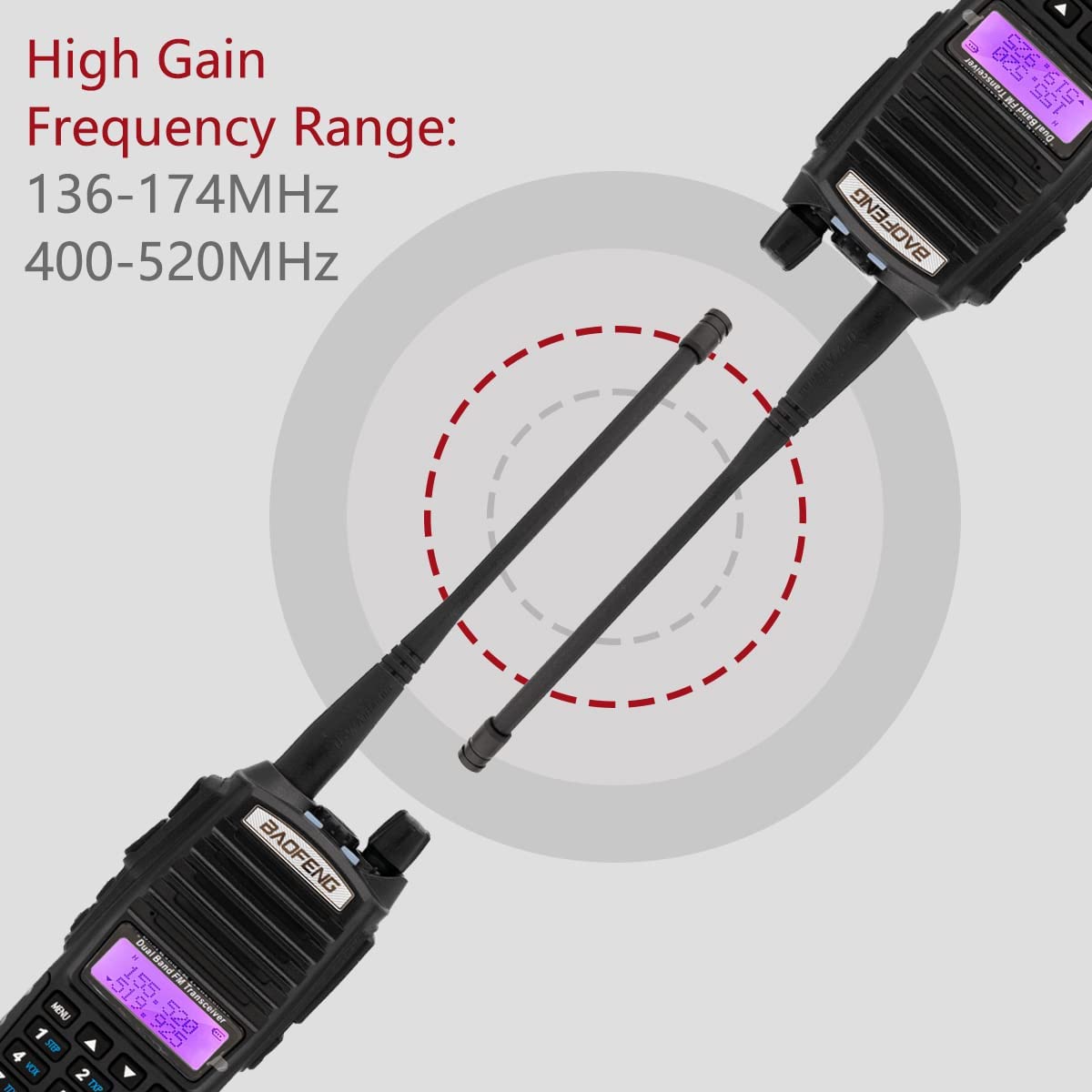

Frequency Range: VHF: 136-174 MHz(Rx/Tx). UHF: 400-520 MHz(Rx/Tx).

Broad (Wide) / Narrowband (Narrow) Selectable Dual-band handheld transceiver with display function menu on the display “LCD”.

Function Busy Channel Lock “BCLO”.

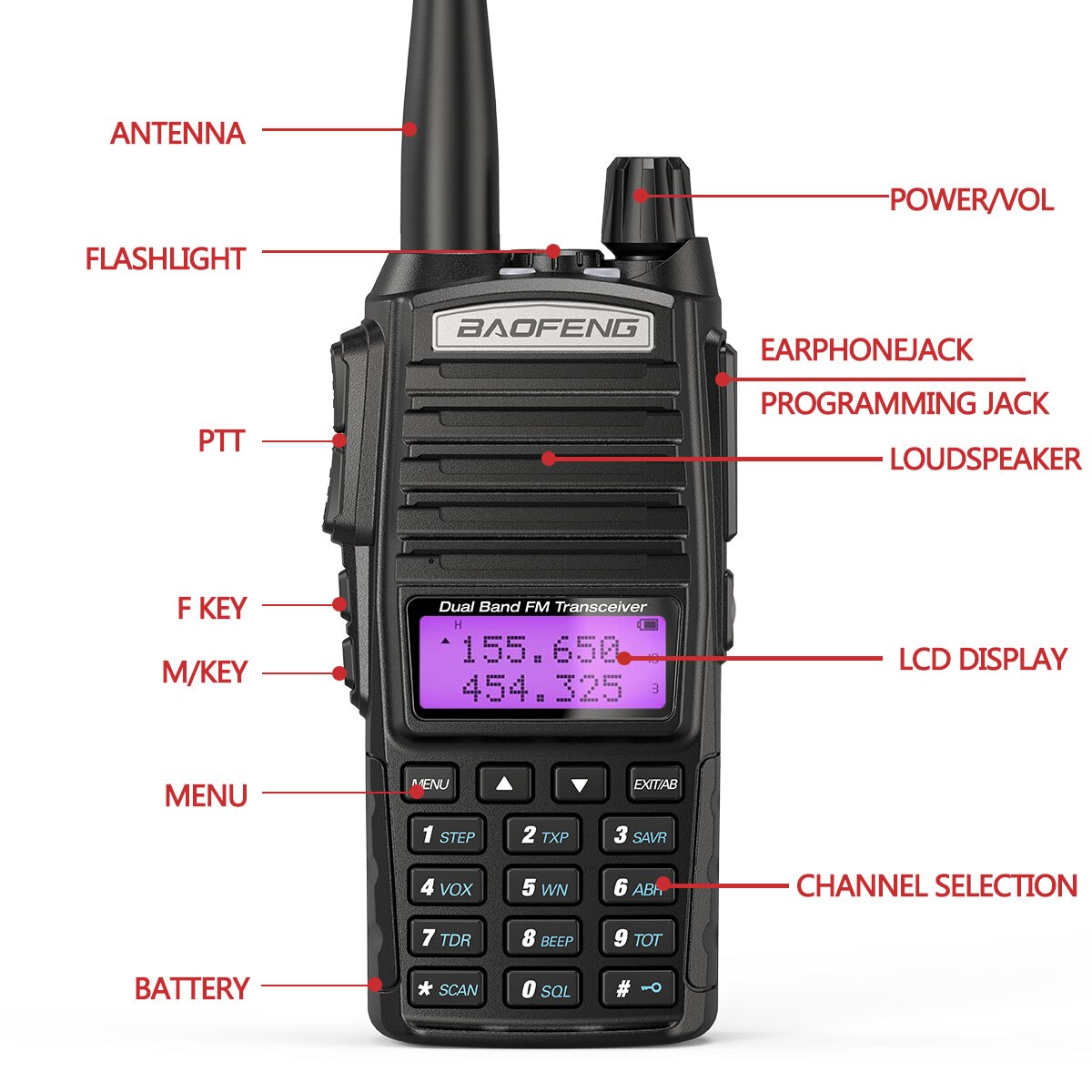

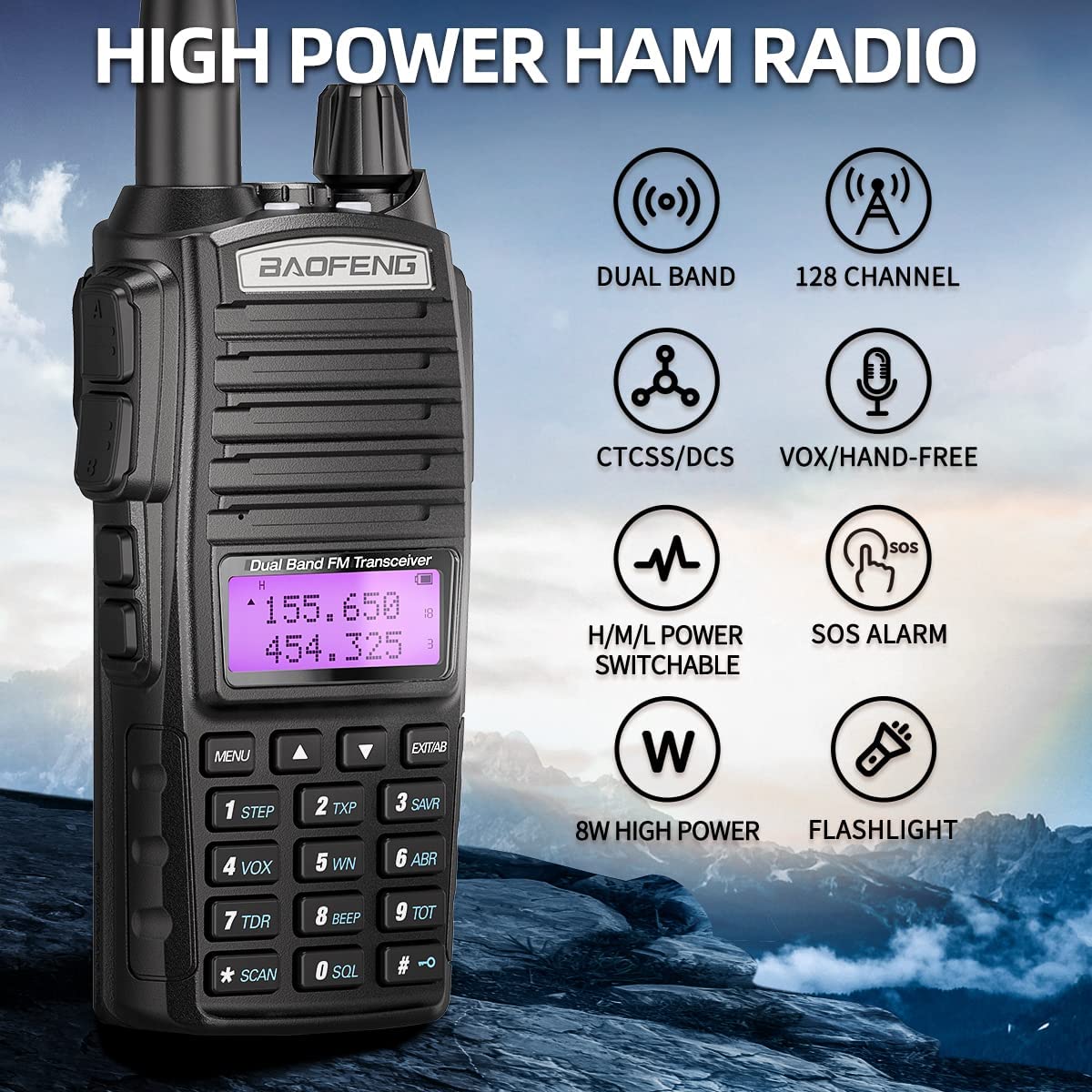

Main features

01) 100% Brand new and high quality
02) Dual-band handheld transceiver with display function menu on the display “LCD”
03) Frequency Mode / Channel mode
04) DTMF encoded
05) Incorporates 105 codes “DCS” and 50 privacy codes “CTCSS” programmable,
CTCSS & DCS scanning and CTCSS & DCS direct input
06) VOX Function
07) Battery Saving
08) Wide/Narrow Band Selection
09) Time-out Timer (TOT)
10) ATUO Keypad Lock
11) Busy Channel Lock Function
12) Priory Scanning Function
13) Low Battery Warning

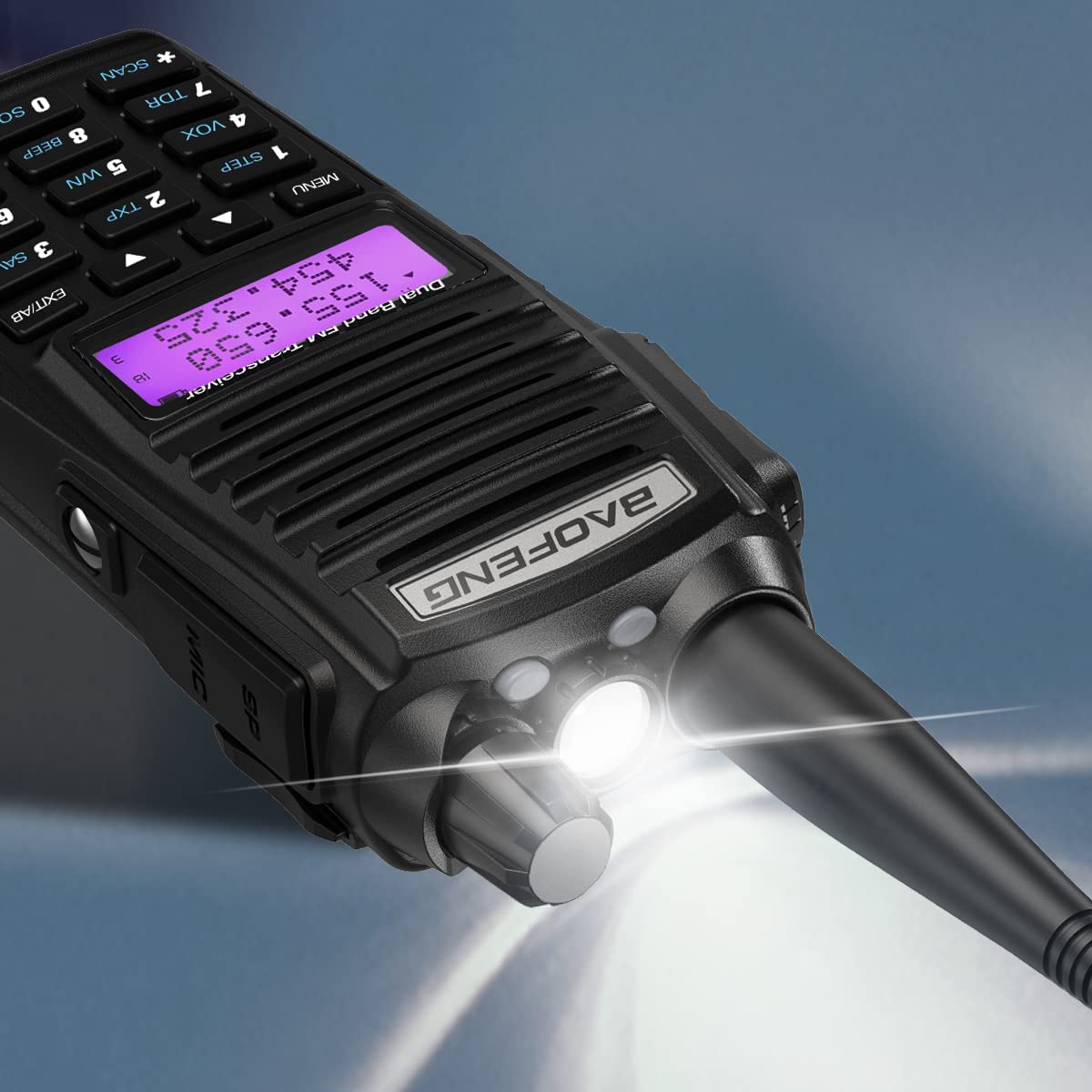

14) LED Flashlight
15) High/Low RF Power Switchable
16) PC programmable
17) Busy Channel Lock (BCLO)
18) Built-in key lock
19) High-capacity battery: low self-discharge, no memory effect, high cycle life,
with special design, can be used in hot and cold area

General
Frequency Range
136-174MHZ and 400-520MHZ (TX/RX)
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain DualBand  antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V <2800MAH MAX
Mode of operation Simple or semi-duplex
Antenna : SMA -Female

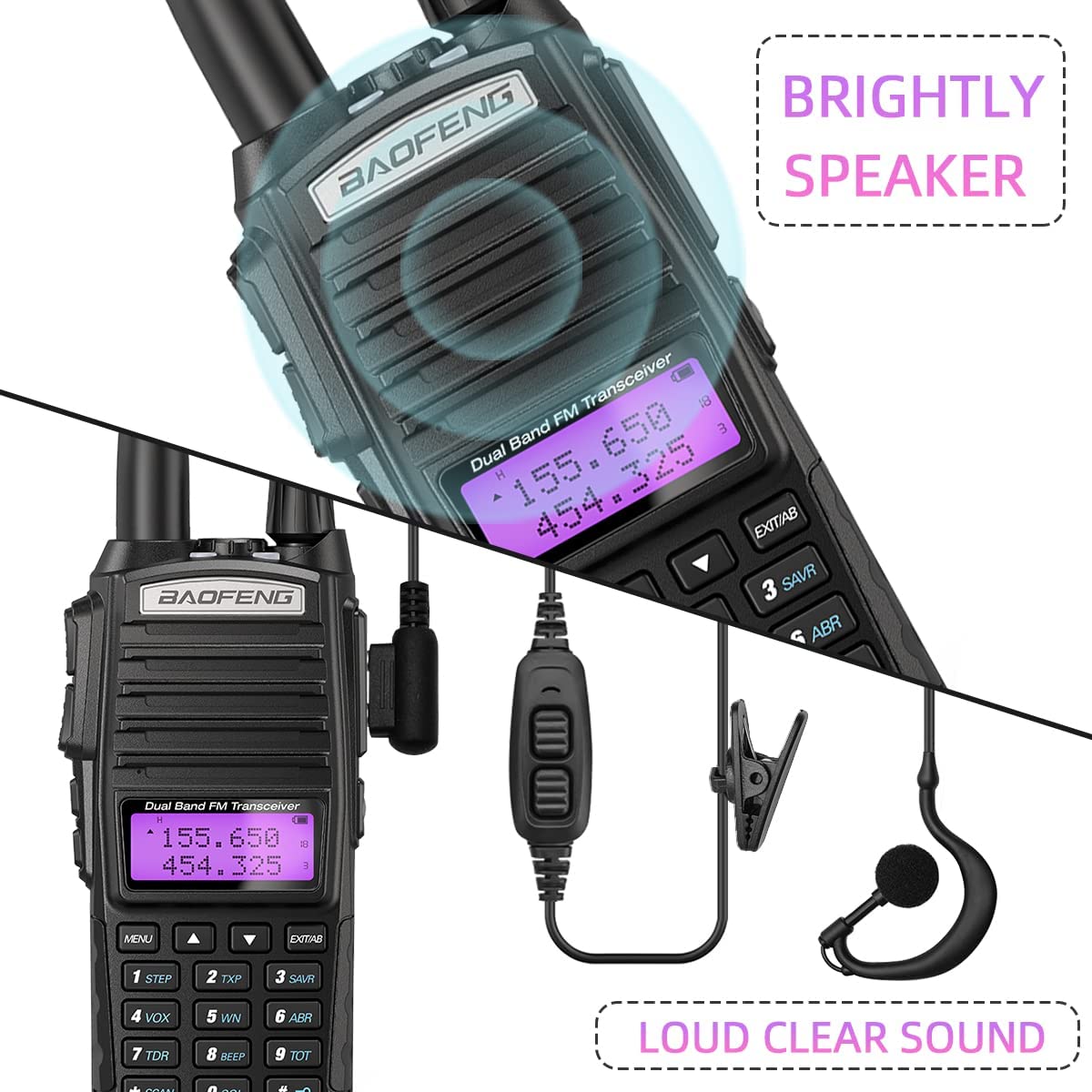

Earpiece / mic type : K-Plug type
Dimension(W x H x D) 132* 60 *35 mm (not included antenna)
Weight 238g(including battery, antenna)

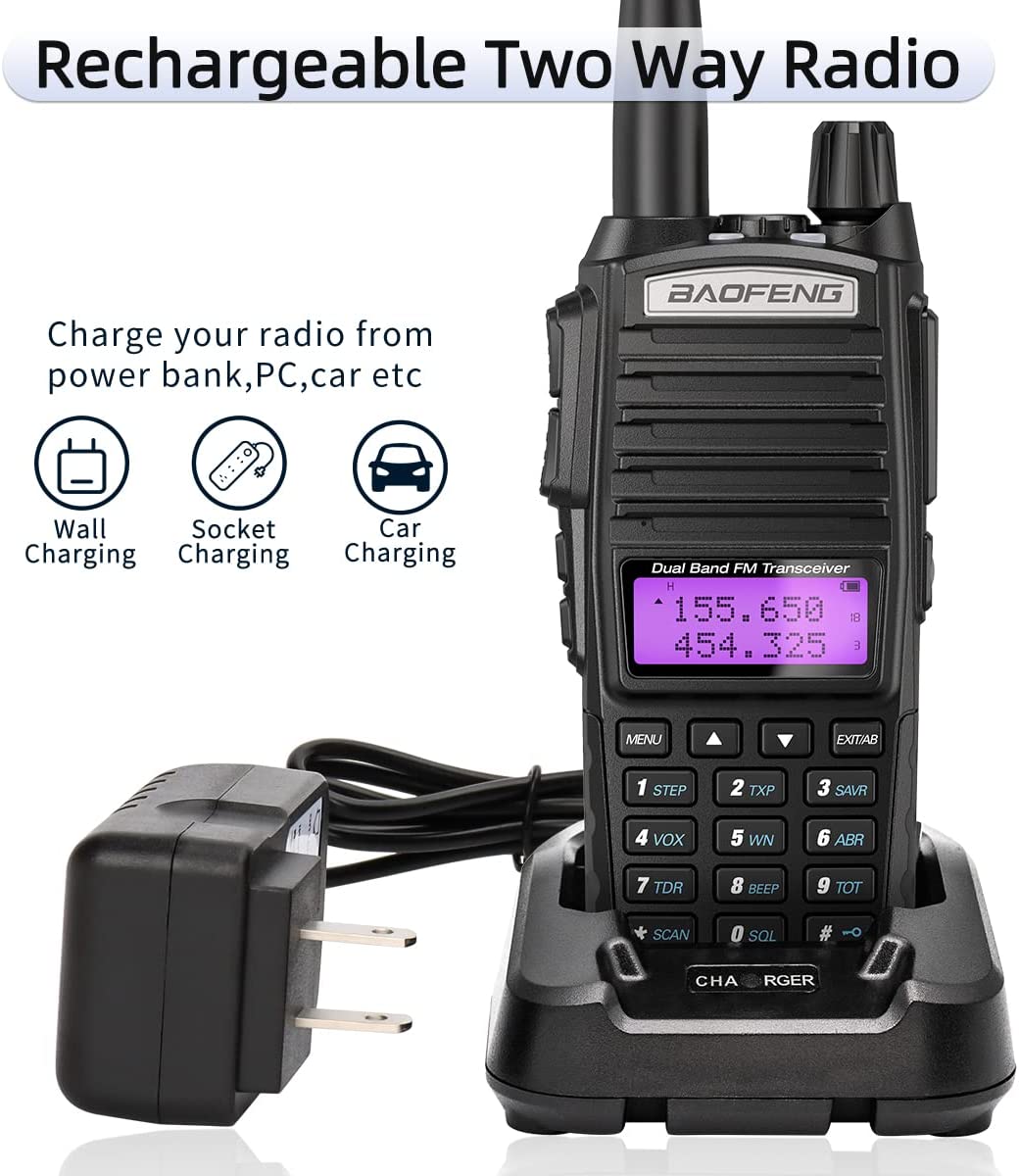

Power adapter Input: AC100-240V, 50-60Hz;
Output: DC10V/500mA;
Plug Type: US/EU/UK/AU
Transmitter
Output power 5W:5W/1W;8W: / 4W/1W (Max 8W)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation 5kHz(Wide) /  2.5kHz(Narrow)
Spurious Radiation 7μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion ≤10%

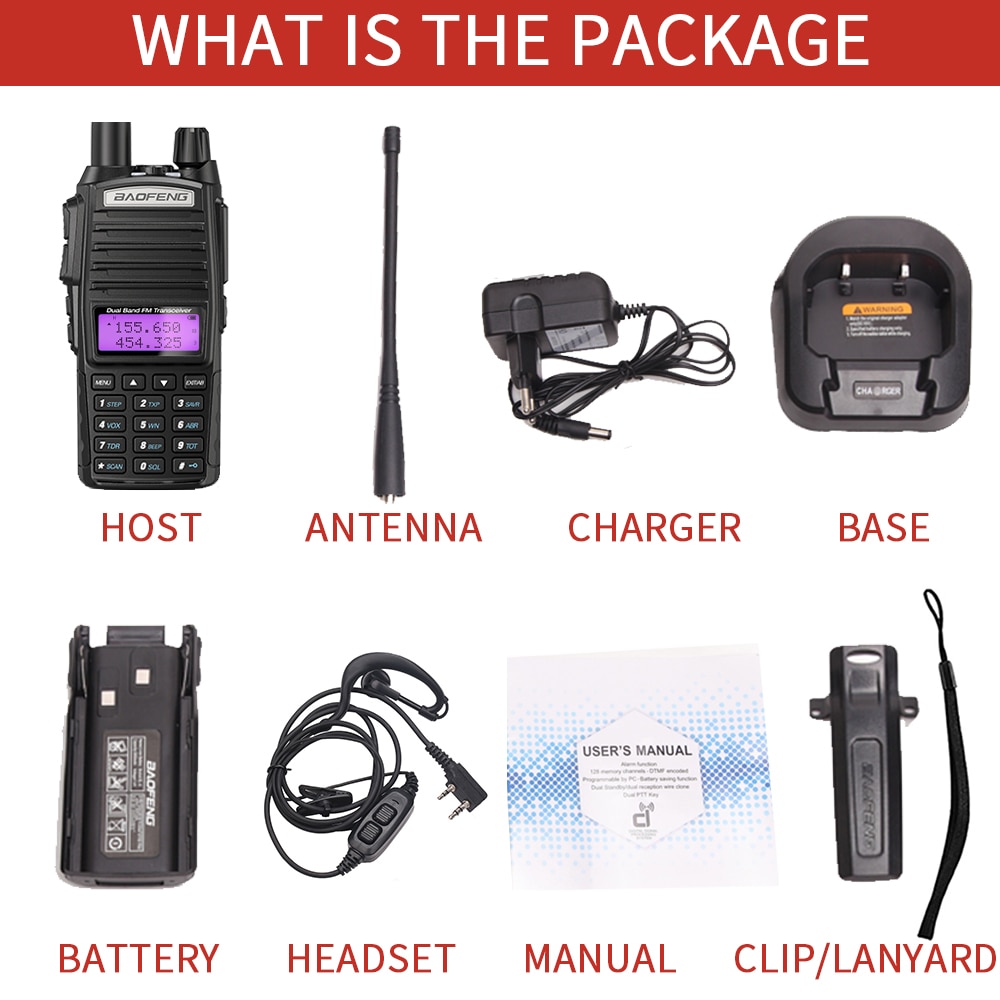

Package:

1 X Portable radio

1 X Antenna

1 X Li-ion battery

1 X LI-ion charger

1 X Belt clip

1 X The Sling

1 X User’s manual

And other accessory depend on your choice in the link
