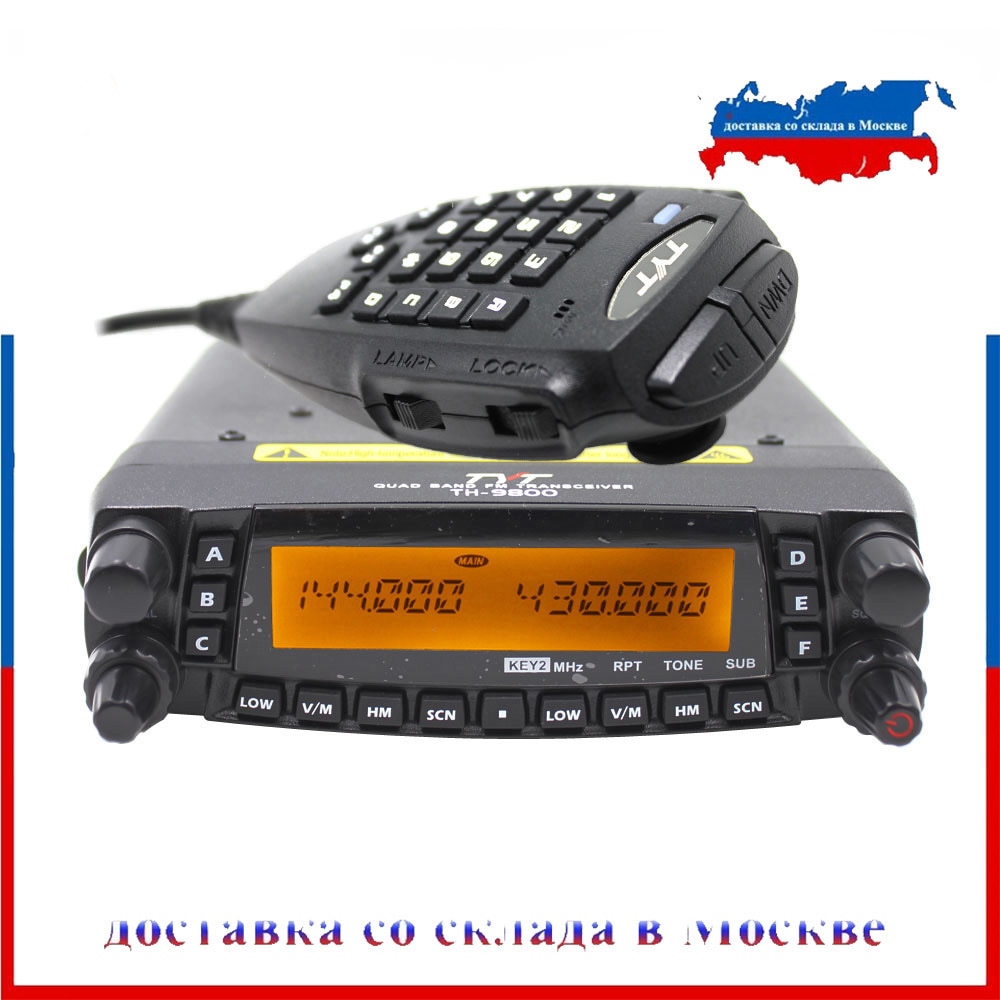

Upgrade version Professional TYT TH-9800 Plus Pro 50W 809CH Quad Band Dual Display Repeater Scrambler VHF UHF
Programming Software and English User Manual can be sent via Email for free.
Main features :
Quad band transmit and receiver
Cross Band Repeat

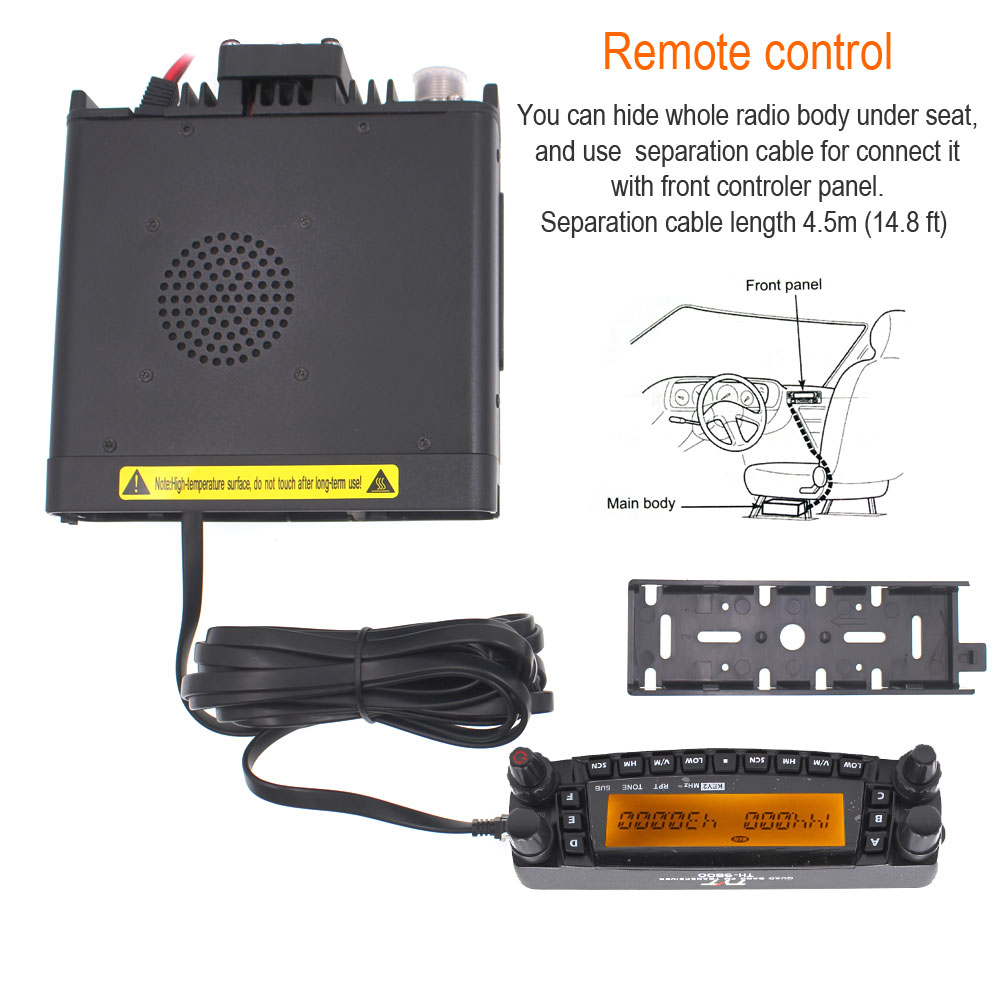

Separately Front Panel
809 Memory Channels
DTMF Microphone
Fm Radio 108-135.995MHz
High/Low Output Power Levels
Reverse Frequency Selection
Dual (V/U) Squelch Set Levels
Dual Repeater Offsets Select-Able
Multi Scanning
Repeater Offset
Keypad Lock Function
Channel Name Editing
Ctcss/Dcs Encode/Decode
|
Specification |
|
| Model | TH-9800 |
| Frequency Range | RX only:108-135.995mhz,320-512mhz, 750-950mhz (Cellular Blocked) |
| TX(FM): 26-33mhz,47-54mhz,136-174MHZ , 400-480MHZ |
|
| Channel Capacity | 809 Channels |
| Channel Spacing | 2.5 /5 /6.25 /10 / 12.5 /15 /20 /25 /50 kHz |
| Modes of emission | F3 |
| Antenna Impedance | 50 Ohms,unbalanced (Antenna Duplexer built-in) |
| Frequency Stability | plusmn5PPM@-140℉~+140℉(-10℃～+60℃) |
| Operating Voltage | -4℉~+140℉(-20℃～+60℃) |
| Operating Temperature Range | 13.8VDC (plusmn15%),Negative ground |
| Current Consumption(Approx) | RX:0.5A(Squelched) |
| TX:8.0A(50/430MHZ),8.5A(29/144MHZ) | |
| Case size（WtimesHtimesD） | 140*41.5*168 mm (w/o knobs & connectors) |
| Weight | 1.2kg |
|
Transmitter |
|
| output power | 50/20/10/5W(29/50/144MHZ),40/20/10/5W(430MHZ) |
| Modulation Type | Variable Reactance |
| Maximum Deviation | Better than -60dB(29MHZ: Better than -50dB) |
| Modulation Distortion | Less than 3% |
| Microphone Impedance | 2kOmega |
|
Receiver |
|
| Circuit Type | Double-conversion super-heterodyne |
| Intermediate Frequency | 49.95MHz/450KHz (left band) |
| 38.85MHz/450KHz (right band) | |
| Sensitivity (for 12dB SINAD) | Better than 0.2muV |
| Squelch Sensitivity | Better than 0.16muV |
| Selectivity(-6dB/-60dB) | 12KHz/30 KHz |
| Maximum AF output | 2W@8Omega for 5% THD |
| AF output Impedance | 4-16Omega |
Package Contents:
- 1 x TH-9800 Mobile Transceiver
- 1 x Microphone
- 1 x Mobile Mounting Bracket
- 1 x DC Power Cord with Fuse
- 2 x Spare Fuse 15 A
- 1 Microphone Clip
- 1times Screw Sets
- 1times Remote Front Panel Bracket
- 1 x English Operating Manual
1 x Extension Cabl
