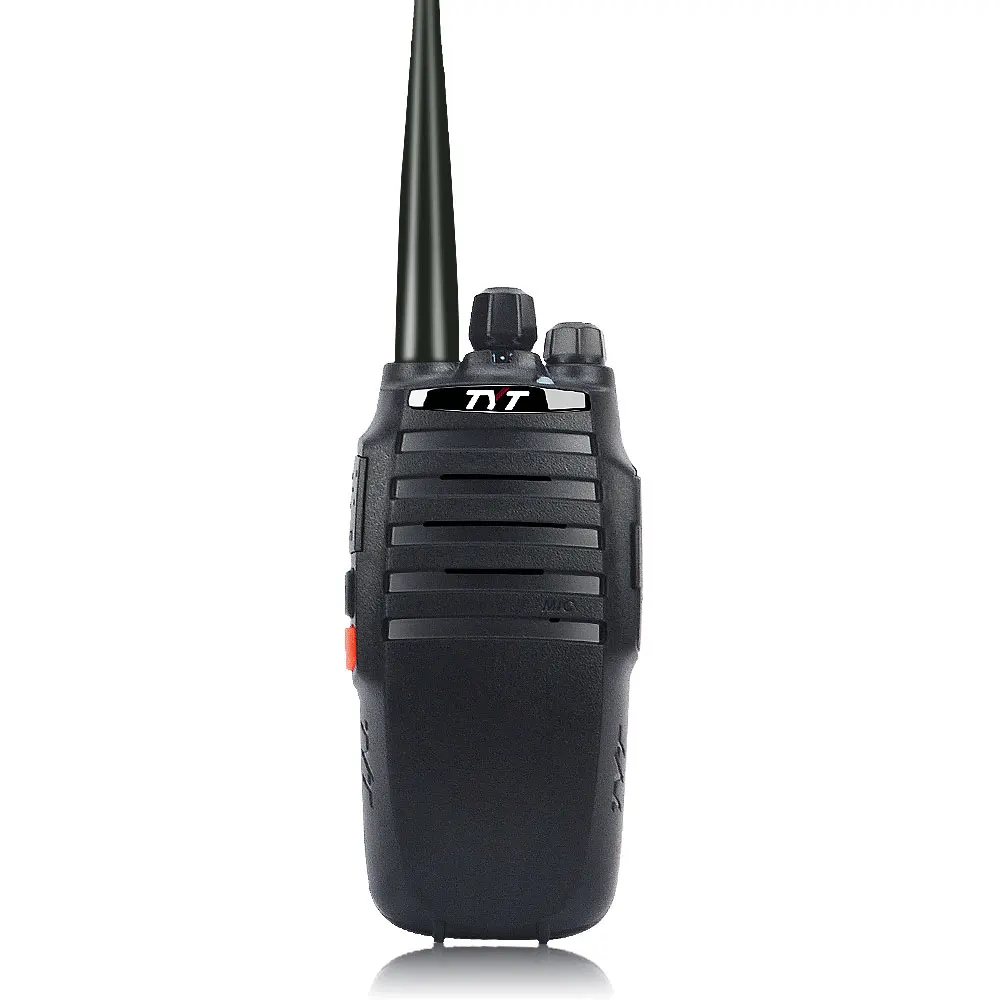

TYT TC-8000 Single band VHF 136-174MHz or UHF 400-520MHz 10watt high power long distance Scrambler Portable walkie talkie 16CH with extra high gain antenna,3600mAh battery pack
Features:
- VHF:136-174MHz or UHF: 400-520MHz single band
- 16 channels Analog Two way radio
- Non-standard CTCSS/DCS Code
- PC programming protection
- VOX
- CTCSS/DCS
- Chinese and English voice prompt
- Battery saving function
- Hi/low power selective
- Scan
- Scrambler
- COMP
- Wide/Narrow bandwidth selective
- End-tone elimination
- Emergency alert
- Power protection
- High/low voltage TX prohibition
- Low battery prompt
- 1750Hz tone
- Side-key assignment
Specifications:
|
General |
|
| Model Number | TC-8000 |
| Frequency Range | VHF:136.000-174.000MHz
or UHF:400.000-520.000MHz |
| Channel Number | 16 |
| Working Voltage | DC 8V |
| Working Temperature | -10°C ~+50°C |
| Antenna | High gain antenna |
| Antenna Impendence | 50 ohm |
| Working Mode | Simplex |
| Dimensions | 132*59*32mm |
|
Receiver |
|
| Frequency Range | VHF:136.000-174.000MHz
or UHF:400.000-520.000MHz |
| Sensitivity | ≤0.2µV |
| Occupied Bandwidth | ≤16KHz |
| Selectivity | ≥65dB |
| Intermediation | ≥55dB |
| Audio Power | 1W |
| Audio distortion | ≤5% |
| Frequency Stability | 5ppm |
| Current | 80mA (Standby),220mA( working) |
| Audio Response | +7~12.5dB |
|
Transmitter |
|
| Frequency Range | VHF:136.000-174.000MHz
or UHF:400.000-520.000MHz |
| Output Power | H=9W ±1W, L=5W ±0.5W |
| Modulation mode | 16KF Ø3E |
| Spurious radiation | ≤7.5µW |
| Modulation noise | <-40dB |
| Modulation distortion | <5% |
| Frequency Stability | 5ppm |
| Maximum deviation | ≤±5KHz |
| Current | ≤2300mA |
| Audio response (300-3000Hz) | +6.5~-14dB |
| Adjacent Ch.Power | ≥65dB |
| Intermediation sensitivity | 8~12mV |
Note: Specifications will be revised without notice due to technical improvement. Thank you.
Package Contains:
1× TC-8000 Single band radio body

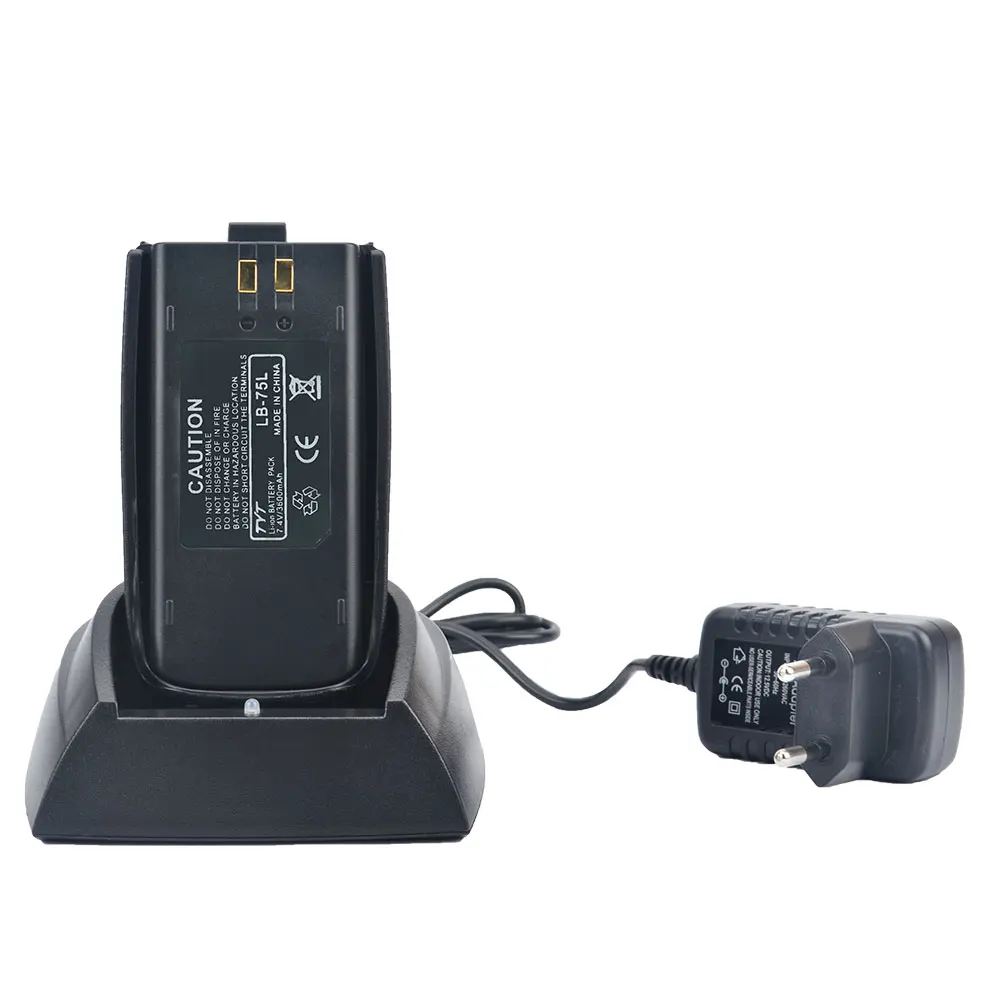

1× 3600mAh Li-ion Battery Pack

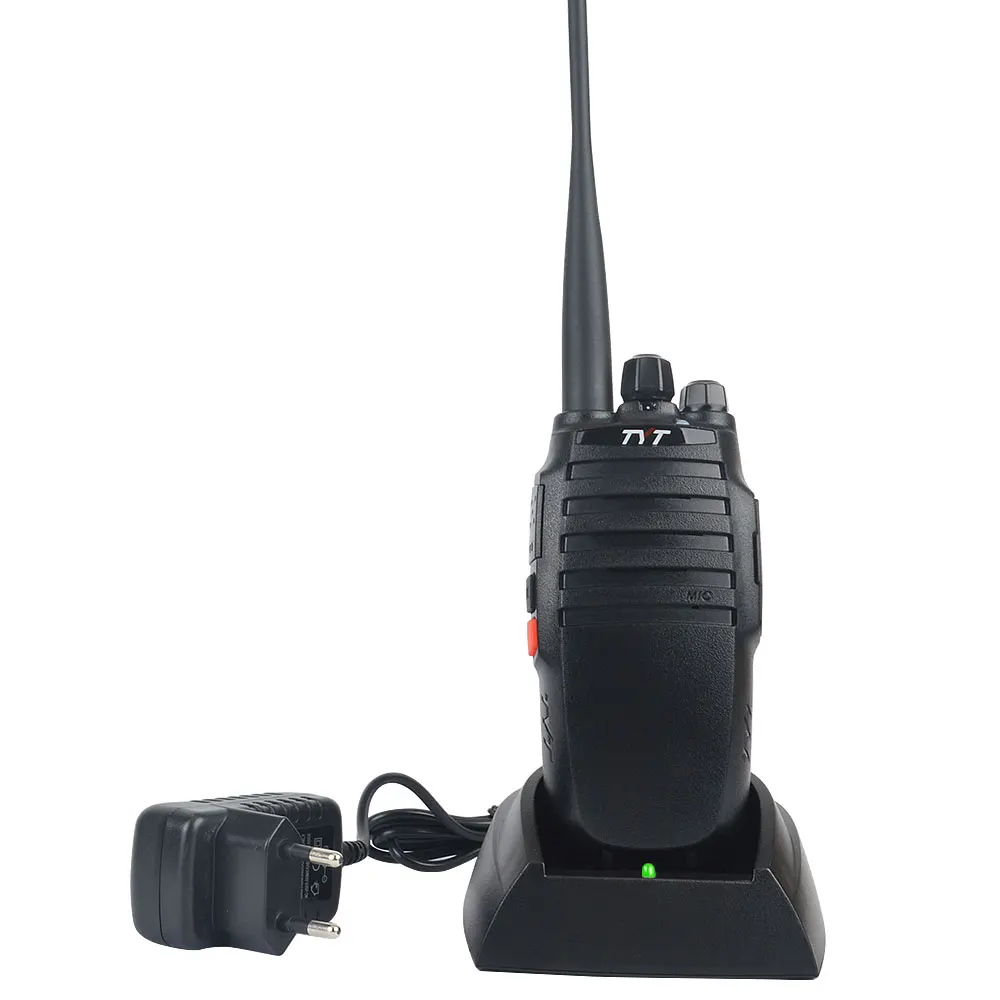

1× Desktop Charger
1× AC Adapter
1× SMA-Male Standard Antenna 15cm

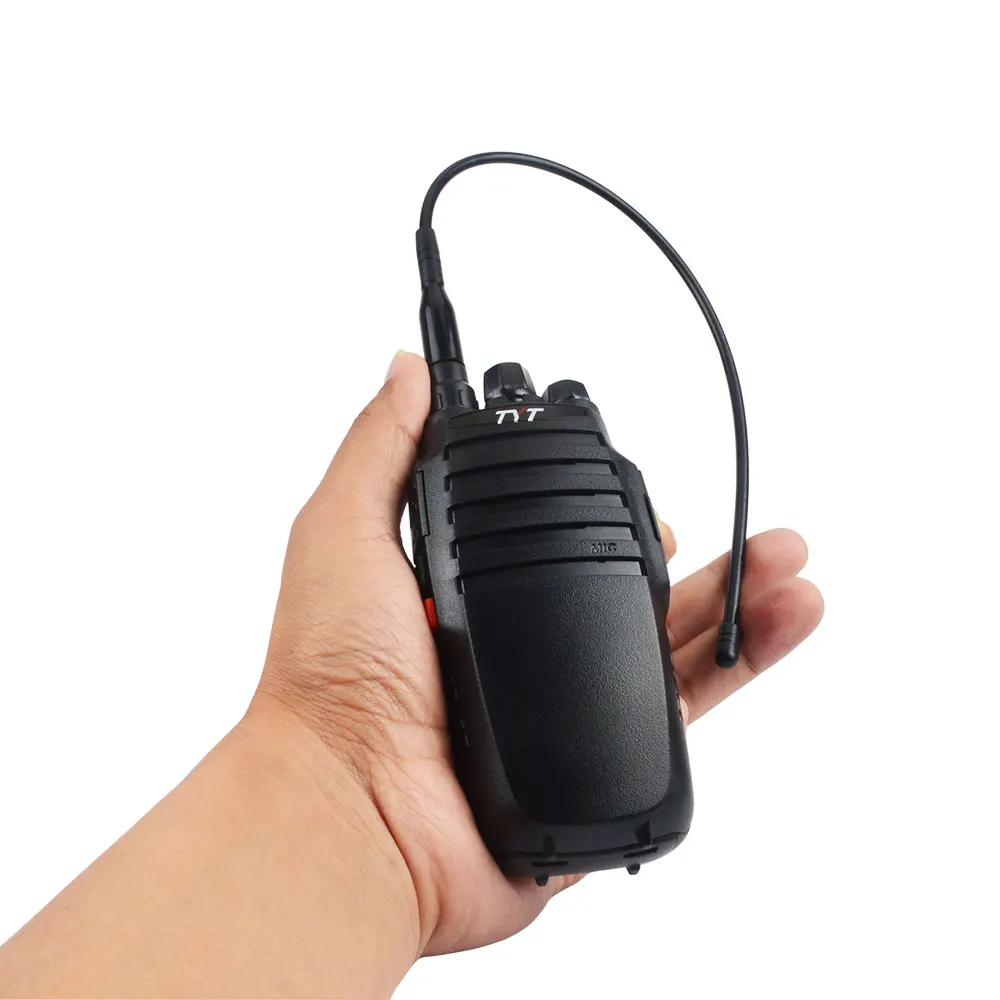

1× High Gain antenna 35.5CM
1× Belt Clip
1× User’s Manual

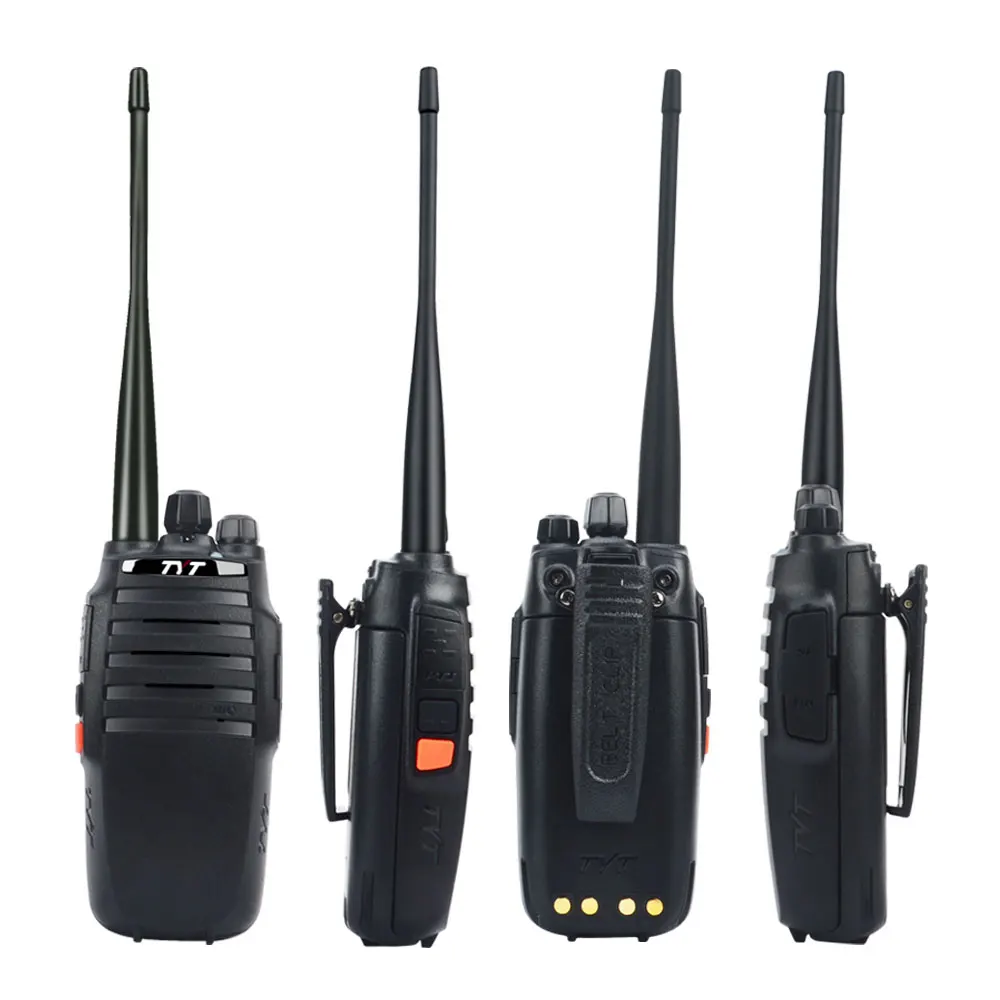

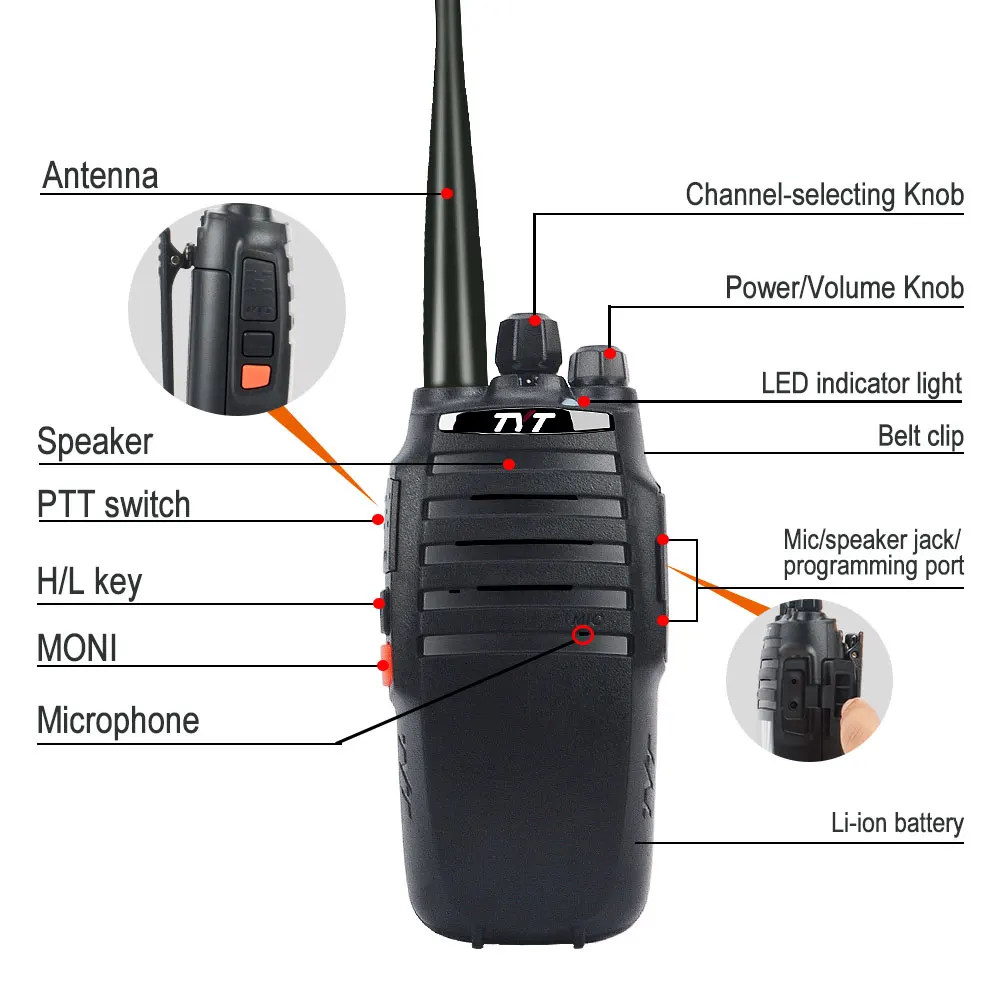

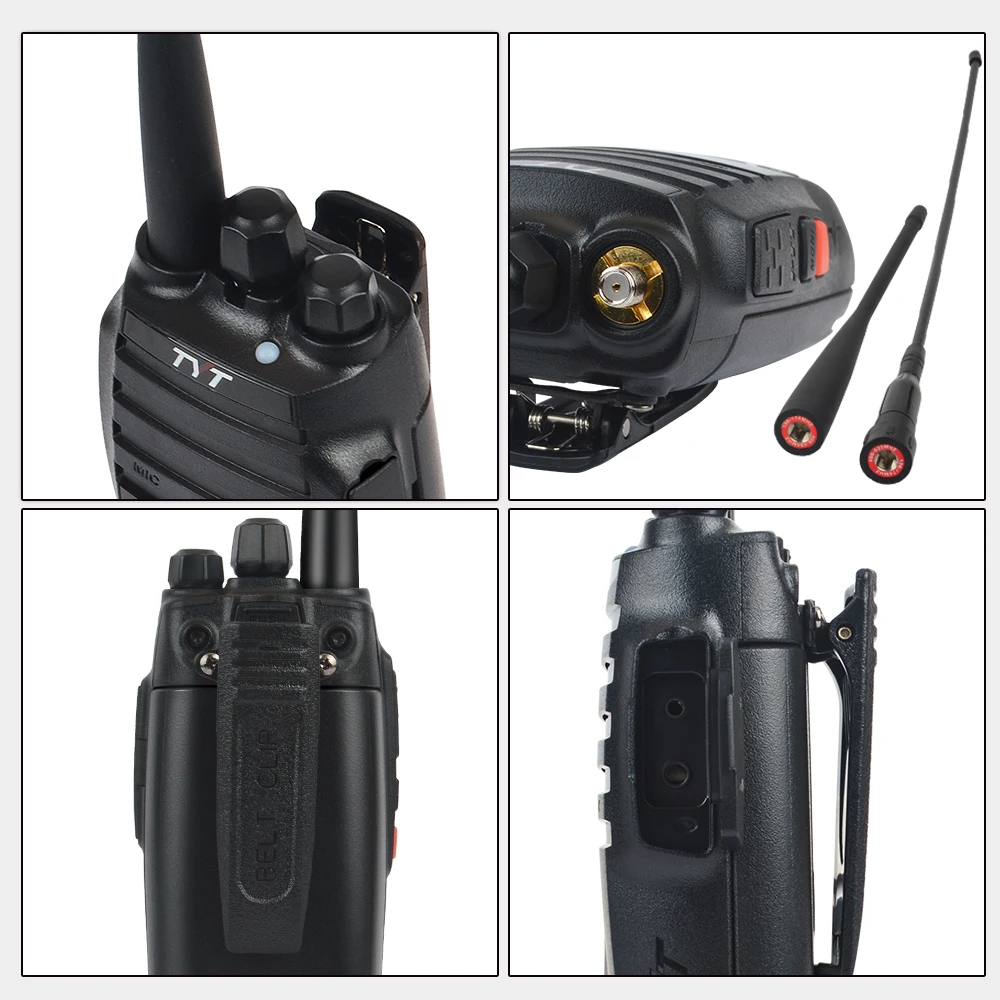

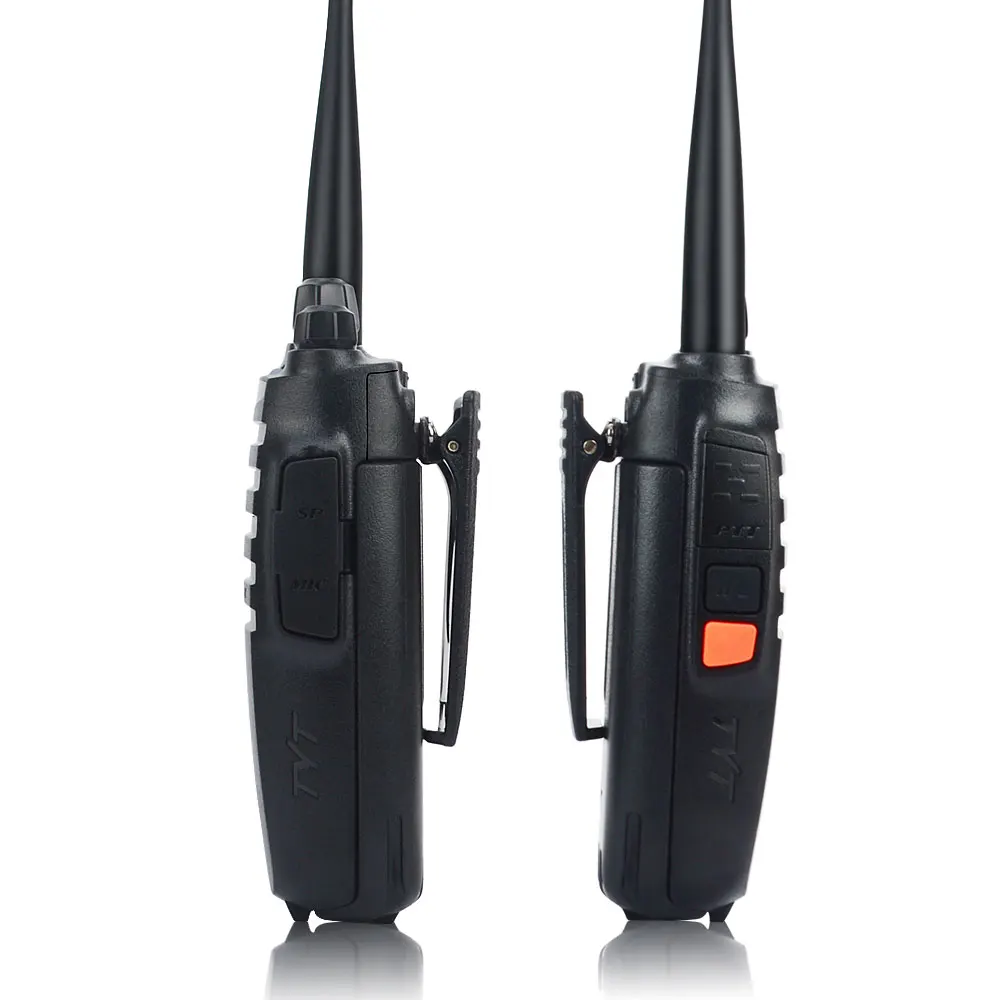

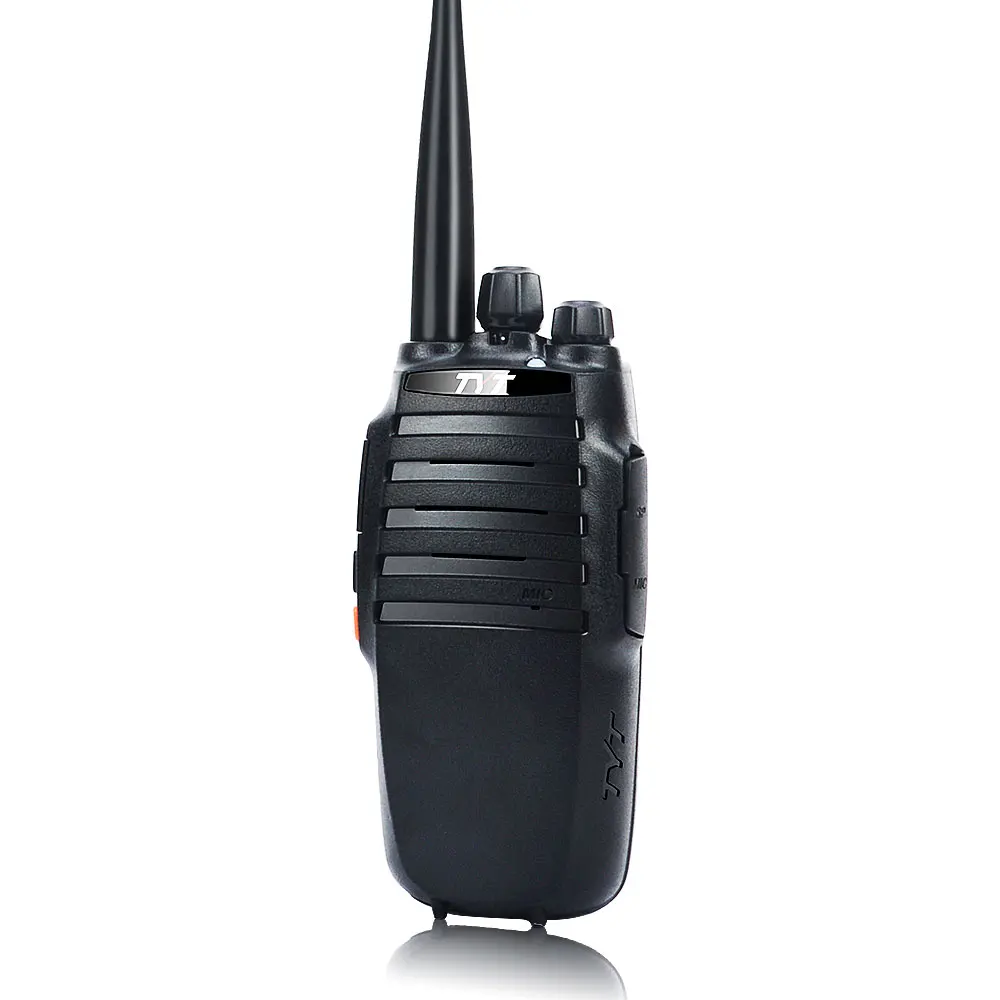

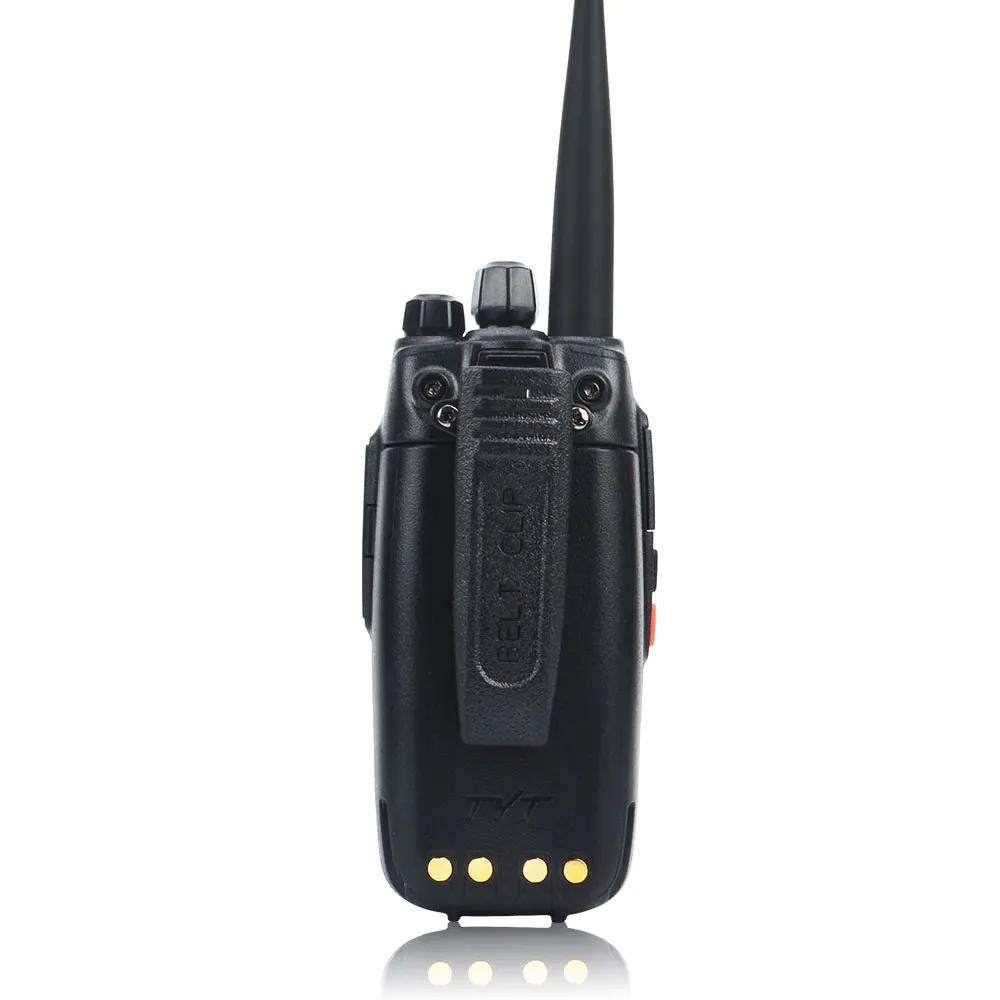

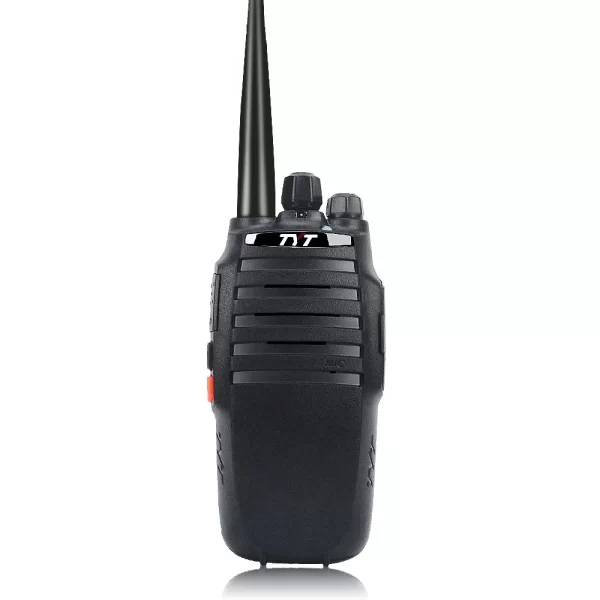

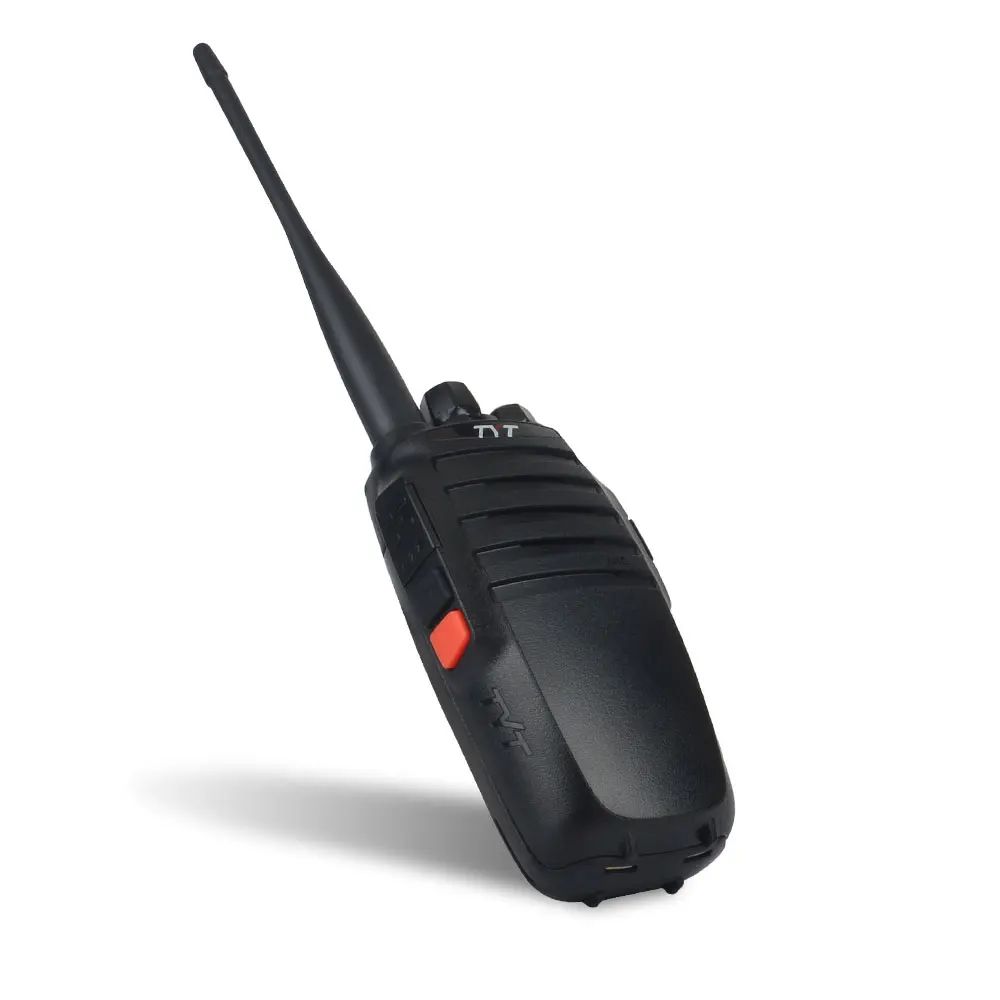

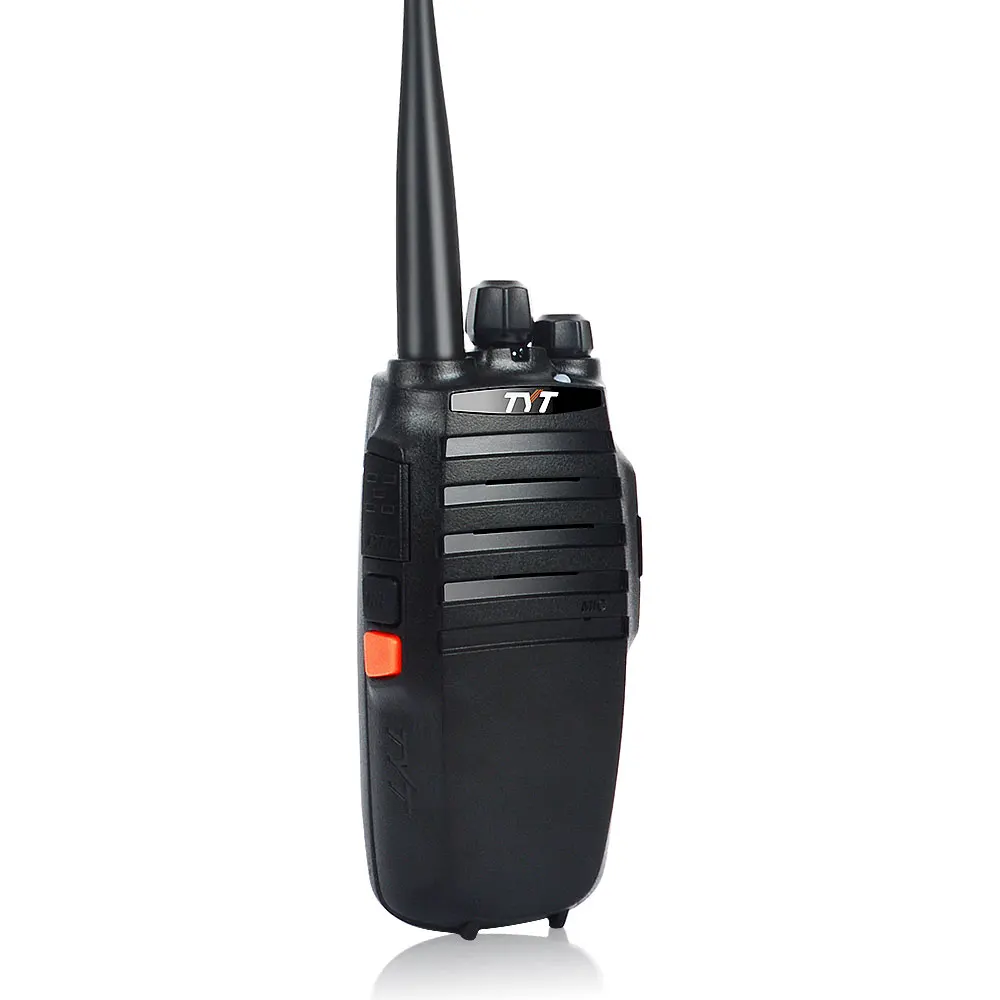

Photos:
