TYT MD-380 GPS Handheld DMR Walkie Talkie UHF VHF Digital Two Way Radio

110.00$130.00$

& Free Shipping
Guaranteed Safe Checkout

TYT MD-380 GPS DMR Digital Two Way Radio UHF 400-480MHz VHF 136-174MHz 5W Walkie Talkie

The BEST walkie talkie EVER! TYT MD-380 DMR digital radio uses Time-Division Multi-Access (TDMA) digital technology, providing you reliable, efficient, simple-to-use & cost-effective communication. And this is compatible with Motorola TRBO Tier I & II. DMR is growing rapidly across the world, and this is the most affordable and BEST way to join the fun.
Features:
Up to 1,000 channels / Voice prompt / Power-on protection / Priority scan
Updated software available for new features
Double modes: Operate in both Digital & Analogue mode, allows easily migrate from analog to digital (programmed by software).
In digital mode: Text messages; private call, group call, all call; providing clearer voice communications throughout the coverage area.
In analog mode: Built-in CTCSS/DCS to avoid receiving irrelevant calls.

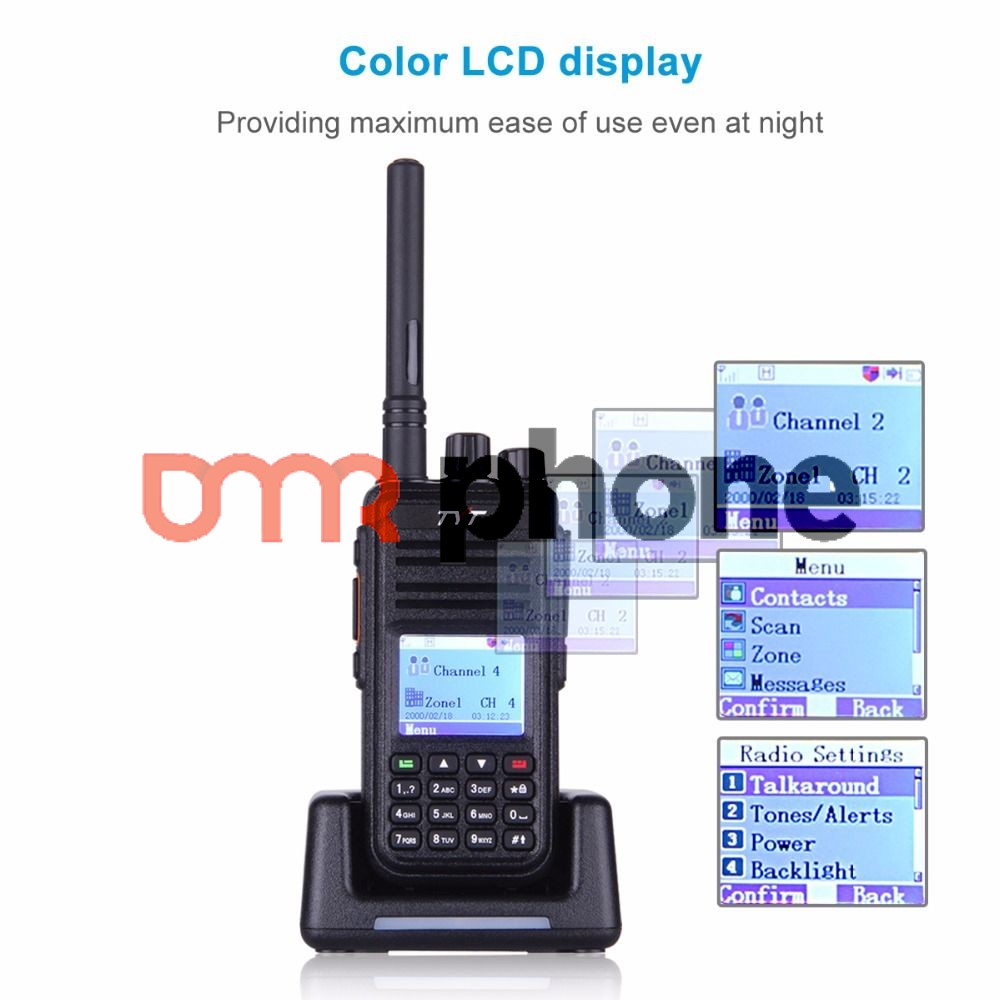

Color LCD display: Providing maximum ease of use even at night.
Encryption function: Emergency alarm only use to transfer emergency situations, you can release a emergency call at anytime and anywhere. Even the walkie talkie is busy in transferring and receiving.
DTMF function: Decoding and encoding, allows to operate when there is interference in the radio system.
VOX: The user’s voice is detected and the radio transmits without pressing any buttons, freeing hands for other tasks.
Remote kill/stun/activate: If the radio is killed or stunned, all attempts on operation by the user will be ignored. The radio will be activated or revived only when it receives the correct code.
Battery: Normal use for about 9-12 hours; Continuous use for about 2.1 hours; Standby time for about 52 hours.
Communication distance: 1-7 kilometer, allows more clear calls under various environment including urban area, mountain and lake, etc.
Compliance & compatibility: Complying with digital protocol ETSI TS 102 361-1, -2, -3; compatible with Mototrbo Tier I & II.
Light weight: One walkie talkie including one antenna and one battery weighs only 280g, easy to take and save your effort.
Highly detailed user manual: Coming with highly detailed user manual, to help you with use.
Certificate & Warranty: CE/FCC/IC/1 year warranty
GPS function Optional
Specifications:
General specifications:

Condition: 100% brand new
Color: Black
Material: Plastics, aluminum
Type: Digital two way radio
Walkie Talkie Type: Portable
Display Type: LCD
Frequency range: 400-480MHz (UHF)
Channel: 1,000 Channels
Channel spacing: 12.5KHz
Operating voltage: 7.4V

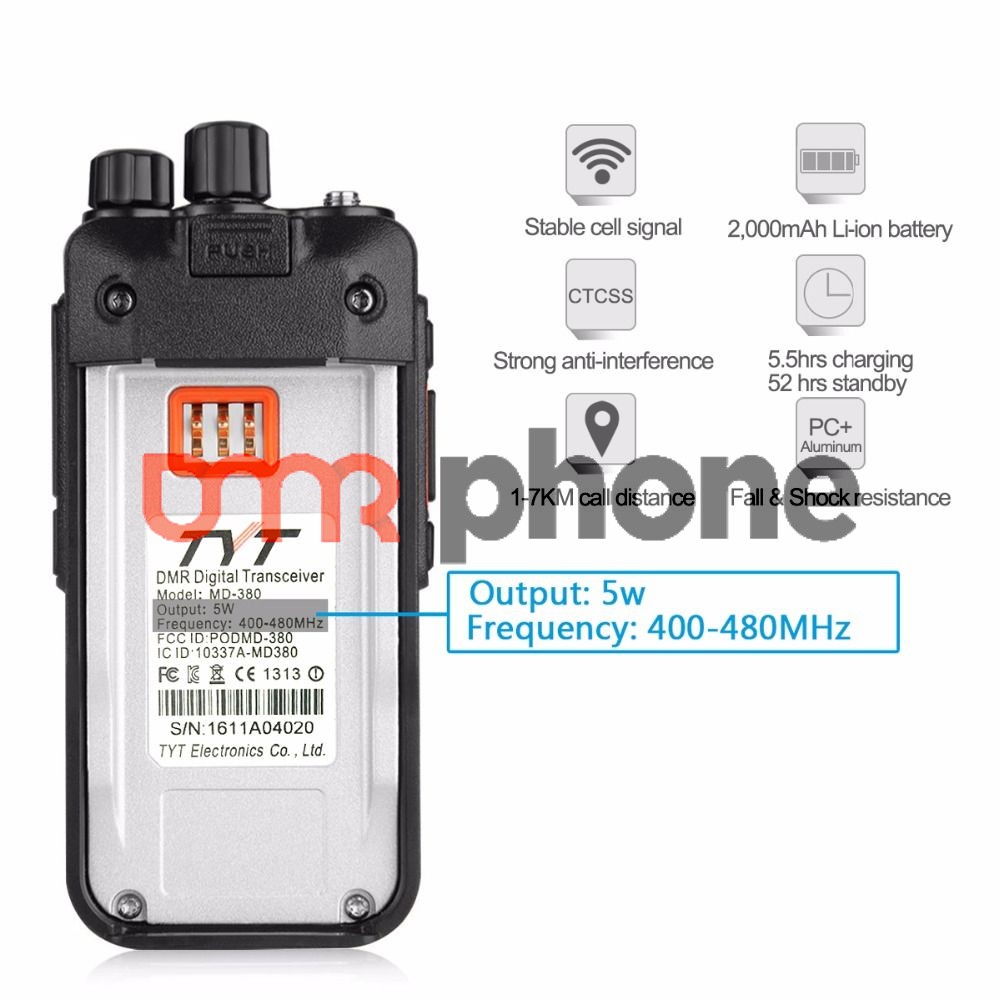

Battery type: 2,000 mAh Li-ion battery
Operating temperature: -30℃~+60℃
Store temperature: -40℃~+85℃
Antenna impedance: 50Ω
Audio output power: ≤1,000mW @ 16Ω
Battery capacity: 2,000mAh standard Li-ion battery

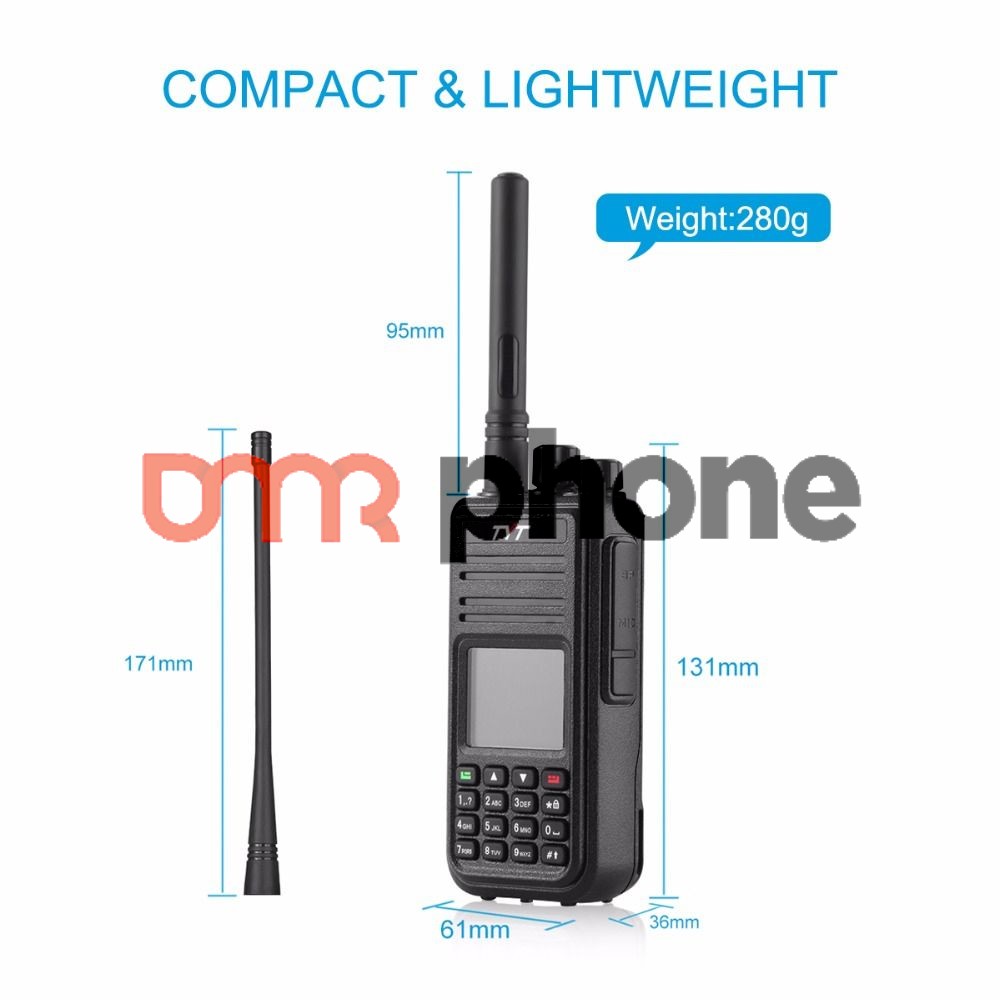

Dimension (H*W*D): 131*61*36mm (Not Including Antenna)
Transmitter:
Output power: High: ≤5W (HI); Low: ≤1W (Low)
Frequency stability: ±1.0PPM
Adjacent channel power: ≤-60dB
Free time slot power: TDMA: ≤57dBm
Hum and noise: -40dB @ 12.5KHz
Spurious radiation: Antenna: 9KHz-1GHz ≤-36dBm; 1GHz-12.75GHz ≤-30dBm
FM modulation mode: 12.5KHz: 11K0F3E
4FSK digital mode: 12.5KHz(data only): 7K60FXD; 12.5KHz(data+voice): 7K60FXE
Modulation maximum deviation: 2.5KHz @ 12.5KHz
Nonactive slot power: -57dBm
Digital protocol: ETSI TS 102 361-1 -2 -3
Vocoder type: AMBE+2TM
Audio response: +1dB~-3dB
Modulation BER (Bit Error Rate): ≤5%
Receiver:
Analog sensibility: 0.35μV/-116dBm (20dB SINDA); 0.22μv/-120dBm (Type)
Digital sensibility: 0.3μV/-117.4dBm (BER 5%); 0.22μv/-110dBm (BER 1%)
Co-channel rejection: ≥-12dB
Adjacent channel selectivity: TIA603C: 65dB; ETSI: 60dB
Spurious response: TIA603C: 75dB: ETSI: 70dB
Rated audio power: 1W
Audio response: =1dB~-3dB
Rated audio distortion: 3% (Type)
Spurious radiation: Antenna: 9KHz-1GHz ≤-57dBm; 1GHz-12.75GHz ≤-47dBm
Desktop charger:
Input voltage: DC 12.5V
Output voltage: DC 8.4V
AC adapter:
Input voltage: AC 110-260V
Output voltage: DC 12.5V
Application scope:
Group road trip, entertainment, restaurant, hotel, shopping hall government, police, public security, etc
Note:
Programming software is suitable for Windows only (Driver is included).
Package include:
1 x TYT MD-380 Digital Mobile Radio (DMR UHF)
1 x Programming Cable

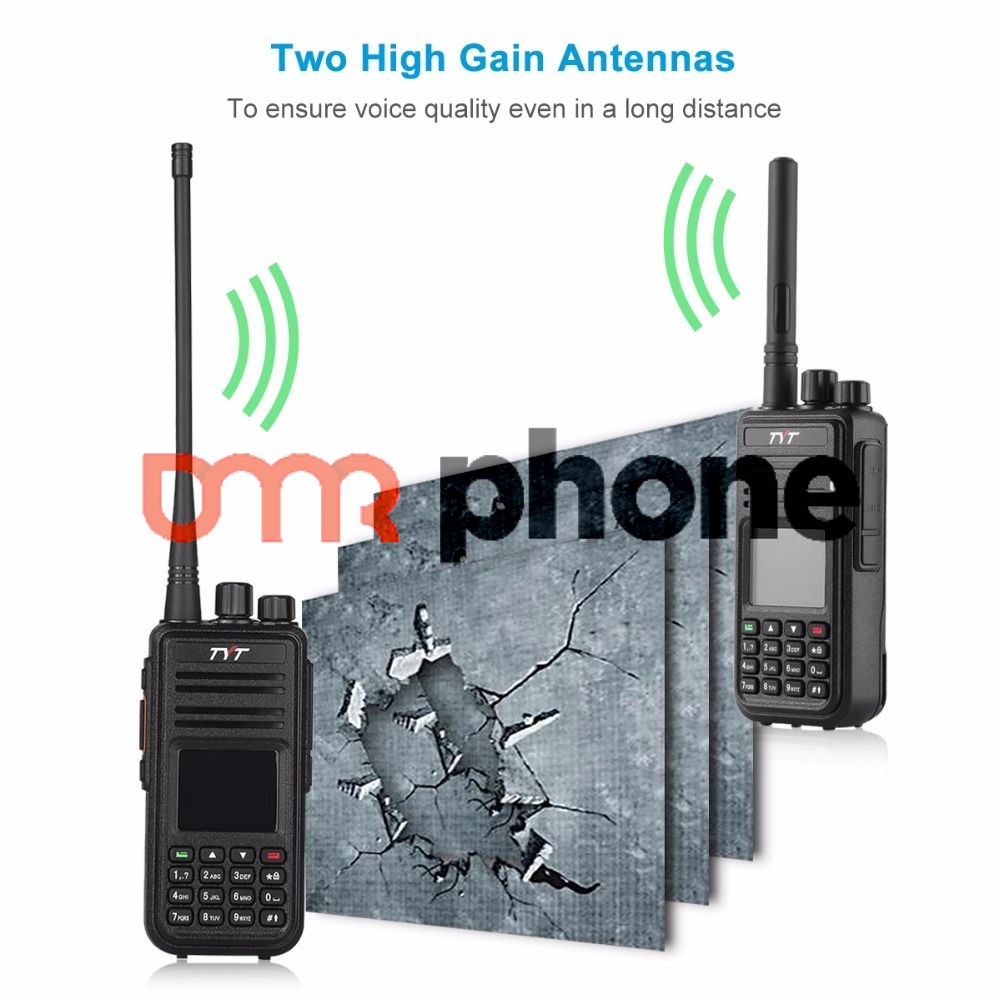

2 x High Gain Antenna
1 x Li-ion Battery 2,000mAh
1 x Charger
1 x Adapter
1 x CD
1 x Belt Clip
2 x Screws
1 x User’s Manual
FAQ:
Q1: Does it have a default password?

A: Yes, the password is 00000000.
Q2: Can MD380 be compatible with other DMRs of TYT or other brands?
A: It depends on whether the DMRs are compatible with Motorola TRBO Tier I & II or not. If they are, then YES.
Weight N/A
Dimensions N/A
Frequency Range

UHF 400-480MHz, VHF 136-174MHz, UHF 400-480MHz (GPS Version), VHF 136-174MHz (GPS Version)
