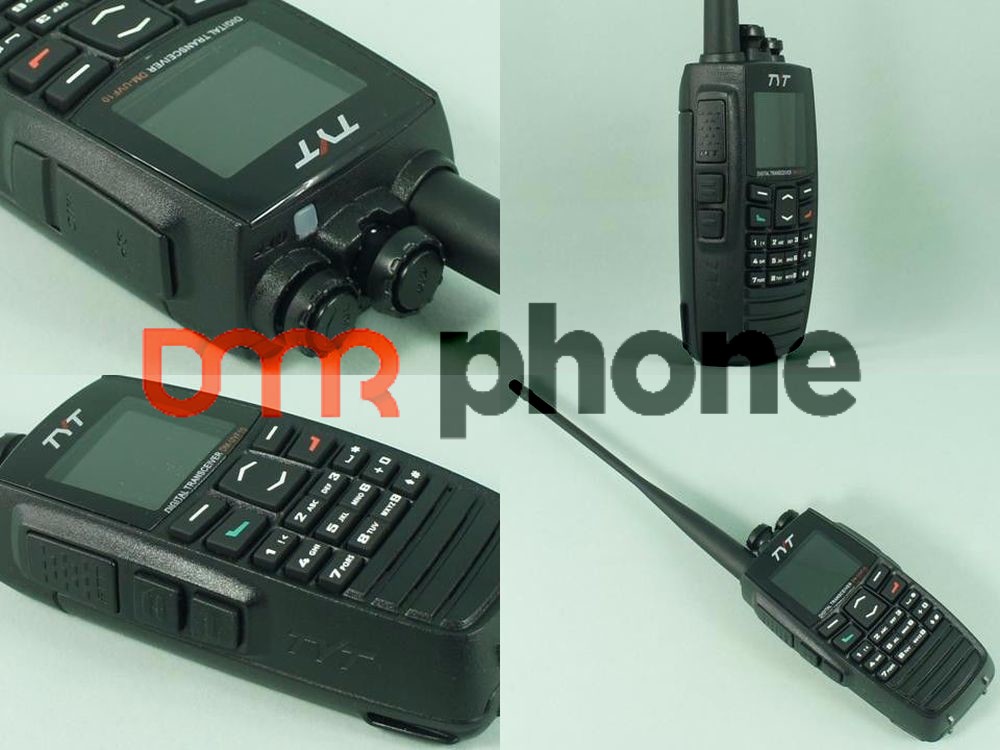

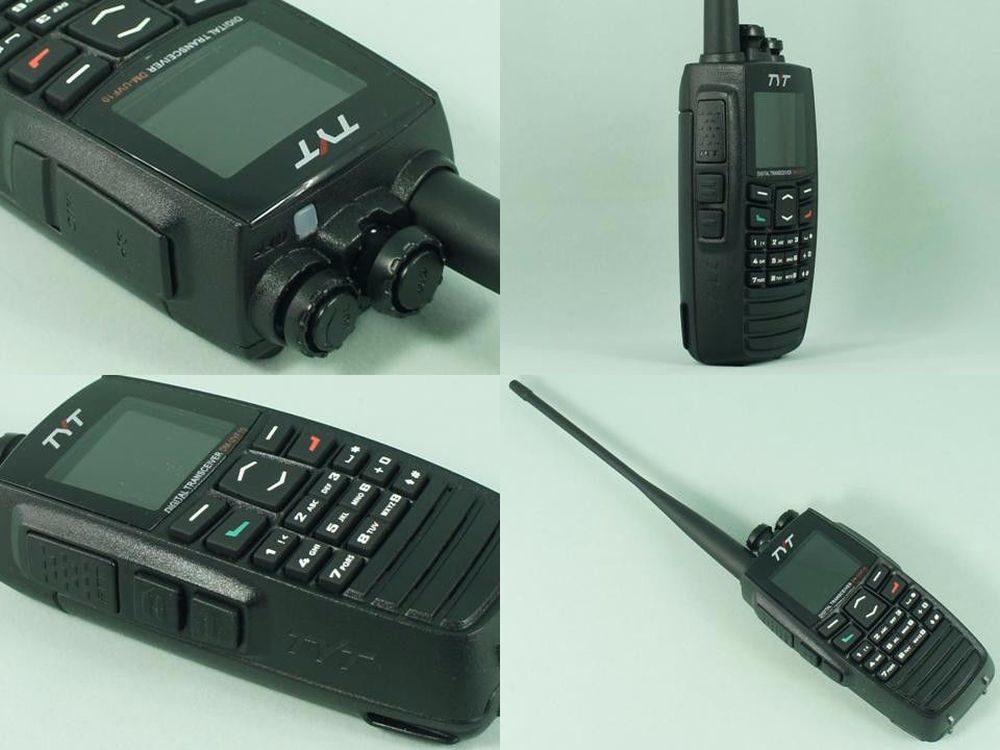

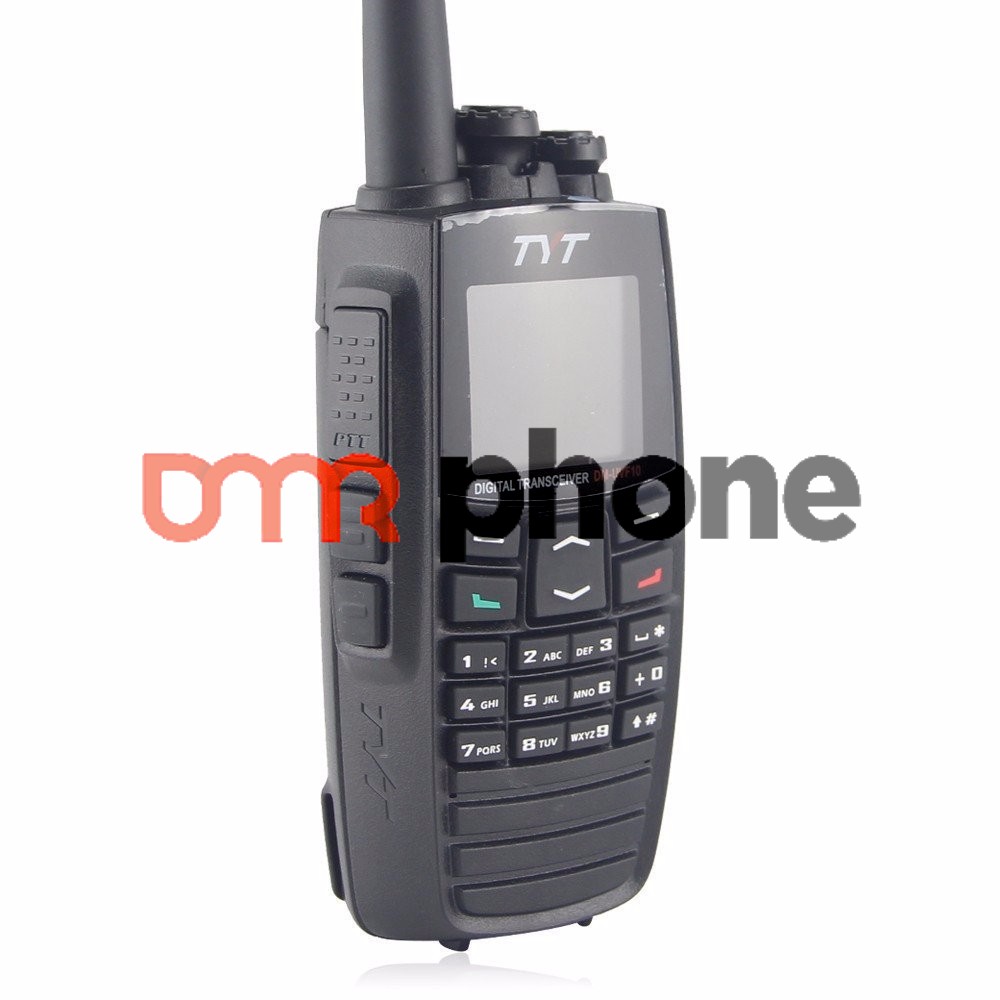

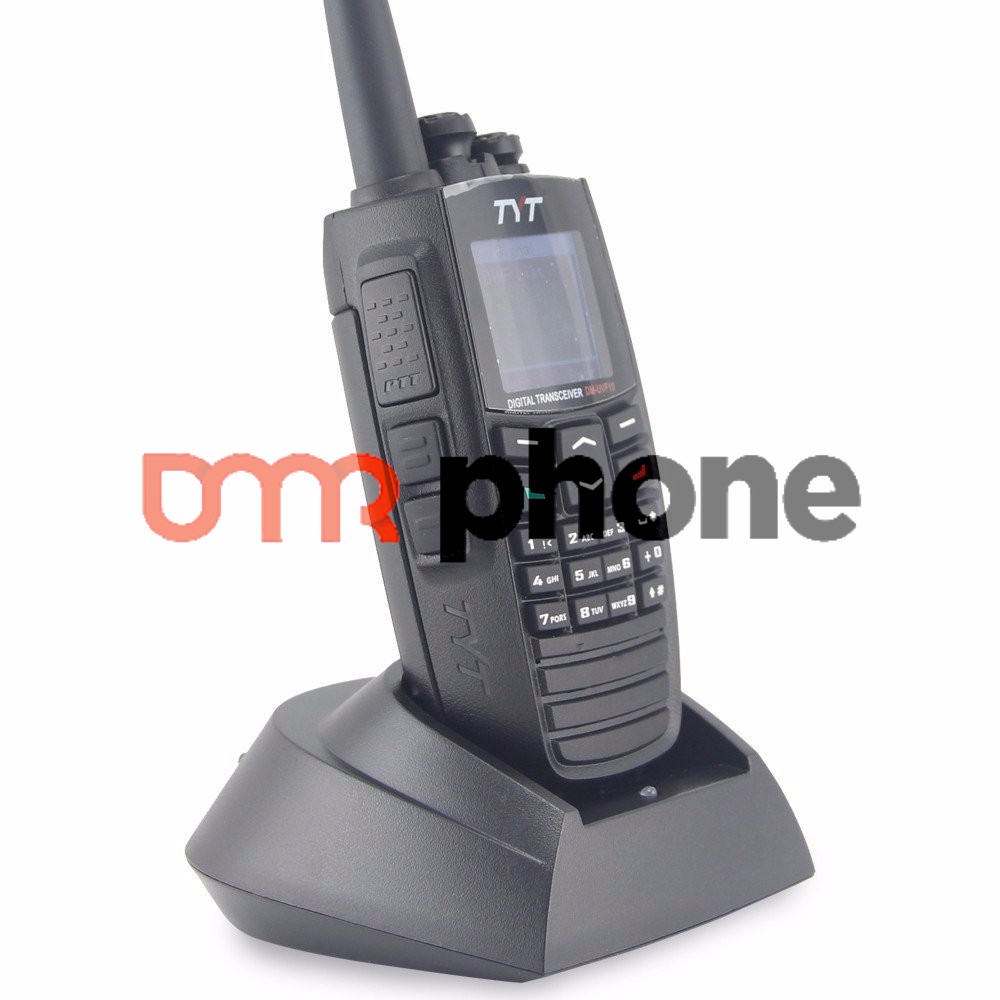

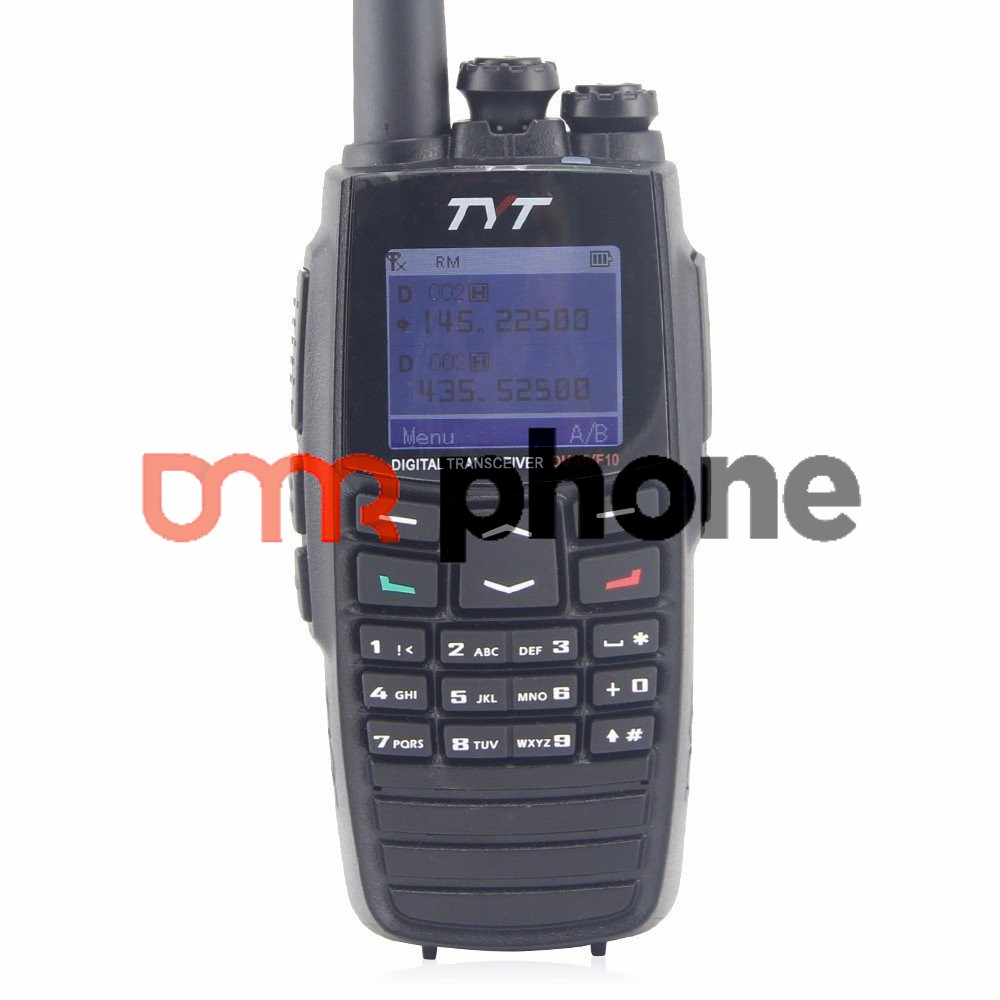

DPMR Dual Band Radio Stanice TYT DM-UVF10 (With GPS Function)
DM-UVF10 is a dual display, dual standby two-way radio, adopts high-technology and novel design, bringing you a stable, reliable and efficient communications service. It is especially convenient for Staff of Property Management and entertainment. DM-UVF10 adopts humanism design, making it smart in shape, advanced in function and flexible in operation, with function of DTMF, voice scrambler and voice compander, will satisfy you and can hardly tear yourself away from it. More fantastic function,DM-UVF10 will take you to enjoy them.
Main Features:
| ■Digital dual-band | ■Private call, group call,all call(Digital only) |
| ■Color screen display | ■VOX function |
| ■Dual display, dual standby | ■Backlight brightness setting |
| ■Digital/Analog switch | ■TOT |
| ■Voice scrambler | ■Busy Channel Lockout |
| ■DTMF function | ■Emergency Alarm |
| ■Remote kill,stun | ■FM radio |
| ■Contact list editing, storing | ■High/Low Power Selectable |
| ■Message Tx/Rx(Digital only) | ■Programmable multifunction side-key |
| ■English&Chinese Standby prompt | ■CTCSS/DCS auto-scan |
| General Specification | ||
| Model | DM-UVF10 | |
| Frequecy | 400~470MHz, 136~174MHz | |
| Channel Capacity | 32 | 1000 |
| Normal Operating Voltage | 7.4V | |
| Operating Temperature | -30°C~+60°C | |
| Store Temperature | -40°C~+85°C | |
| Weight | 270g (estimate) With Standard Li-ion battery | |
| Dimensions :H x W x D(mm) | 113.5 X 54 X 33.5 With Standard Li-ion battery | |
| Dust-protection and water resistant | IP67 | |
| Battery Life in 5/5/90 Operating Mode | ||
| 1700mAh Standard Li-ion battery | Analog: 10hours; Digital: 14hours | |
| Receiver | |
| Frequency | 400~470MHz/136~174MHz (Dual band) |
| Channel Spacing | 12.5KHz |
| Frequency Stability | +/- 1.0ppm |
| Analog Sensitivity | 0.35uV/-116dBm(20 dB SINAD)0.22uV/-120dBm(Type) |
| Digital Sensitivity | 0.3uV/-117.4dBm (BER 5%)0.7uV/-110dBm (BER 1%) |
| Intermodulation | TIA603C:70dB ETSI:65dB |
| Adjacent Channel Selectivity | TIA603C:65dB 12.5KHzETSI: 60dB 12.5KHz |
| Co-Channel rejection | 12dB 12.5KHz |
| Spurious Response rejection | TIA603C:75dB ETSI:70dB |
| Conducted spurious emission | -57dBm< 1GHz,-47dBm > 1GHz |
| Blocking | 84dB |
| Rated Audio Power | 1W |
| Audio Response | +1dB ~-3dB |
| Rated Audio Distortion | 3%(Type) |
| Transmitter | |
| Frequency | 400~470MHz, 136~174MHz |
| Channel Spacing | 12.5KHz |
| Frequency Stability | +/- 1.0ppm |
| Power | Low Power:1W,High Power:5W |
| Hum and Noise | -40dB 12.5KHz |
| Conducted, radiated spurious emission | -36dBm<1GHz, -30dBm>1GHz |
| Adjacent Channel Power | -60dB12.5KHz |
| Adjacent Transient Channel Power | -50dB12.5KHz |
| FM Modulation Mode | 12.5KHz:11K0F3E |
| 4FSK Digital Mode | 12.5KHz(data only):7K60FXD12.5KHz(data+voice):7K60FXE |
| Modulation Maximum Deviation | 2.5KHz 12.5KHz |
| Nonactive Slot Power | -57dBm |
| Audio Response | +1dB~-3dB |
| Audio Distortion | 3%(Type) |
| Digital Protocol | ETSI TS 102 361-1, -2, -3 |
| Vocoder Type | AMBE+2™ |
Each Unit Package Contain:
- 1 x TYT DM-UVF10 (With GPS)
- 1 x Li-ion Battery
- 1 x 17cm Long Dual band Antenna.
- 1 x 36cm Long Dual band Antenna.
- 1 x ENG Manual
- 1 x Charger with Adapter (Provide PSU plug for your Country)
- 1 x Belt Clip.
- 1 x PTT Earphone
