Talkpod N15 Lite 4G LTE PoC Portable Public Network Radio

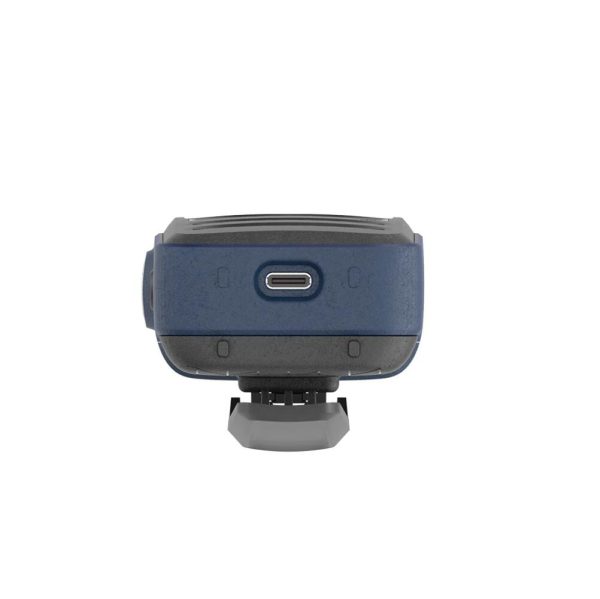

Talkpod N15 is a mini cost-effective public network walkie talkie. With a rigid appearance, delicate lines, and sturdy structure, the overall feel is excellent and practical; Equipped with a 36mm speaker, color display screen, multiple function buttons, and dual SIM card slots and so on, to meet the basic needs of users; There is a Type-C interface at the bottom, which supports fast charging anytime, anywhere. N15 is the best choice for public network users.
The N15 series is the small, lightweight and easy to use radio with push-to- talk over Cellular (PoC) operation for communication in an instant. Reduce missed messages with louder and clearer audio from the built-in speaker or compatible headsets for precise communication between users. All this performance is protected by a rugged radio housing and long-lasting battery. The N1 Series is your essential communication tool built to last all day, every day.
1) LTE EDD: B1 B3 B5 B7 B8
2）LTE TDD: B34 B38 B39 B40 B41
IP54 and Military Standard 810H rated
Private and group push-to-talk
Loud and clear audio
Emergency Calling & Alerting
Easily located oversized PTT button
Up to 18 hours battery life
Rapid, reliable deployment
1.4 inch color led screen
Over-the-Air device management

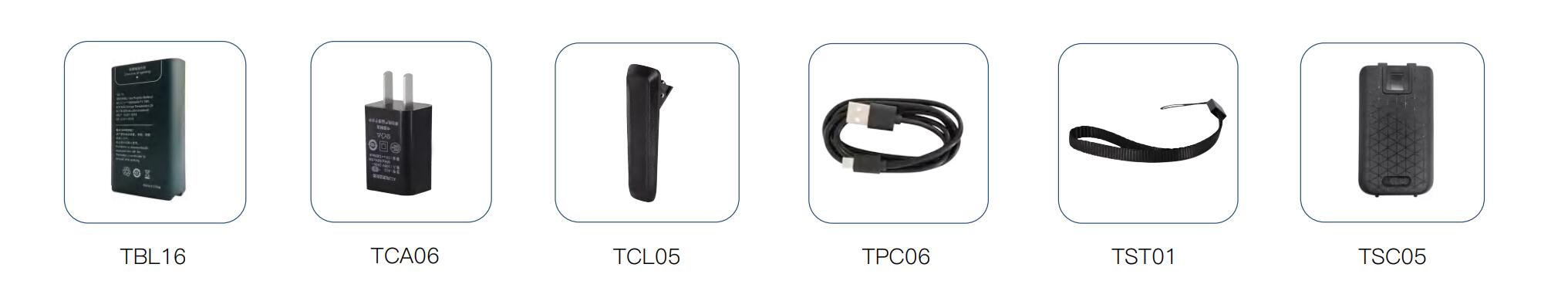

A large selection of accessories for the C1 series
GPS satellite positioning
GPS information query
Time out prompt
Low voltage prompt
Button sound setting
Call record query
Group/member address book
Automatic power saving
Nested group settings
Real time group information
Client scheduling platform
Unlimited friend selection
Unlimited member selection
GPS trajectory playback
Customize shortcut keys
Real time background recording
Group call/group call/single call channel locking
Any combination group
Version information query
Query local information
Automatically synchronize contacts
Speech level setting
Activate suspended account
Multilingual voice broadcasting
Unlimited group selection
Emit prompt tone
National intercom, unlimited distance
The public data network is being upgraded day by day. The 2G/3G/4G (multiple versions) network covering a wide range of areas can meet the needs of users who coordinate real-time calls across regions and long distances; Wherever there is a network signal, real-time intercom is possible.
Background operation, remote scheduling
After setting up a platform account for the walkie talkie through the frequency writing software, group allocation, remote recording, GPS positioning (optional function), and other scheduling and management work can be carried out at any time through the webpage or client, making it convenient to quickly and uniformly manage members.
Mini and ultra-thin, with excellent hand feel
Designed according to ergonomics, with a matte texture, dual color injection molded body, acrylic front panel, and compression and wear resistance; The whole machine is lightweight, including standard batteries. The thickness of the machine is only 30mm, and the weight is only 145g.
Built in antenna, signal gain
Adopting high-performance FPC soft antennas that fit multiple positions inside the shell material, it can simultaneously receive and transmit operator network data signals from multiple angles, achieving excellent results; Equipped with a thickened ceramic GPS antenna (optional version), it can accurately obtain positioning information.
Digital voice, clear and loud
Advanced speech coding technology enables clear speech to be obtained even in noisy environments, maintaining efficient communication; Built-in 1W high-power speaker ensures clear and loud sound, allowing you to easily maintain smooth communication.
Fast login, dual card dual standby N15 takes only 3 seconds from startup to successful login; The device comes with two SIM card slots, which can support three operators simultaneously: China Mobile, China Telecom, and China Unicom. In the absence of network signal, the system will automatically switch to another SIM card, without the need for manual operation and restart, providing an excellent experience.
Longer standby and longer use
The standard 3.7V 3000mAh battery can operate for up to 10 hours; The battery comes with a micro USB interface, which can be charged directly through a power adapter, car charger, power bank, etc. A longer usage time can effectively meet the long-term operational needs of users.
Transmission power: 23dBm~25dBm
Working mode: Same frequency simplex or different frequency simplex
Up and down speed: 10Mbps
Working voltage: DC 3.7V
Standard battery: 3000mAh
External dimensions: 105x52x30 (mm)
Audio output power: 2W
Receiving sensitivity: -106dBm
Standby working current: 100mA (RX: -75dBm environment)
Sleep working current; 20mA (RX: -75dBm environment)
Average working current: 260mA (RX: -75dBm environment)
Maximum working current: 280mA (RX: -104dBm environment)
Tracking sensitivity: -161dBm/-158dBm
Oscillator/RTC crystal: built-in (MAX-7Q/7W)
Anti interference: active CW detection and clearing
