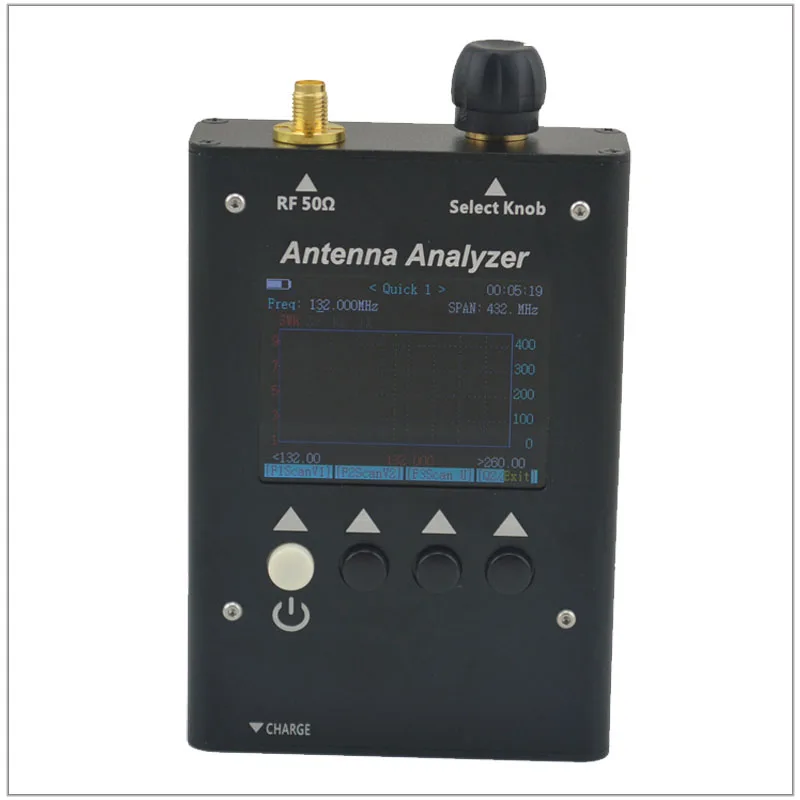

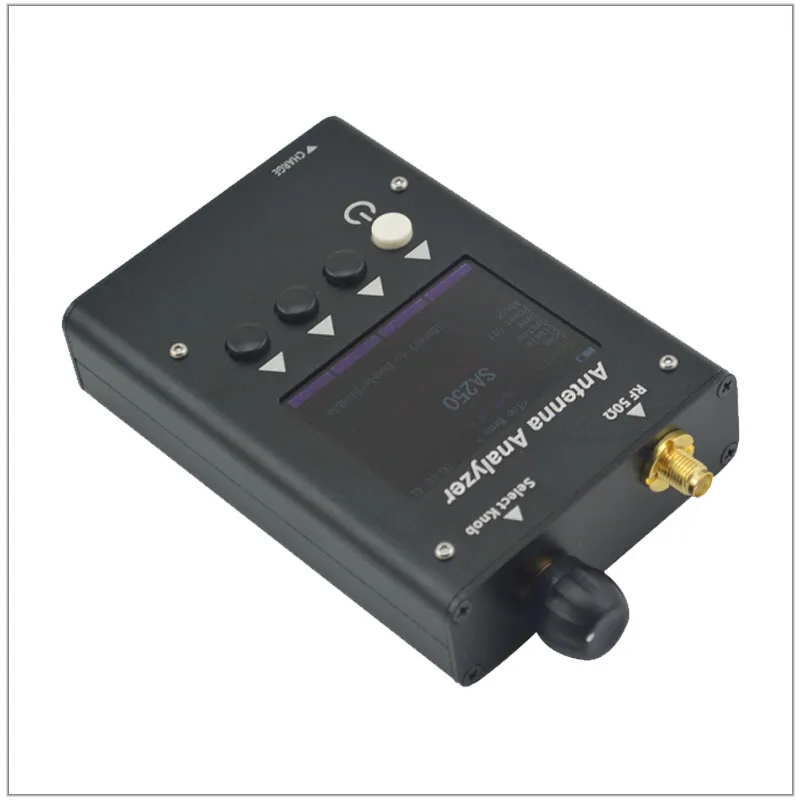

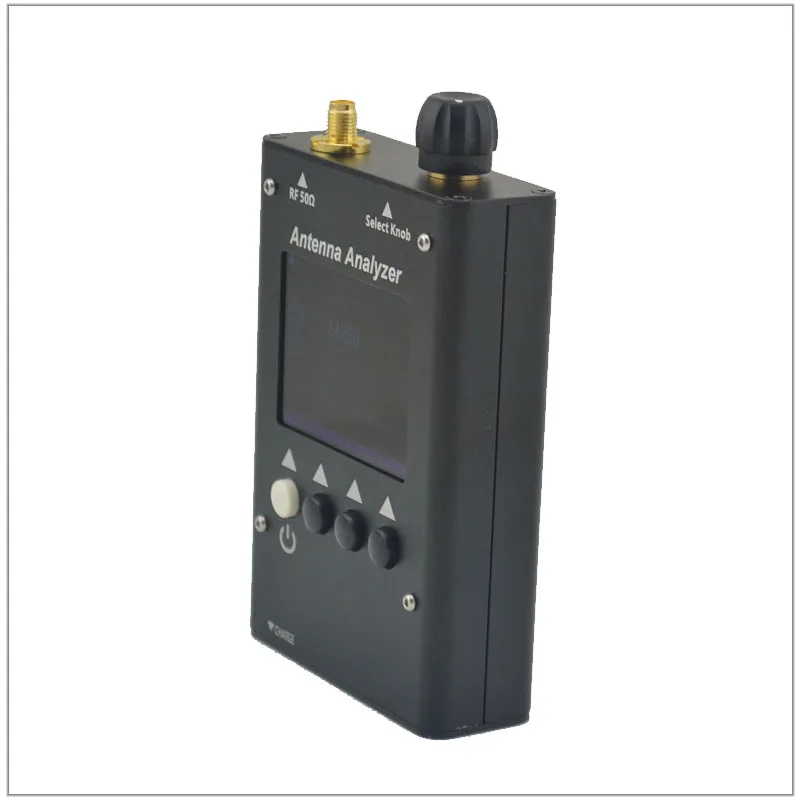

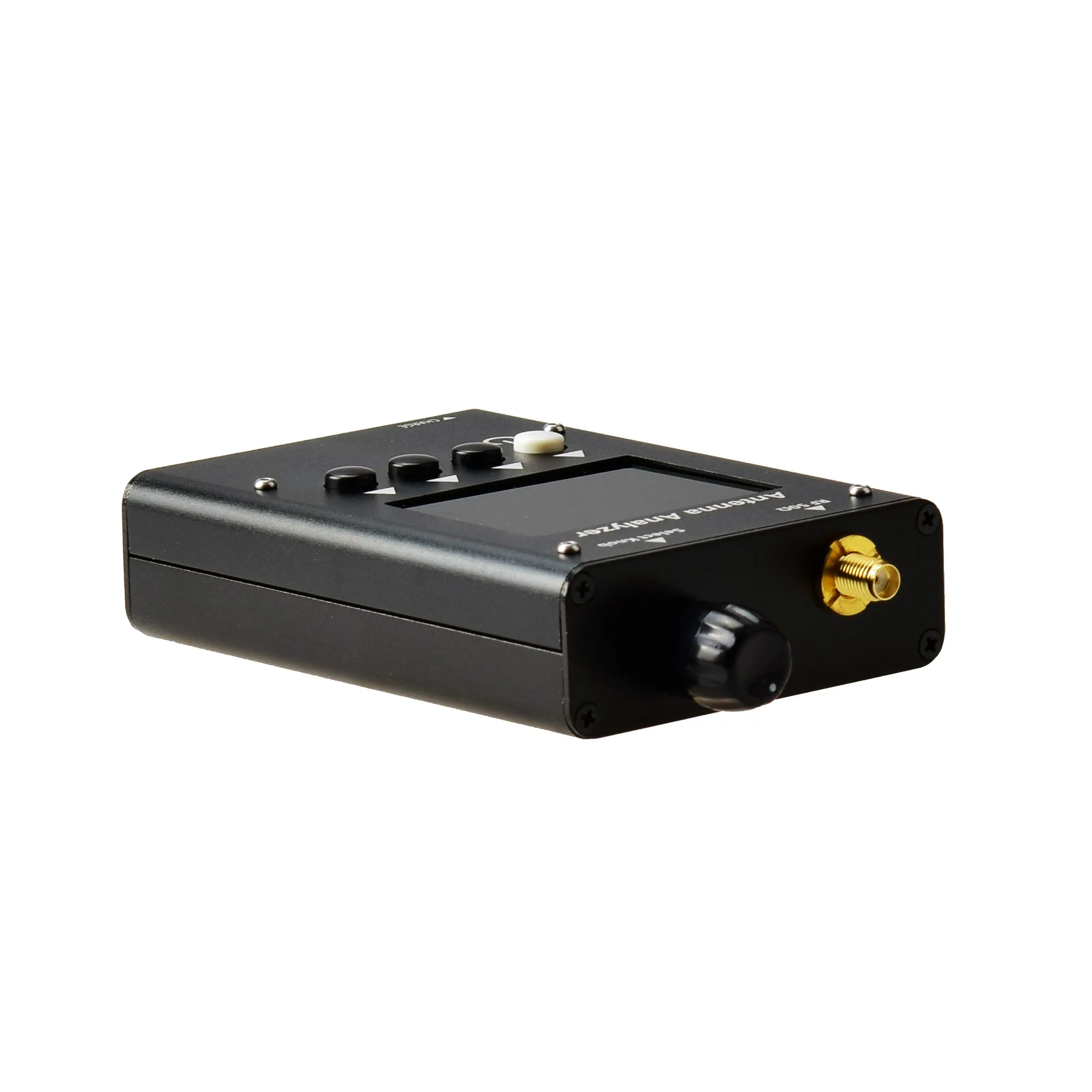

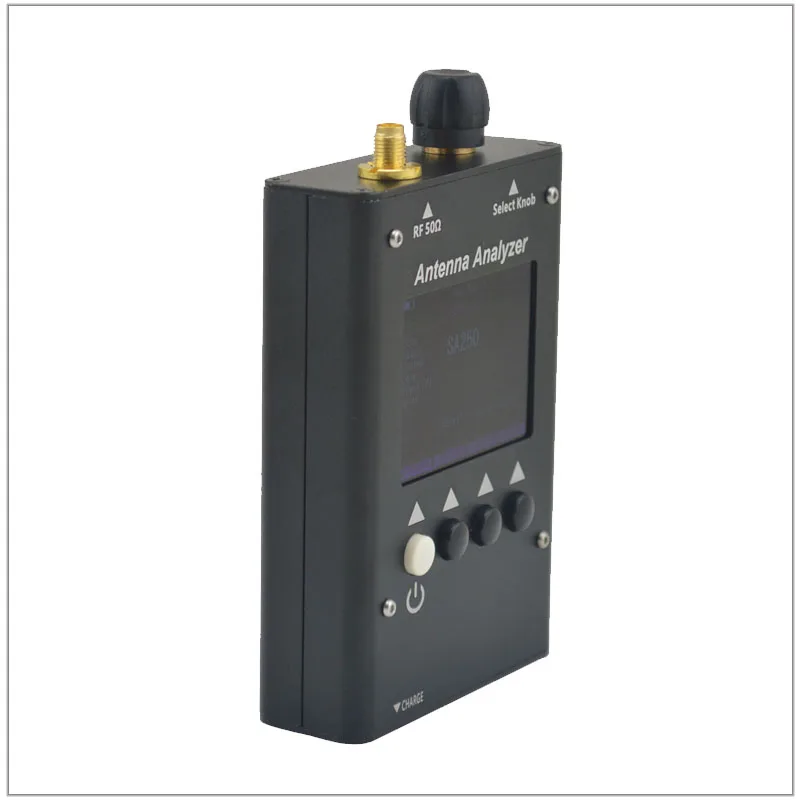

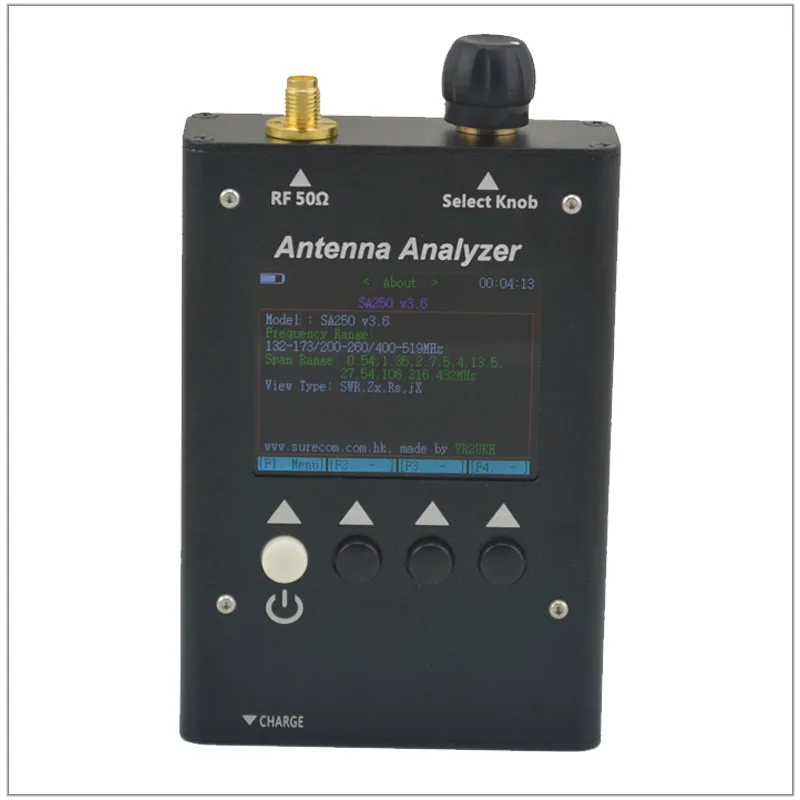

Surecom SA-250 VHF / UHF Handheld Antenna Analyzer

Original price was: 573.19$.Current price is: 231.00$.

& Free Shipping
Guaranteed Safe Checkout

SURECOM SA-250 SA250 132-173 / 200-260 / 400-519MHz Colour Graphic Antenna Analyzer

 analizador de antena

Features:

•2.2 ” precision LCD screen,High-lumen LCD brightness, easy to read in direct sunlight

•Heavy duty Aluminum enclosure,strong anti-interference ability.

•Very compact and convenient for field use

•Built-in rechargertable battery

•Full Band control by knob ( 132-173Mhz / 200-260Mhz / 400-519MHz)

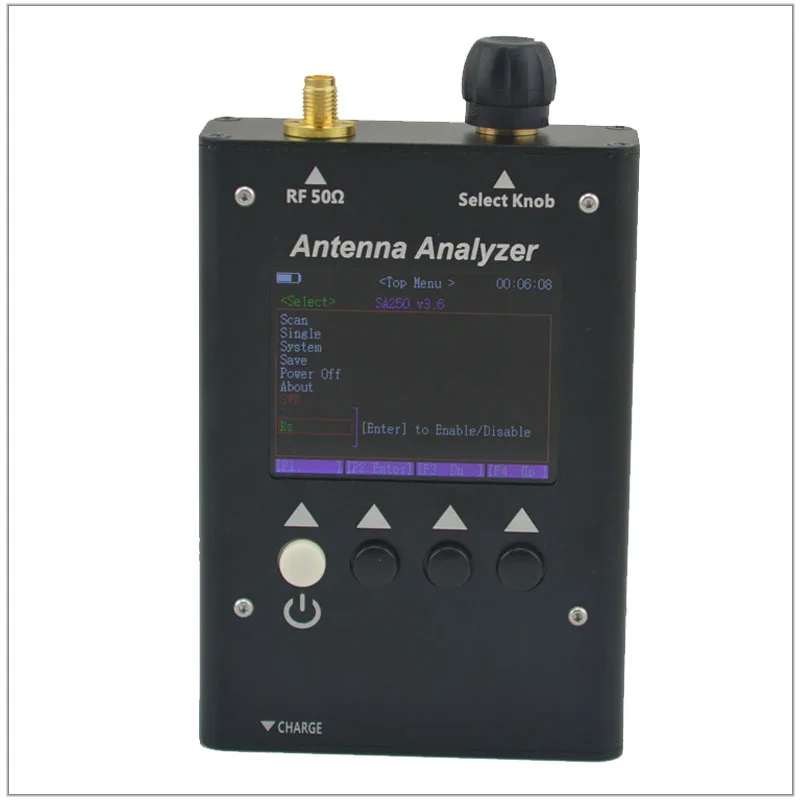

•Easy setup, only four control buttons with convenient on-screen soft menus

•Constant Battery Status Indicator and Auto Shut-off

•Built-in timer shows elapsed time when unit is turned on

•High efficiency IC, low power consumption, the longest working hours

•More choice measurement frequency Span .

•One botton quick scan mode (V1,V2,U) or 3 band by full screen.

•Auto marker the low s.w.r. level reference

Specifications:

Specifications:

Model No.

SA-250

Frequency Range:

132-173Mhz / 200-260Mhz / 400-519MHz

Connector:

SMA-Female  (50 OHM)

RF Output Power:

1-1.5V(5 – 10dB)

Frequency Step:

0.1/1/10/100/1000KHz

V.S.W.R. Range:

1.00-19.99

ZRX Range:

0-99.9

Build-in Battery :

3.7V 900mah ,Li-ion 14500

Voltage input :

DC5V> 500mA

Frequency stability:

<0.5PPM

Span width:

0.54MHz/1.35MHz/2.7MHz/5.4MHz/10.8MHz/27MHz/54MHz/108MHz/216MHz/432MHz

Charger indicator:

 Two-color LED Hidden (when not charging) there are three instructions state:
1, charging (red) ;
2, charging is completed (green)
3, Battery fault (flashing)

Charger Plug:

Standard Micro USB connector

Size:

 70 x 120 x 25 mm

Colour Display:

TFT LCD 320 x 240 pixels

Weight:

172g

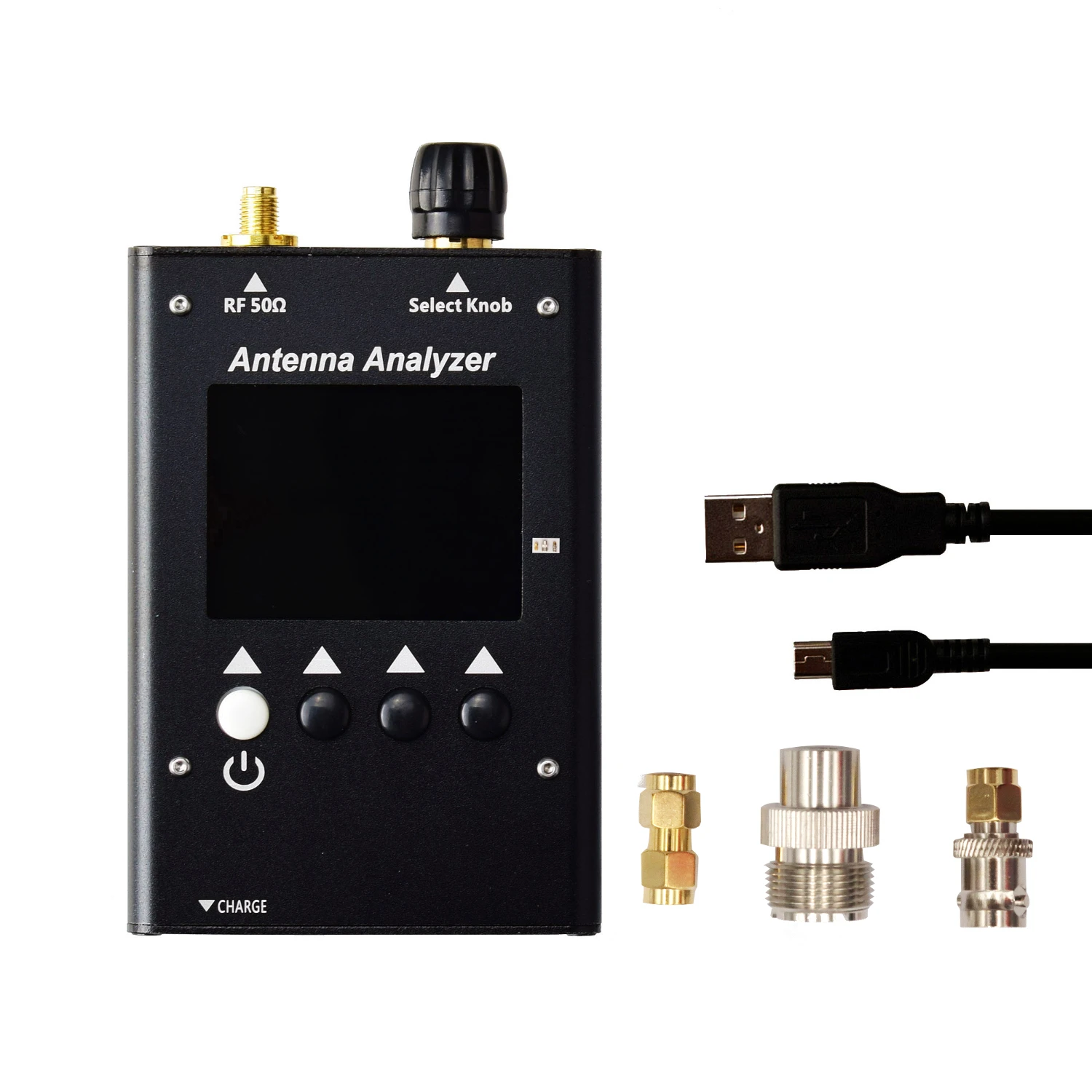

Package Contents:

1× SURECOM SA-250 Antenna Analyzer

1× Micro USB Charger Cable

1× USB Wall charger

1× User’s Manual

Photo:

-1-2-3-4-5-6-7-8

-9-10-11

Weight 0.8 kg
Dimensions 300 × 400 × 150 mm
