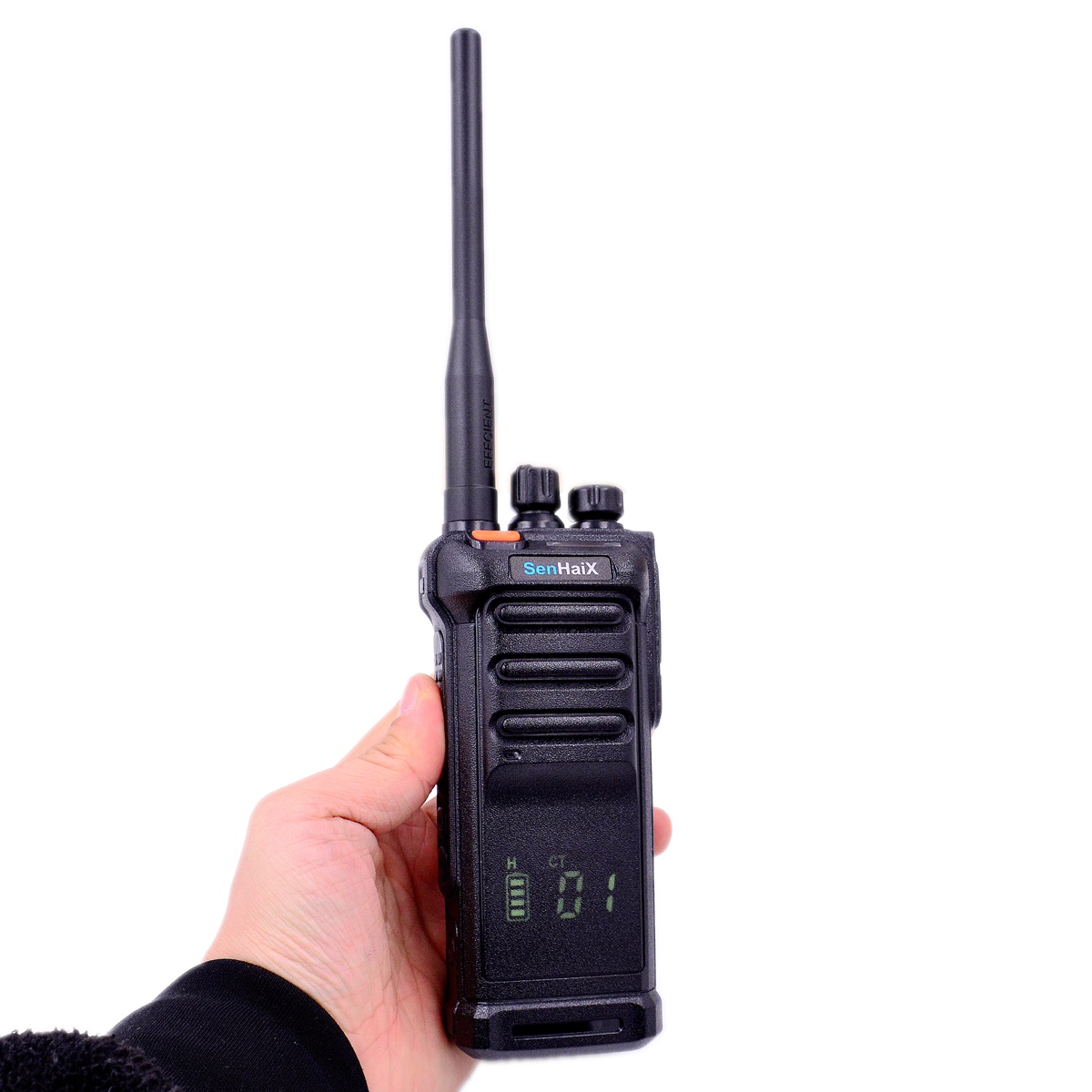

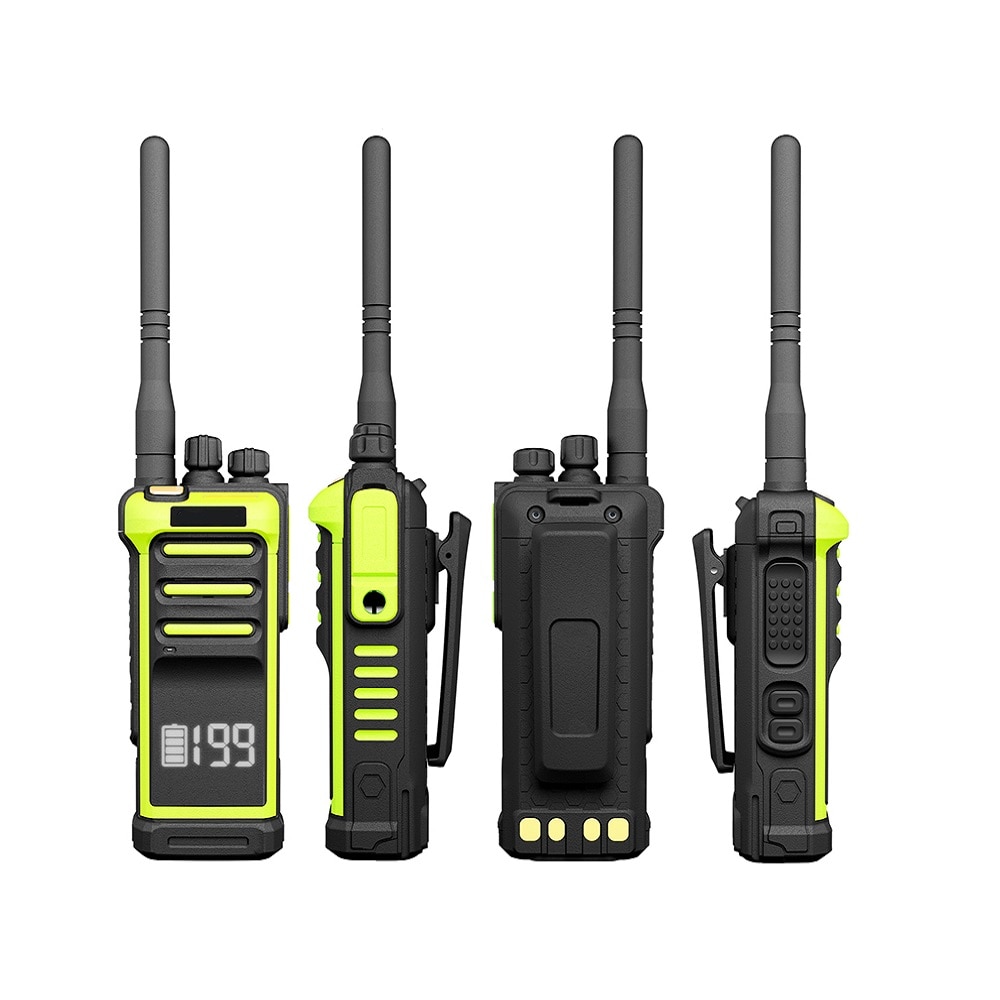

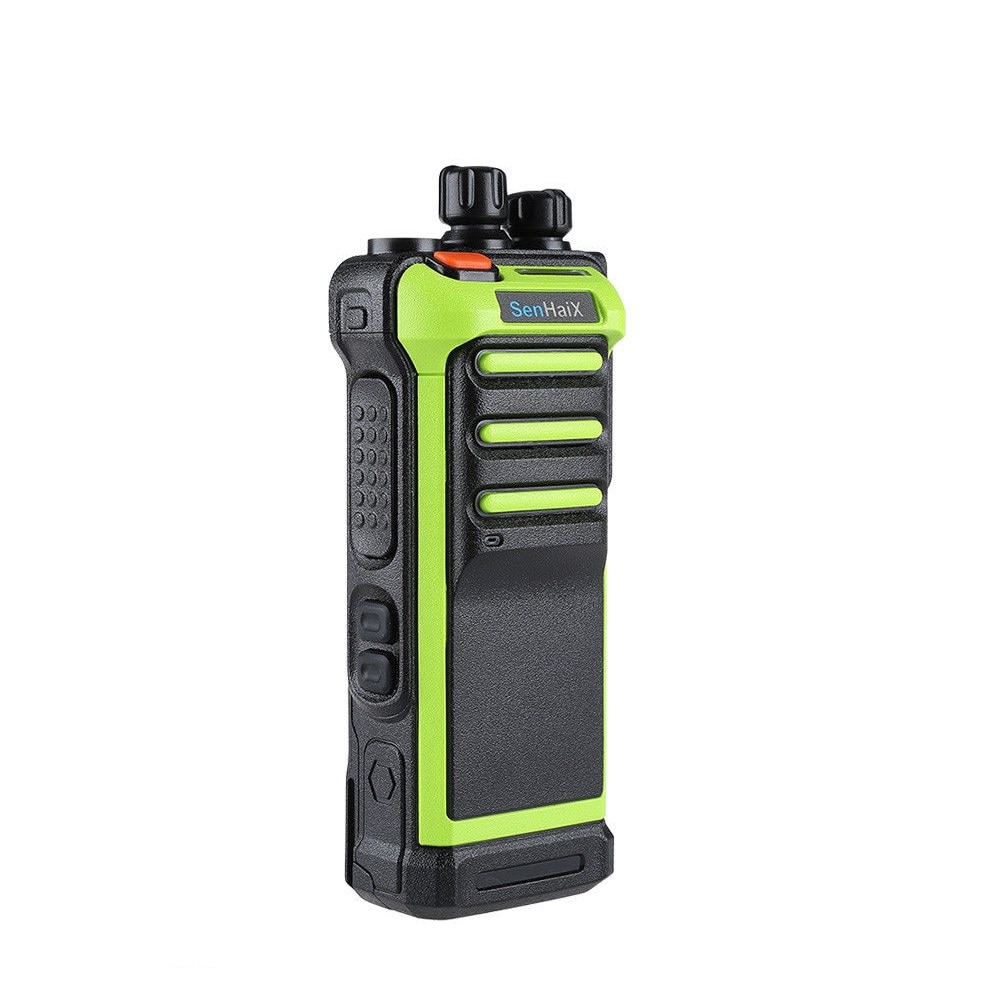

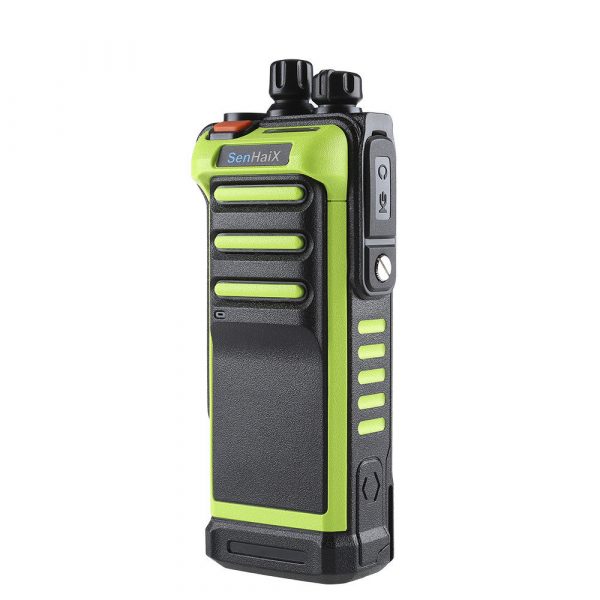

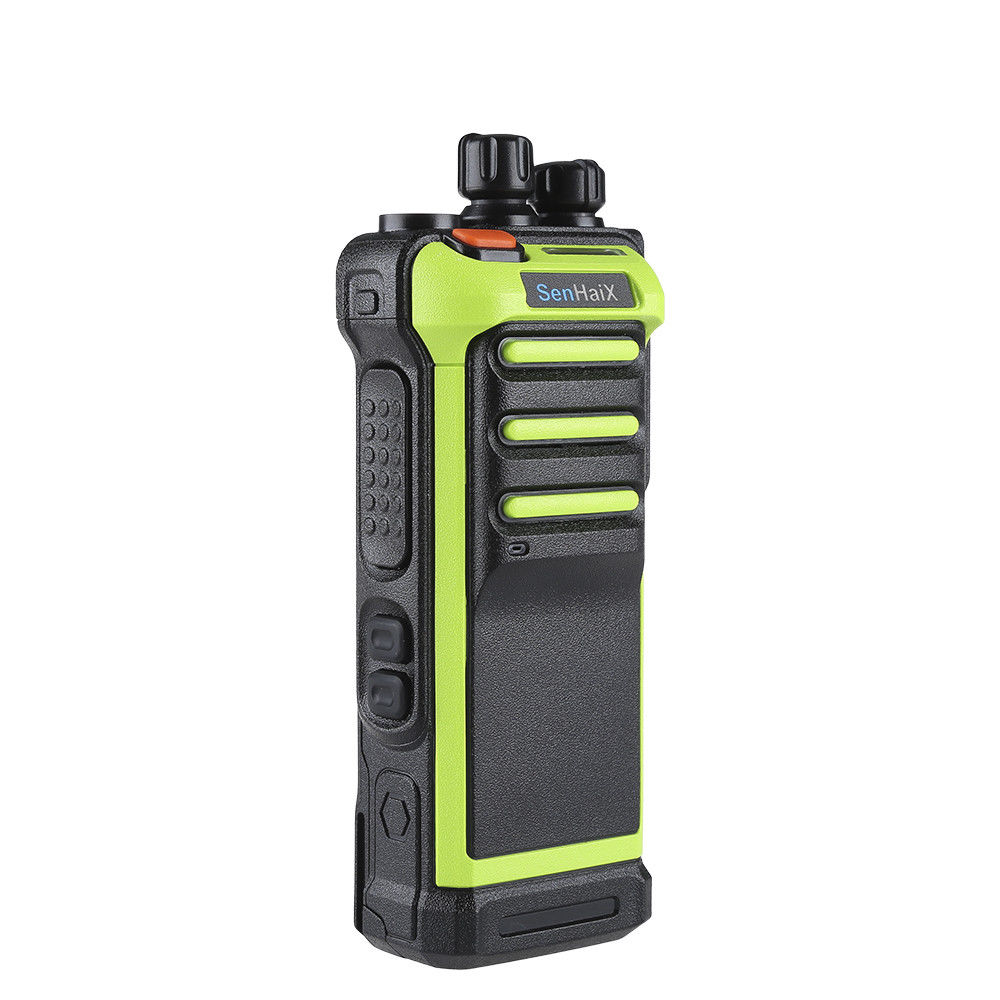

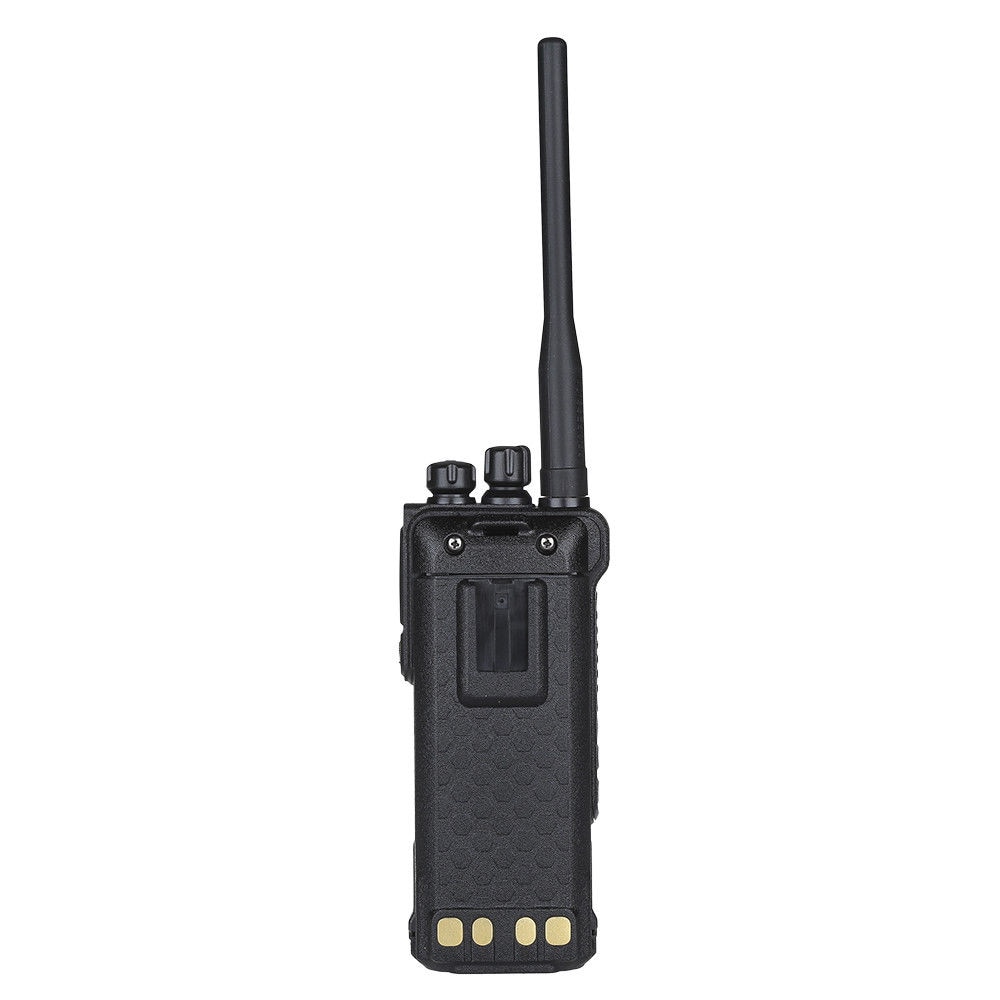

Two Way Radio SenHaix GT10 UHF VHF High Gain Antenna Hide LED Screen Display Pure Black Waterproof Transceiver Interphone
Product Features
Active View Display
Output Power: 10 W(H) 5W(M) 2W(L)
Battery Capacity: 3000mAh
(Li-polymer battery)

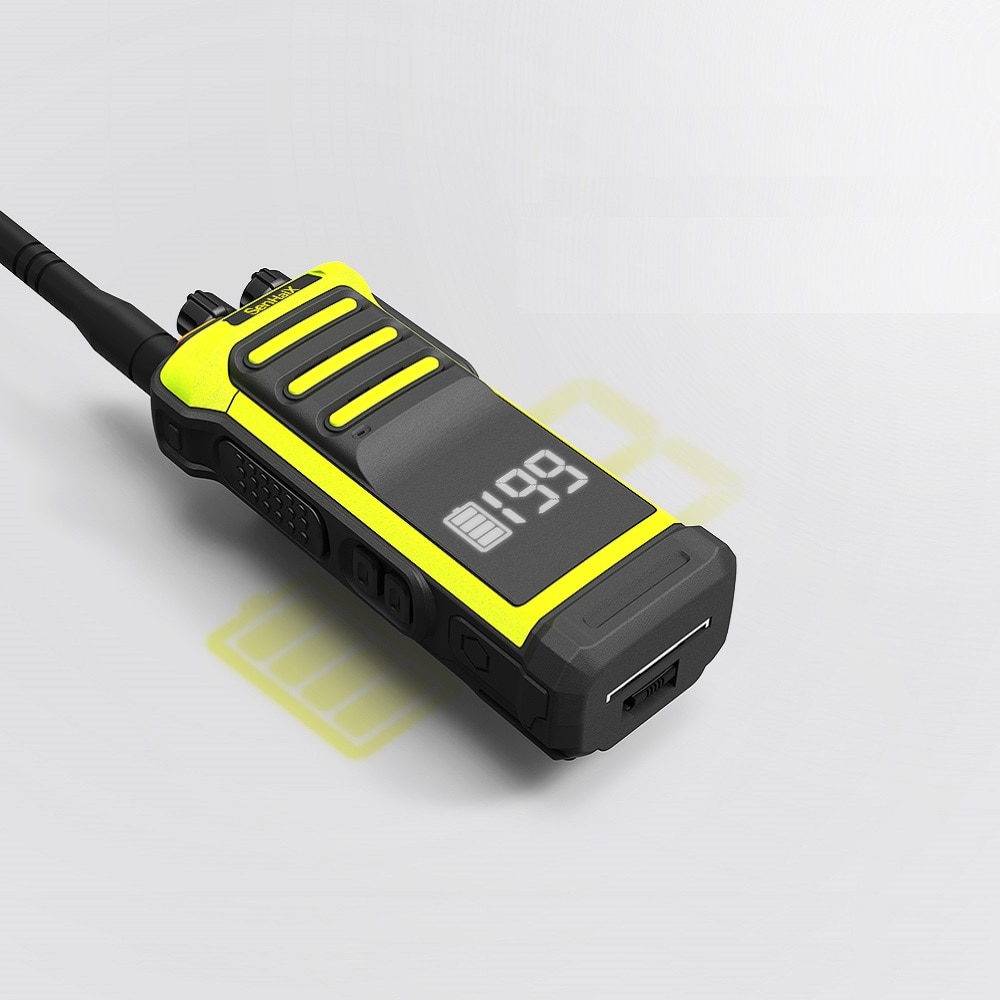

Hidden LCD Display
Scan Function
VOX Function
Wide/Narrow Band 25KHz/12.5KHz
Emergency Alarm
Battery Saver
Low Battery Warning
Scrambler Function
Channel Lock Out
TOT Function
CTCSS/DCS
Squelch Level Adjust
Technical Specifications
| General | |
| Frequency Range | UHF 400-470MHz |
| VHF 136-174MHz | |
| Channel Capacity | 199CH |
| Channel Spacing | 12.5KHz/25KHz |
| Operating Voltage | 7.4V-8.4V DC |
| Battery Capacity | 3000mAh (Li-polymer) |
| Operating Temperature | -20℃ to +50 ℃ |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50Ω |
| Dimension | 65x46x140mm |
| Transmitter | |
| Output Power | H:10Watts M: 5Watts L:2watts |
| Modulation Type | 16kφF3E(Wide Band) |
| 11kφF3E(Narrow Band) | |
| MAX. Frequency Deviation | <5KHZ(Wind Band) |
| <2.5KHZ(Narrow Band) | |
| Adjacent Channel Power | ≥60dBTransmitter |
| S/N | ≥45dB |
| Audio Distortion | ≤3% |
| Audio Response | 6dB/Each octave |
| FM | ≤-36dB |
| Receiver | |
| Sensitivity(12dB SINAD) | ≤0.25uV(Wide Band) |
| ≤0.35uV(Narrow Band) | |
| Intermodulation | 65dB |
| Adjacent Channel Selectivity | ≥65dB(Wide Band) ≥60dB(Narrow Band) |
| S/N | ≥50dB |
| Audio Response | 6dB/Each octave |
| Rated Audio Distortion | ≤3% |
| Audio Output Level | 22dBMW(10%hours) |
| Rated Audio Output power | 1000mw |
| Spurious Rejection | ≥80dB |
| MAX. Frequency Deviation | <5KHZ(Wind Band) <2.5KHZ(Narrow Band) |
Each Unit Package Included:
1 X GT-10 VHF/UHF Transceiver
1 X 8.4V 3000mAh Li-polymer Battery
1 X 14.5cm Antenna
1 X 37.5cm Antenna
1 X Belt Clip
1 X Charger Docking
1 X 100-240V AC Power
1 X Hand Strap
1 X User’s Manual
