BFDX Walkie Talkie Repeater BF-5000 45Watt 99Ch Analog base station duplexer repeater with free programming cable

1,194.40$1,196.40$

& Free Shipping
Guaranteed Safe Checkout

Free Shipping Beifeng BFDX BF-5000 45Watt high power 99Ch Built in duplexer Analog Repeater walkie talkie beifeng base station in one with free programming cable

Read it before order: In order to get the best communication coverage performance, the Tune Frequency of duplexer for transmit and receive frequency is 10MHz difference, e.g.: TX: 145.000MHz, RX: 155.000MHz. TX: 432.250MHz, RX: 422.250MHz.

Therefore, it is customized commodity. Please kindly give us your Tx and Rx frequency of duplexer tuning by message.

Features:

High Repeating Power Analog Repeater

BF-5000 high power analog repeater supports a maximum repeating power of 45W. The system coverage is effectively extended with lesser setup equipment.

CTCSS/CDCSS

This effectively filters out unwanted signals and thus increases repeating efficiency.

PC Programmable

The user can preset the specifications and features of BF-5000 in a computer via a programming cable.

Base Station and Repeater Dual Modes

BF-5000 base station and repeater can operate both as a base station and a repeater, bringing more flexibility into your work.

Kill/Stun/Revive

When BF-5000 works as a repeater, the user can remote kill/stun/revive BF-5000 through the control center. When working as a base station, BF-5000 supports remote kill/stun/revive both ways. This greatly facilitates commanding efficiency.

–Monitor

–Scan

–Voice Compandor

–Scrambler

Specifications:

General

Frequency range

Customized VHF or UHF

Channels

99 channels

Channel spacing

25 KHz(width) /12.5 KHz(narrow)

Antenna impedance

50 ohms

Voltage

13.8V DC,cathode grounded

Current

<12A

Operating temperature

-30°C~+60°C

Dimension

483×88×340mm

Weight

9.7kg

Transmitter

Power output

45W

Frequency stability

≤±2.5ppm

Modulation mode

16KF3E(width)/8KF3E(narrow)

Max frequency deviation

≤±5KHz(width) /2.5KHz(narrow)

Audio distortion

≤3%

Audio response

+1/-3dB

Adjacent channel power

≥70dB

Spurious RF components

-36dBm<1GHz -30dBm>1GHz

Bandwidth

30MHz

Receiver

Sensitivity(at 12dB SINARD)

≤0.35 µV

Frequency stability

≤±2.5ppm

Co-channel suppression

≥-6 dB

Adjacent channel selectivity

≥75dB

Intermodulation rejection

≥75dB

Spurious response rejection

≥75dB

Block

≥95 dB

Audio output power

2W (8ohms)

Max. Audio output power

4W (8Ω)external

Audio response

+1/-3dB

Audio distortion @ Rated audio

≤3%

Bandwidth

30MHz

 Notice: Product design and specifications are subject to change without previous notice.

Package Contains:

1x BFDX BF-5000 Analog repeater (Frequency Customized)

1x Power Cable

1x Programming cable

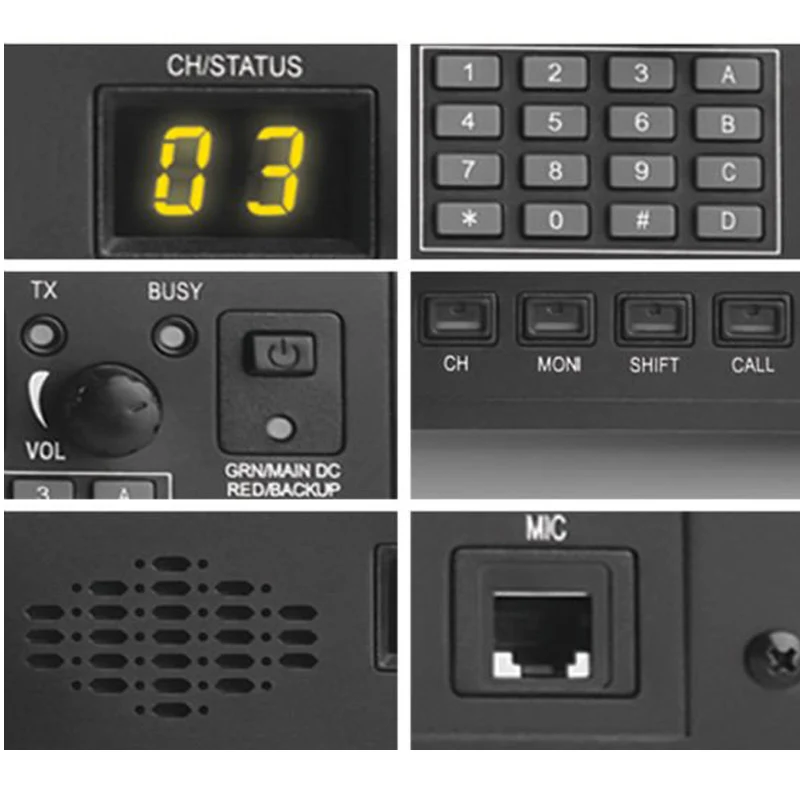

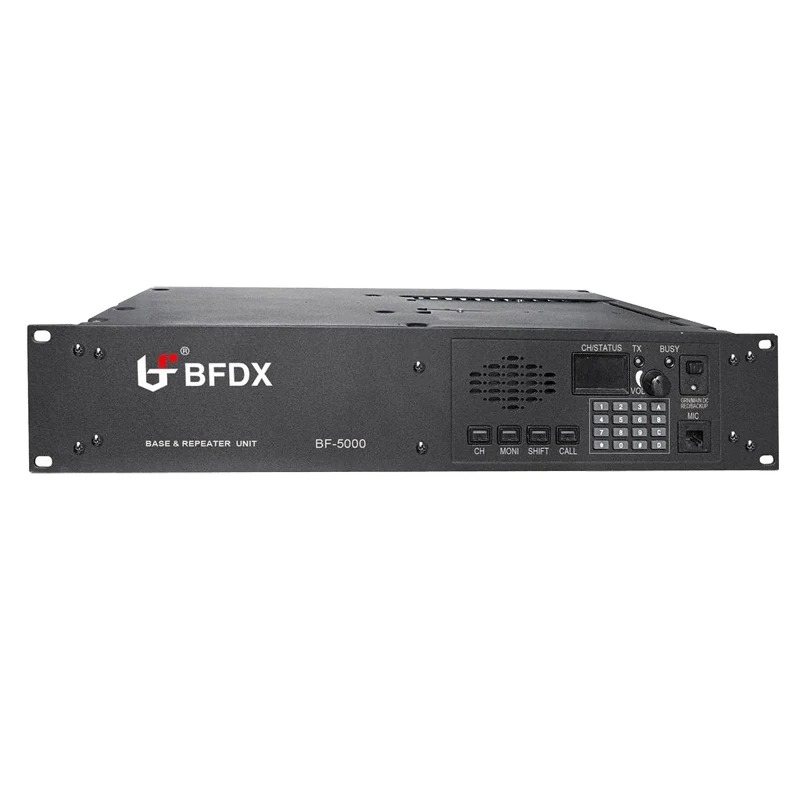

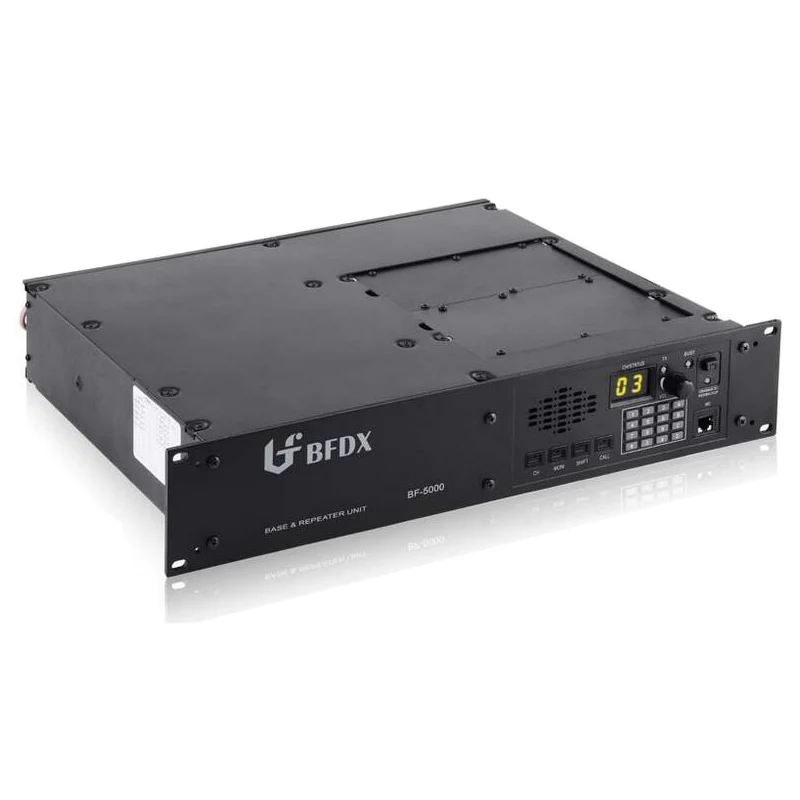

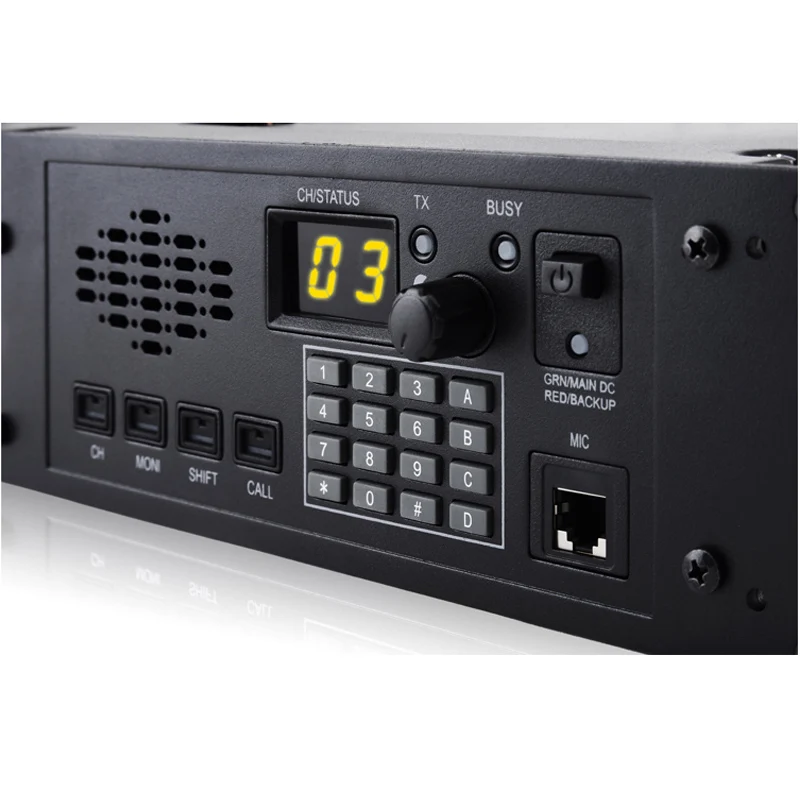

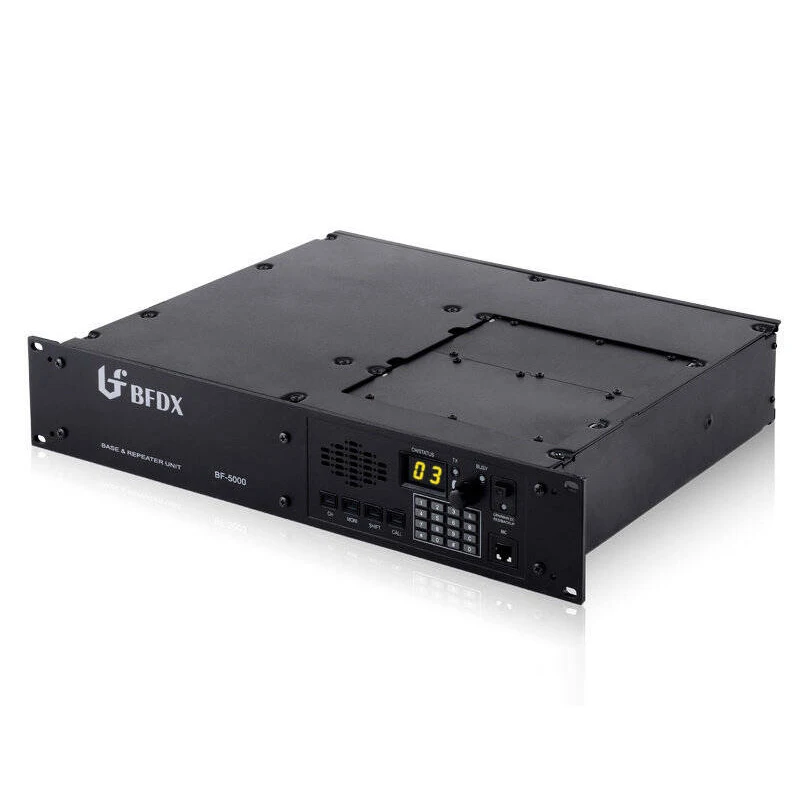

Photos:

未标题未标题-1未标题-2未标题-3未标题-4未标题-5未标题-6

Weight 8 kg
Dimensions 800 × 500 × 300 mm
Plug standard

American, Australia Standard, BRITISH, EURO
