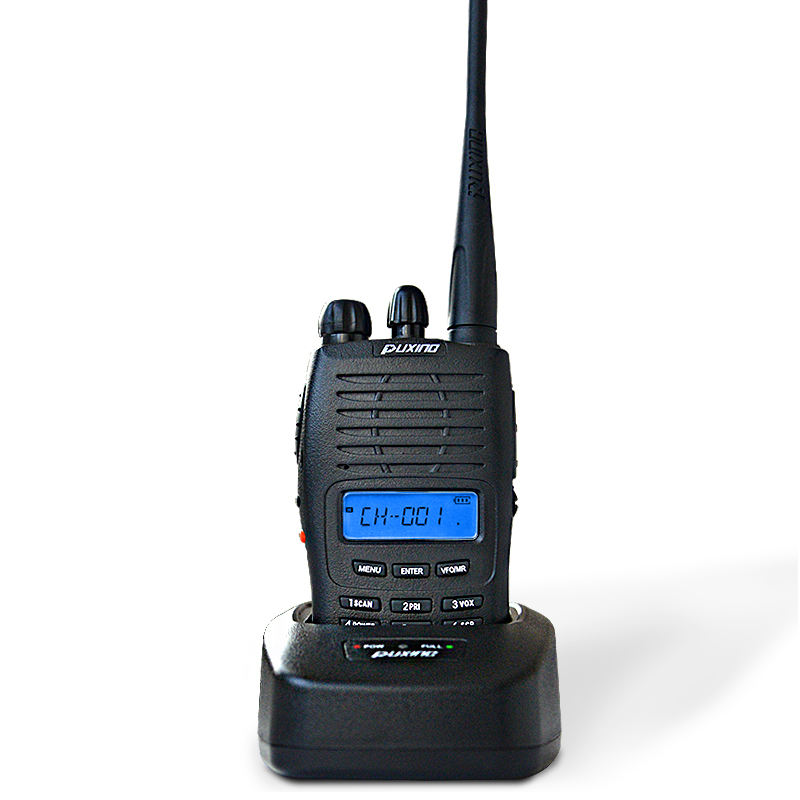

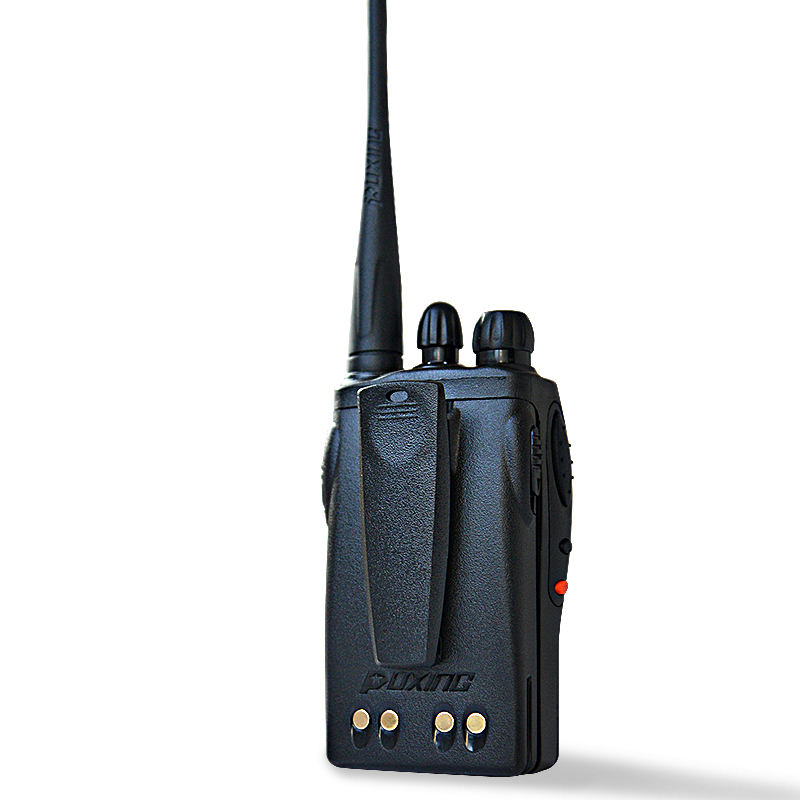

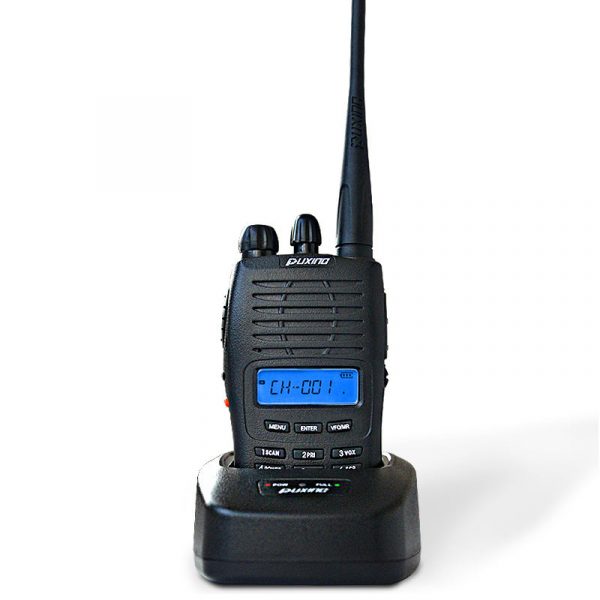

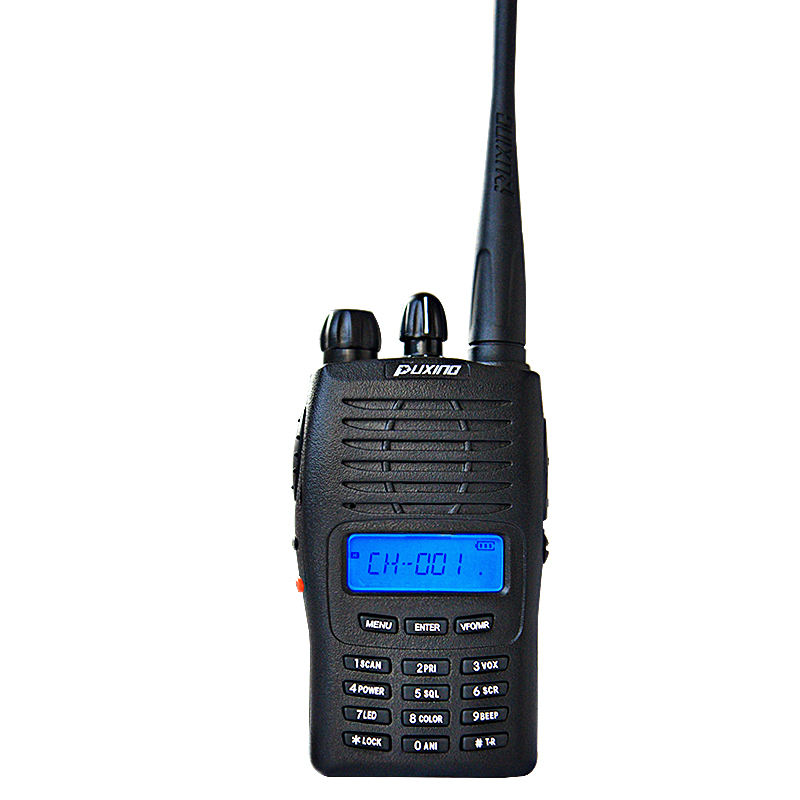

Puxing PX-777 PLUS 5W VHF UHF Handheld 2-Way Radio
FEATURES
1) ANI code
2) Scrambler
3) VHF 5W/ UHF 4W output power
4) 128 groups of memory channels
5) Built-in 50 Groups of CTCSS and 104 groups of DCS
6) Wide (25KHz) and narrow (12.5KHz) channel spacing programmable in separate channel
7) Come with 1,200mAh Li-ion battery
8) Input freq: by using keypad or programming software
9) VOX built-in
10) Three different scan types
11) Three colors LCD backlight display
12) Emergency alarm
13) Programmable by PC
14)Sound alarm
15) Priority scanning function
16) Adjust power High/ Low
17) Switching between channel / frequency mode
18) Adjust squelch level (0 – 9)
19) Busy channel lockout
20) Keypad lock
21) Reverse frequency function
22) Channel step 5k, 10k, 6.25k, 12.5k, 25k
23)Program radio channel name
| PX-777PLUS General |
| Frequency Range |
Single band VHF:136-174MHz or UHF:400-470MHz,400-480MHz,465-520MHz |
| Channel Capacity |
128 channels |
| Channel Spacing |
25KHz(Wide Band) 20KHz(Middle Band) 12.5KHz(Narrow band) |
| Phase-locked Step |
5KHz,6.25KHz |
| Operating Voltage |
7.4 V DC |
| Battery Life |
More than 12 Hours (1200mAh), |
| Frequency Stability |
±2.5ppm |
| Operating Temperature |
-20°C +55°C |
| Size |
100mm×55mm×32mm (not including antenna) |
| Weight |
220g (with battery, antenna) |
| Receiver (ETSI EN 300 086 standard testing ) |
| RF Sensitivity |
≤0.2μV |
| Audio distortion |
≤3% |
| Audio Response |
+2~-10dB |
| Adjacent Channel Selectivity |
≥60dB |
| Intermodulation Rejection |
≥65dB |
| Spurious Rejection |
≥70dB |
| Blocking |
≥80dB |
| Hum & Noise |
-45dB |
| Audio output |
500mW |
| Transmitter (ETSI EN 300 086 standard testing ) |
| Frequency Stability |
±2.5ppm |
| Output Power |
VHF5W/UHF4W |
| Modulation Limiting |
±2.5KHz |
| Audio Distortion |
≤3% |
| Audio Response |
+1dB~-3dB |
| Adjacent Channel Power |
≥70dB/60dB |
| Spurious Radiation |
≤7.5uW |
| Occupied Bandwidth |
≤16KHz |
|
|

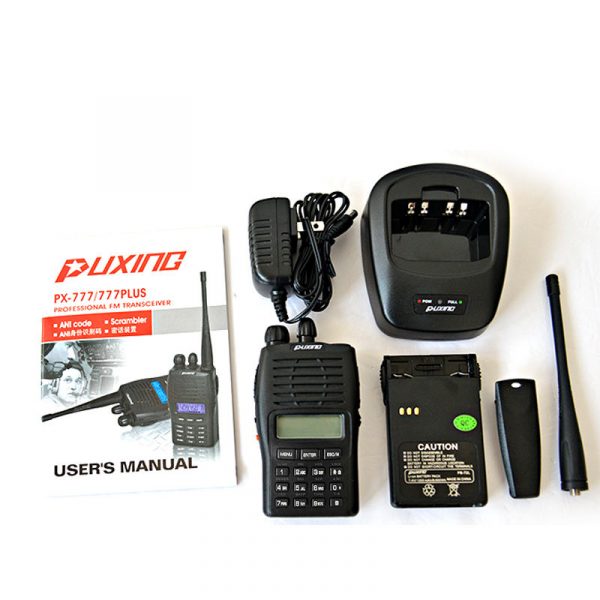

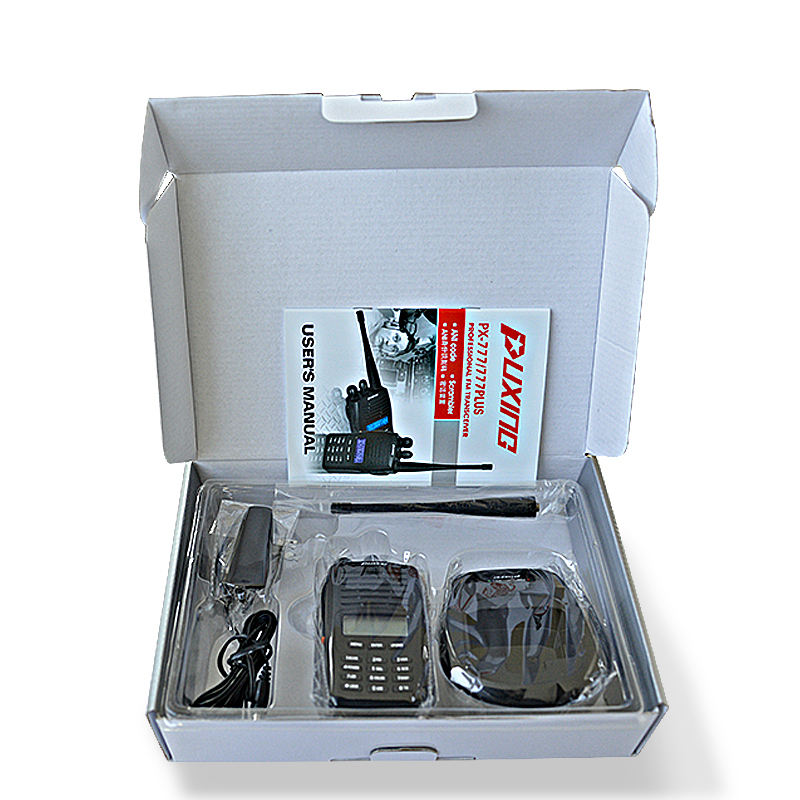

- 1 x PUXING PX-777 Plus Radio
- 1 x Charger with Adaptor

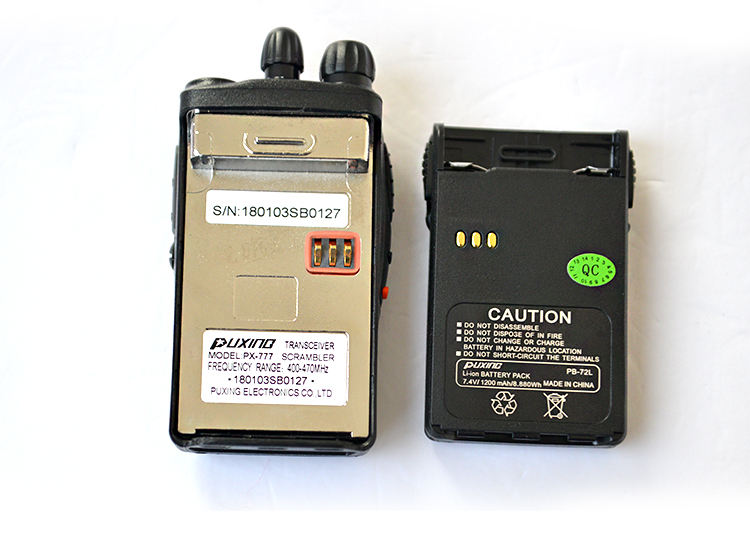

- 1 x 7.4V 1500mAh Li-ion Battery
- 1 x English instruction Manual
- 1 x Belt clip
- 1 x Antenna
- 1 x PTT earpiece
|
