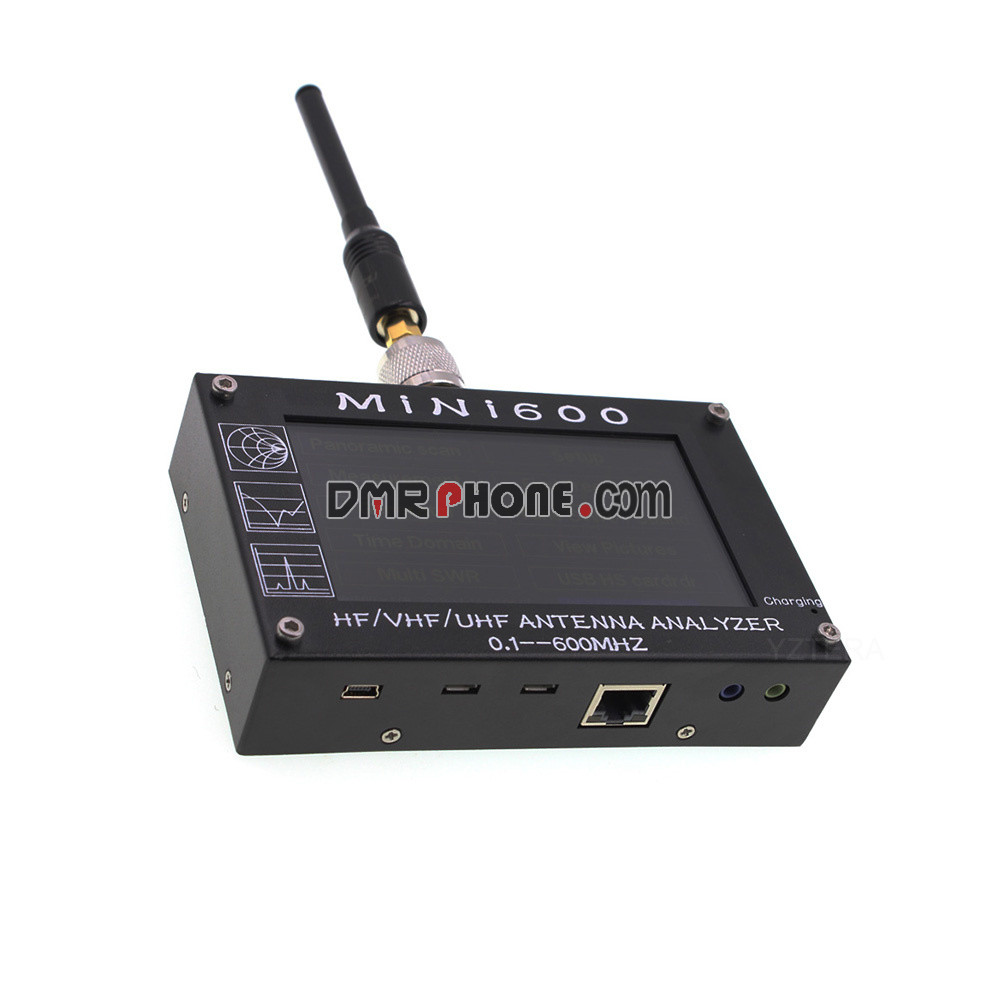

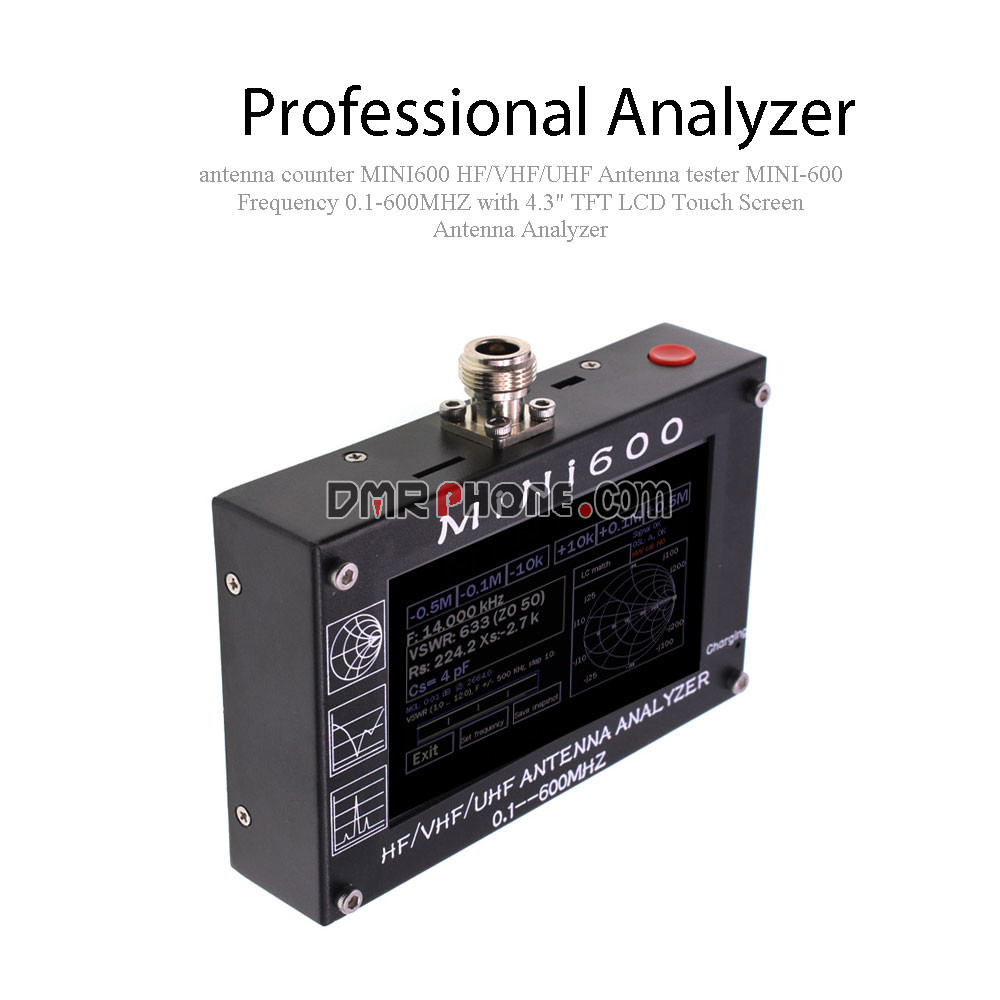

Professional MINI 600 HF VHF UHF Antenna Analyzer SWR 0.1-600MHz
UHF N-Type Connector MINI600 Antenna Analyzer 0.1-600MHz HF VHF UHF SWR Antenna Analyzer with 4.3′ TFT Capacitive Touch screen
Antenna Counter MINI600 0.1-600MHZ HF/VHF/UHF Antenna tester MINI-600 with 4.3′ TFT LCD Touch Screen Antenna Analyzer

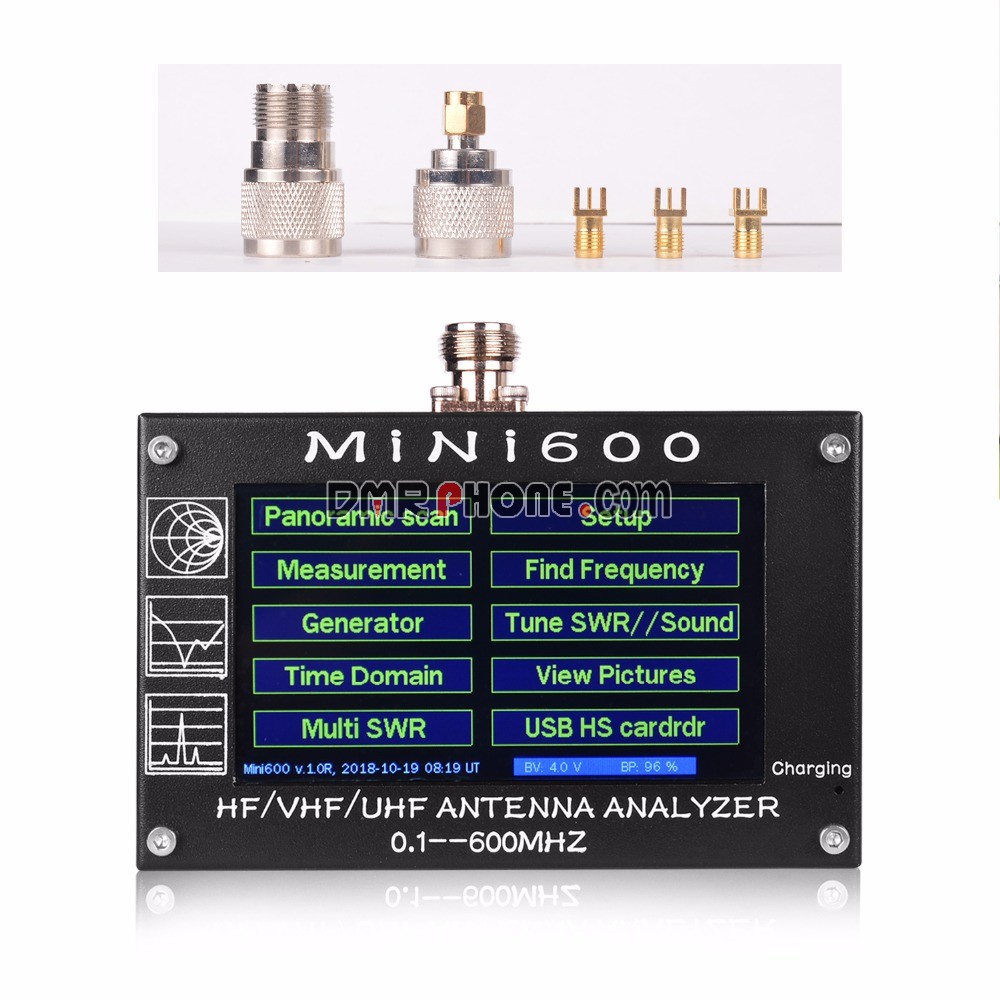

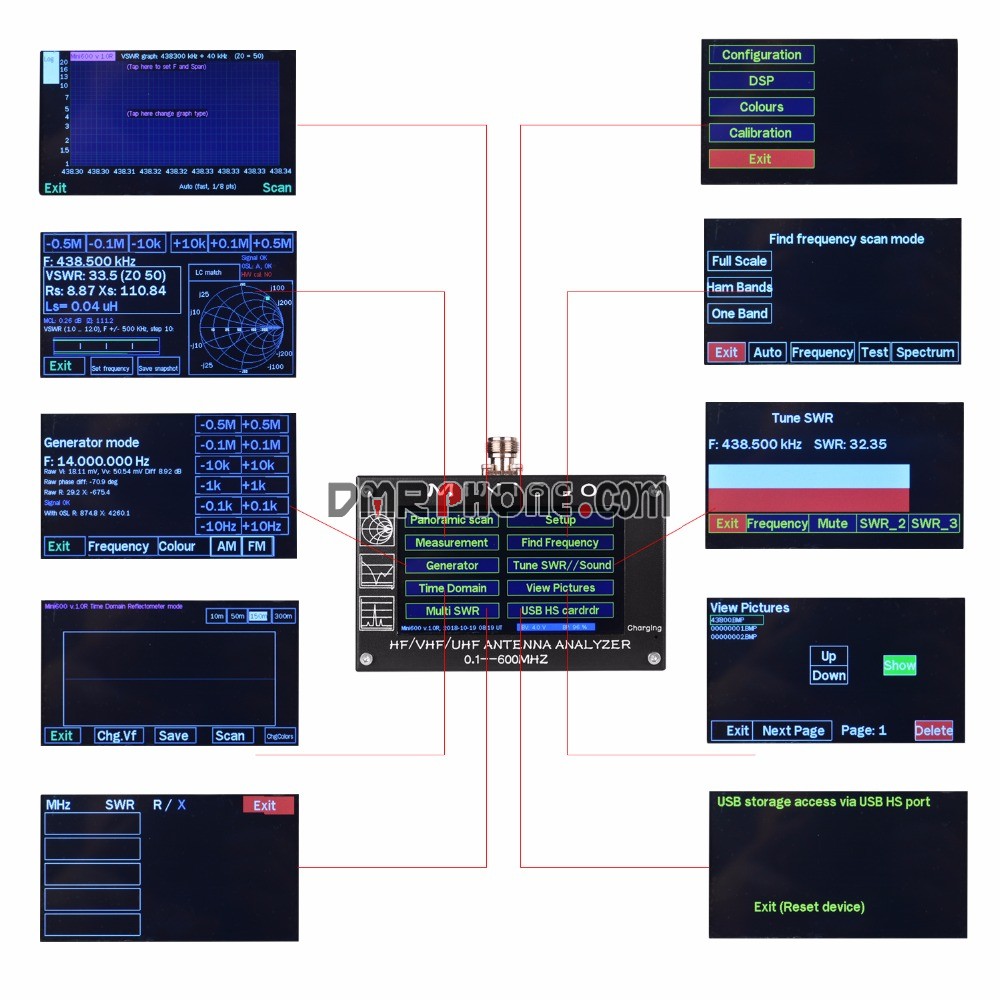

Functions:
- Panoramic Scan
- Measurement
- Generator
- Time Domain
- Multi SWR
- Setup
- Find Frequency
- Tune SWR/Sound
- View Pictures
- USB HS Cardrdr
Specifications:
– Frequency Range: 0.1-600MHz
– HF/VHF/UHF continuous coverage
– In/Out Impedance: 50
– Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss
– Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode
– SWR Measurement Range: 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode)
– Display Modes: Numerical display, curve display, simith chart
– Connector Type: UHF N-type connector
– SMA OPEN-SHORT-LOAD Calibration Kit x 1
– LCD size: 480×272, 4.3′ TFT LCD display
– Touch Screen Type: Capacitive
– All capacitive touch screen on the display – no buttons are needed
– Power Source: USB or Internal Li-ion battery
– Built-in Li-ion charging circuitry and DC-DC booster
– Maximum charging current: 5V/1.5A
– External Storage Method: TF card
– Dimensions: 133 x 85 x 29 mm (Not including prominent ports)
– N.W.: 550g
Pack List:
1× 0.1-600MHz MINI600 Antenna Analyzer
1× N-Male to SO239 Adapter
1× N-Male to SMA-Male Adapter
