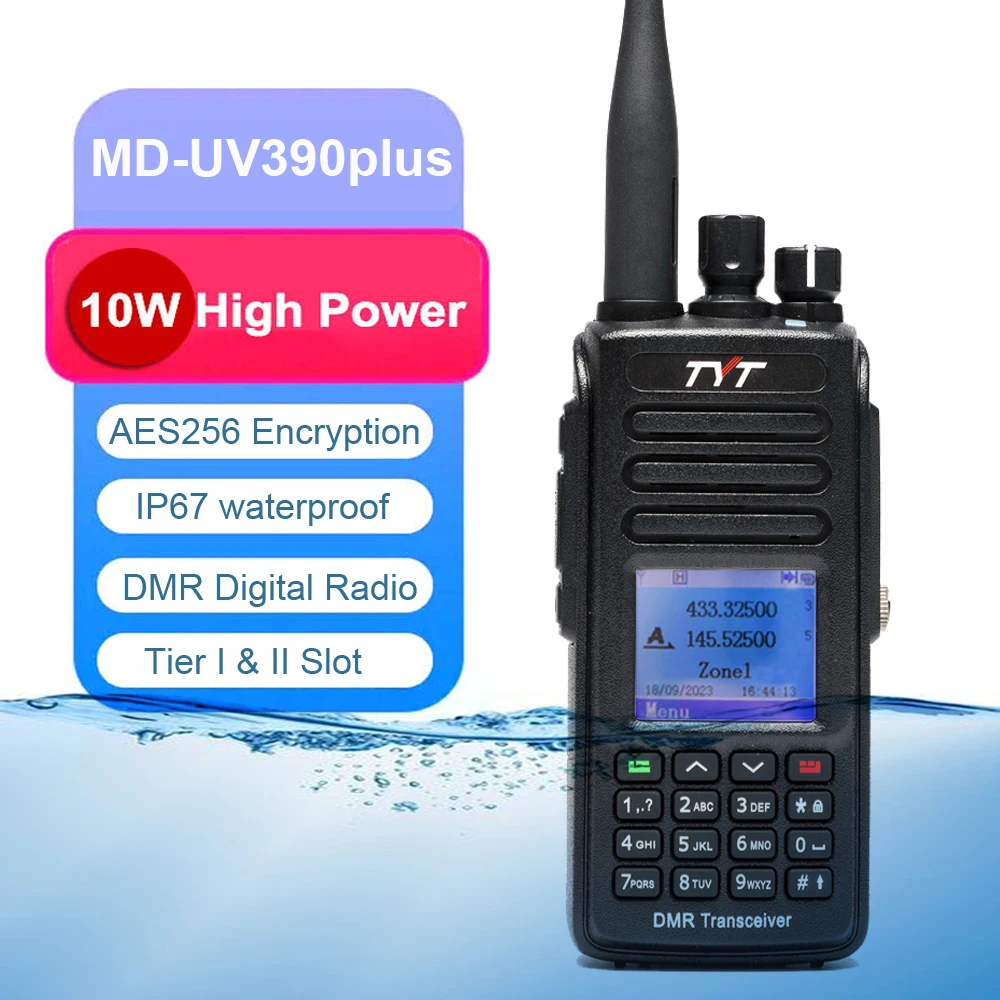

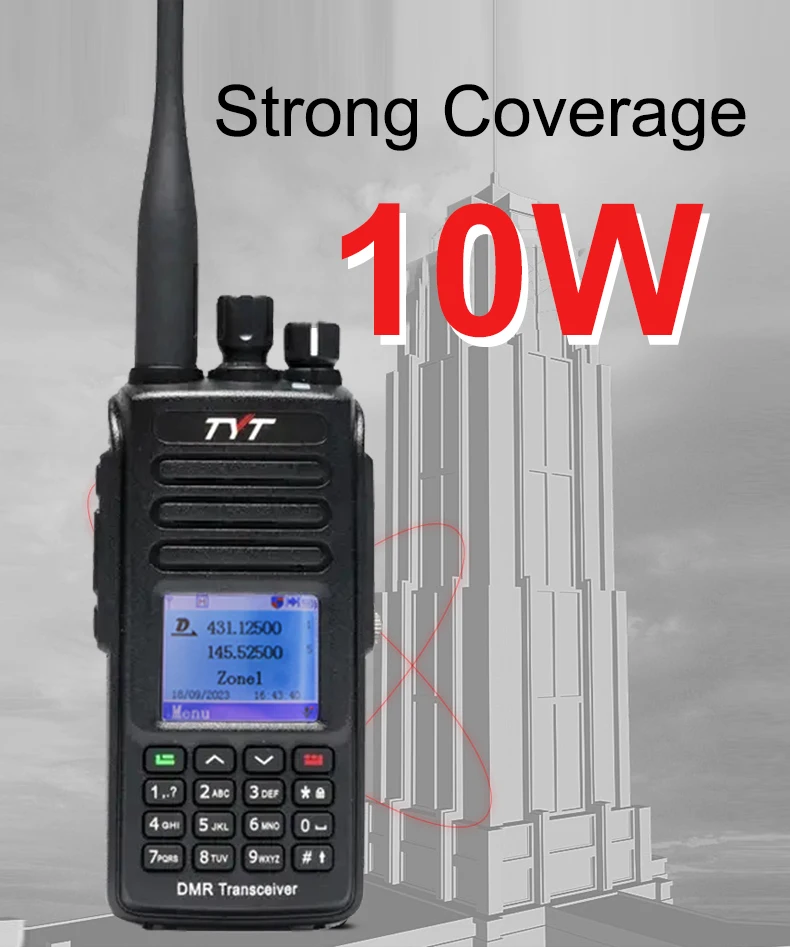

TYT MD-UV390 PLUS 10W IP67 Dual Band DMR Radio VHF/UHF Digital Walkie Talkie Advanced Encryption AES256 Amateur Radio

118.98$123.14$

& Free Shipping
Guaranteed Safe Checkout

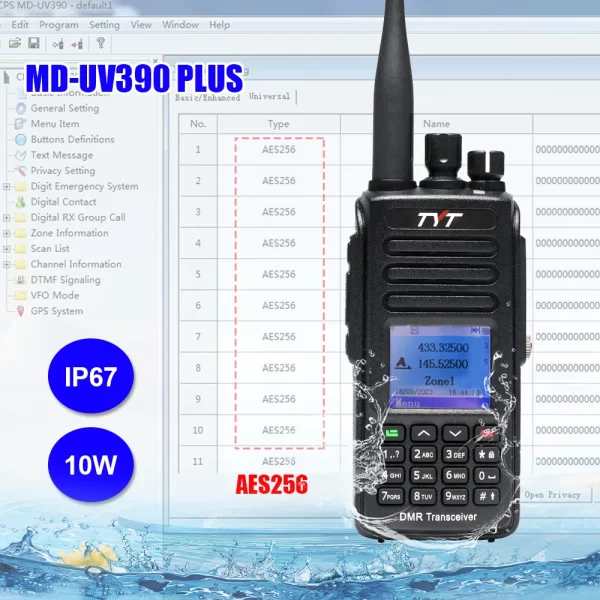

NEW 10W TYT MD-UV390 PLUS AES256 Encryption DMR Digital Radio IP67 Waterproof Dual Band 136-174&400-480mhz Walkie Talkie Long Range

Note: if you need software, please contact us.

Factory 100% original product, please don’t to FLASH the machine privately, because the version of each machine is different.

Item number

MD-UV390PLUS

General

FrequencyRange

136-174Mhz &400-480MHz

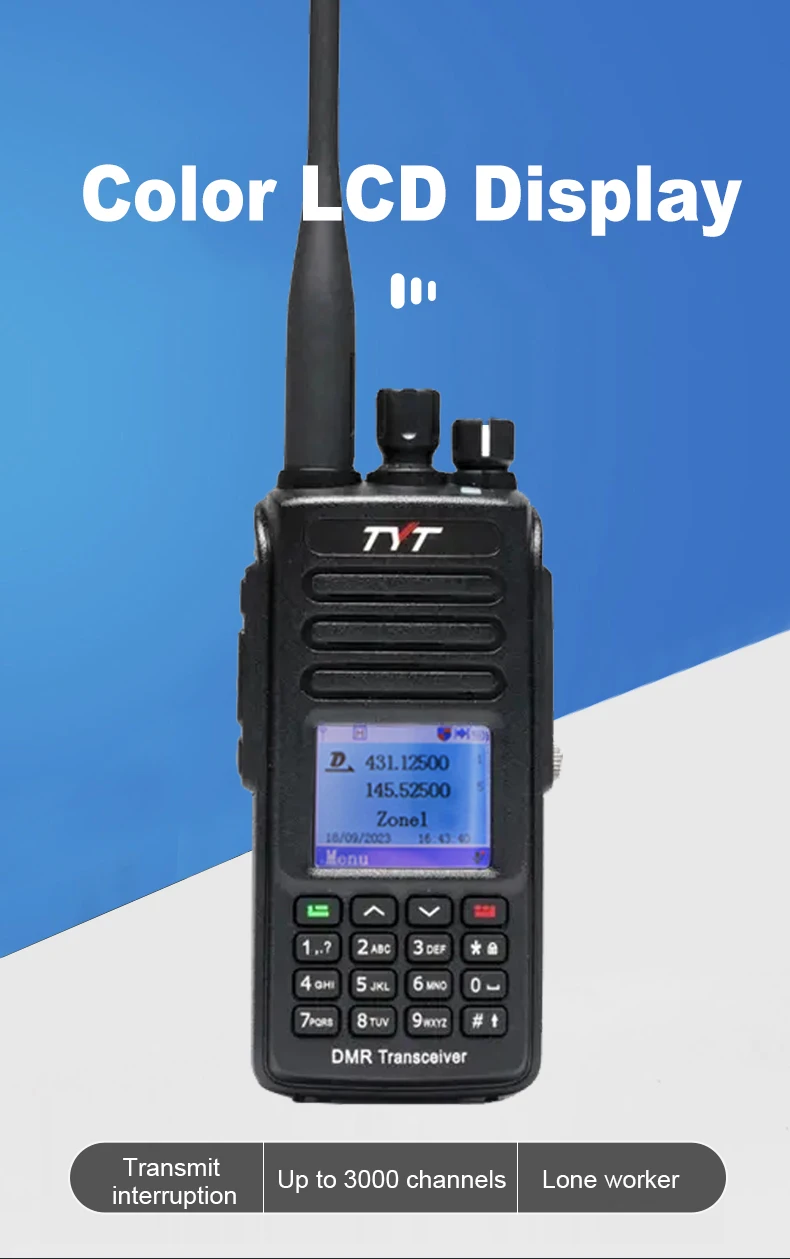

Channel No.

3000

Antenna impedance

50Ω

Operating Voltage

7.4 V DC

Operating Temperature

-30°C~+60°C

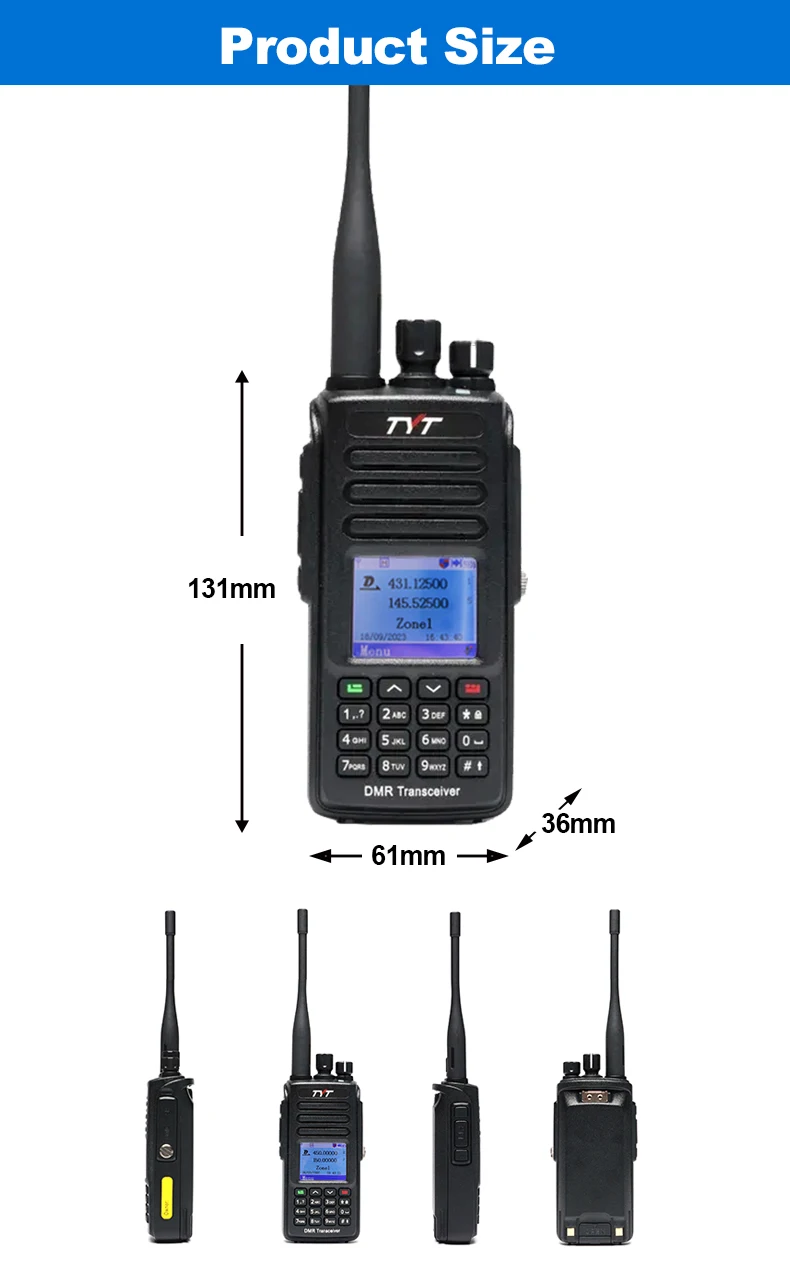

Dimension(W x H x D)

131x61x36mm

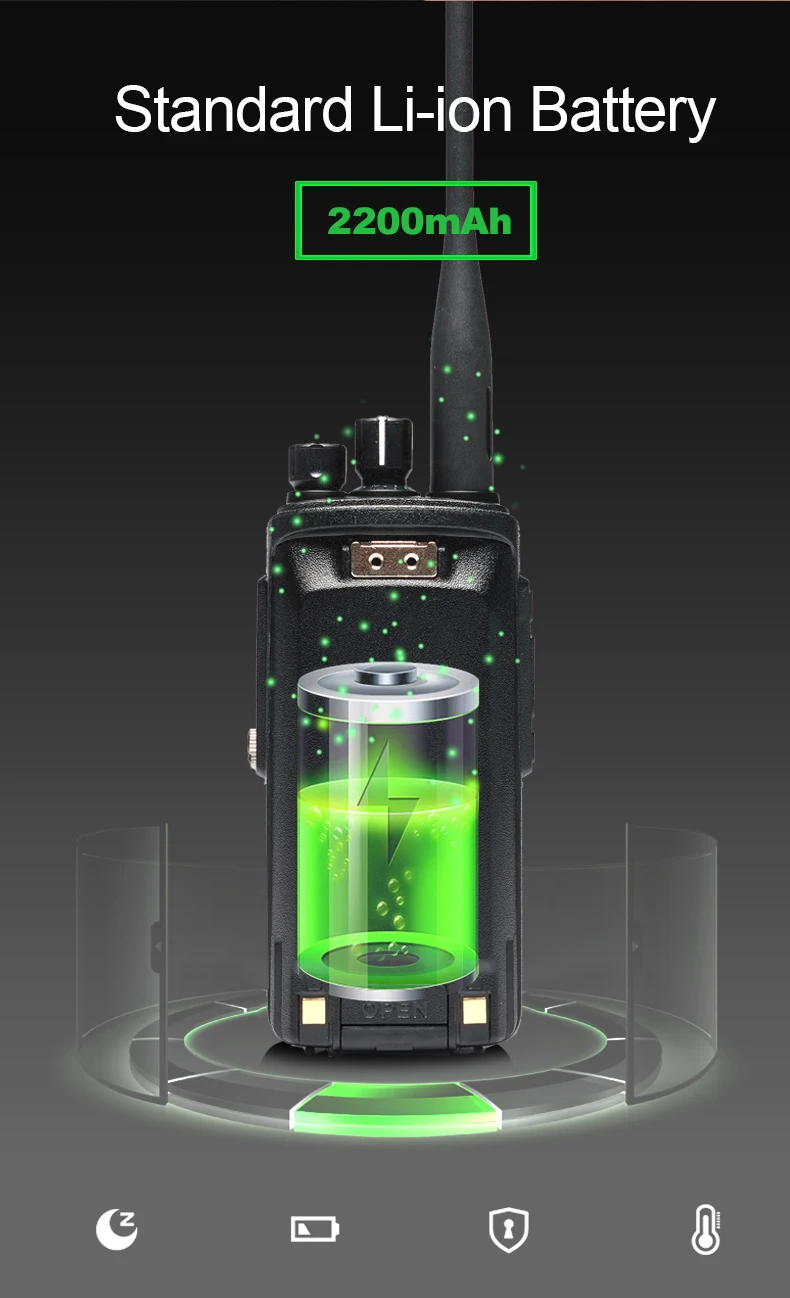

Battery

2200mAh Li-ion

Transmitter

Output power

≤10W(H) ≤5W(L)

Vocoder type

TDMA

Frequency Stability

± 1.0 PPM

Adjacent channel power

≤-60dB

Spurious Radiation

Antenna:9KHz-1GHz ,≤ -36dBm

1GHz-12.75GHz ,≤-30dBm

Hum and noise

-40dB *12.5KHz

4 FSK Digital Mode

12.5KHz(data only):7k60FXD

12.5KHz(data+voice)7k60FXE

Receiver

Digital sensitivity

0.25uV (BER 5%)

Audio power

1W

Autio response

=1dB-3dB

Adjacent Channel Selectivity

≤-60dB *12.5KHz

FAQ: How many versions are there?

ANSWERS:

1) Normal Encryption Series

MD-UV390 5W

MD-UV390 5W GPS

2) AES256 encryption Series

MD-UV390 Plus 5W

MD-UV390 Plus 5W GPS

MD-UV390 Plus 10W

MD-UV390 Plus 10W GPS

Weight 1.2 kg
Dimensions 300 × 400 × 150 mm
Type

MD-UV390plus, MD-UV390plus-USB
