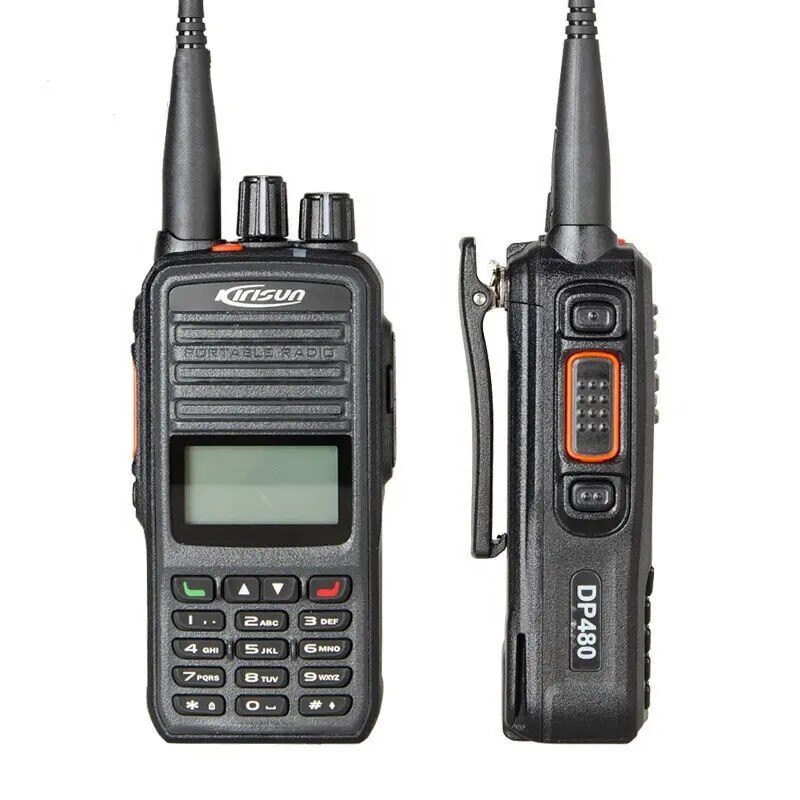

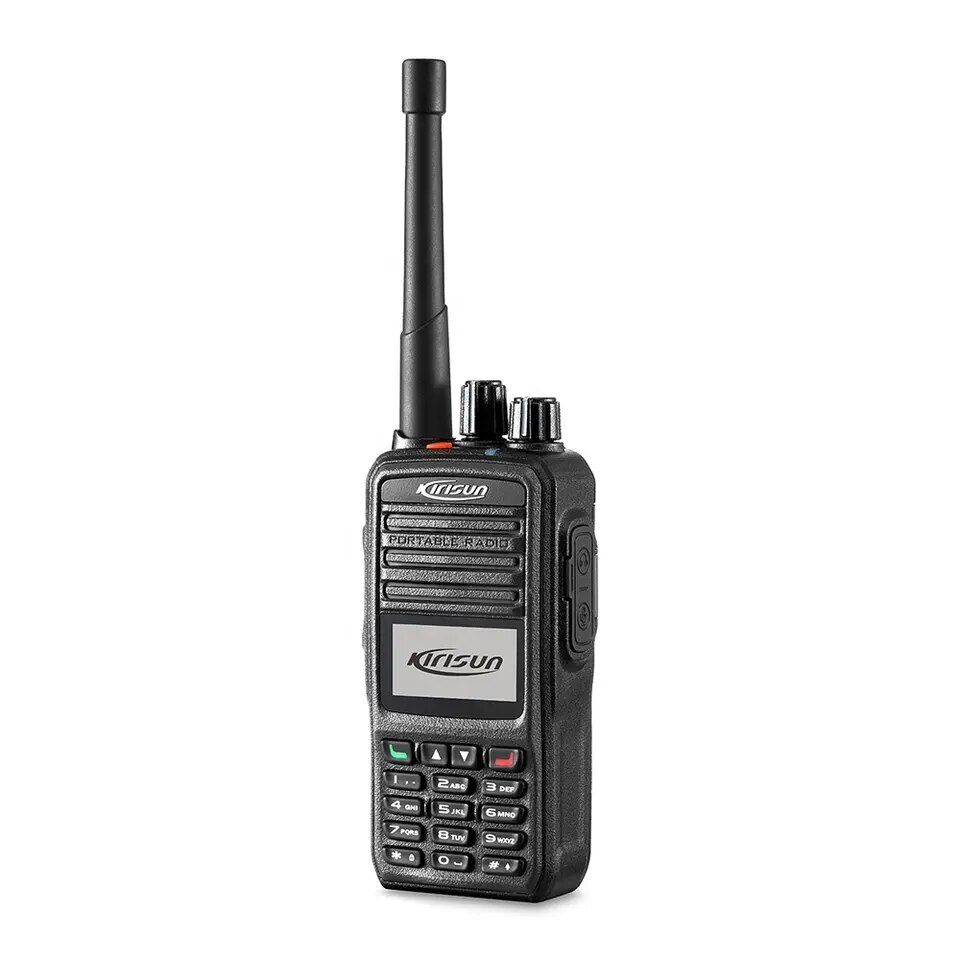

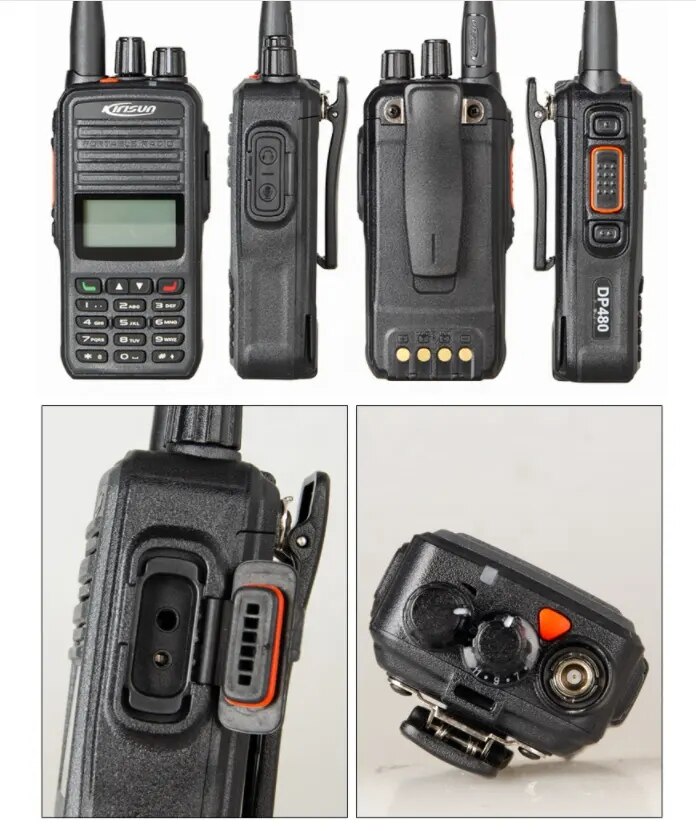

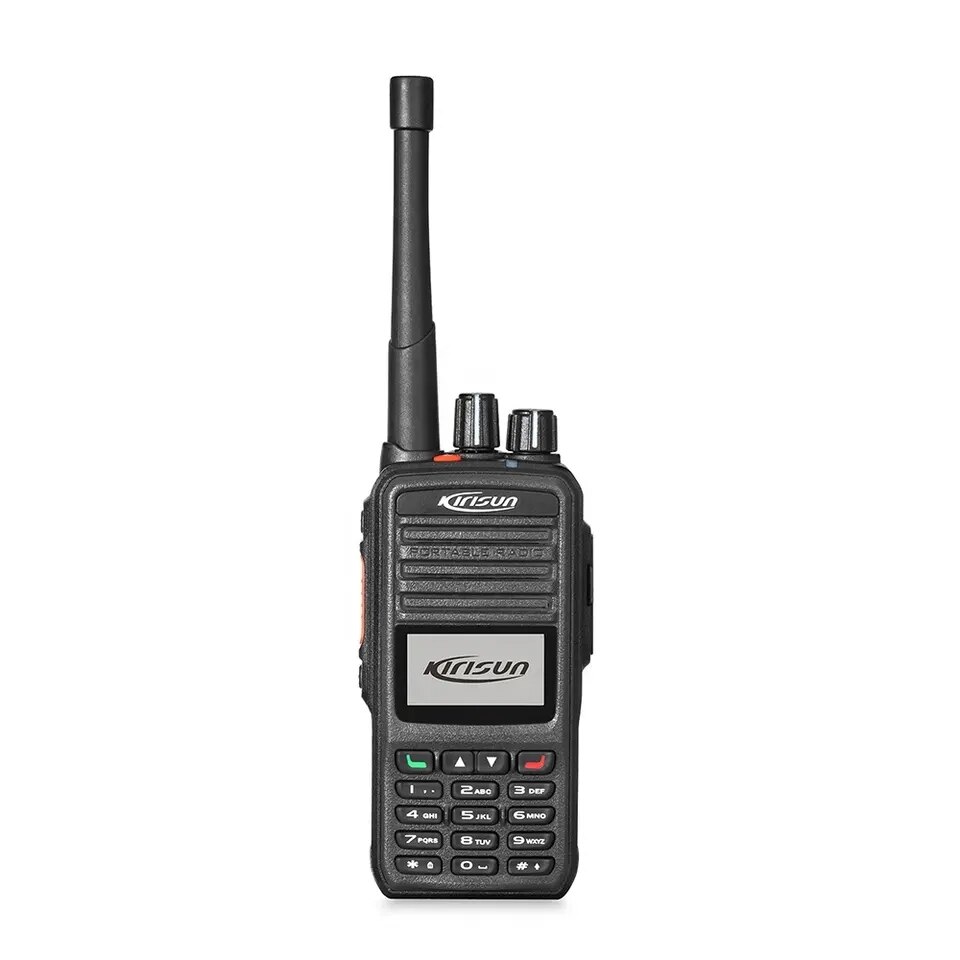

KIRISUN DP480 Digital Walkie Talkie 10W Dual Band DMR Long Talk Distance Two Way Radio
DP480 UHF 400-470MHz digital encrypted walkie talkie DMR 10W long talk distance two way radio DP480
Kirisun DP480 walkie-talkie is the perfect communication tool for any team that needs to stay connected. Its advanced digital radio technology provides clear and secure audio transmissions, and the optional GPS positioning system and private alarm offer increased safety measures. The LCD display also makes it easy to operate and monitor. Experience the best in digital radio technology and stay ahead of the competition with the Kirisun DP480 walkie-talkie.
The Kirisun DP480 is designed to provide the highest levels of communication security, supporting most of the digital mobile radio (DMR) standard modes. The radio’s dual time slot capability allows users to operate two channels simultaneously and avoids any interference during communication. The DP480 utilizes a TDMA-based communication method, providing very clear voice quality without any background noise.
The LCD display on the Kirisun DP480 makes it easier to use and understand. The screen displays essential information such as battery life, volume controls, and signal strength, enabling users to monitor their device. The device can also alert users when there is low battery or when they need to recharge the radio. The LCD display also makes it easy to program radio settings and channels.
A unique feature in the Kirisun DP480 is its optional GPS positioning system, which allows users to track their radios in real-time. The GPS positioning system also enables users to monitor the location of their team members, ensuring they’re always in touch. The radio even has an emergency alarm, which triggers an automatic SOS message that notifies team members of an emergency situation.
Another great feature of Kirisun DP480 walkie-talkie is the private alarm function. This feature sends out a distress signal to colleagues, and when pressed, the alarm will sound a loud notification to draw attention. All team members are notified, and the alert is accompanied by a flashing red light to indicate the alarming situation.
FEATURES
★Support simultaneous communication of dual voice channels in transfer and direct modes;
★ Built-in high-precision GPS positioning module, which can realize real-time tracking and positioning;
★With digital and analog dual-mode mode, digital-analog mixed communication is possible;
★Support optional functions such as reverse playback, roaming, forced insertion, virtual cluster, etc.;
★Support Chinese and English broadcast, support battery power broadcast, and can customize voice broadcast;
★Customizable 200- 400 hours recording function;
★Support remote control functions such as remote kill, activation, and work alone;
★Support regular and private alarm modes, more secure.

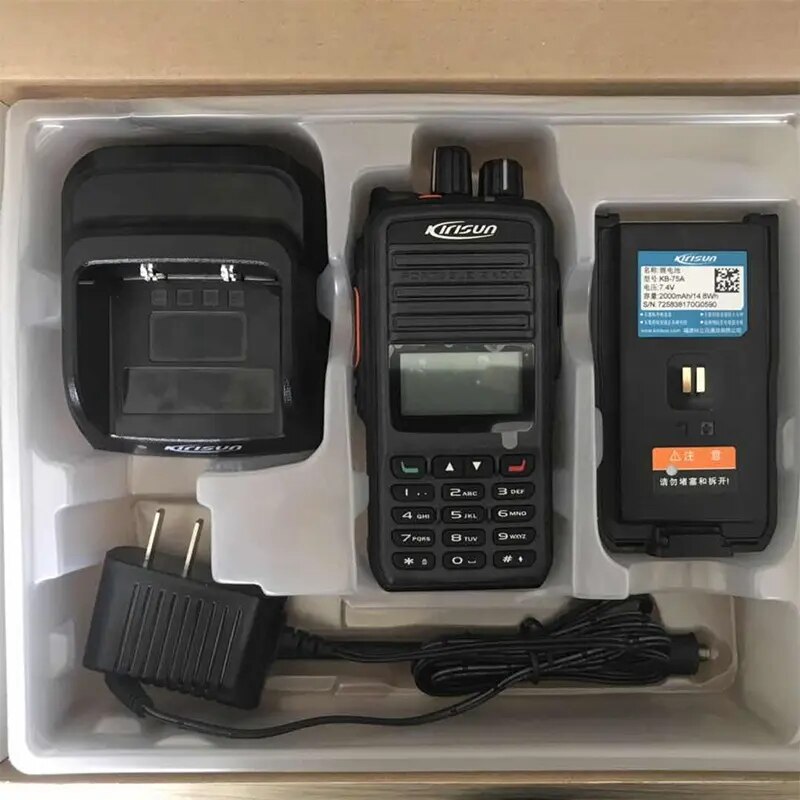

ACCESSORIES
- Adaptor
- Single Unit Charger
- Battery
- BeltCip
- Antenna
- Strap
- Manual
SPECIFICATION
| frequency |
UHF:400-470MHz
|
|
| channels | 256 | |
| Channel Spacing | 12.5kHz/20kHz/25kHz | |
| Working mode | digital/analog | |
| Battery capacity | 7.4V 2000mAH lithium-ion battery | |
| Weight | Weight 305grams (with battery and antenna) | |
| Dimensions (height*width*thickness) | 138mm*62mm*38mm | |
| Battery life (5-5-90) | Analog: 13.5 hours Digital: 15 hours | |
| Working temperature | -30°℃~+60°℃ | |
| Storage temperature | -40°℃~+85°℃ | |
| Receiver | ||
| SensitivityAnalog | 0.22uV@l2dB SINAD | |
| SensitivityDigital | 0.22uV@BER5% | |
| Selectivity | 60dB@12.5kHz,70dB@25kHZ(TIA-603) 6OdB@l2.5kHIz,7OdB@25kHz(ETSI) |
|
| Spurious Response Rejection | 7OdB@12.5kHz/25kHz(TIA-603) 70dB@l2.5kHz/25kl Iz(ETSI) |
|
| Inter-modulation | 7OdB@I2.5kZ/25kHz(TIA-603) 65dB@12.5kHz/25kl z(ETSI) |
|
| Hum and Noise | 40dB@12.5kHz;45dB@25k z | |
| Rated Audio Power Output | 1w | |
| Rated Audio Distortion | 3%(typical) | |
| Audio Response | +l~-3dB | |
| Conducted Spurious Emission | -57dBm@<1GHz, -47dBm @ >1GHz | |
| Transmitter | ||
| RF Power Output | 5w/1w(VHF)4W/1w(UHF) | |
| FM Modulation | 1lKOF3E@l2.5kHz l6KF3E@25kHz |
|
| 4FSK Digital Modulation | 12.5kHz Data Only:7K6中FXD l2.5kHz Data&Voice:7K6DFXW |
|
| Modulation Limiting | 士2.5kHz@12.5kHz,士5kHz@25kHz | |
| Radiated Spurious Emission | -36dBm<lghz,-30dbm>IGHz</lghz,-30dbm> | |
| FM Hum & Noise | 40dB@l2.5kHz,45dB@25kHz | |
| Adjacent Channel Power | 60dB@I2.5kHz,70dB@25kHz | |
| Audio Response | +|~-3dB | |
| Audio Distortion | ≤3% | |
| DigitalVocoderType | AMBE+2 | |
| Digital Protocol | ETSI-TSI02 361-1,-2,-3 | |
| Environment Specifications | ||
| Operating Temperature | -30℃～+60℃ | |
| Storage Temperature | -40℃～+85℃ | |
| ESD | IEC6I0000-4-2(Level4) 士4kV(Contact)土8kV(air) |
|
| Dust & Water Protection | IP54 Standard | |
| GPS | ||
| Accuracy specs are for long-term tracking(5 satellites visible at nominal -130dBm) |
||
| lTFF(Time To First Fix)Cold Start Horizontal Accuracy |
I0m | |
| TTFF(TimeTo First Fix)Hot Start | l0 seconds | |
