ICOM IC-905 VHF/UHF/SHF All Mode Base/Portable Transceivers
ICOM IC-905 VHF/UHF/SHF All Mode +ATV Base/Portable Transceivers are 10 W QRP 144/430/1200/2400/5600 MHz All Mode +ATV Base/Portable Transceivers that hold the distinction of being the first in the industry to offer the capability of operating up to 10 GHz with the optional CX-10G Transverter (sold separately). The IC-905 offers all common operating modes – SSB and CW, AM/FM, and full D-Star functionality with DV (digital voice), DD (data) modes and analog FM ATV (analog Amateur Television) with included AV input/output ports. Output power for the IC-905 is 10W on 144/430/1200 MHz, 2W on 2400/5600 MHz and 0.5W with the optional 10 GHz module.
The separate controller and RF module configuration allow for the installation of the weatherproof RF module near the antennas. A LAN cable makes the connection between the controller and the RF module, significantly reducing power loss. PoE (Power over Ethernet) technology provides flexibility and simplifies the installation of the RF module.

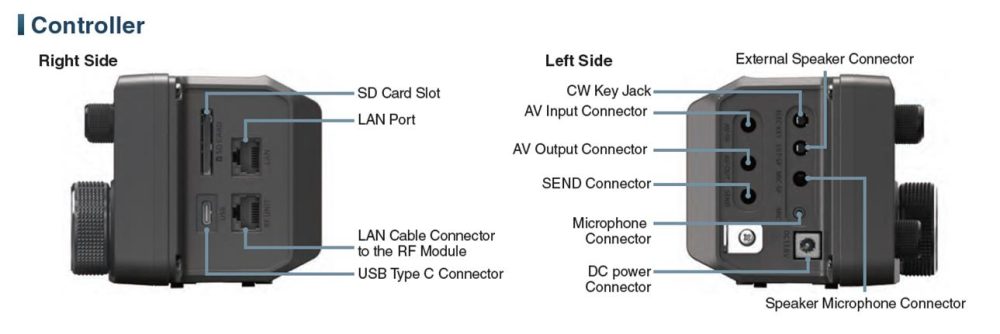

The engineers at Icom have made use of every inch of space on the controller with the inclusion of a large 4.3 inch color touchscreen LCD display with a high-performance real-time spectrum scope and waterfall display, which is adjustable for various bandwidths. An abundance of ports allows the connection of external accessories such as a microphone, external speaker/speaker microphone, headphones, AV input/outputs, CW key, SD Card slot, USB-C, 2 LAN ports (one for the RF module and one for wired ethernet) and a DC power connector. The IC-905 is compact and lightweight and is ideal for portable operation, but will feel right at home in the shack as a base station.
|Band Coverage||Transmit Frequency Range|
|2 meters||144.000-148.000 MHz|
|70 cm||420.000-450.000 MHz|
|23cm (1240-1300 MHz)||1240.000-1,300.000 MHz|
|13cm (2300-2310MHz, 2390-2450MHz)||2300.000-2450.000 MHz|
|5.6 GHz||5650.000-5925.000 MHz|
|3 cm (10 – 10.5 GHz)||10.000-10.500 GHz|
