UHF VHF Hytera TC-500S HYT Commercial Intercom VOX Outdoor Construction Site Professional Radios
HYT TC-500S Compact FM Transceiver Two-Way Radio walky talky Squelch Tail Elimination
TC-500S is a high-quality commercial radio. The U.S. military standard, 1.5 m drop resistance loss prevention structure, strong and durable. Unique sound cavity design, high-fidelity, crystal clear voice quality. Equipped with high-capacity lithium battery, can provide hours of high-quality performance. Appearance of small, professional, ergonomic principles, to master comfortable.
Key Feature:
Voice-operated Transmit (VOX)
Monitor
CTCSS/CDCSS and Squelch Tail Elimination
Scan
Battery Save
Low Battery Alert
Busy Channel Lockout
Time-out Timer (TOT)
PC Programmable
Wired Clone
Two Squelch Levels Selectable
Battery Strength Indicator
| General | |
| Frequency Range | VHF: 136-154Mhz, 146-174Mhz
UHF: 400-420Mhz, 450-470Mhz |
| Channel Capacity | 16 |
| Channel Spacing | 12.5KHz |
| Operating Voltage | 7.4V |
| Standard Battery | Li-Ion |
| Battery Life | Up to 24 hours |
| Frequency Stability | 2.5 ppm |
| Operating Temperature | -25 ~ +60 |
| Antenna Impedance | 50Ω |
| Dimensions (H×W×D) (with standard battery, without antenna) | 113x54x35mm |
| Weight (with antenna & standard battery) | 270g |
| Transmitter | |
| RF Output Power | ≤ 5W |
| Modulation | 8K F3E |
| Spurious and Harmonics | ≤ 36dBm (<1GHz) ≤ 30dBm (>1GHz) |
| FM Noise | ≤ -38dB |
| Audio Distortion | ≤ 5% |
| Receiver | |
| Sensitivity | ≤0.282μV |
| Selectivity | ≥60dB |
| Intermodulation | ≥60dB |
| Spurious Response Rejection | ≥70dB |
| S/N | ≥40dB |
| Rated Audio Power Output | 800mW(Speaker impedance: 16 ohm) |
| Rated Audio Distortion | ≤5% (0.8W) |

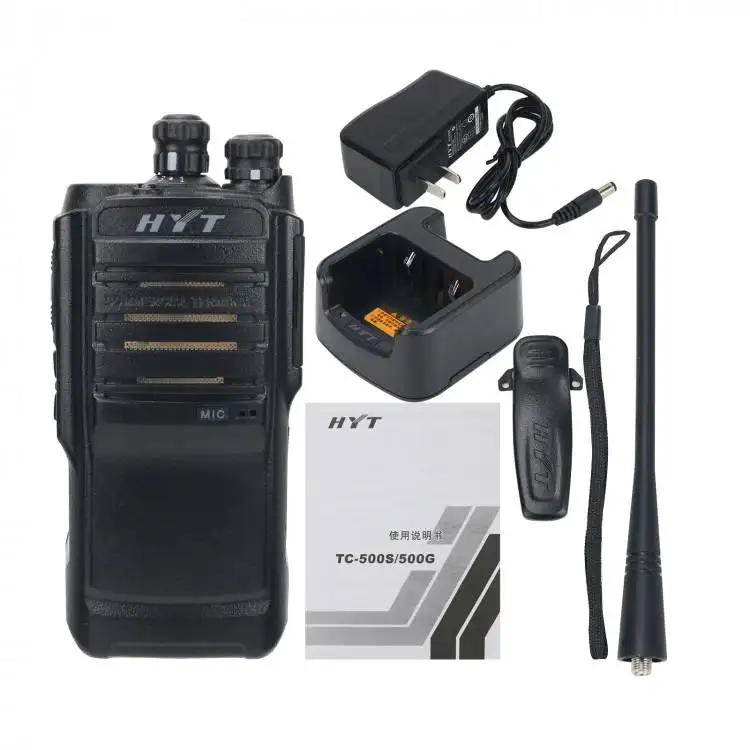

Accessories And Optional List
| ITEM | QUANTITY |
| Charger | 1 |
| Li-ion battery | 1 |
| Charger | 1 |
| Belt Clip | 1 |
| User’s manual | 1 |
| Programmed cable | Optional |
| Earphone | Optional |
Applications
- Service industry(Hotel, Restaurant, Supermarket, etc);
- Security, Property Management;
- Police, Firefighters, Education, Public Utilities;
- Constrution Sites & Transportation;
- Warehouse, Ports & Logistic Industry;
- Manufacturing industry
