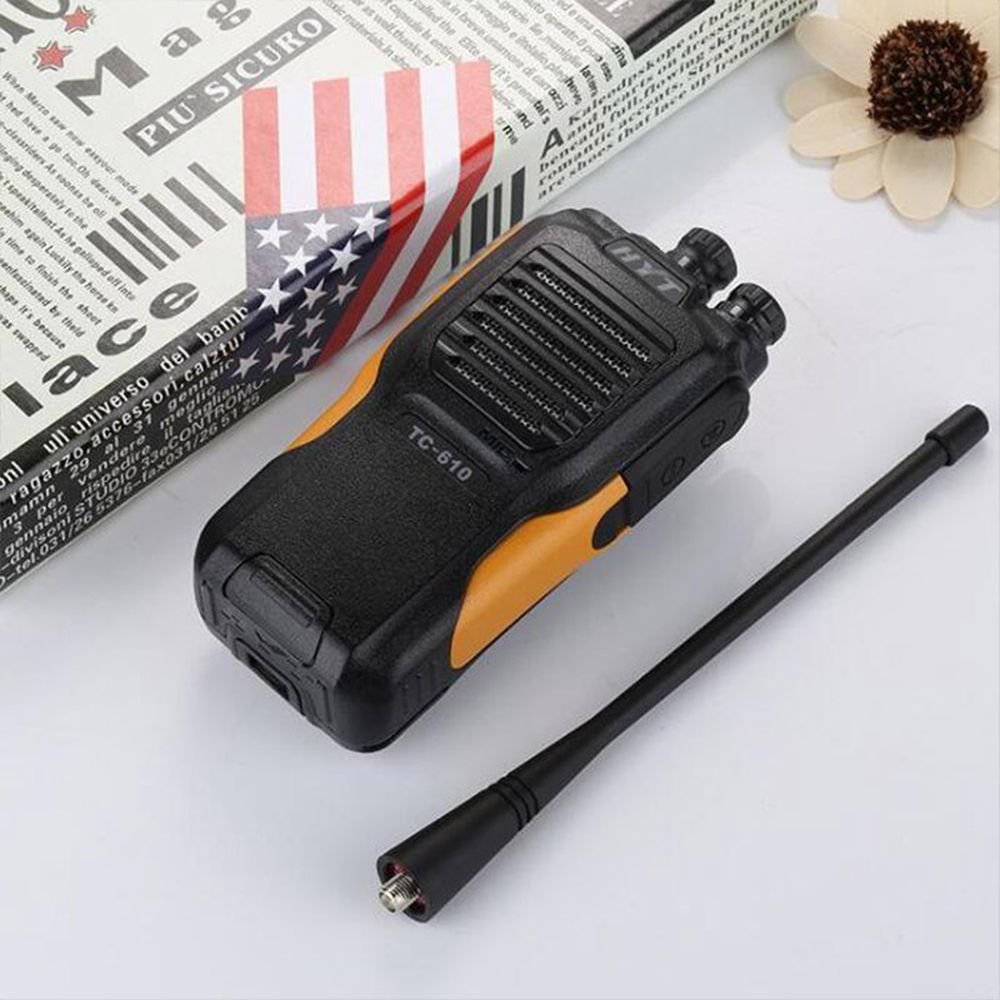

HYT TC-610 Walkie Talkie Handheld UHF VHF Two Way Radio

98.72$98.77$

Description

HYT TC-610 5W Portable Two Way Radio 1200mAH Standard Battery Portable Walkie Talkie

  • Brand Name: HYTERA
  • Battery Capacity(mAh): 1200
  • Origin: CN(Origin)
  • Is_Display: No
  • Waterproof / Water-Resistant: No
  • Walkie Talkie Type: Portable
  • Maximum Range: 5km-10km
  • Output Power(w): 5w-10w
  • Certification: CE
  • Model Number: HYT TC-610
  • Frequency Range: UHF 400-420MHz or UHF450-470MHz
  • Dimensions: 120*58*33mm(without antenna)
  • Storage Channel: 16
  • Material: Plastic
  • RF power output:: 5W
  • Weight:: 230g(without Antenna&Battery)
  • Battery Capacity:: BL1204 1200mAh Li-ion Battery
  • Channel Spacing:: 12.5, 25kHz
  • Operating Voltage:: 7.4V
  • Battery life:: about 12hrs(5-5-90 Duty Cycle)
  • Color:: Black

NOTE:

Frequency for your option :

UHF 400-420MHz or UHF450-470MHz or VHF136-174MHz or (470-480MHz)

ONE STANDARD PACKAGE INCLUDES:
  • 1 x HYT TC-610 Radio
  • 1 x Li-ion battery
  • 1 x Antenna
  • 1 x Charger Base
  • 1 x AC power Adapter with Euro or US Plugs
  • 1 x Belt Clip
  • 1 x Hand Strap
  • 1 x User manual

Detailed Specification:

vhf uhf fm transceiver, Two-Way Radio, Walkie Talkie, Handheld Transceiver, 2 way radio, Interphone

Main function/ Features:

  1. Voice prompt
  2. PC Programming/Wireless Cloning Function
  3. Alarm Function between the Units
  4. 16 channels
  5. Output power:5W
  6. Function and Features
  7. Frequency:UHF 450-470MHz       Output power:5W
  8. 16 channels
  9. CTSS/DCS
  10. Voice prompt
  11. Auto battery saving function
  12. PC Programming/Wireless Cloning Function
  13. Alarm Function between the Units

Specification

Ttransmitter

Receiver

Frequency Range

UHF 400-420MHz or UHF450-470MHz

Output Power

5W

RF Sensitivity

≤0.14uV

Memory Channel

16

Current

<1.7A

Silent Sensitivity

≤0.13uV

Channel Spacing

5/10/12.5/25KHZ

Modulation Sensitivity

12MV

Audio Frequency Power

500mW

Frequency Sensitivity

±5PPM

Modulation Deviation

≤5%

Audio Distortion

≤10%

Antenna Impedance

50Ω

Maximum Frequency Deviation

≤5KHZ

Modulation Receiver Bandwith

≥2×5KHZ

Dimension

CTCSS Frequency Deviation

0.75KHZ±50KHZ

Spurious Rejection

≥55dB

Remanent Radiation

≤7uW

Selectivity

≥65dB

Modulation Mode

16KΦF3E

Intermodulation

≥60dB

Remanent Modulation

≤-3.5dB

Blocking

≥85dB

Applications

  • Service industry(Hotel, Restaurant, Supermarket, etc);
  • Security, Property Management;
  • Police, Firefighters, Education, Public Utilities;
  • Constrution Sites & Transportation;
  • Warehouse, Ports & Logistic Industry;
  • Manufacturing industry

Two way radio with compact and user-fricndly design

Additional information

Color

UHF400-420MHz, UHF440-470MHz, UHF450-470MHz, VHF136-174MHz

Plug standard

American, EURO
