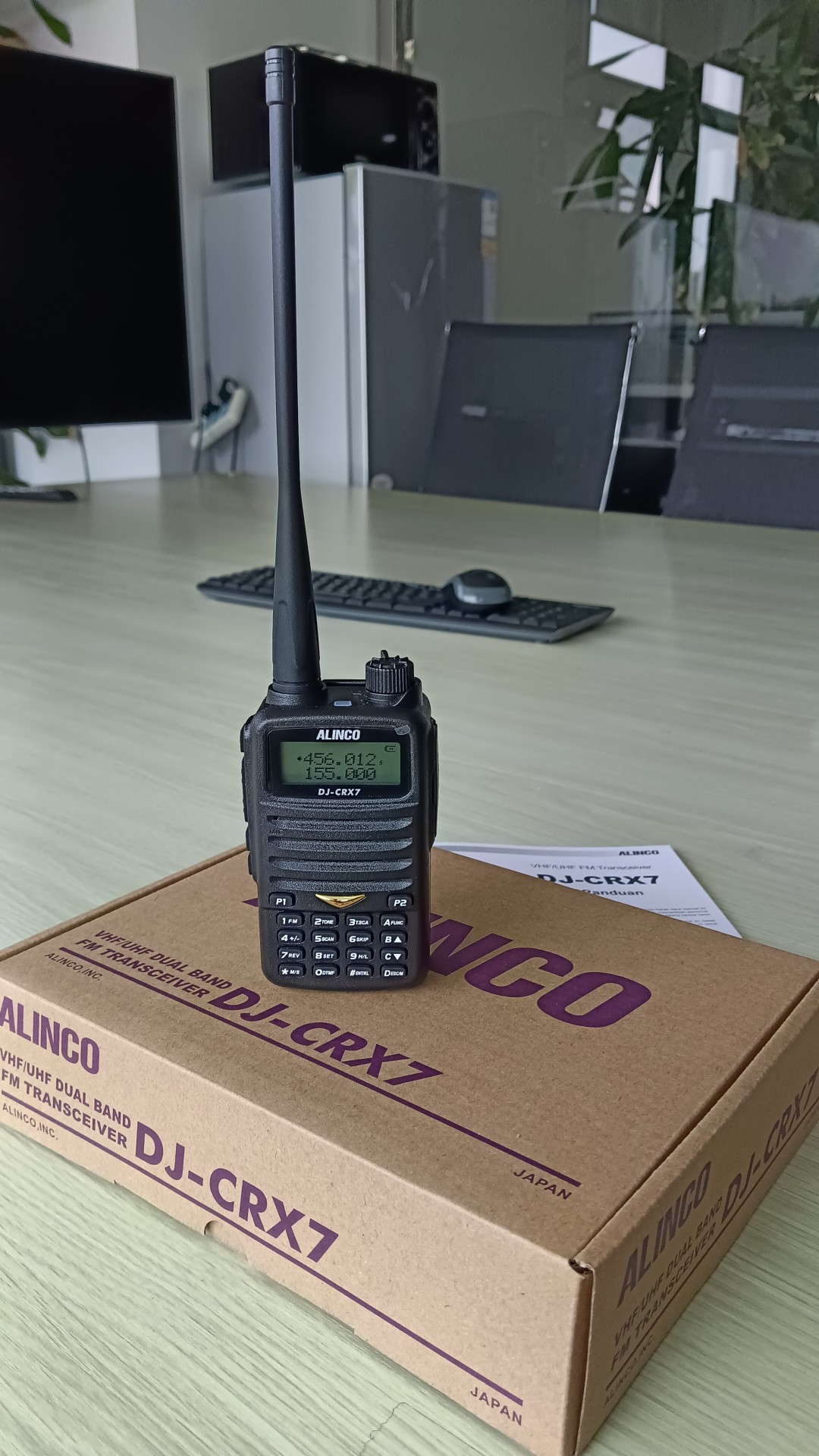

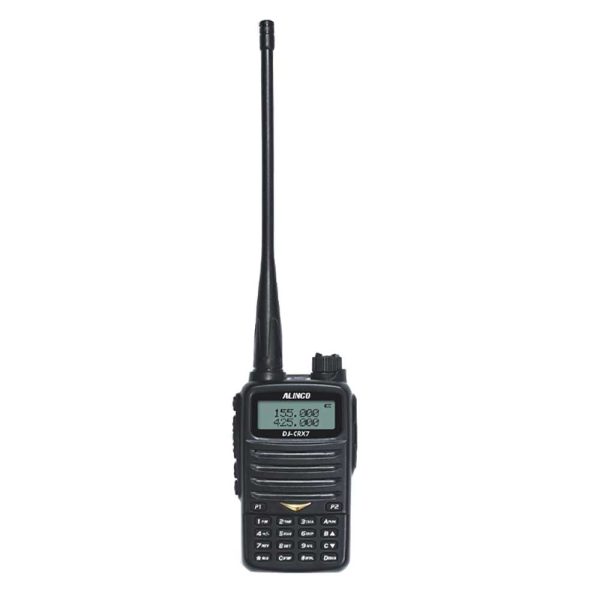

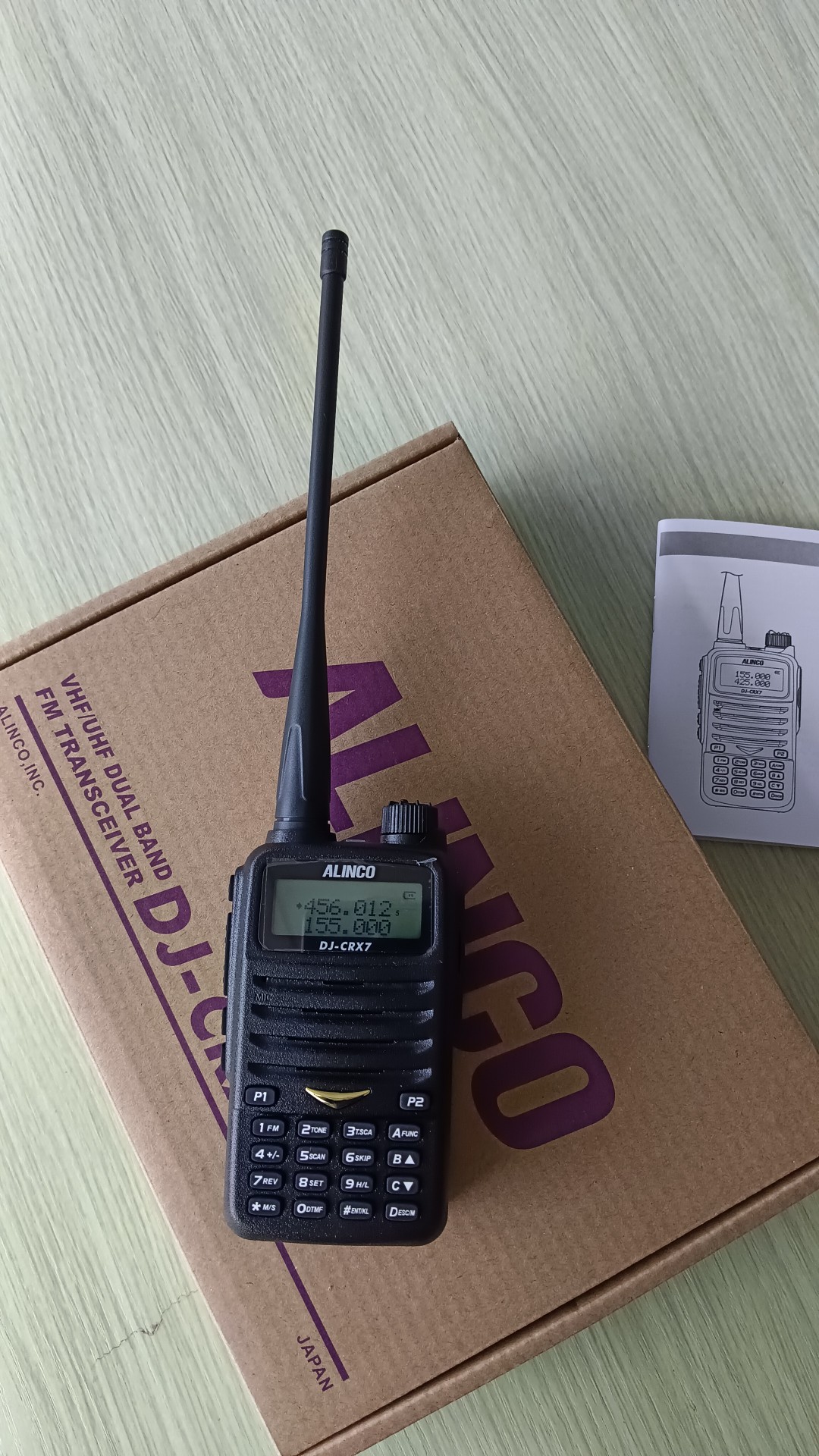

HT Alinco DJ-CRX7 FM Transceiver 5W Dual Band UHF VHF 200 channels Portable Walkie Talkie
HT Alinco DJ-CRX7, HT Dual Band VHF and UHF, Output 5W VHF / 4W UHF. With 200 channels, HT charger and HT battery Alinco DJ-CRX7 Li-Ion 1500 mAh
Align DJ-CRX7 HT Dual Band
HT Alinco DJ-CRX7 is a handy talky offering a variety of advanced and practical features for its use. The two-band HT frequency string VHF 136-174 MHz and UHF 400-438 MHz, which allows you to listen to two frequencies simultaneously. Besides, this radio also has FM receivers.
HT Alinco DJ-CRX7 handy talky double-screen and coloured keypad
This radio has a large dot-matrix screen that can display three colour options. The idea also has light that facilitates use in dark conditions.
Half-Duplex HT dual band and FM receiver
This HT Alinco DJ-CRX7 supports a dual band (VHF and UHF), which allows you to listen to two frequencies simultaneously. Besides, this radio also has FM receivers.
200 HT memory channels Alinco DJ-CRX7
Alinco DJ-CRX7 can store up to 200 memory channels that can cover a combination of VHF and UHF frequencies.
Internal VOX and reverse tracking
VOX curve feature
DJ-CRX7 Alinco specification
|Frequency Coverage (76-108MHz included)||136-174 MHz
|TX Frequency Coverage||136-174 MHz
|Modulation||F3E(16K0F3E / 11K0F3E / RX only WFM)|
|Power supply requirement||7.4V (Battery)|
|Current drain (Approx.)||1500 mA TX / 300 mA receive at Max audio output 80mA squelched|
|Usable temperature range||－20～ +55°C(-4～131°F|
|Channel step||2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50 KHz|
|Dimensions||92 x 57 x 35 mm (with battery pack)|
|Weight||approx.213g inclusive of battery pack and antenna|
|Output Power (Approx)||Approx. 5W(VHF) / 4W(UHF) / 2W / 1W|
|Frequency Deviation||±5kHz / ±2.5kHz|
|Spurious emission||– 60dB or less|
|Receiver System||Direct conversion|
|Sensitivity(12dB SINAD Wide/Narrow)||Wide -12dBu / Narrwo -9dBu|
|Adjacent Channel Selectivity||Wide More than 65dB /Narrow More than 60dB|
|Audio output power||1W (10% distortion)|
Specifications subject to change without notice or obligation. Product intended for use by properly authorized operators.
*VFO(frequnecy) mode may not be available due to regulation. Please consult with your dealer before purchase

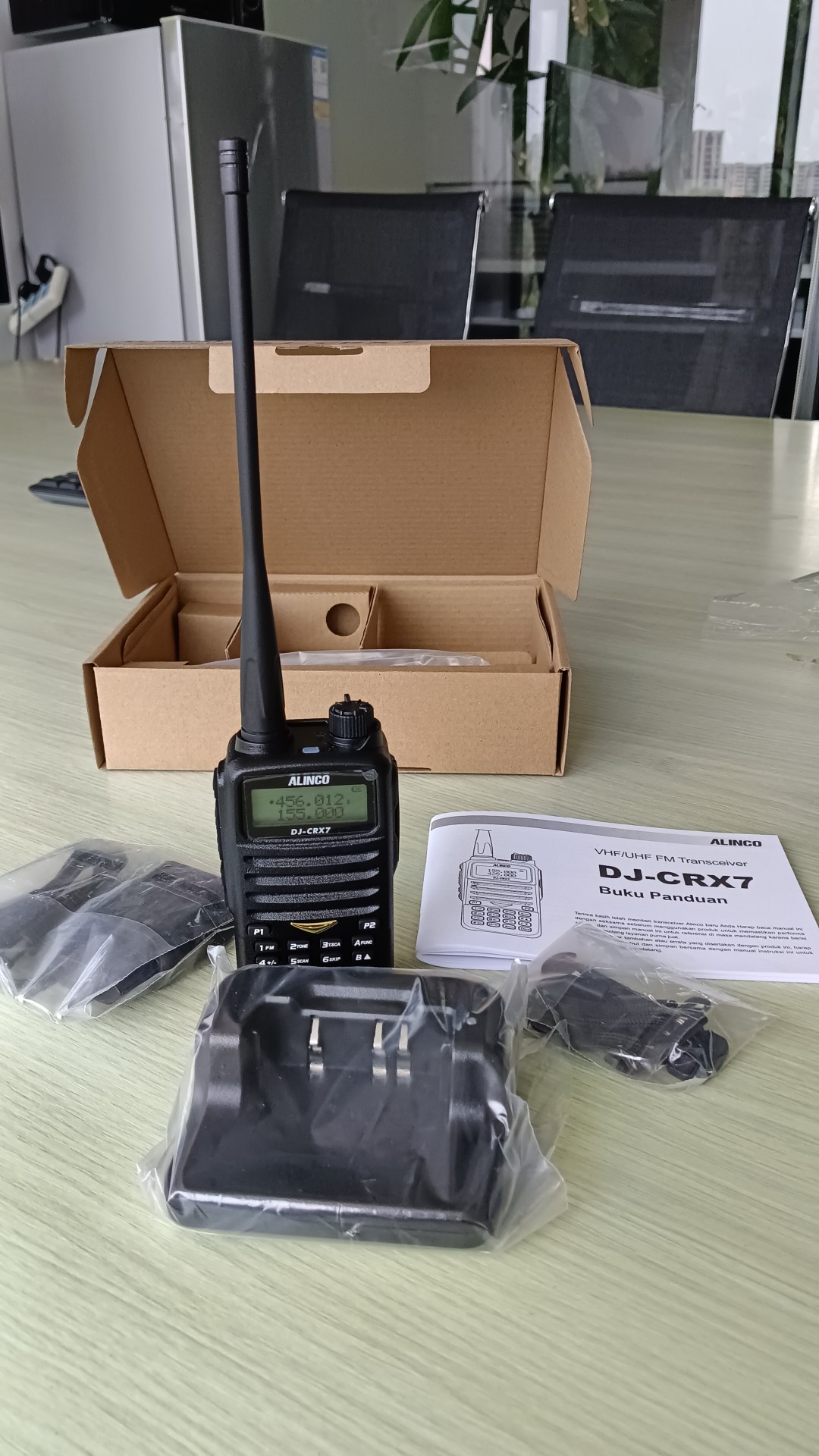

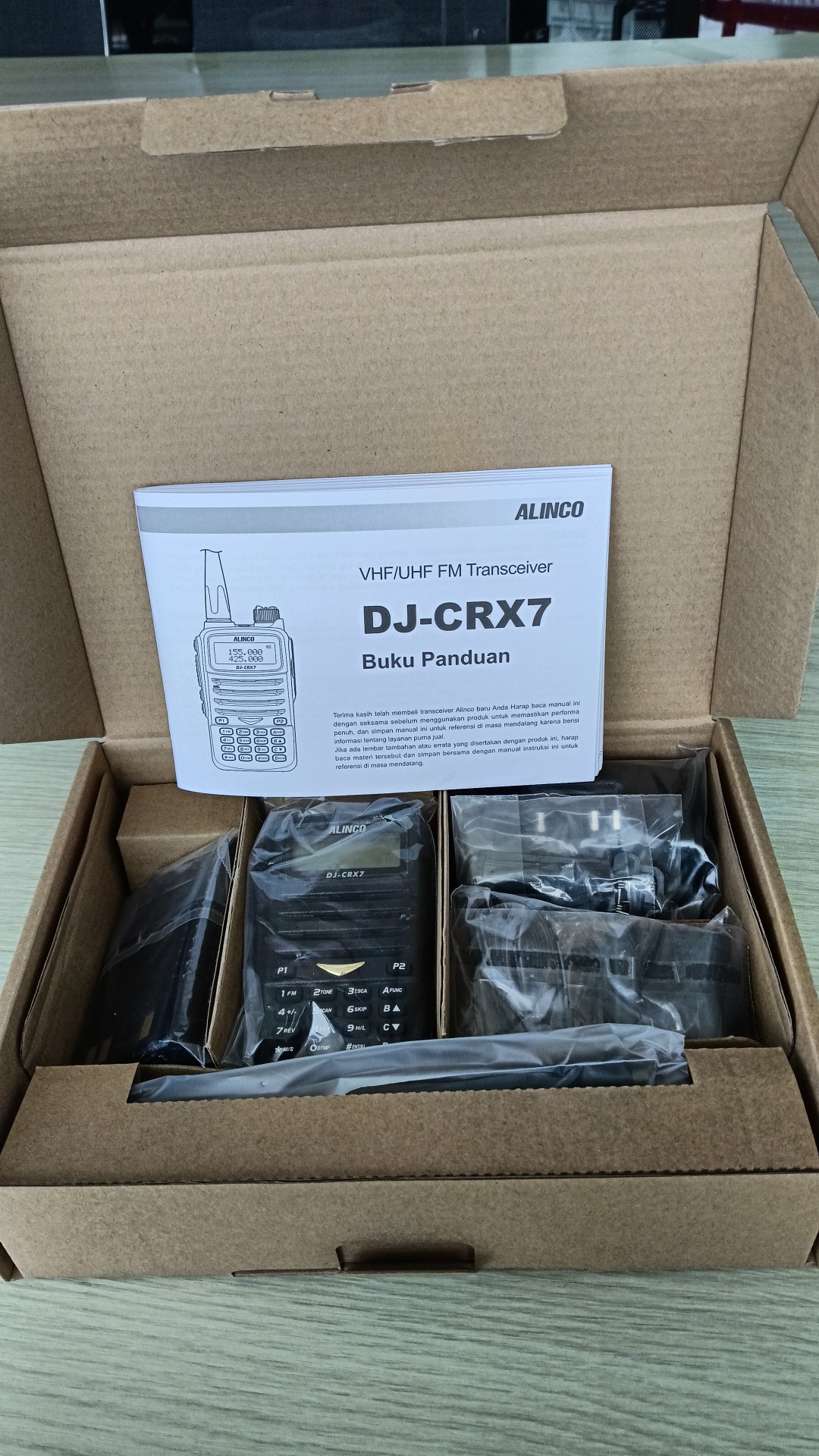

- EA-277 Whip Antena
- EBP-107 Baterai Pack
- EDC-314 Rapid charger
- EDC-315 AC Adapter
- EBC-41 Belt clip
- Manual book
- EMS-76 Speaker Microphone
