Ham Radio Hobbyist DIY 2018 NEW Mini60S Android HF ANT SWR Bluetooth Antenna Analyzer

109.00$169.90$

& Free Shipping
Guaranteed Safe Checkout

Ham Radio Hobbyist DIY 2018 NEW Mini60S Android HF ANT SWR Bluetooth Antenna Analyzer

This is an antenna analyzer for ham radio hobbyists. It can measure 50 ohms source impedance. It is also a meter for magnetic loop resonance, standing wave ratio, impedance…

New Bluetooth Android verison MINI60S update for MINI60 1 – 60 Mhz HF ANT SWR Antenna Analyzer Meter C4-006

Features:
Frequency generation & control: 1-60MHz.
External power supply: 2.1mm power jack(center pin positive).
6 operation buttons, easy and convenient to operate.
Installed black metal case, just connect the power(not included) and then work.
Step size: user configurable increments of 100Hz, 1KHz, 10KHz, and 100KHz.

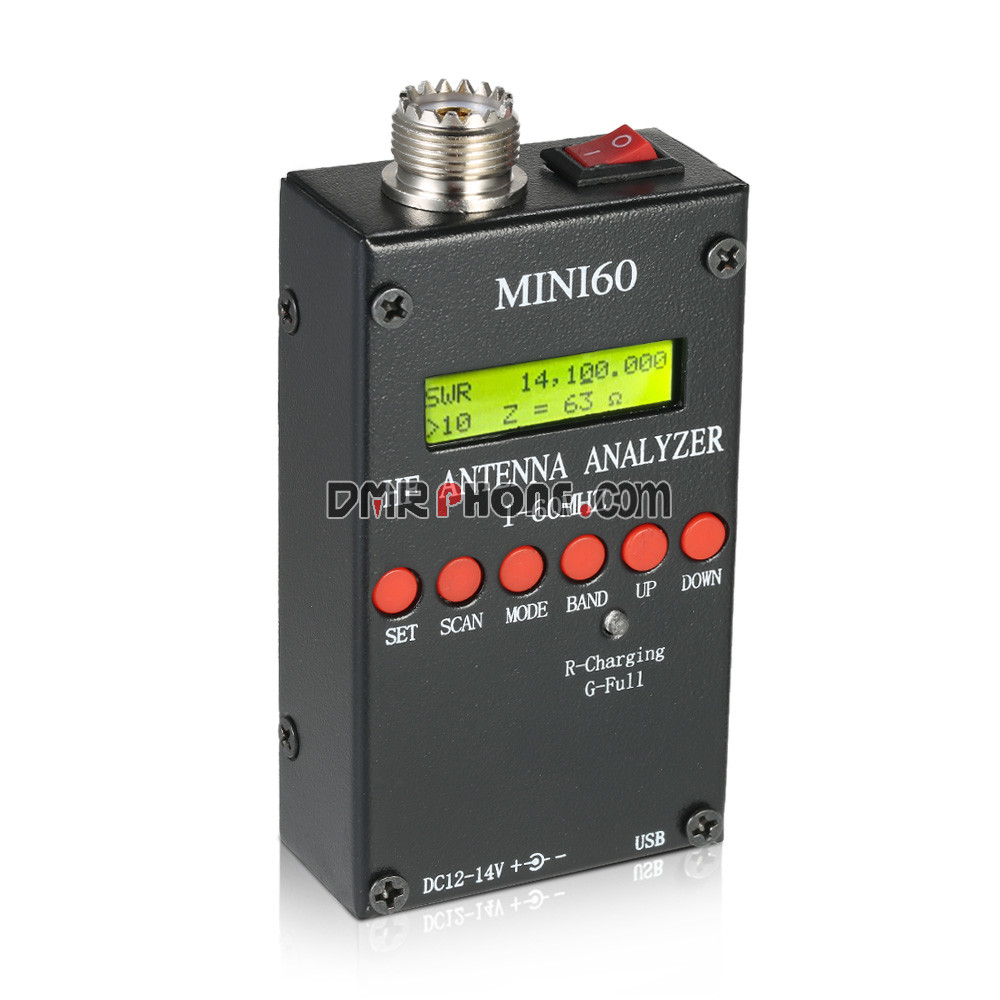

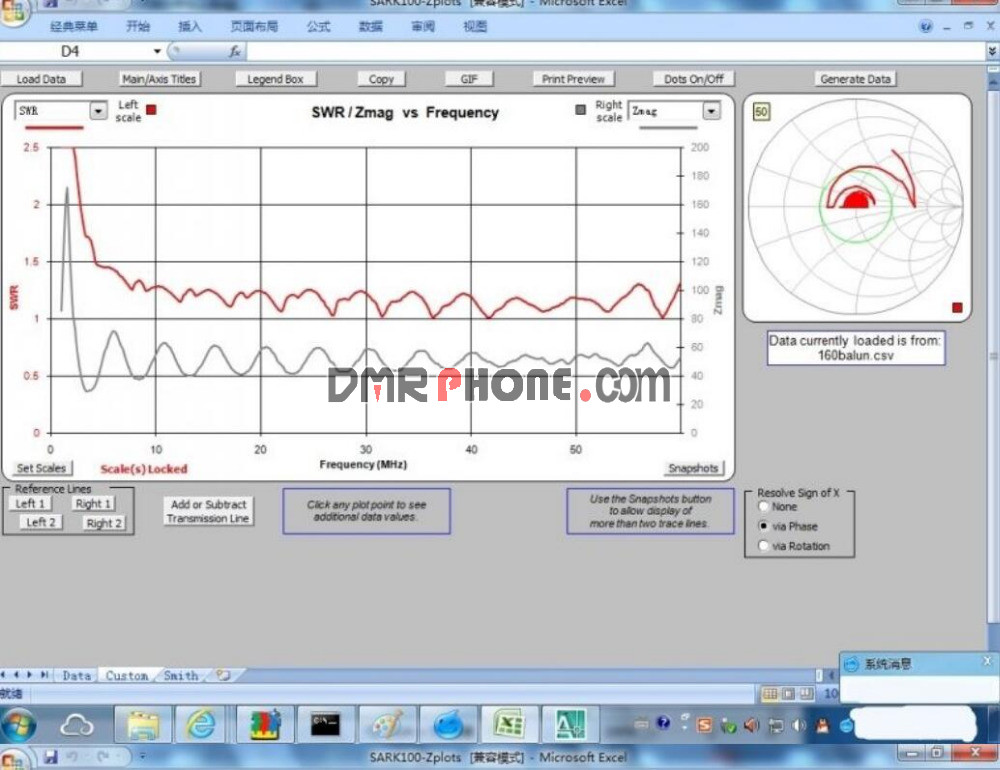

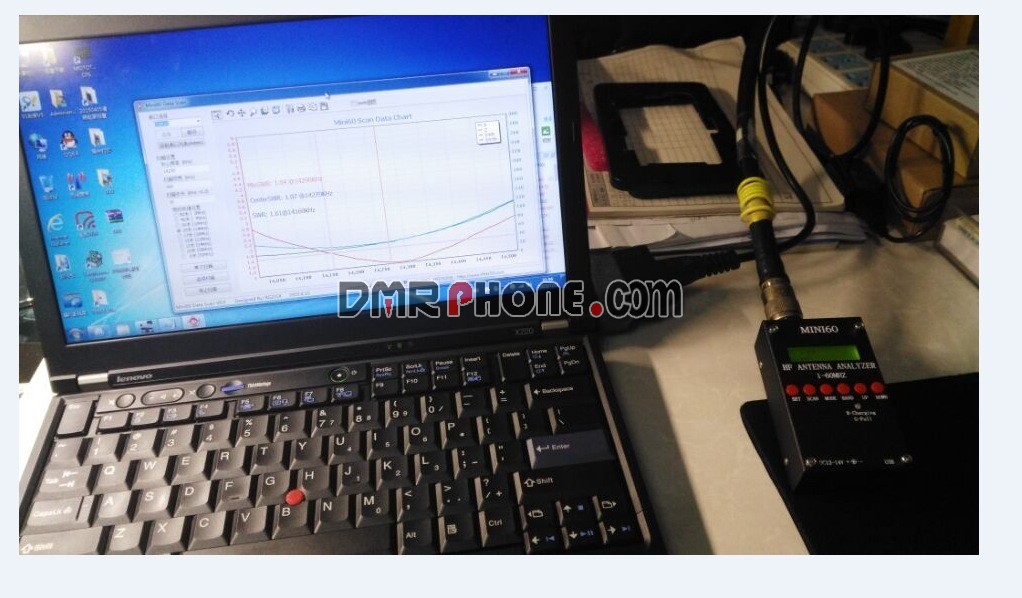

Support measuring data waveform analysis via connecting computer with USB cable(not included).

Operation:
Manual control option displays SWR and complex impedance at selected frequencies
Automatic scanning results displayed as frequencies of lowest SWR and complex impedance
Battery operated for field use or use external 13.8V wall adapter
Power saving modes
Multi-point calibration for better accuracy

Instrument Capabilities:
Measure antenna electrical parameters: SWR, impedance(resistance+reactance), capacitance, inductance;
Measure feed point impedance;
Measure ground loss;
Adjust antenna tuners and determine loss;
Measure inductors and capacitors;
Measure coax transmission line(SWR, length, velocity factor, approximate Q and loss, resonant frequency, and impedance);
Measure and determine optimum settings for tuning stubs: SWR, approximate Q, resonant frequency, bandwidth, impedance;
Determine characteristic impedance of transmission line;
Determine length of ¼ and ½ wave phasing lines;
Coaxial Cable Loss;
Determine antenna tuner loss;
Measure balun loss;
Measure inductor Q;
Estimate quartz crystal parameters;
Measure magnetic loop resonance and SWR;

Specifications:
Version Type: Ordinary Version / BT Version(Optional)
Frequency Generation & Control: 1-60MHz
Source Impedance: 50 ohms
Stability: (+/-) 100 ppm
Spectral Purity: Harmonics Down >- TBD dB beyond 60MHz
Step Size: User configurable increments of 100Hz, 1KHz, 10KHz, and 100KHz
Usable Measurement Range: SWR: 1.0 to 9.99
Impedance: Approx. 5 to 2000 ohms
RF Output: Adjustable: 2.0 Volts pp (typ)
RF Out: BNC
Connectors: RF
Power Supply(3.7V Li-on Battery NOT Included): Powered by External: DC 12-14V, 500mA
External Power: 2.1mm Power Jack(center pin positive)
USB Interface: Mini USB Receptacle

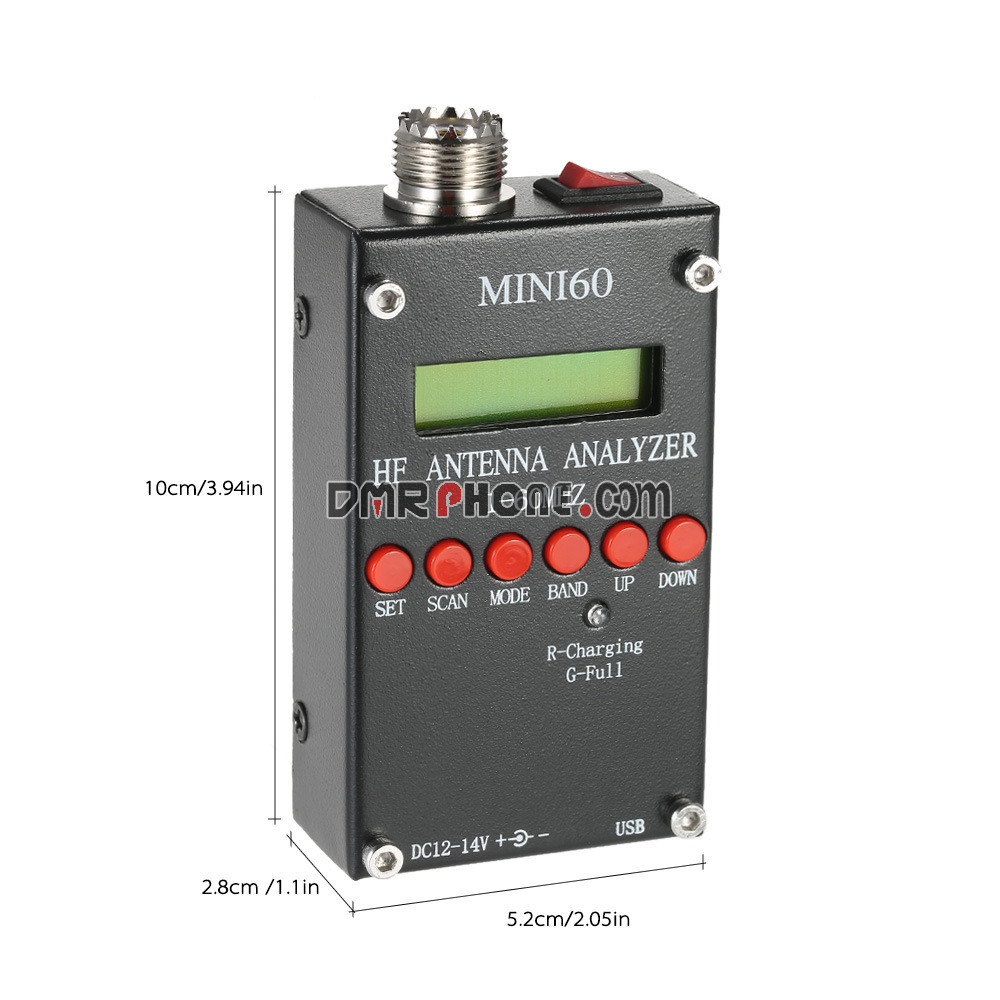

Item Size: 10 * 5.2 * 2.8cm / 3.94 * 2.05 * 1.1in
Item Weight: 200g / 7.05oz
Package Size: Ordinary Version: 11.5 * 7 * 7cm; BT Version: 12 * 9 * 7cm
Package Weight: 240-252g / 8.47-8.92oz

Note:
The item is without the Battery!

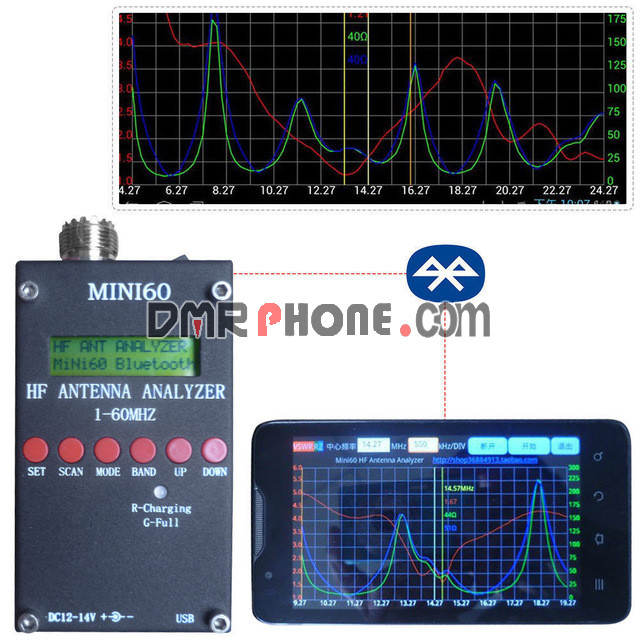

BT Version supports for Android 2.2-4.0 or new version; supports 3-10 inch mobile phone and tablet; supports windows via software.

Package List:

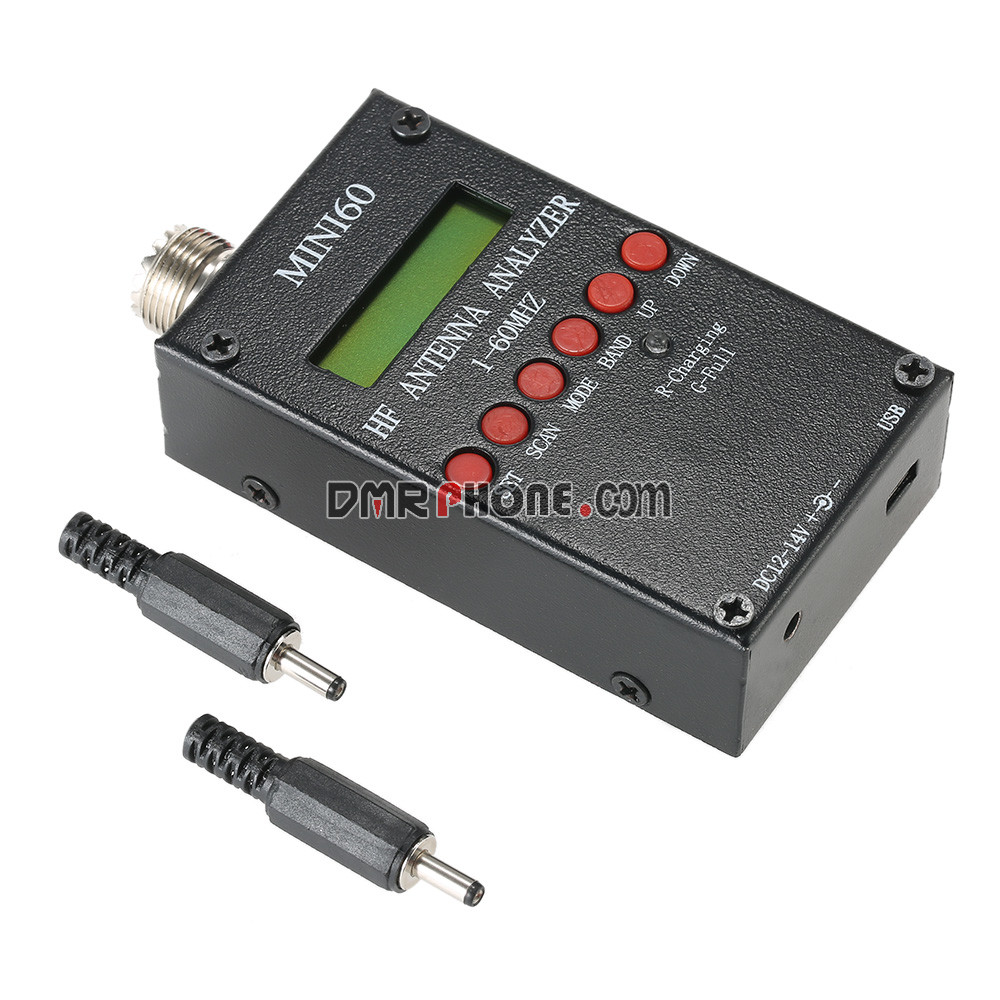

1 * Bluetooth Antenna Analyzer
2 * Adapter



If any questions Or bulk order, please contact Ms. Amy Huang:

Email:  sales@dmrphone.com

WhatsApp / Skype: +86-13860123881

Tel: 86(592)5995025

Fax: 86(592)3720556



Weight 1 kg
Dimensions 300 × 200 × 100 mm
Version Type

Ordinary Version(No Bluetooth), BT Version(Bluetooth)
