Special Features
0.5W/5W/10W
HIGH/LOW power programmable
Noise suppression function
Voice function(Chinese/English),Voice ON/OFF
High power output(10W/9W)
Timer out timer; Monitor
Battery LED indicator
Rain-proof
Built-in Led flashlight
Battery save function
Low batter alarm(Voice prompt)
Keypad lock/unlock
Emergency alarm function(Local/Remote alarm)
50 groups of CTCSS
105 groups of DCS
3500mAh ultra high capacity Li-polymer rechargeable battery
Charging directly from the power supply or charging with the cradle.
Specifications
| Model NO. | FD-890 Plus | |
| General | ||
| Frequency Band | VHF | UHF |
| Frequency Range | 136-174MHz | 400-470MHz |
| Channel Capacity | 128 | |
| Operating Voltage | 7.2V DC | |
| Antenna Impedance | 50Ω | |
| Channel Spacing | 12.5kHz/25kHz | |
| Working Temperature | -30 °c – +60 °c | |
| Frequency Stability | 2.5 ppm | |
| Size (Without Antenna) | 120(W)mmx60(L)mmx40mm(D) | |
| Weight(With Battery) | about 260g | |
| Battery | 3500mAh(Li-poly battery) | |
| Transmitter | ||
| RF Power Output | 0.5W/5W/10W | |
| Modulation Type | F3E | |
| Modulation Distortion | < 5%(300-3000Hz) | |
| Max Freq Deviation | < 5kHz(1000Hz When 100%) | |
| FM Noise | ≤-45dB | |
| Receiver | ||
| Sensitivity(12Db SINAD) | 0.16μV | |
| Selectivity | 55dB | |
| Adjacent Channel Selecivity | ≥70dB | |
| Noise Respond | ≥60dB | |
| Communication Range | 3-5km(Downtown),6-20km(In the Open Area) | |
| FM Noise | 30dB/40dB | |
| Modulation Type | 8K/16KF3E | |
| Audio Power Output | 500mW When Distortion Less Than 10% | |
| Audio Distortion | < 5% | |
| Operating Bandwidth | 3.5kHz/3.75kHz | |
| Standby Current | < 12mA | |
Package Contents:

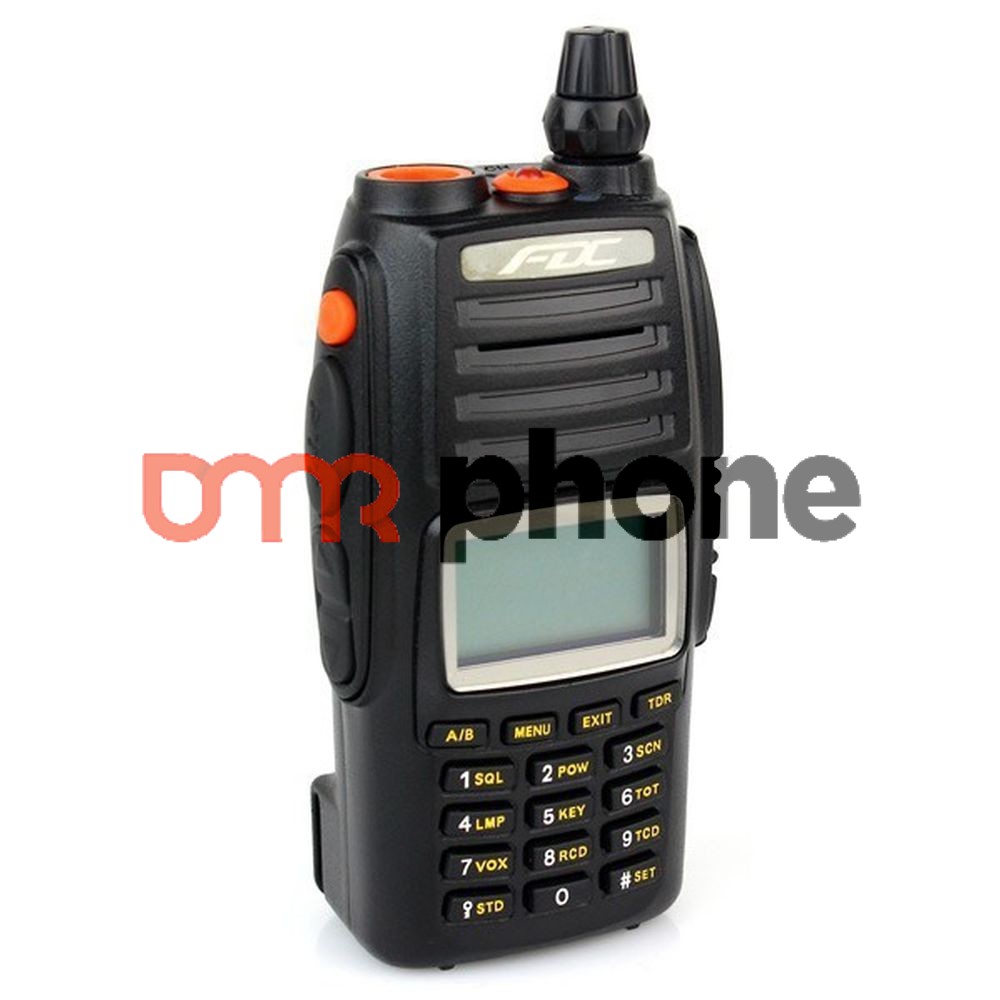

1× FD-890 Plus 10W Portable Two way radio
2× SMA-Female UHF Antenna
1× 3500mAh Li-ion Battery Pack
1× Desktop Li-ion charger ( 100V ~ 240V ) with correct adapter for your country
1× Eng Manual
1× Belt Clip
1× Hand stap
