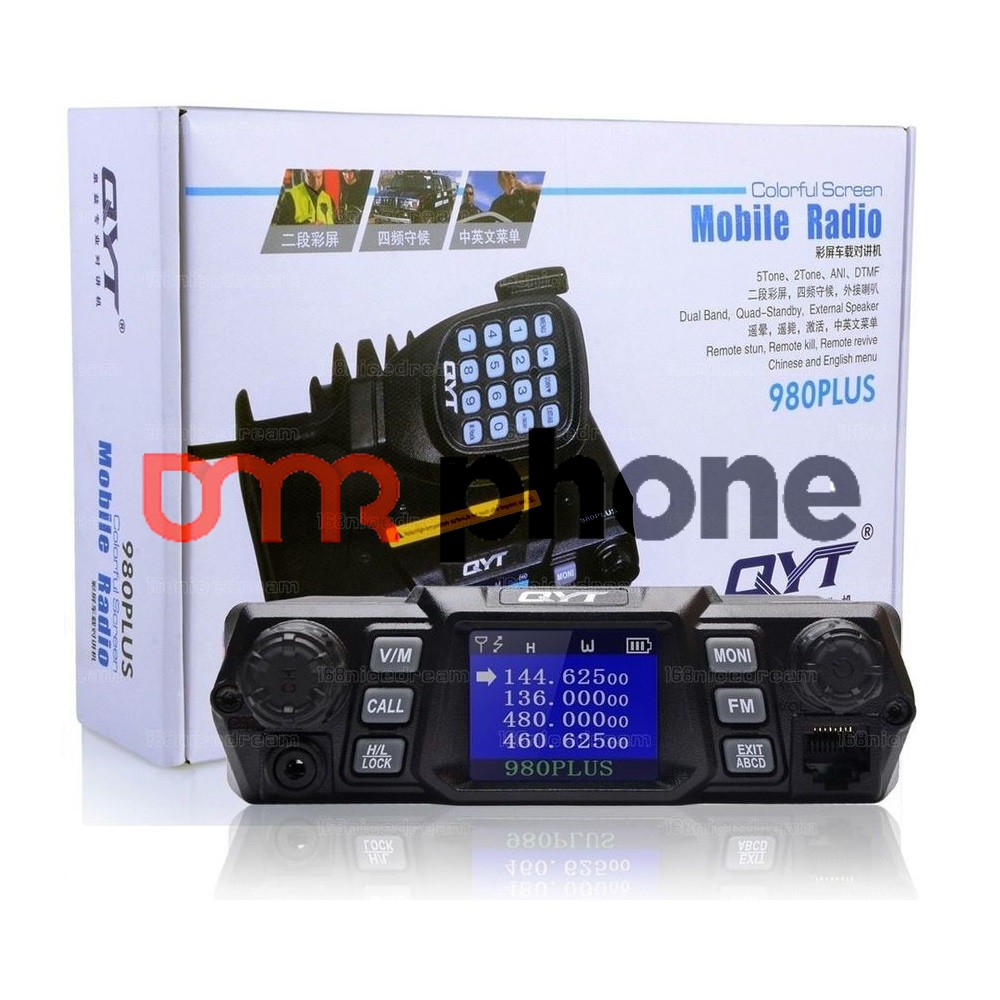

Small Dual Band Quad Standby Mobile Car Radio QYT 980PLUS 75W VHF 55W UHF

Original price was: 215.00$.Current price is: 186.00$.

& Free Shipping
Guaranteed Safe Checkout

Features:

  1. Dual Band 136~174 VHF/400~480 UHF Trasceiver supports Quad-standby

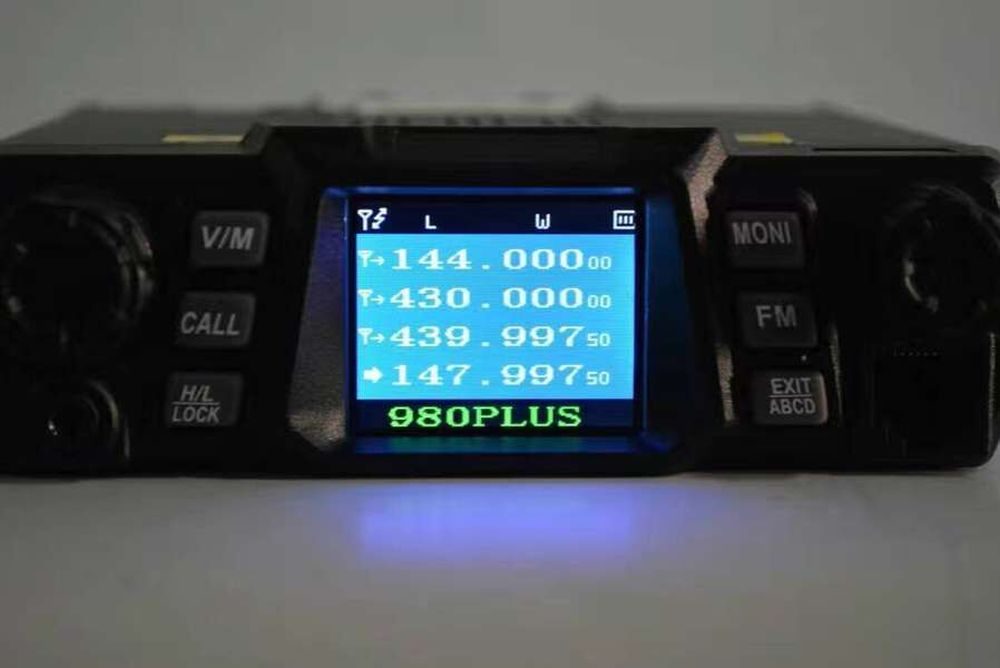

  2. Compact and rigid car radio with colorful screen
  3. 5Tone 2Tone ANI DTMF function
  4. Remote Stun, Remote Kill, Remote Revive
  5. High power output 75W on VHF and 55W on UHF
  6. External speaker/PTTSpecification:General
    1. Frequency Range:VHF:136-174MHz UHF:400-480MHz
    2. Number of Channel:200
    3.Channel Spacing:25KHz 20K 12.5K
    4. Phase lock step: 2.5KHz, 5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz
    5. Working Voltage:13.8V DC±15%
    6. Squelch way: CTCSS/DCS/5Tone/2Tone/DTMF
    7. Frequency Stability :±2.5ppm
    8. Operating Temperature:-20-+60C
Receiver
Broadband Wide band Narrow band
Sensitivity < 0.25V < 0.35V
Channel choice >70dB >60dB
Intermodulation >65dB >60dB
Spurious Rejection >70dB >70dB
Audio response +1 – -3dB(0.3-3KHz) +1 – -3dB(0.3-2.55KHz)
Signal to noise ratio >45dB >40dB
Audio distortion <5%
Audio output power >2W 10%
Transmitter
Broadband Wide band Narrow band
Output power 75W/55W(VHF/UHF)
Modulation Mode 16K F3E 11K F3E
Channel Power >70dB >60B
Signal to noise ratio >40dB >36dB
Parasitic harmonic >60dB >60dB
Audio response +1- -3dB(0.3-3KHz) +1- -3dB(0.3-2.55KHz)
Audio distortion <5%

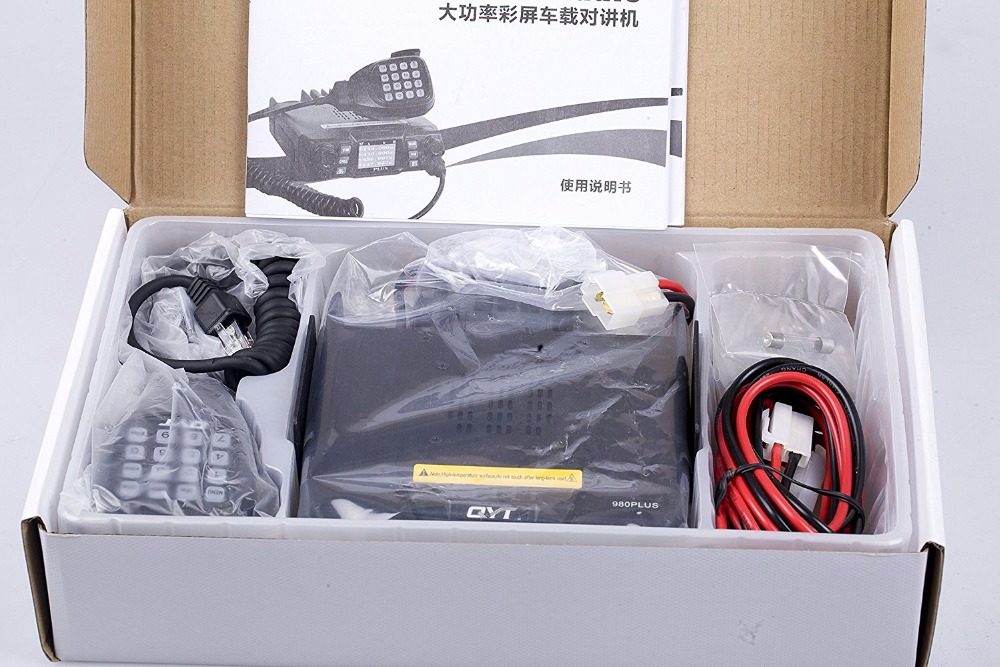

Package Included
1x QYT 980PLUS Dual Band Quad Standby Mobile Radio
1x External Speaker Microphone
1x Car Power Cable
1x Clip for Speaker Microphone
1x Mounting Bracket
1x Screw Sets
1x User Manual

1x Programming Cable

Weight 2 kg
Dimensions 300 × 200 × 80 mm
