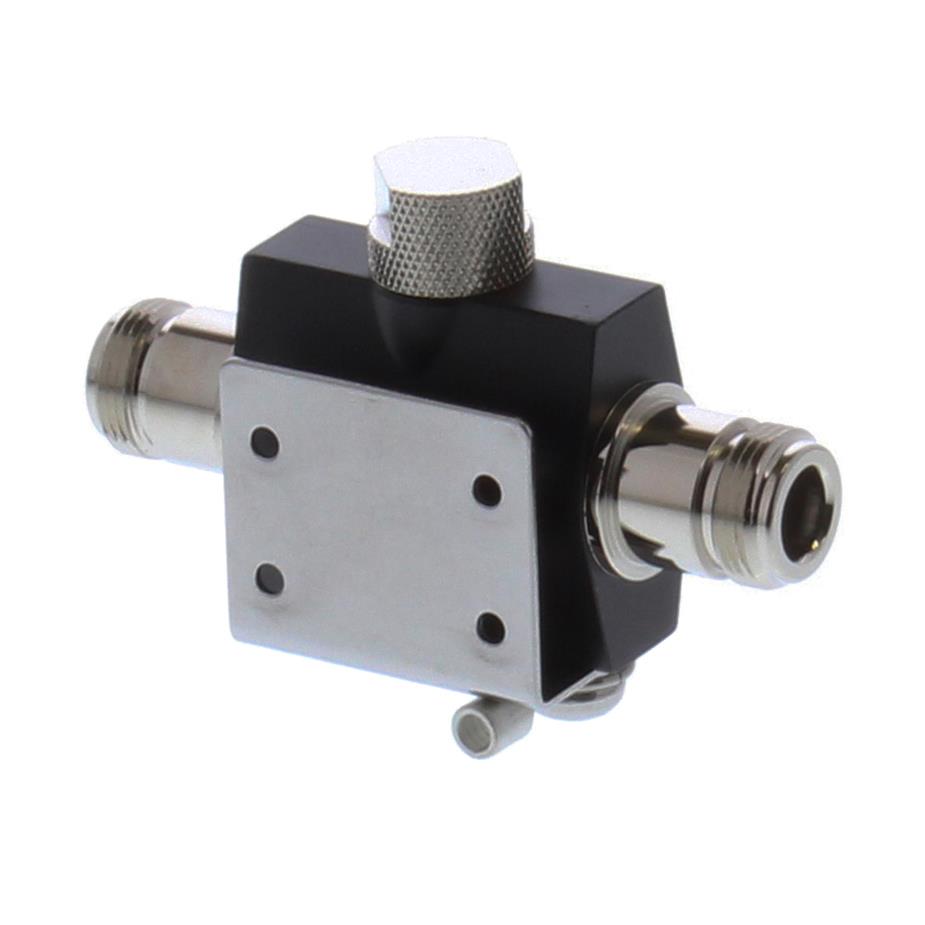

Diamond SP3000W Waterproof Lightning Arrestor DC 3000 MHz 400 Watts PEP N Connectors

SP3000W Diamond Antenna Lightning Arresters SP3000W Waterproof Lightning Arrester

Lightning Arrestor DC – 3000 MHz 400 Watts PEP N Connectors – Waterproof

Special Features:
• The SP3000W is waterproof.

Specifications:
Frequency: DC – 3,000 MHz
SWR: less than 1.1
Insertion Loss: less than 0.2 dB
Max Power Rating: 200w PEP
Connector: Type N female – Type N female
Impulse Wave Discharge Voltage: 1000v
Impulse Wave Discharge Capacity: 6000A
Impulse Wave Retention Discharge Capacity: DC230v ± 20%
Insulating Resistance DC100v: Over 10,000M ohms
Weight: 0.25 lbs. / 113g
Dimensions: 3.1″x1.6″x0.8″ / 78Wx41Hx20D mm

Frequency range:DC to 3000MHz
Impedance:50ohms
Connectors:NJ/NJ
VSWR:Less than 1.2:1
