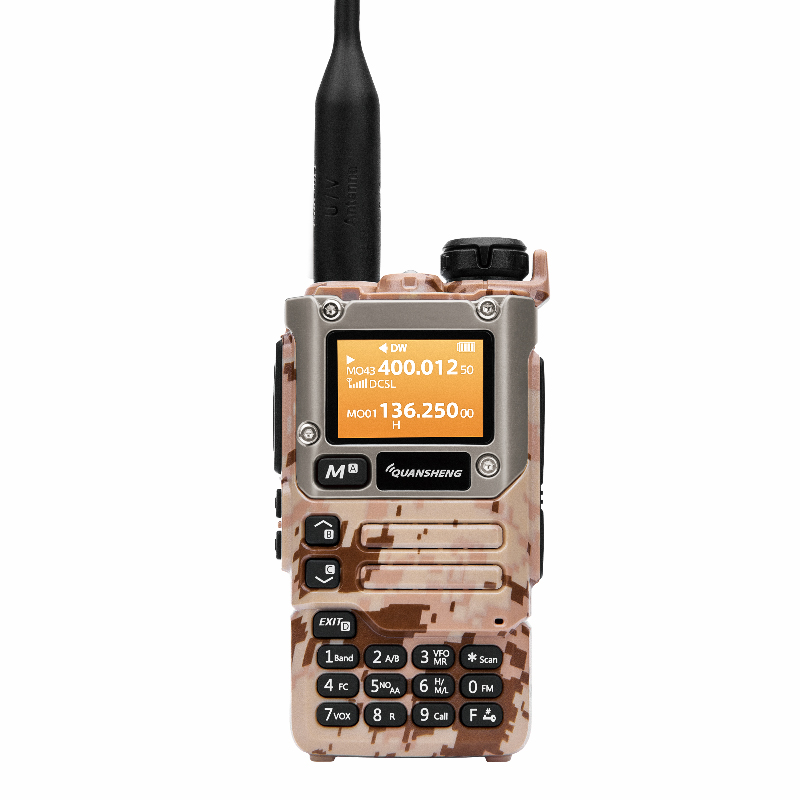

Desert camouflage Quansheng UV-K6 Walkie Talkie 5W Air Band Radio Tyep C Charge UHF VHF DTMF FM Scrambler NOAA Wireless Frequency Two Way CB Radio
The default sending is Black color. If you need Desert camouflage, it is need to add USD$10，pls CONTACT US before you place an order, thank you!
| Product features | ||

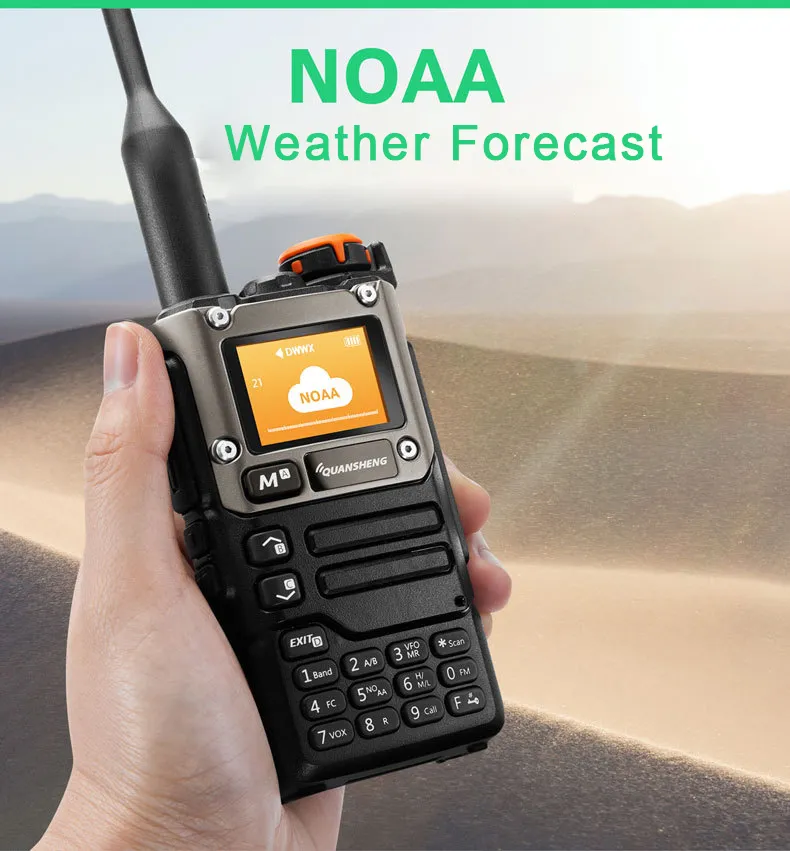

| NOAA weather reception | 25： | DTMF |
| Fast linking | 26： | DTMF ANI |
| 10 groups of voice encryption (scrambling) | 27： | High, medium and low power options |
| Large capacity battery/long standby time | 28： | Receive and transmit signaling are set separately |
| Lighting function | 29： | Multiple step frequencies |
| Reverse frequency operation function | 30： | Initialize the settings |
| Timeout timer | 31： | Channel storage |
| Transmits 1750 signals | 32： | Computer programmable |
| Frequency, channel mode conversion | 33： | Tone switch |
| 200 channels | 34： | AM/FM air segment reception |
| Voice telegram | 35： | FM radio |
| Multi-segment transmit and receive | 36： | Digital signaling CTCSS/DCS |
| Automatic/manual emergency alarm | 37： | TYPE-C and mount |
| Multiple scans | 38： | VOX voice-activated emission function |
| Difference frequency direction setting | 39： | Automatic signaling search |
| Difference frequency setting | 40： | Busy and banned |
| Wide and narrow band options | 41： | Channel number, channel frequency, channel name Multiple display methods |
| Squelch level setting | 42： | Channel scan added |
| Keypad lock | 43： | Large screen dot matrix LCD display |
| The backlight automatically turns off the selection time | 44： | Transit desk forwarding confirmation function |
| Cross-segment intercom function | 45： | Boot password protection |
| Wireless full machine replication | 46： | Frequency meter function |
| DTMF dialing | 47： | That is, the call channel |
| On-site programming | ||

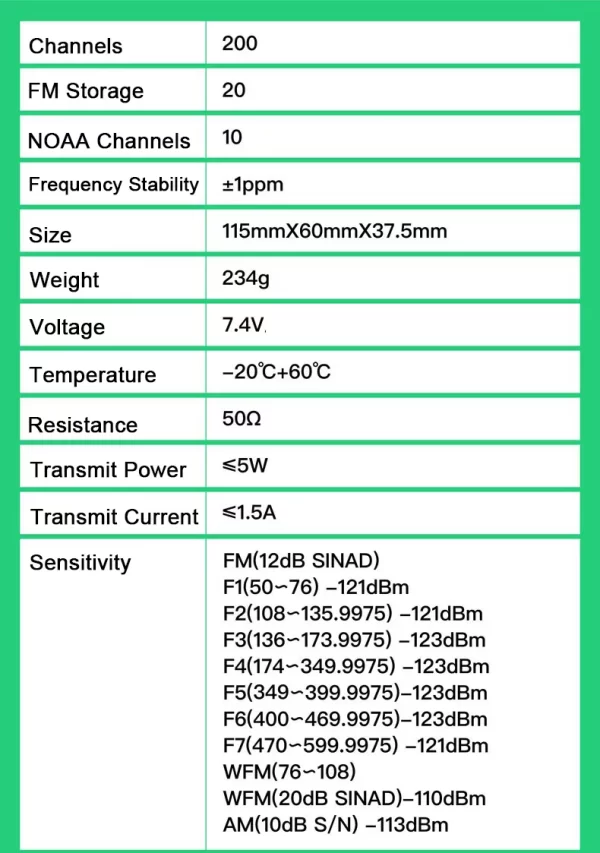

| General specifications | |||||
| Signal channel | ： | 200 | Audio power | ： | ≥0.5W |
| Number of FM radios stored | ： | 20 | Audio distortion | ： | ≤10% |
| Frequency stability | ： | ±1ppm | launch | ||
| Size | ： | 115mmX60mmX37.5mm | Band | ： | 144∽146MHz430∽440MHz |
| weight | ： | 234g | Transmit power | ： | 4W |
| Operating temperature | ： | -20℃+60℃ | Transmit current | ： | ≤1.5A |
| Antenna impedance | ： | 50 euros | Maximum frequency offset | ： | ≤5KHz(25KHz),≤2.5KHz(12.5KHz) |
| Modulation mode | ： | FM:11KOF3E(12.5KHz),16K0F3E(25KHz) | Modulation distortion | ： | ≤5% |
| NOAA channel number | ： | 10 | Stray components | ： | ≤7.5uW |
| Battery capacity | ： | 1600mAh | Frontage power | ： | 70dB(25KHz),60dB(12.5KHz) |
| reception | ： | Residual modulation | ： | 40dB | |

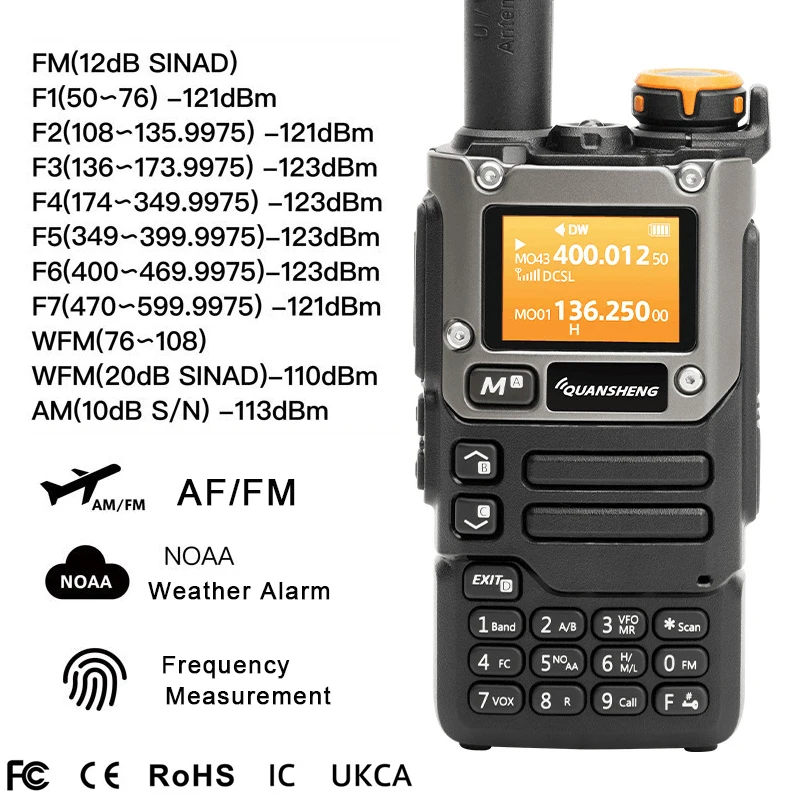

| Reference sensitivity | ： | FM(12dB SINAD) F1(50∽76) -121dBm F2(108∽135.9975) -121dBm F3(136∽173.9975) -123dBm F4(174∽349.9975) -123dBm F5(350∽399.9975) -123dBm F6(400∽469.9975) -123dBm F6(470∽599.9975) – 121dBm WFM(20dB SINAD) WFM(76∽108) -110dBm AM(10dB S/N) F2(108∽135.9975) -113dBm |
