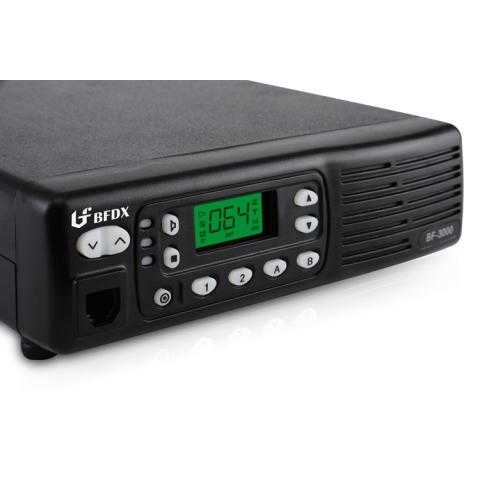

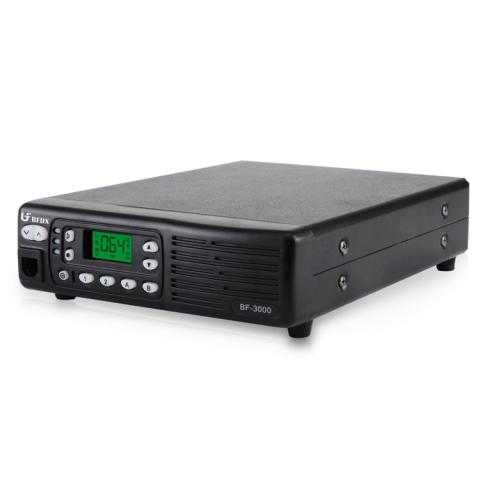

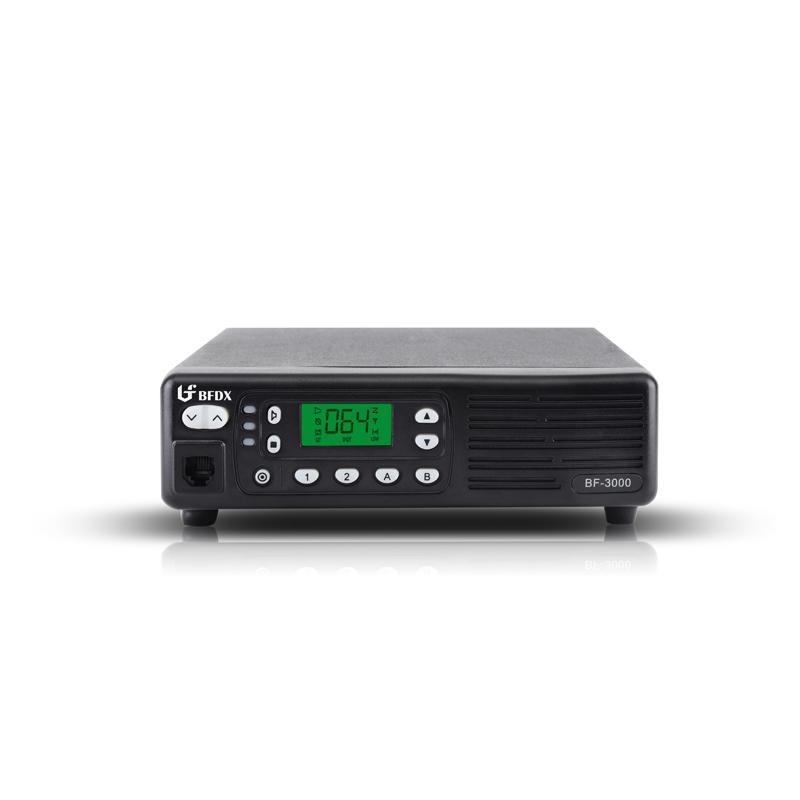

BFDX BF-3000 VHF 150-170MHz 10Watts 99 Channel Two-way Radio Power Base Repeater Unit with Duplexer
BFDX BF-3000 walkie talkie relay station high-power relay station tunnel construction signal amplification
Features:
1.Large LCD Display
2.Busy Channel Locked
3.CTCSS and DCS
4.With Built-in Duplexer
5.PC Programming
6.10W Power Output
7.Time-out-Timer(TOT)
8.Scanning
9.8-10Km Communication Distance
Specifications:
| Model | BF-3000 |
| Frequency range | 150-170MHz 20MHz expand |
| Channels | 99 |
| Channel space | 25KHz/12.5KHz |
| Operating temperature range | -30°C—60°C |
| Power voltage | 220V/110V AC |
| Dimension | 183*230*65mm |
| Weight | 4.2kg |
| Transmitter | |
| Power output | 10W |
| Frequency stability | ±2.5ppm |
| Modulated mode | 16KF3E(width) 8KF3E(narrow) |
| Spurious emissions | ≤-70db |
| FM noise | ≤-40db |
| Audio distortion | ≤5% |
| Max frequency deviation | ≤±5KHz(width) ≤±2.5KHz(narrow) |
| Channel frequency expand | 20MHz |
| Receiver | |
| Frequency stability | ±2.5ppm |
| Sensitivity | Better than 0.25µV(width) Better than 0.28µV(narrow) |
| Receiving modulated
bandwidth |
≥±7KHz(width) ≥±3.5KHz(narrow) |
| Adjacent channel sensitivity | ≥70db |
| Intermodulation rejection | ≥65db |
| Spurious response rejection | ≥65db |
| Audio output powe | W(inter) 8W(outside) |
| Channel frequency expand | 20MHz |
Notice: Product design and specifications are subject to change without previous notice.
