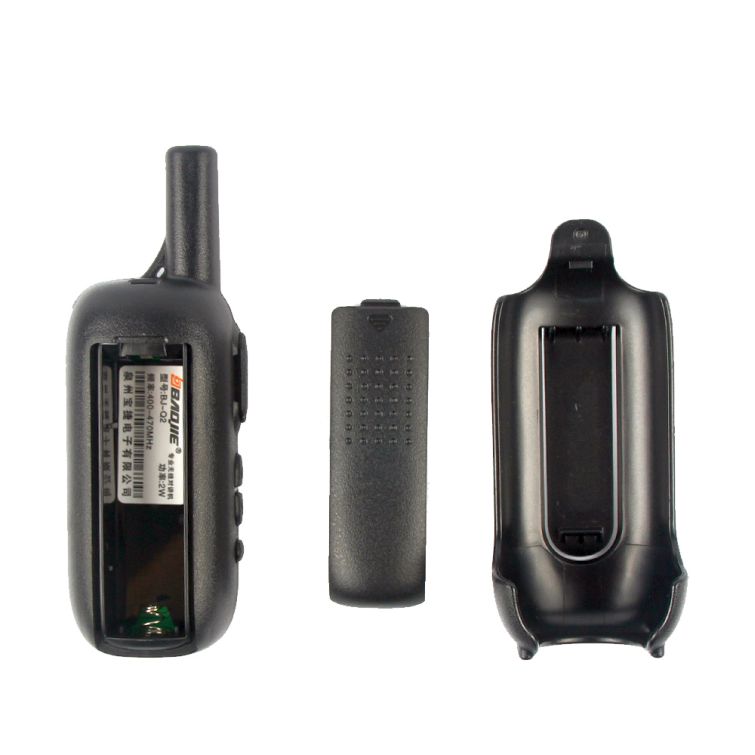

Baojie BJ-Q2 Mini Walkie Talkie Long Range UHF Two way Radio
Mini Walkie Talkie 16 Channels Long Range Two way Radio 400-470Mhz UHF Handheld Radio Transceiver Interphone
Frequency range:400-470Mhz; Radio-frequency power:2W.
The small size two way radio, you can clip it on your pocket or place it in your pocket.
1200mAh Li-ion battery, you can charge it with pc or power bank at anytime and everywhere.
1-3 miles long communication range in open areas, 16 channel let you select the channel.
Mini walkie talkies are quite suitable for used in shopping mall, hotel, restaurant，beauty salons, outdoor sports,family camping and hunting
| General Specification | ||||||||
| Frequency: | 400-470MHz | |||||||
| Channel capacity | 16 | |||||||
| Voltage | 3.7 V DC ±20% | |||||||
| Working mode | Same frequency simplex or different frequency | |||||||
| simplex | ||||||||
| Antenna | Built-in antenna | |||||||
| Frequency stability | ±2.5ppm | |||||||
| Temperature | －20 ~ ＋60℃ | |||||||
| Dimension | 136mm X 59mm X 21mm（doesn’t include belt clip） | |||||||
| Weight | 93g（doesn’t include belt clip） | |||||||
| Transmitter | ||||||||
| RF output power | 2W/0.5W | |||||||
| Modulation mode | F3E | |||||||
| Maximum frequency deviation | ≤5KHz | |||||||
| Adjacent channel power | 60dB | |||||||
| SNR ratio | -40dB | |||||||
| Stray power | ≤7.5uW | |||||||
| TX current | 1.0A | |||||||
| Receiver | ||||||||
| RX sensitivity | 0.25μV 12dB SINAD | |||||||
| Adjacent channel selectivity | 60dB | |||||||
| （W/N） | ||||||||
| Inter-modulation | 60dB | |||||||
| Audio distortion | ≤5％ | |||||||
| Audio output power | ≤1W（8 ?6?8） | |||||||
| RX current | ≤300mA | |||||||
| Standby current | ≤20mA | |||||||
