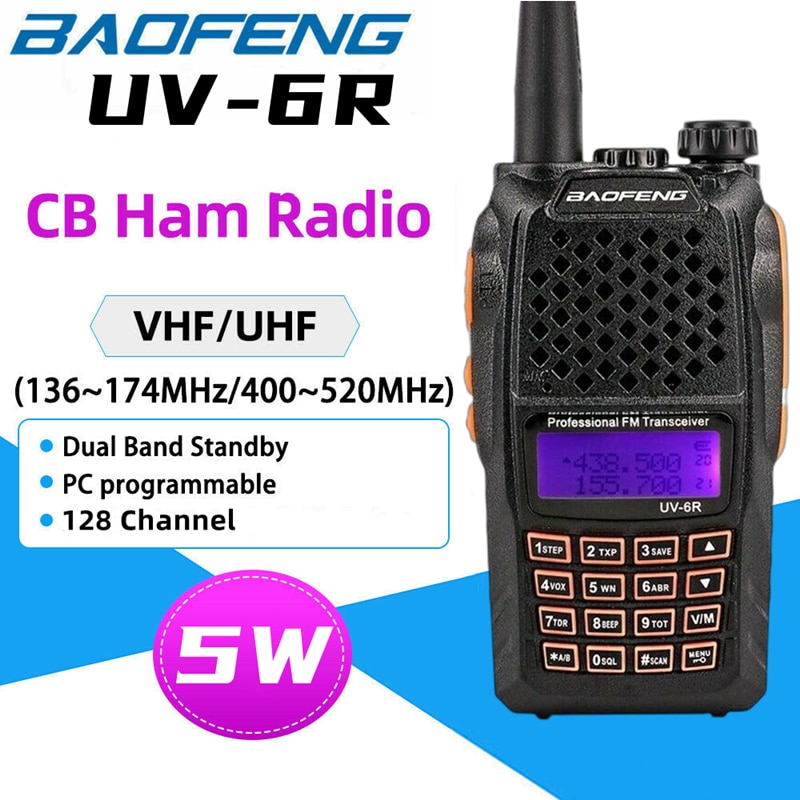

Baofeng UV-6R Walkie Talkie Dual Band UV 6R Portable CB Ham Radio UHF/VHF Handheld Two-Way Radios FM Transceiver UV6R BaoFeng
Pofung Baofeng UV-6R Dual Band VHF 136-174MHz & UHF400-520MHz Walkie Talkie FM 65-108MHz Portable Two-way Radio FM TransceiverFeatures:

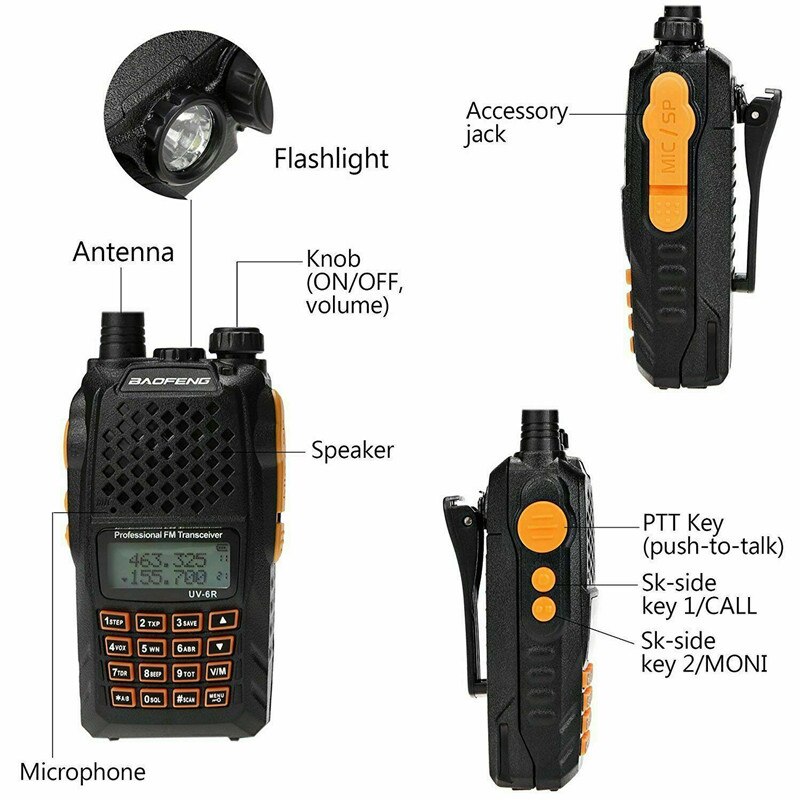

-Dual-band handheld transceiver with display function menu on the display”LCD”
-DTMF encoded
-Lithium-ion battery with high capacity
-Commercial FM radio receiver(65MHz~108MHz)
-Incorporates 105 codes ”DCS” and 50 privacy codes ”CTCSS” programmable
-Function ”VOX” (voice operated transmission)
-Alarm function
-Up to 128 memory channels
-Broadband (Wide)/Narrowband(Narrow) selectable
-High Power/low(5W/1W) selectable
-Display illumination and programmable keyboard
-Function ”beep” on the keyboard
-Dual Watch/Dual reception
-Selectable Frequency Step 2.5/5/6.25/10/12.5/25kHz
-Function OFFSET” (frequency offset for repeater access)
-Battery saving function ”SAVE”
-Timer transmission TOT” programmable
-Selecting the scan Mode
-Function Busy Channel Lock ”BCLO”
-Built-in RX CTCSS/DCS Scan

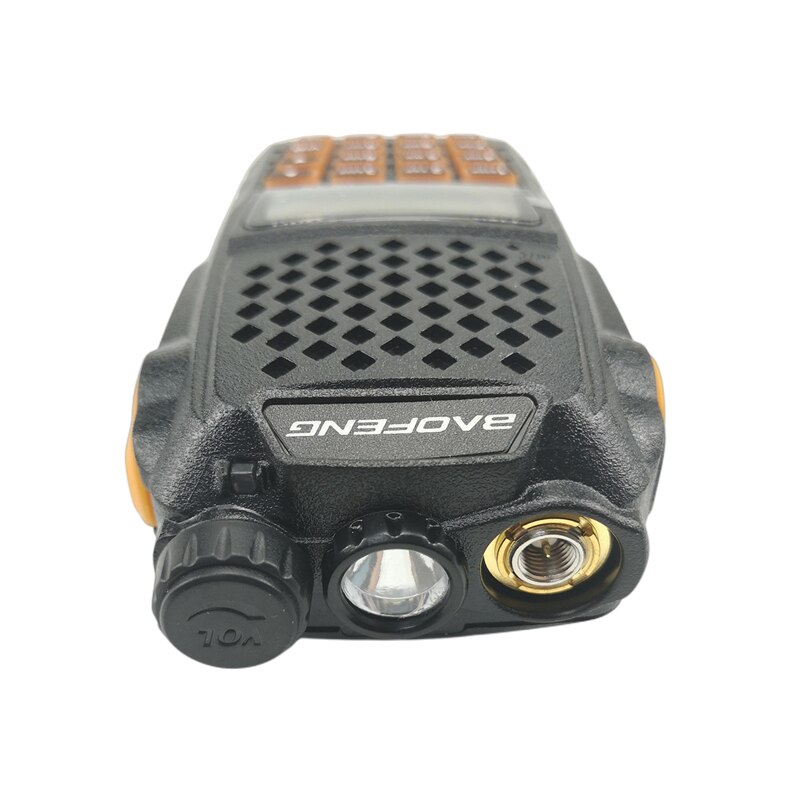

-Built-in LED flashlight
-Programmable by PC
Specifications:
| General | |
| Frequency Range | 65MHz~108MHz(commercial FM radio reception only)
VHF:136-174MHz(Rx/Tx) & UHF:400-520MHz(Rx/Tx) |
| Memory Channels | Up to 128 channels |
| Frequency Stability | 2.5ppm |
| Frequency Step | 2.5/5/6.25/10/12.5/25kHz |
| Antenna Impedance | 50Ω |
| Operating Temperature | -20°c to +60°c |

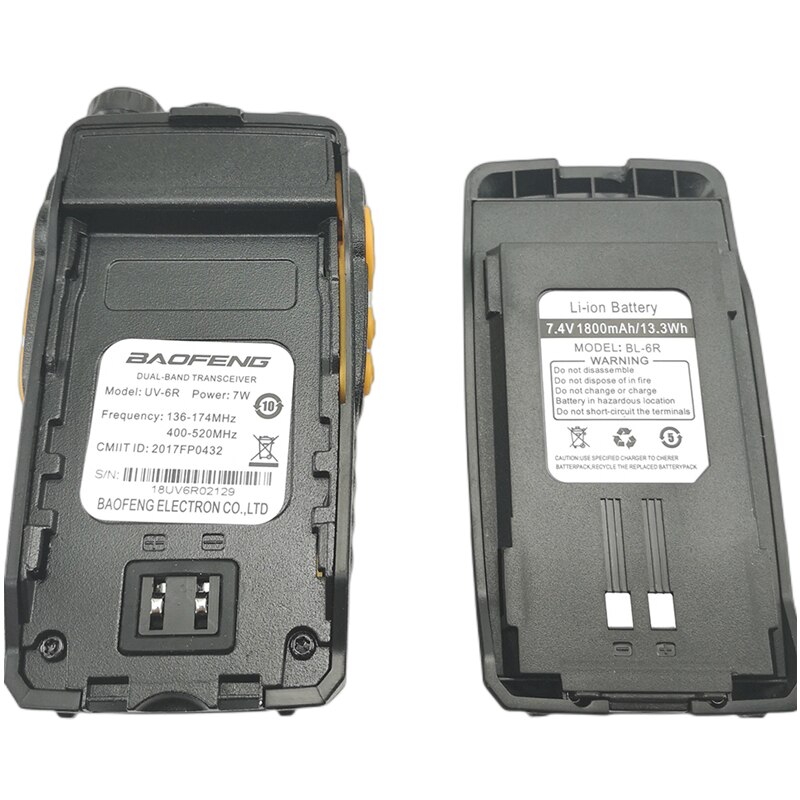

| Supply Voltage | Rechargeable Lithium-ion 7.4V 1800mAh |
| Consumption in Standby | ≤75mA |
| Consumption in Reception | 380mA |
| Consumption in Transmission | ≤1.4A |
| Mode of Operation | Simplex or semi-duplex |
| Duty Cycle | 03/03/54min.(Rx/Tx/Standby) |
| Dimensions | 123(H)mm×61.5(W)mm×36(D)mm |
| Weight | 227g(Approximate) |
| Transmitter | |
| FR Power | 5W/1W |
| Type of modulation | FM |
| Emission Class | 16KΦ F3E/11KΦ F3E(W/N) |
| Maximum Deviation | ≤±5kHz/≤±2.5kHz(W/N) |
| Spurious Emissions | -60dB |
| Receiver | |
| Receiver Sensitivity | 0.2μV(at 12dB SINAD) |
| Inter-modulation | 60dB |
| Audio Output | 100mW |
| Adjacent Channel Selectivity | 65/60dB |
| Notes: All Specifications shown are subject to change without notice. | |

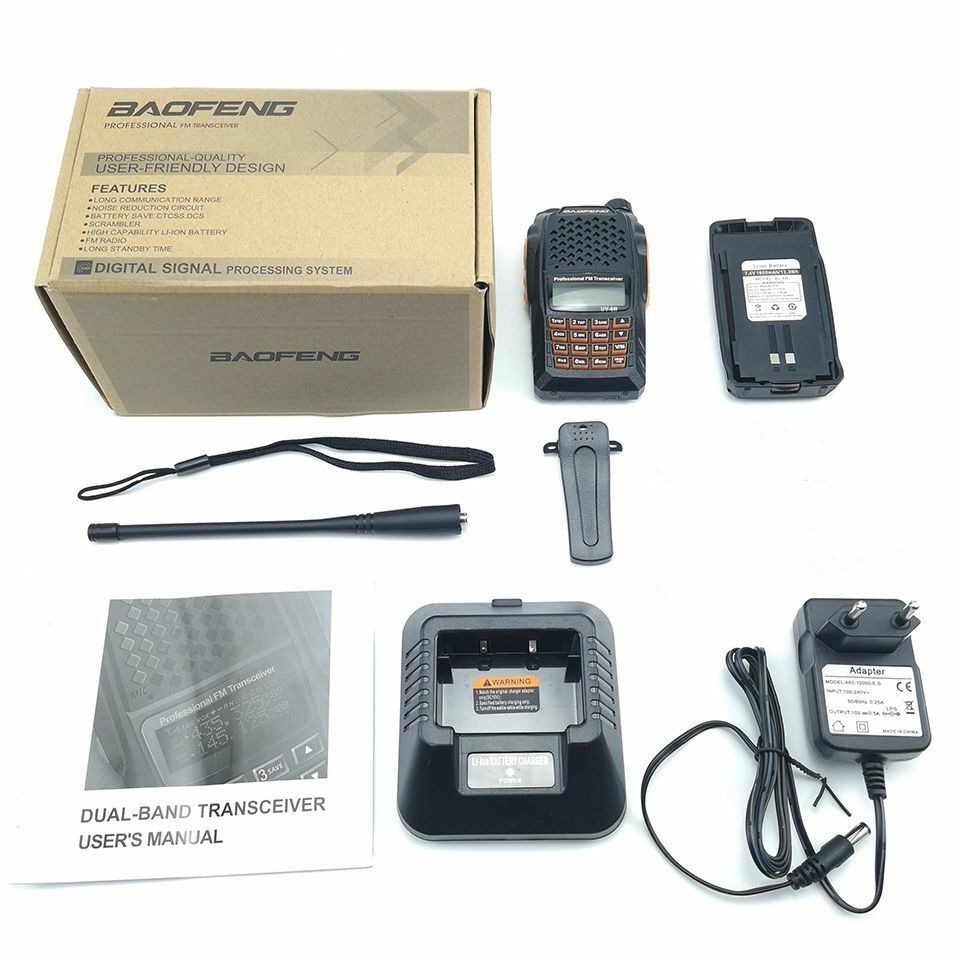

Package Contents:
-1× UV-6R Dual Band 136-174MHz & 400-520MHz FM Radio
-1× 1800mAh Li-ion Battery Pack
-1× Desktop charger with AC Wall Adapter
-1× SMA-Female Dual band Antenna
-1× K Plug Earpiece
-1× Belt Clip
-1× Hand Strap
-1× User’s Manual
