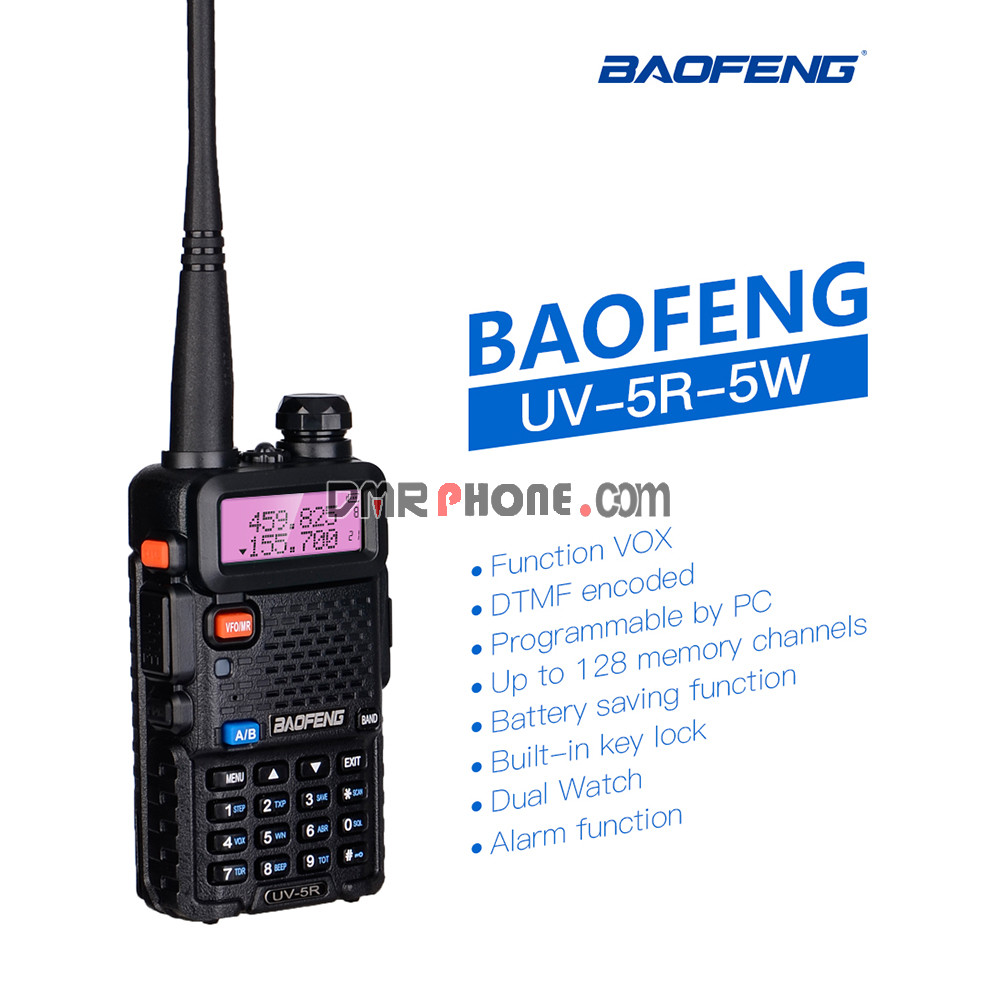

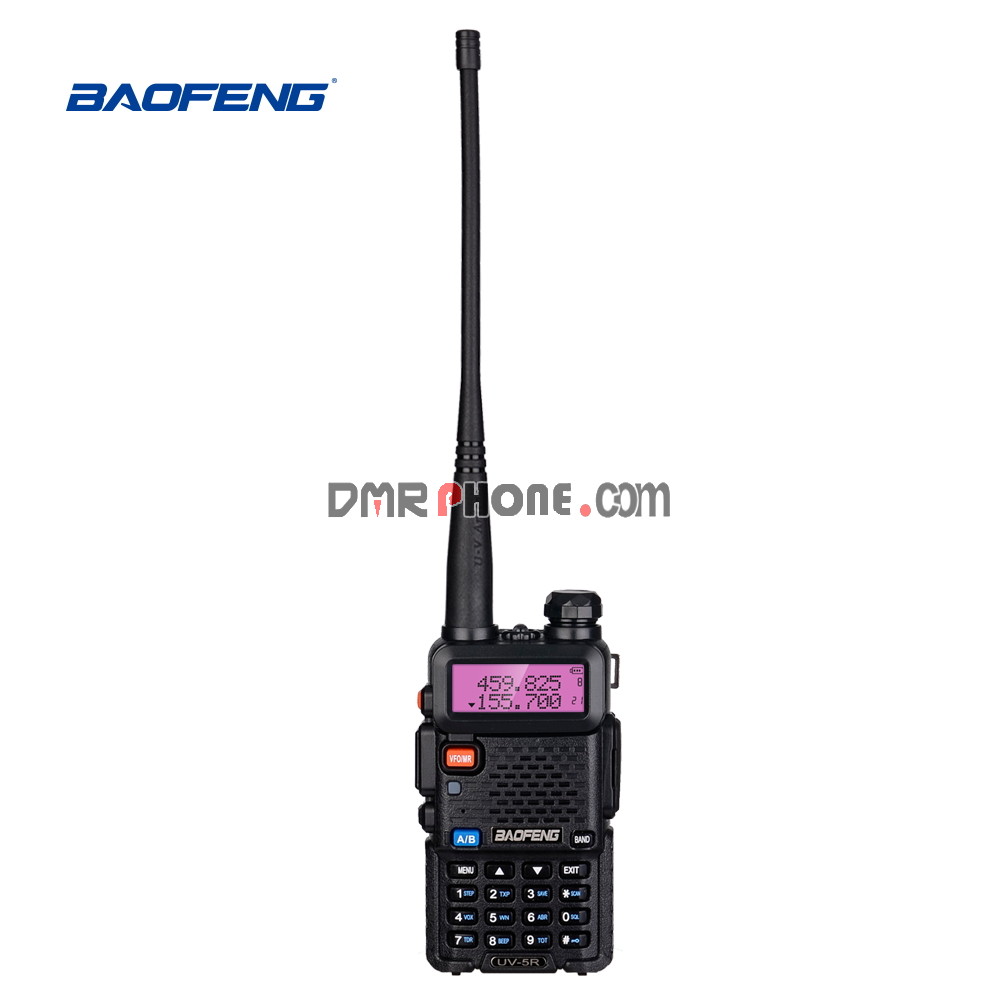

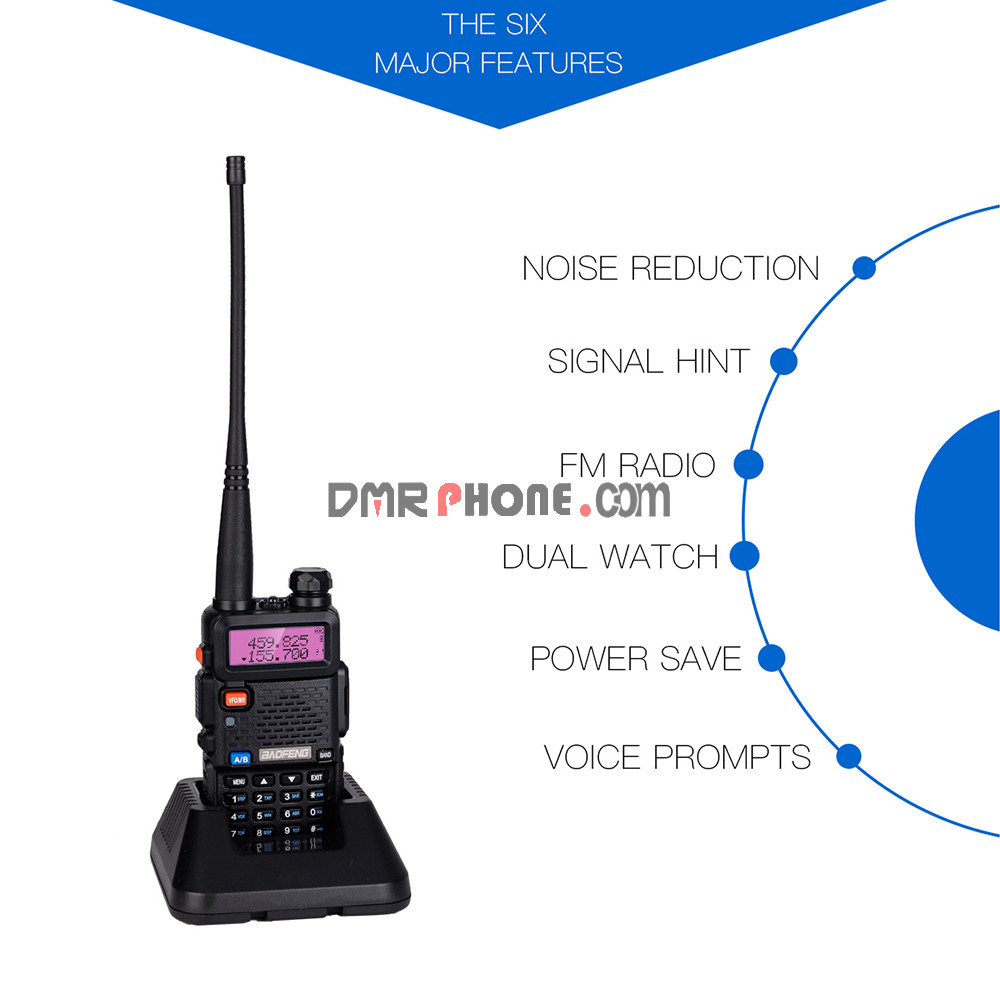

Baofeng UV-5R 5W 128CH FM Dual Band Walkie Talkie Amateur Radio Station
[iframe src=”https://cloud.video.taobao.com/play/u/2041296941/p/1/e/6/t/10301/50204436750.mp4″ width=”100%” height=”500″]
- Durable Wear Resistant,Sensitive and durable
- Environmental protection PC
- Rubber keyboard
- Dual-band handheld transceiver with display function
- Commercial FM radio receiver (65MHz-108MHz)
- Built-in LED flashlight
- Built-in RX CTCSS/DCS scan
- Function VOX
- Alarm function
- Broadband/narrowband selectable
- Function beep on the keyboard
- Dual Watch/dual Reception
- Crossband reception/transmission
- Battery saving function
- Programmable by PC
- Built-in key lock
Baofeng Brand | |
Model | Baofeng UV-5R |
Output power | <=5W |
High/Low TX power selectable | 4W/1W |
Band | VHF:136-174MHz &UHF: 400-520MHz |
Battery capacity | 1800mAh |
Battery type | Li-ion battery |
Rated Voltage | 7.4V DC±10% |
128 groups channels storage | Shortcut menu operation mode |
VFO & Memory channels scan | Emergency Alarm |
Time-out Timer (TOT) | 0~9 grades VOX selectable |
PTT & ANI ID | FM radio and 25 stations storage |
Voice companding | 50 CTCSS/104 DCS |
High/Low TX power selectable | Busy channel lock-out(BCLO) |
DTMF function | OFF SET function |
Wide/Narrow Band(25kHz/12.5kHz) | A/B band independent operation(UV UU VV) |
VOX function | Yes |
Busy lockout function | Yes |
Scanning function | Yes |
Time-out Timer (TOT) function | Yes |
Battery voltage display function | Yes |
Channel name display and editing functions | Yes |
Signal strength indicator | Yes |
FM radio | Yes |
Emergency alarm function | Yes |
Antenna Impedance | 50ohm |
Weight | 255g |
Frequency stability | ±2.5ppm |
Carier wave tolerance | 5ppm |
Modulation | 16kØF3E / 11kØF3E |
Max frequency deviation | < 5kHz(Wide) |
< 2.5kHz(Narrow) | |
Modulation character | 6 dB per fold frequency patch |
Emission current | < 1.6A(5W) |
CTCSS / DCS | 0.5±0.1kHz(Wide) |
0.3±0.1kHz(Narrow) | |
Sensitivity | < 0.16µV(12dB SINAD) |
Silent sensitivity | < 0.2µV |
Intermediation Distortion | <10% |
Inter modulation | 8-12mv |
Adjacent channel selectivity ( wide/narrow) | <-65dB(Wide) <-60dB(Narrow) |
Package Contents
- 1 x Baofeng UV-5R Walkie Talkie Amateur Radio
- 1 x Li-ion battery pack
- 1 x Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger
- 1 x Earpiece for free
