APRS 51WG5 WIFI Bluetooth-compatible Support Yaesu FT-1907R FT-7900R ICOM IC-2730E
It’s not a cart, it’s not a mobile phone, it’s an APRS component

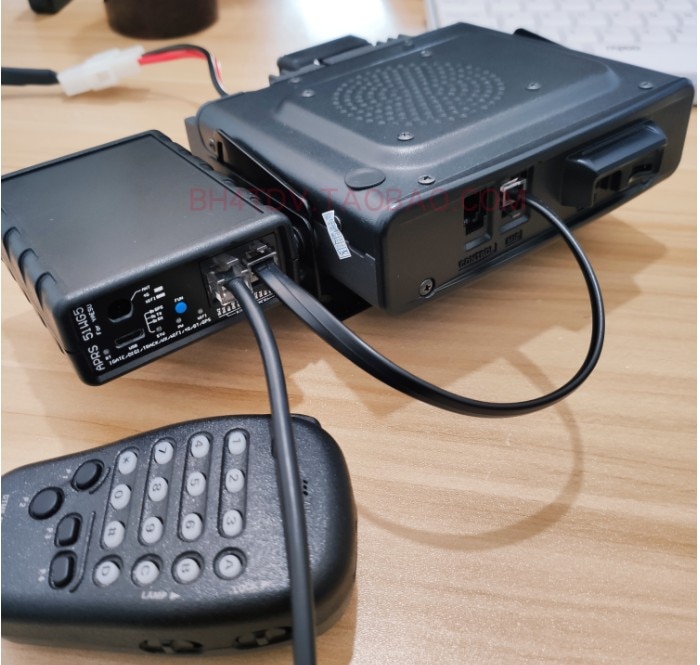

In the pictures shown below, the radio station is for display only, and the radio station is not included.

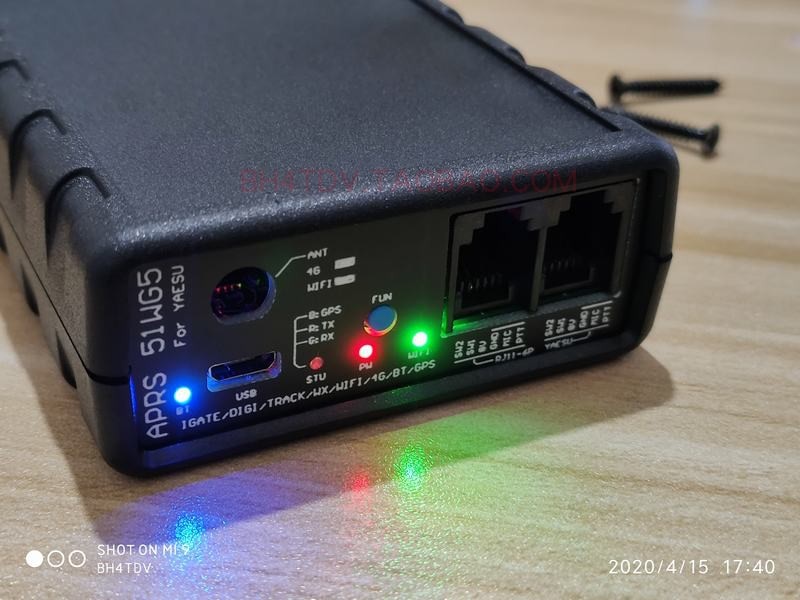

51WG5=IGATE+TRACK+DIGI+WIFI+Dual-mode Bluetooth+4G (optional)
Dual-mode Bluetooth supports Android and Apple. Support APRSdroid, Locus Map, Liuyun, Ovi Map and other map apps
What is APRS? Transmit GPS Beidou positioning signals to each other via radio stations, no mobile phone signal is required!
It is suitable for desert off-road, forest exploration, mountain patrol, unmanned land rescue, etc.
Ordinary radio stations can easily play APRS!! Ordinary radio stations can also easily play APRS!!

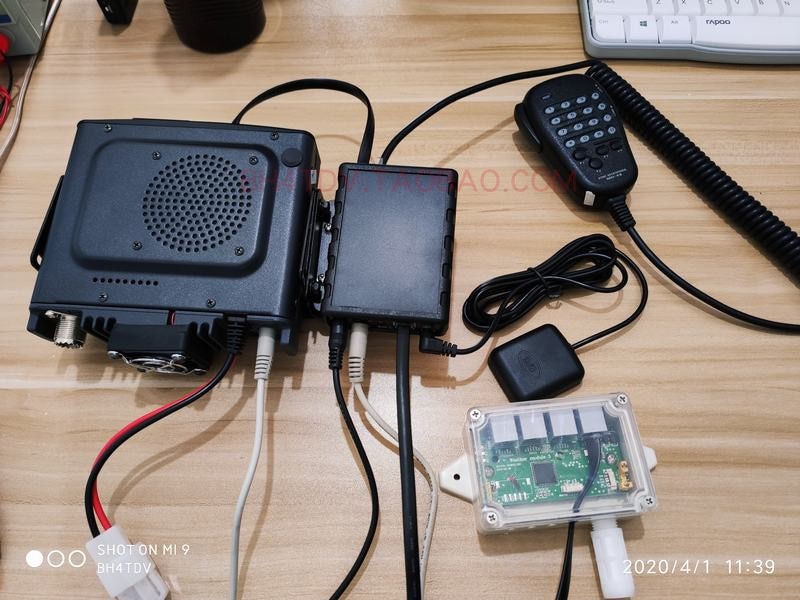

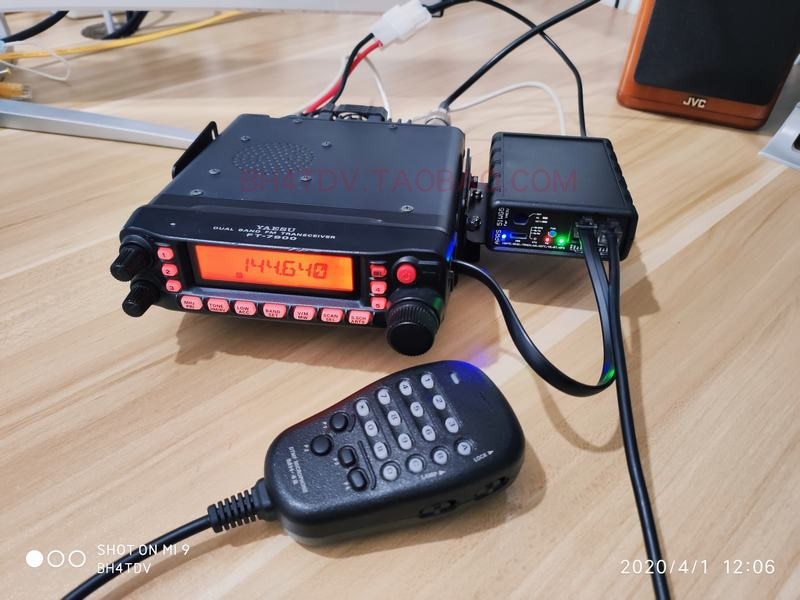

There is no need for a special interface radio station, directly linking the radio’s hand microphone port (transmitting positioning signal) and SP port (receiving positioning signal).
Support IC-2730 IC-2720 (link to the body hand microphone port)

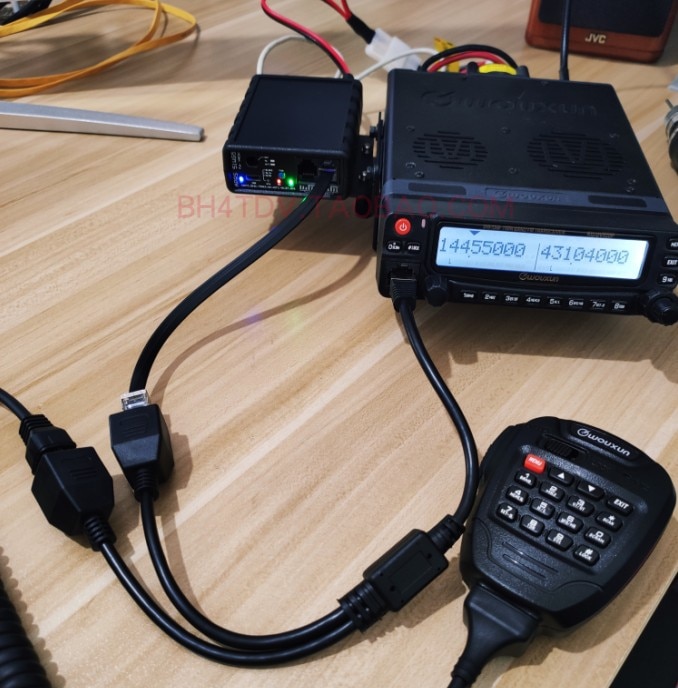

For other radio stations, you need to customize the hand microphone conversion line, and specific consultation.

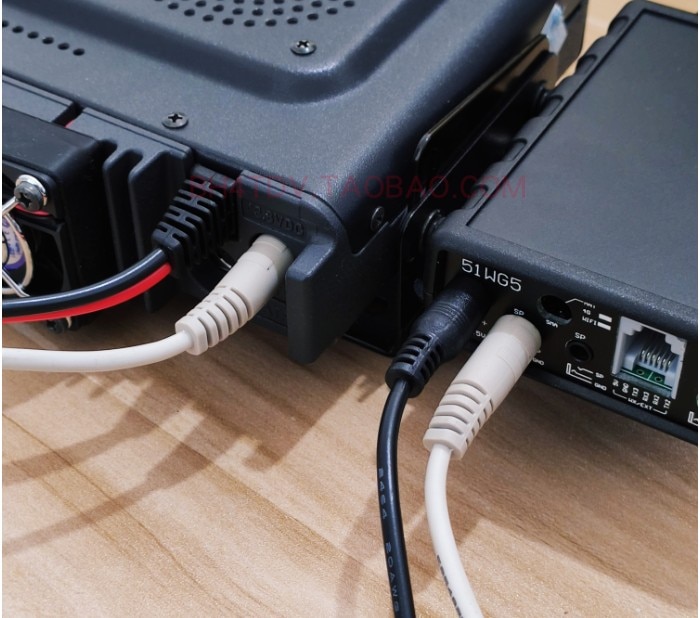

Connected to the SP port of a common radio station, 51WG5 has a built-in decoder to independently decode and output beacon data,
Upload APRS map server via WIFI (or optional 4G),
Link the Android mobile phone map APP or Apple mobile phone map APP via Bluetooth,
Expand the function of the radio station.
51WG5 is connected to the SP port of the radio. If you want to monitor the radio, you need to prepare an external speaker box.

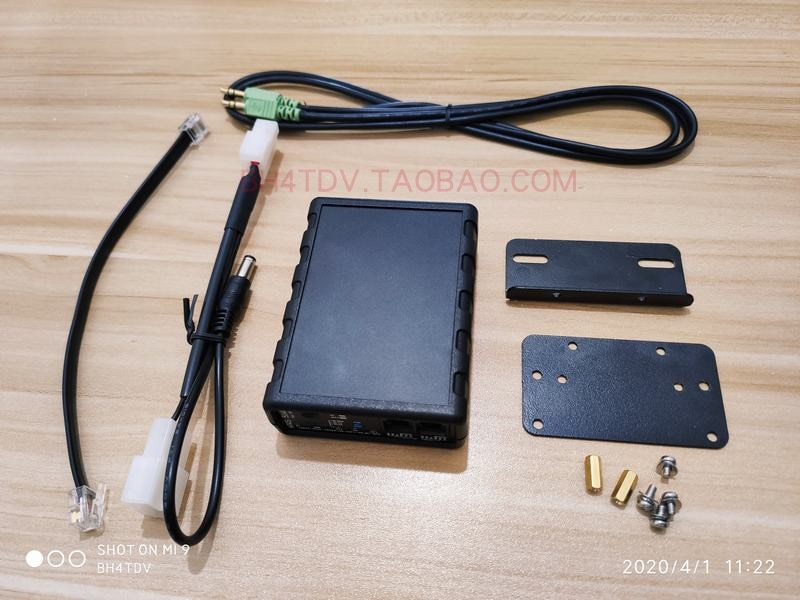

51WG5 standard configuration: a host (built-in WIFI + dual-mode Bluetooth), a dedicated bracket, a dedicated power cord, a speaker wire, and a YAESU RJ11-6P conversion cable.
Optional: GPS module, AIR720H 4G module
