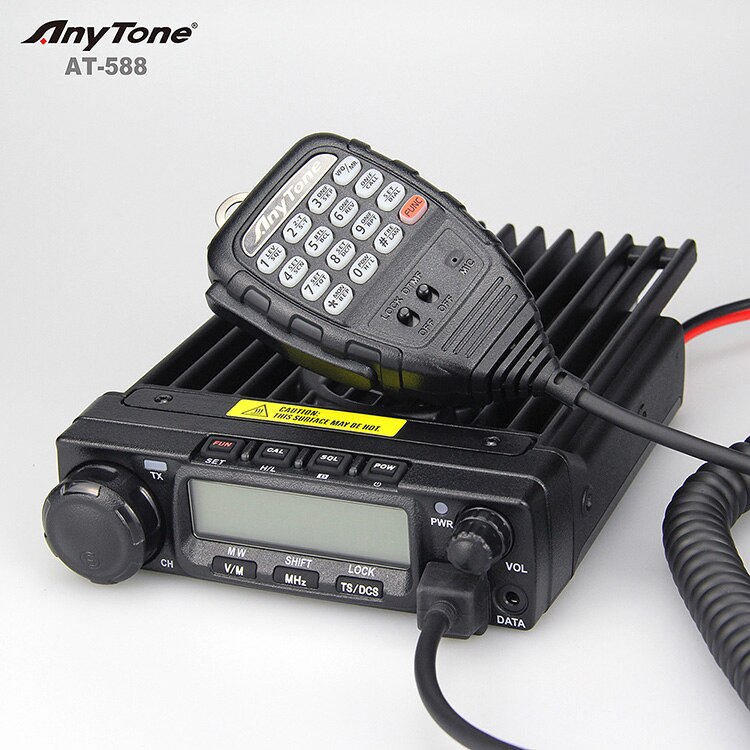

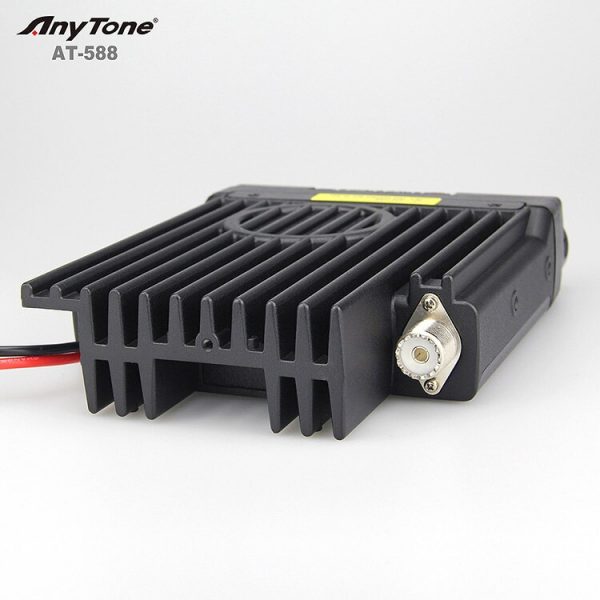

Anytone AT-588 UHF 400~490MHz Mobile Radio High power 60W 136-174Mhz 400-490Mhz 2 way radio
Product Description
MODEL NO.: AT-588 Single Band UHF: 400~490MHz
Frequency: 136~173.995MHz / 400-490Mhz (Normal)
440-512Mhz/27-43MHz/220~260MHz etc.
(ODM Project)
Function:
Output Power:60W(VHF),45W(UHF)/25W/10W
100programmable memorized channels+Call channel, the channels can be marked with letters and digits
CTCSS/DCS/5-Tone decodes and encodes
Four different single-tone pulse frequencies
CTCSS/DCS scan
Compander to reduce noise
Theft alarm
ANI function(DTMF/ANI,5Tone/ANI) PTT ID.

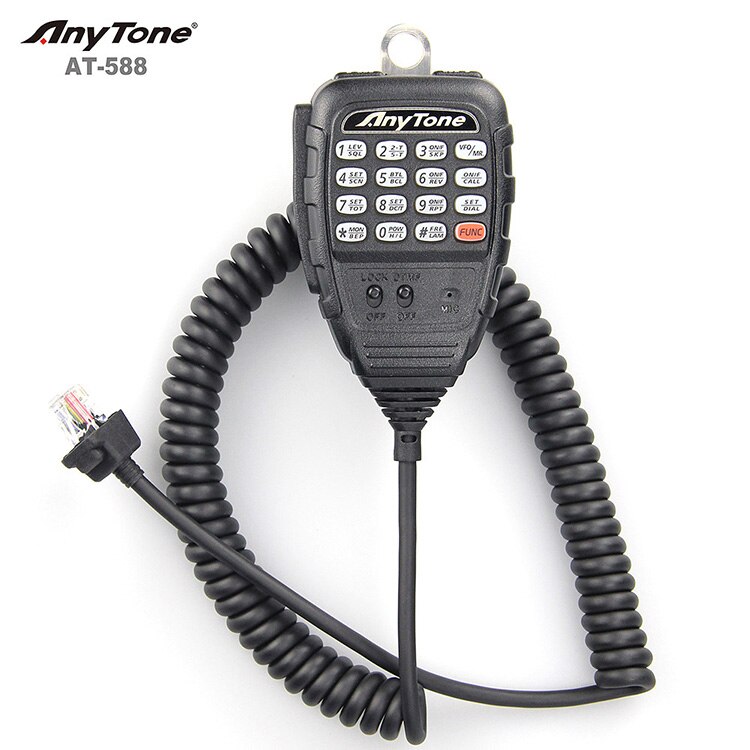

QHM-03 multifunctional microphone with DTMF
Scramble function(option)
Accessories:
Microphone(with DTMF keypad)
Mobile installing bracket
DC power cable with fuse holder
Hardware kits for bracket
Desktop Mic(Option)
AT-588 SPECIFICATION
| General | |||
| Frequency Range | VHF: 136-174MHz 245-245.9875MHz (220~260MHz)
UHF: 400~490MHz |
||
| Number of Channels | 200 channels | ||
| Channel Spacing | 25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band) | ||
| Phase-locked Step | 5KHz,6.25KHz,8.33KHz,10KHz,12.5KHz,15KHz, 20KHz,25KHz,30KHz,50KHz | ||
| Operating Voltage | 13.8V DC ±15% | ||
| Squelch | Carrier/CTCSS/DCS/5Tone/2Tone/DTMF | ||
| Frequency Stability | ±2.5ppm | ||
| Operating Temperature | -20°C~+60°C | ||
| Dimensions(WxHxD) | 145 (W) x 47 (H) x 190 (L)mm | ||
| Weight | about 1.2Kg | ||
| Receiver (ETSI EN 300 086 standard testing ) | |||
| Wide band | Narrow band | ||
| Sensitivity (12dB Sinad) | ≤0.25μV | ≤0.35μV | |
| Adjacent Channel
Selectivity |
≥70dB | ≥60dB | |
| Intermodulation | ≥65dB | ≥60dB | |
| Spurious Rejection | ≥70dB | ≥70dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Hum & Noise | ≥45dB | ≥40dB | |
| Audio distortion | ≤5% | ||
| Audio power output | ≥2W@10% | ||
| Transmitter (ETSI EN 300 086 standard testing ) | |||
| Wide band | Narrow band | ||
| Power Output | 60W/25W/10W(VHF) | 45W/25W/10W(UHF) | |
| Modulation | 16KΦF3E | 11KΦF3E | |
| Adjacent Channel
Power |
≥70dB | ≥60dB | |
| Hum & Noise | ≥40dB | ≥36dB | |
| Spurious Emission | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Audio Distortion | ≤5% | ||
| Each Set PACKAGE CONTAIN |
- 1x ANYTONE AT-588 UHF Mobile Radio
- 1x Microphone
- 1x Mobile Mounting Bracket
- 1x DC Power Cable
- 1x Screws, S-Washer,Spare Fuses pack
- 1x English Manual
