ALINCO DJ-W10 HT VHF FM Transceiver Handheld Walkie Talkie

Original price was: 165.00$.Current price is: 92.00$.

& Free Shipping
Quantity Discount (%) Price
1 92.00$
2 - 4 1.09 % 91.00$
5 - 9 3.8 % 88.50$
10+ 7.72 % 84.90$
Guaranteed Safe Checkout

Alinco DJ-W10 Specification

This new VHF handheld transceiver packs a lot of performance into a MIL-spec* rugged polycarbonate body. Designed to resist splash and dust*, the DJ-W10 features professional grade specs such as 1W audio output, 2.5ppm frequency stability, capable of operating 136-174MHz range at 5W with 50 tone-squelch, DCS or DTMF/ANI in 128 programmable-channels or VFO; keep in touch for retails, construction, factory, warehouse, in a theme-park, shopping mall, exhibition hall, hotel…where you need reliable communications for business, the DJ-W10 is a cost effective alternative to a mobile/cell phone!

*MIL-STD-810G shock/vibration compliant

*IP54 Dust & Splash-proof compatible.

128 channels to program operating parameters via PC utility software
Channel, Name tag and VFO (Frequency) display modes selectable
Comes with a rechargeable Li-Ion pack, desktop quick-charger and high-performance whip antenna
Ergonomically designed compact body 59.0W x 98.0H x 35.0D mm or 2.32W x 3.86H x 1.38D inches (w/o projections, approx.), weighs approx.227g or 8.01oz inclusive of battery pack and antenna
3 types of Scan functions (VFO/Memory channels/Priority), 50 CTCSS, 116 DCS and 4 Tone-burst tones
Backlit, Dot Matrix LCD screen with alphanumeric name tag
Microphone and speaker ports
FM radio receiver
Internal VOX
Voiceprompt in English
Analog scrambling
Voice Compander
Narrow FM

-Frequency : [TX/RX] 136.000 – 173.995 MHz

[RX Only] 76-108 MHz

– Mode : F3E (16K0F3E/11K0F3E / RX Only WFM)

– Progammable Channels : 128 Channels

– Frequency Stability : 2.5ppm

– Power Supply Requirement : 7.4V DC

– Dimensions : 59W x 98H x 35D mm

Transmitter :

– Output Power : Approx. 5/2/0.5W

– Modulation System : Variable Reactance FM

– Spurious Emissions : Less Than -36 dB

– Max Frequency Deviation : 5kHz / 2.5kHz

Receiver :

– Receive System : Double Conversion Superheterodyne

– Inter Mediate Frequencies : 38.85MHz

– Sensitivity (12dB SINAD wide/Narrow)

– Selectivity : -6dB: -6dB: Wide12kHz / Narrow 10kHz

– Audio Output Power : 1000mW (8Ohm / Max)

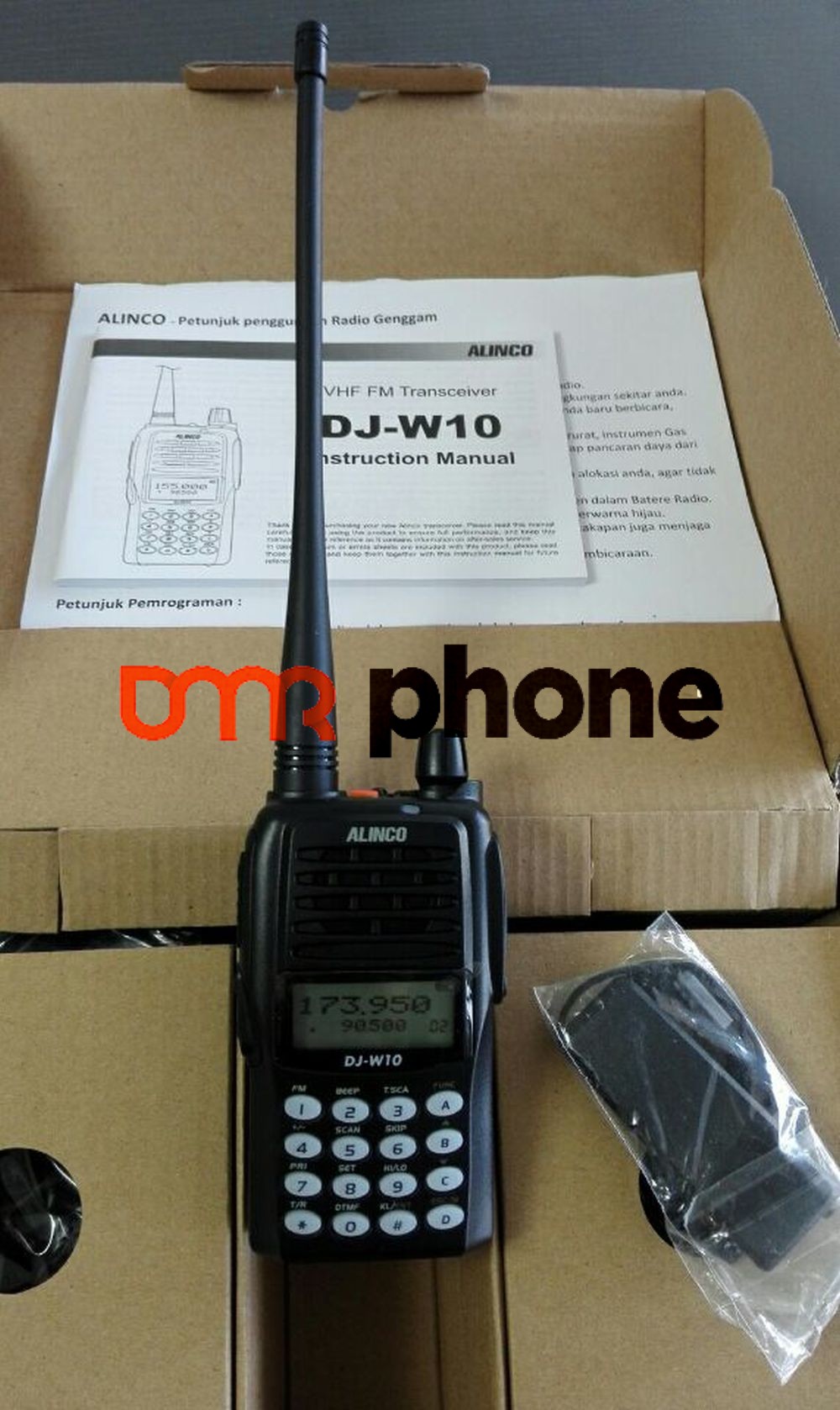

Each Package Included:

  • 1 x HT Alinco DJ-W10
  • 1 x Antenna
  • 1 x Battery
  • 1 x Charger
  • 1 x Belt Clip
  • 1 x Guide Book
Weight 1.8 kg
Dimensions 400 × 280 × 90 mm
