2018 DIY Shortwave Ham Radio VHF UHF HF Antenna Analyzer AW07A For Sale

2018 DIY Shortwave Ham Radio VHF UHF HF Antenna Analyzer AW07A For Sale

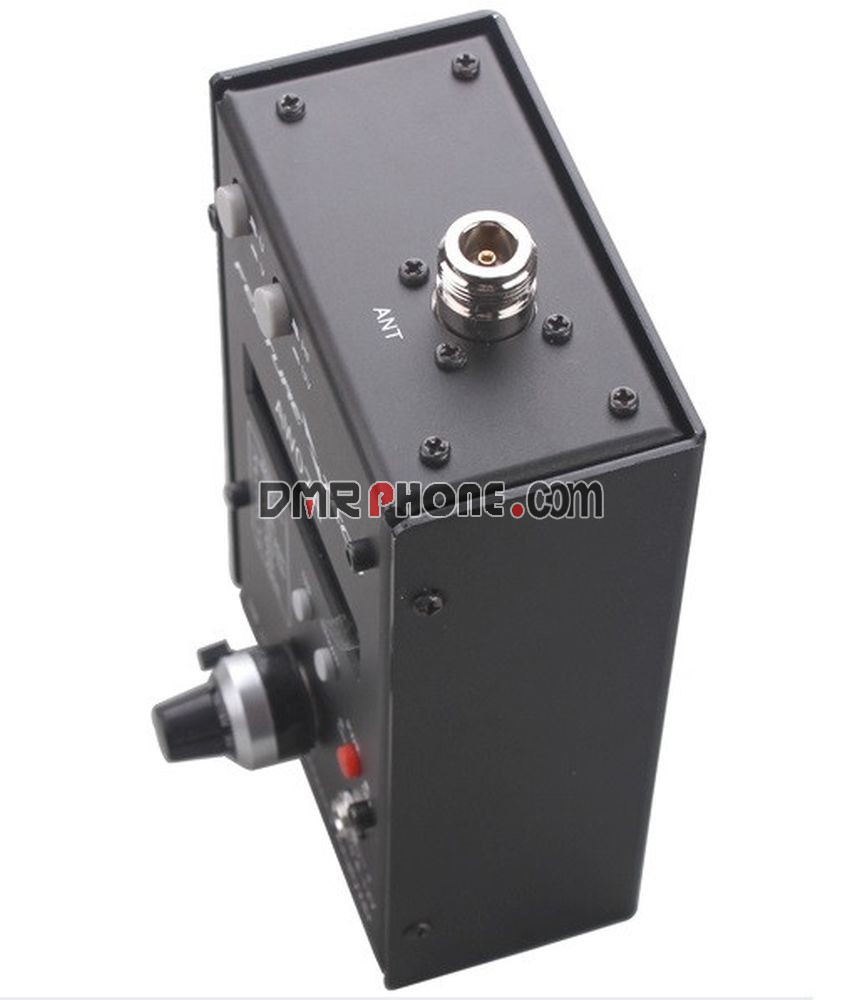

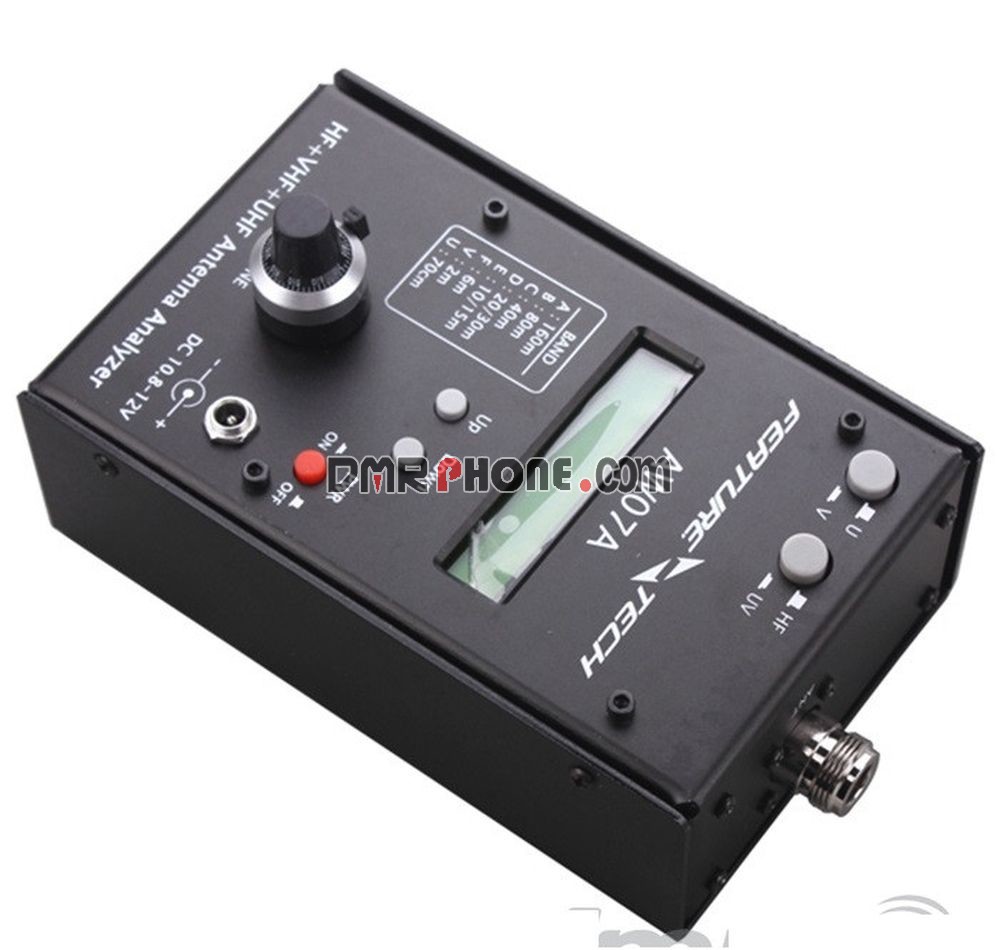

AW07A antenna analyzer is a compact battery powered RF impedance analyzer. It can test the SWR status of your antenna, measure the impedance and reactance component and help you to solve antenna problems. This unit combines six basic parts: a variable oscillator, frequency counter, independent oscillator, 50 ohm RF bridge detector, an A-D converter, and microcontroller. This compact product was built to feed the need for the solid construction and field test. The operating frequency range of this unit goes from HF, and extends up to 490MHz. The operating frequency range of this unit extends from 1.5 to 71 MHz in six overlapping bands, and includes SWR measurements on 85-185MHz, 300-490MHz.

It measures RF impedances from a few ohms to several hundred ohms.

The AW07A is also an L/C meter, measuring the values of capacitors and inductors. Additionally, it could be a non-precision signal source and frequency counter. With a built-in RF strength meter, it tests the RF field strength near your antenna system, and it’s very useful when you need to know the RF interference status around your station.

Functions:

Signal source

Capacitance meter Inductance meter Show reactance value Show impedance value SWR value from 1.1 to 9.99 RF strength meter Frequency counter

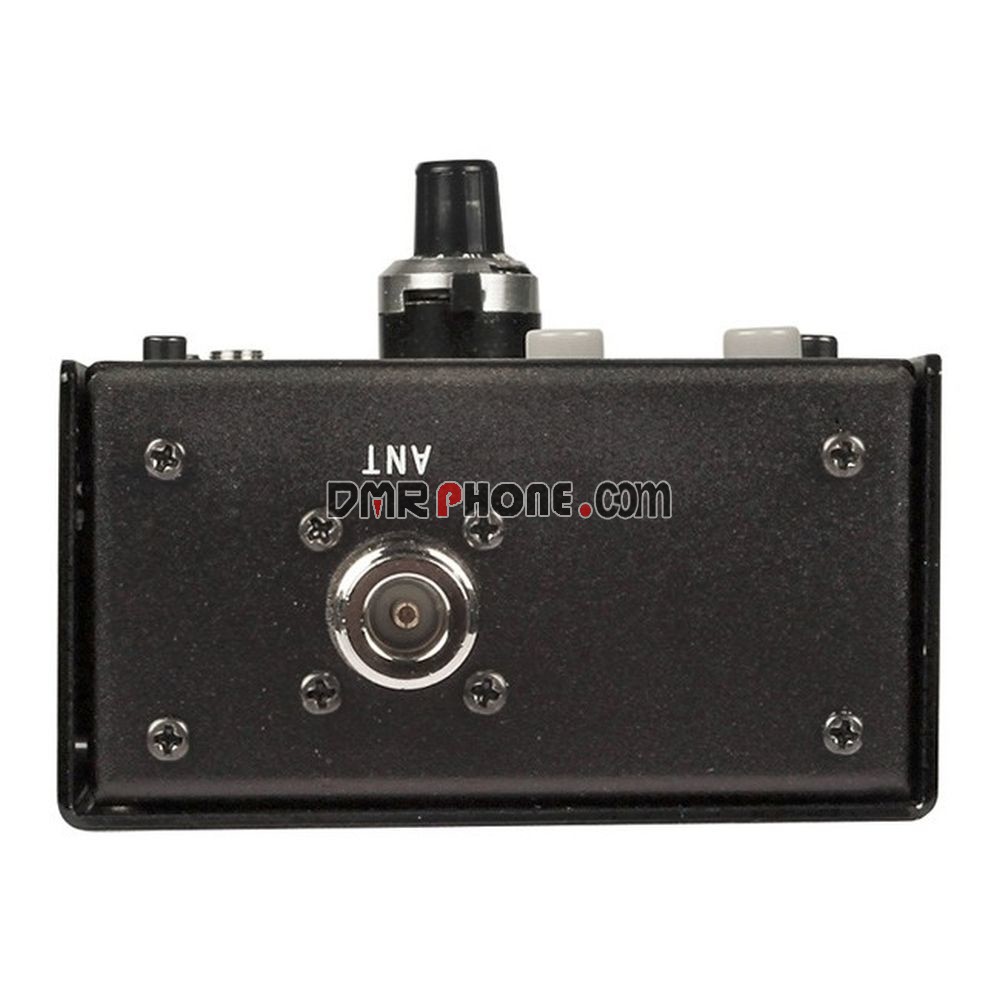

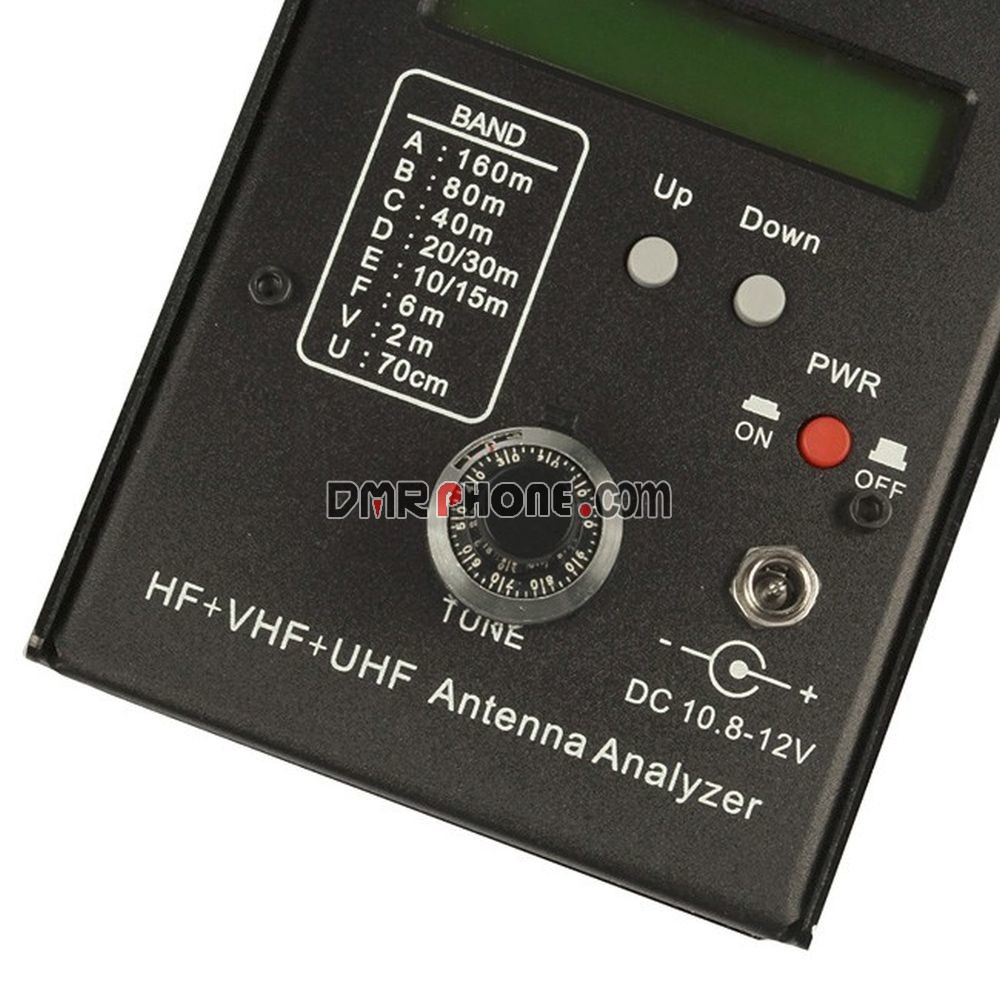

Specifications: Band Coverage: 160m, 80m, 40m, 20/30m, 10/15m, 6m, 2m, 70cm RF Output Level: 2Vpp SWR Range: 1~9.9 Impedance Range: 10~500ohm External Power: DC 10.8~12V Battery: 8*AA Alkaline Battery (NOT INCLUDED) Power Consumption: <150mA(HF Bands, B/F Off), <165mA (VU Bands, B/L Off) Weight: 0.6kg Size: 155mm(W) x 100mm(D) x 55mm(H)

Package Contain:

1 x SWR VHF UHF HF Antenna Analyzer

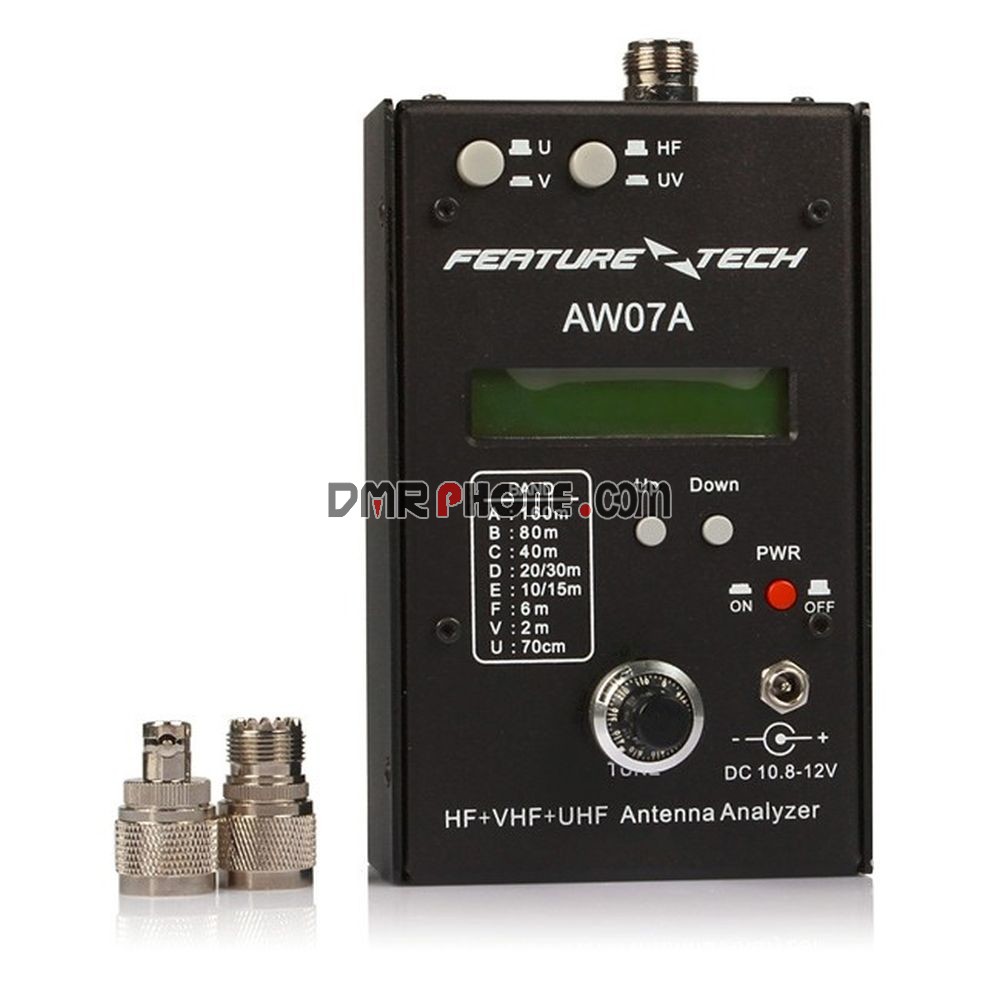

2 x Antenna Connector Adapters
