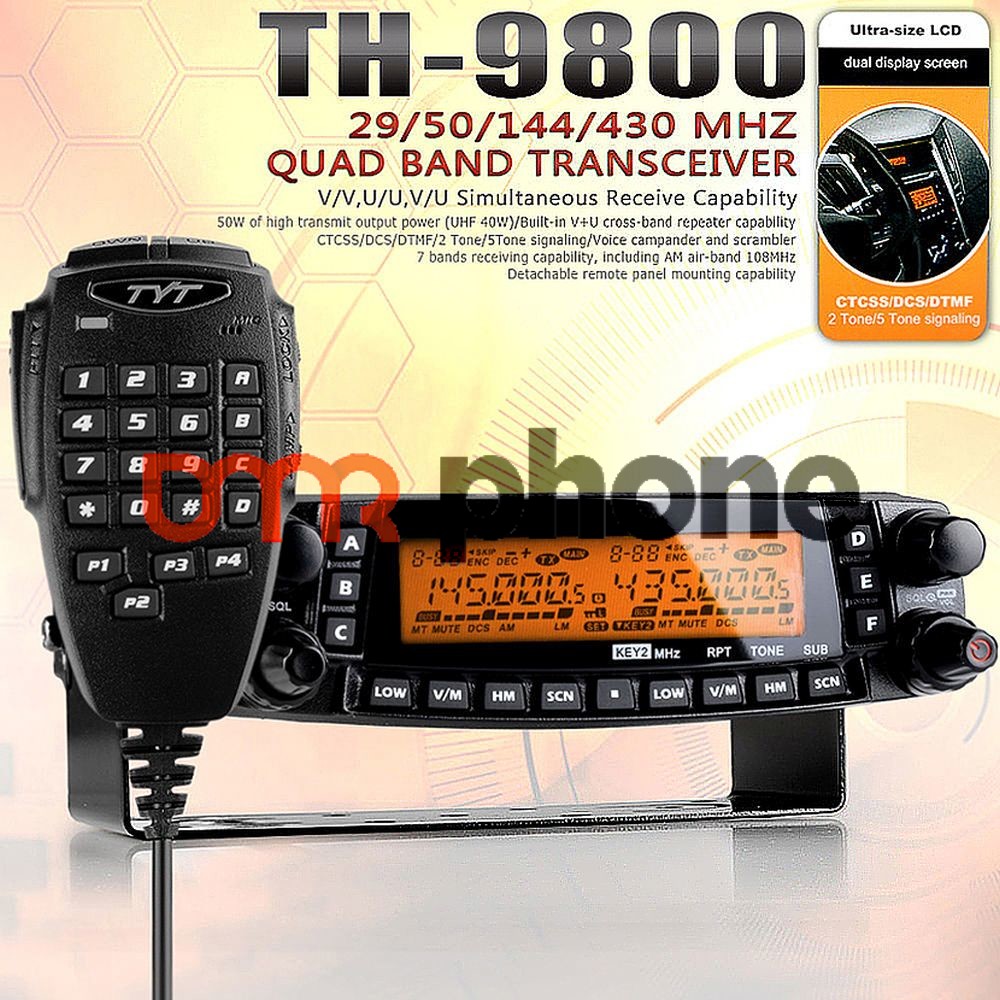

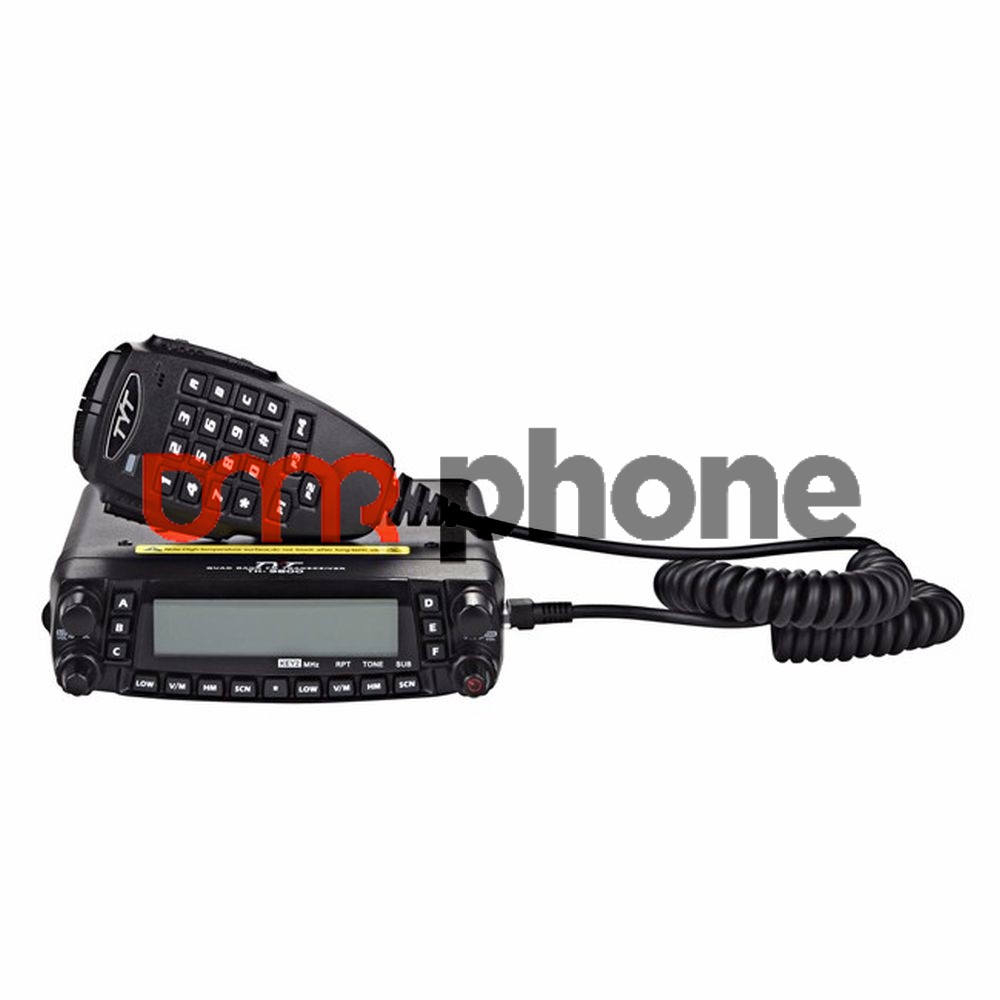

The TYT TH9800 QuadBand Transmit, Twin Receive, Dual Display FM Radio Transceiver for the 10 Meter, 6 Meter, VHF 2 meter & UHF 70cm Bands!.
Loaded with features, Over 800 AlphaNumeric Memory channels!
True automatic cross band repeater mode, Twin simultaneous Receive, w/seperate Vol & Squelch controls!
Multiple Tuning Steps,. Includes full keypad microphone!

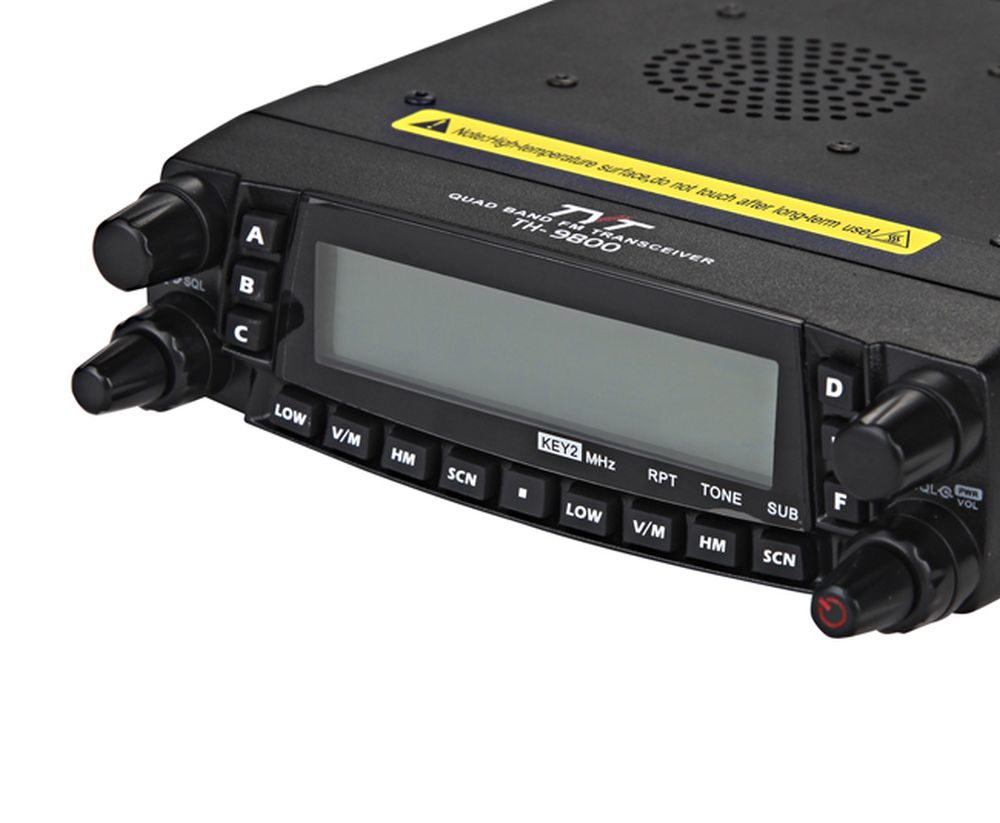

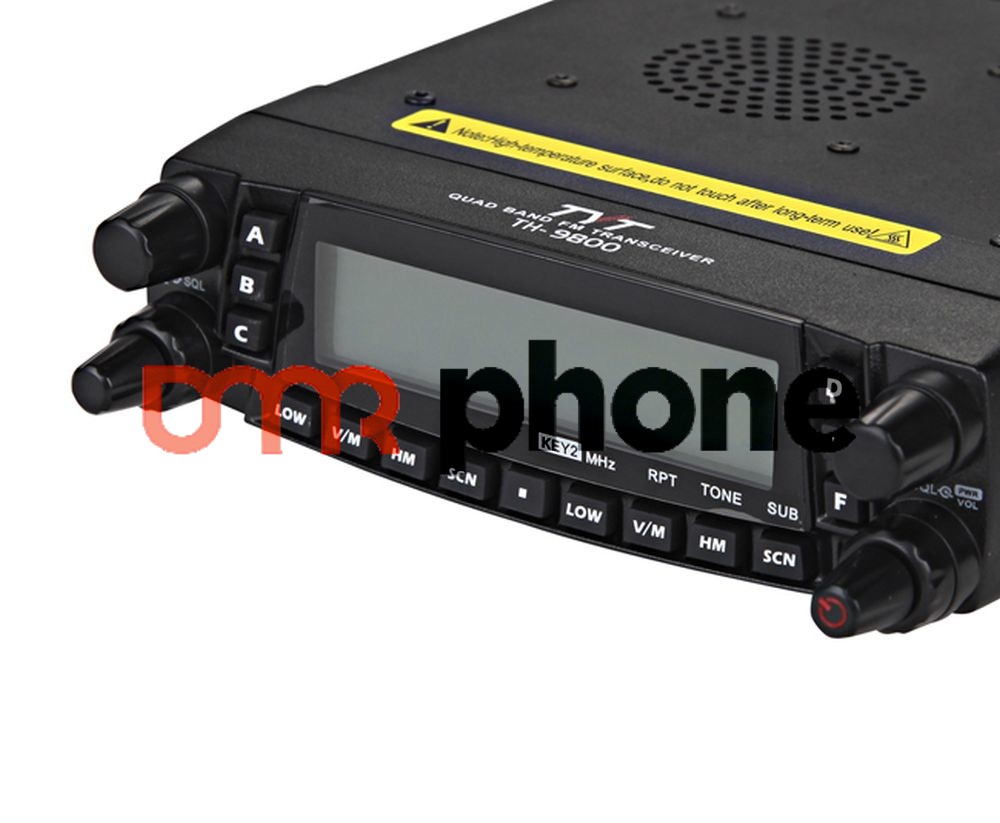

Remote mountable Faceplate!
Receive Range: 26-33Mhz, 47-54 MHz, 110-180Mhz ( with AM Air band), 350-399Mhz, 430-512Mhz, 750-947Mhz.
50W 2M & VHF / 40W 10M & UHF, with Multiple lower power settings available too.
ctcss, dcs (PL & DPL), DTMF, 2 tone/5tone signaling, ANI, Display Brightness setting & more!
PC Programmable, w/downloadable free software, Requires 12-14Vdc power hookup, at 12A or more, and an Optional suitable Antenna.
Includes 12Vdc Power Cable & Mounting Bracket, SO-239 Antenna connector on radio.

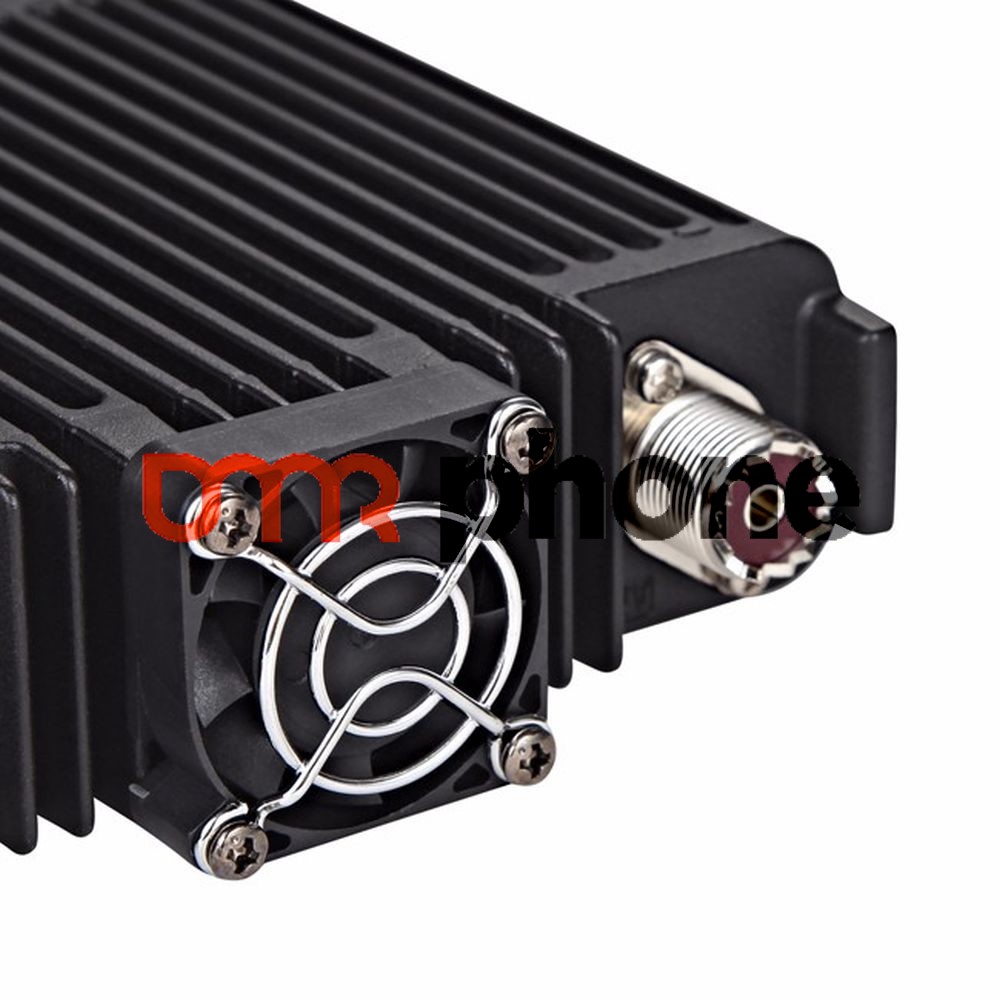

Built In Cooling Fan.
Functions:
Outstanding 0.2uV sensitivity across 10m/6m/2m/70cm bands
Brilliant crossmodulation, intermodulation rejection and strong signal performance – similar to commercial radios.
Commercial quality and commercial performance, too!
809 memory channels

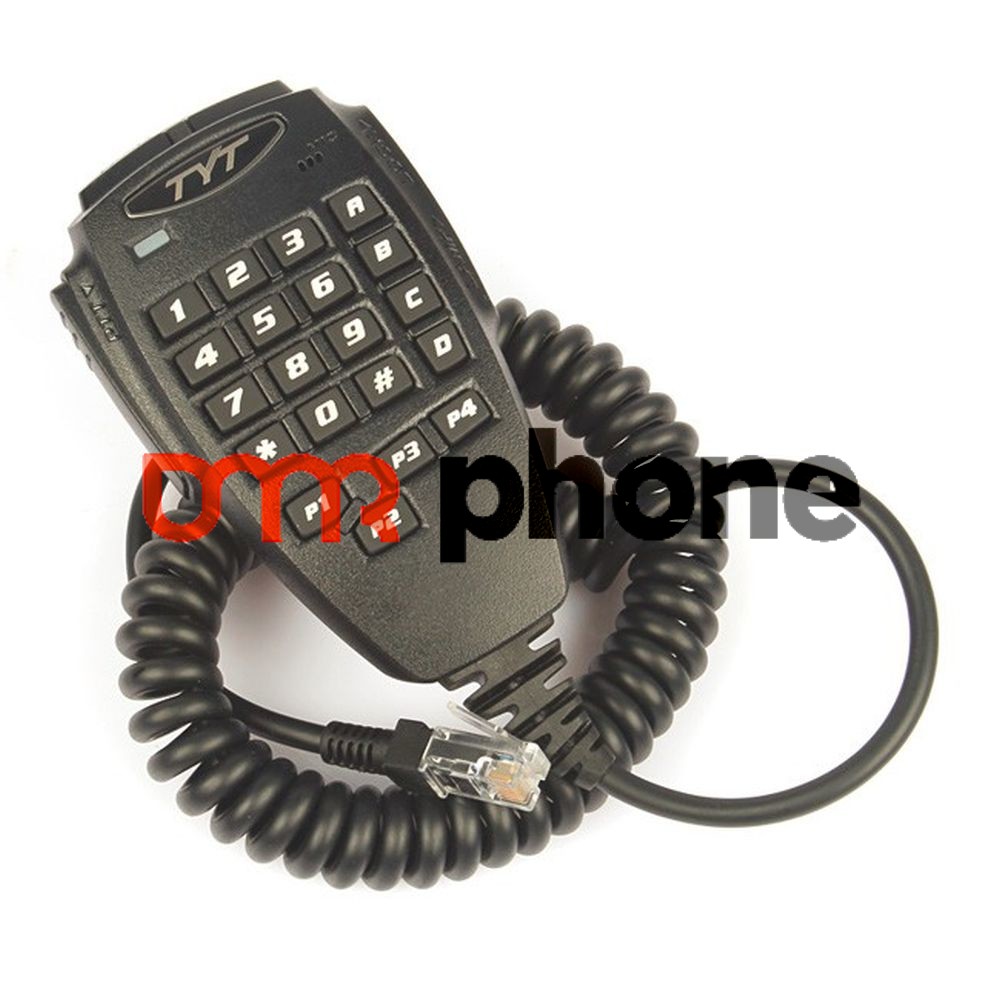

DTMF mic included!
Digital FM broadcast band radio
High/low output power levels
Reverse frequency selection
Dual (V/U) squelch set levels
Dual repeater offsets selectable
Multi-function scanning
Repeater offset selectable
Keypad lock function
Channel name editing
CTCSS/DCS encode/decode
Dual Band/Dual Receive: (Full Duplex)
Cross Band Repeat
TX Power: 5-50 Watts
Memories: 256
Antenna Connection: Single SO 259s
Specification:
| General | |
| Frequency Range | 26-33MHz (RX/TX) (AM band RX) |
| 47-54MHz (RX/TX) (AM band RX) | |
| 136-174MHz (RX/TX) | |
| 400-480MHz (RX/TX) | |
| 108-136 (AM band RX only) | |
| 320-399.000 (RX only) | |
| 750-950 (RX only) | |
| Channel Capacity | 809 channels |
| Channel Spacing | 5/10/12.5/15/20/25/50KHz |
| Modes of Emission | F3, F2, F1 |
| Antenna Impendence | 50 Ohms, unbalanced(Antenna Duplexer bulit-in) |
| Frequency Stability | ±5 PPM@-140°F~+140°F(-10-+60) |
| Operating Voltage | -4°F~+A140°F(-10-+60) |
| Operating Temperature Range | 13.8VDC (±15%). Negative ground |
| Current Cunsumption(Approx) | RX: 0.5A (Squelched) |
| TX:8.0A (50/430MHz), 8.5A(29/144MHz) | |
| Case Size(WXHXD) | 140×41.5x168mm (w/0 knobs & connectors) |
| Weight(Approx) | 2.2lb(1Kg) |
| Transmitter | |
| Output Power | 50/20/10/5W(29/50/144MHz) |
| Modulation Type | Variable Reactance |
| Maximum Deviation | Better than -60dB(29MHz:Better than -50dB) |
| Modulation Distortion | Less than 3% |
| Microphone Impedance | 2kΩ |
| DATA jack Impedance | 10KΩ |
| Receiver | |
| Circuit Type | Double-conversion super-heterodyne |
| Intermediate Frequency | 45.05MHz/450KHz(left band) |
| 47.25MHz/450KHz(right band) | |
| Sensitivity(for 12dB SINAD) | Better than 0.2μV |
| Squelch Sensitivity | Better than 0.16μV |
| Selectivity(-6dB/-60dB) | 12KHz/30KHz |
| Maximum AF Output | 2W@8Ω for 5% THD |
| AF Output Impedance | 4-16Ω |

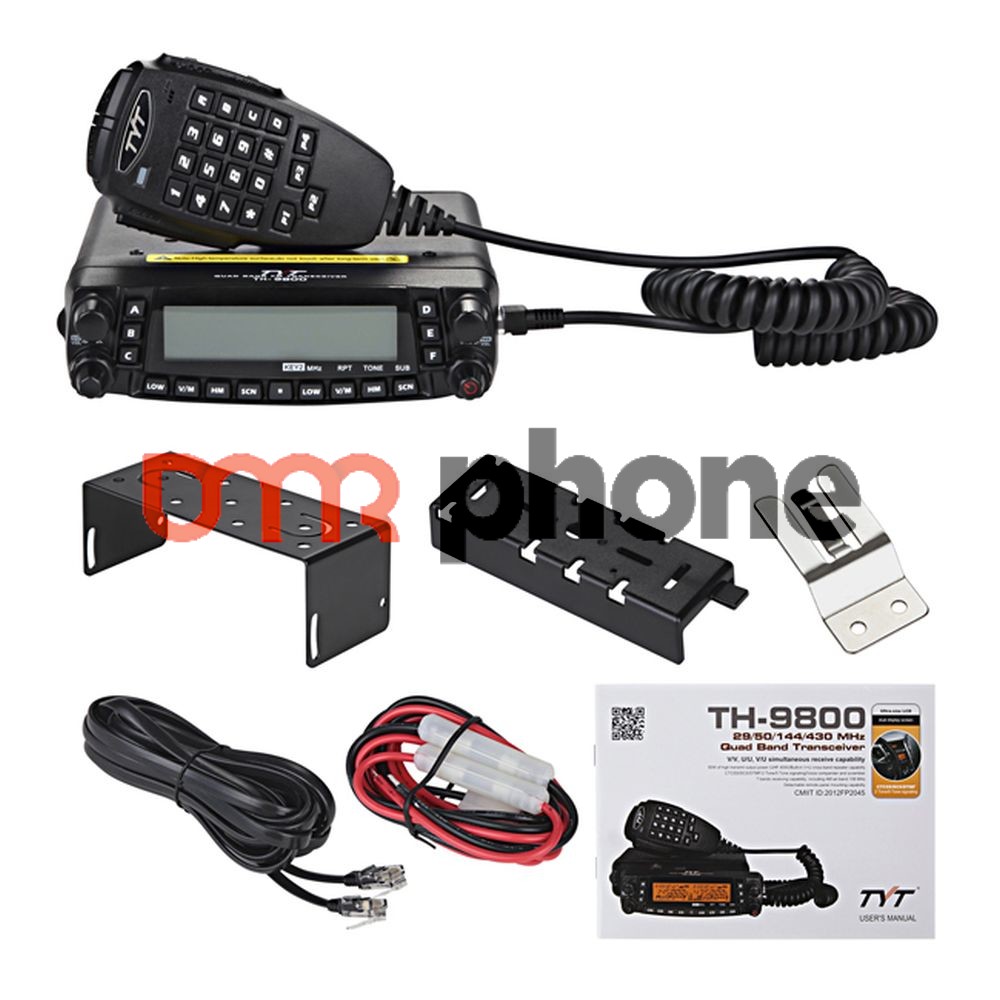

Package:
- 1x TYT TH-9800 Mobile Transceiver
- 1x Handheld Microphone
- 1x Power Cable
- 1x Screws and Accessories
- 1x User’s Manual
- 1x Fixed Bracket
- 1x Microphone Hanger
- 1x Programming Cable& CD
