QYT KT-5800 Car Truck Dual Band Mini 25W Mobile Transceiver

$106.00$150.00

Clear
SKU: 190357 Category: Tag:

Description

QYT KT-5800 Car Truck Dual Band Mini 25W Mobile Transceiver



Features:
12/24V, Can connect to the TRUCK/CAR directly without additional transformer

Dual Band,Quad-standby

25W Output Power

External speaker/PTT

Mini Size

PC Program

Remote Stun,Remote Activate,Remote Kill

DTMF Function, 2 tone, 5 tone

PTT-ID Code

Repeater Function

Long-distance Communication

FM Radio

Alarm Function

Monitor

Specifications:

Item number KT-5800
                                                 General
Frequency Range VHF:136-174MHz   UHF:400-470MHz
Number of Channel 200
Channel Spacing 25KHz 20KHz 12.5KHz
Phase lock step 5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz
Working Voltage 13.8V DC or 24V DC
Squelch way CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability ±2.5ppm
Operating Temperature -20c~+60c
Dimension(W x H x D) 123(W) x 44(H) x 158(D)mm
Weight 1.2KG
                                                  Receiver
Broadband Narrow band
Sensitivity ≤ 0.25μV ≤ 0.35μV
Channel choice ≥70dB ≥60dB
Intermodulation ≥65dB ≥60dB
Spurious Rejection ≥70dB ≥70dB
Audio response +1~ -3dB(0.3~3KHz) +1~ -3dB(0.3~2.55KHz)
Signal to noise ratio ≥45dB ≥40dB
Audio distortion ≤5%
Audio output power ≥2W
                                                Transmitter
Broadband Narrow band
Output power 25W/20W(VHF/UHF)
Modulation Mode 16KΦF3E 11KΦF3E
Channel Power ≥70dB ≥60B
Signal to noise ratio ≥40dB ≥36dB
Parasitic harmonic ≥60dB ≥60dB
Audio response +1~ -3dB(0.3~3KHz) +1~ -3dB(0.3~2.55KHz)
Audio distortion ≤5%

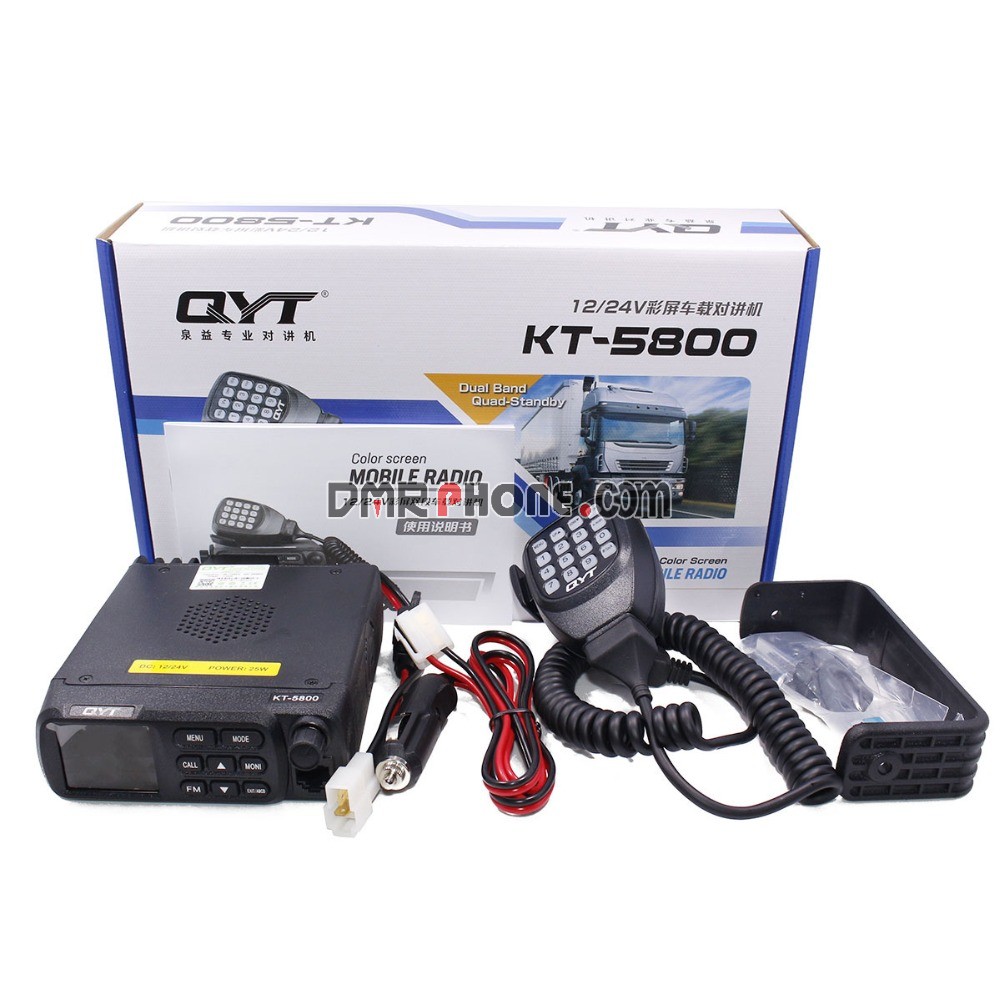

Each Set Package Contain:

1× QYT KT-5800 Dual Band Mini Mobile Radio

1× Microphone

1× Car Power Cable

1× Clip for Speaker Microphone

1× Mounting Bracket

1× Screw Sets

1 × User Manual

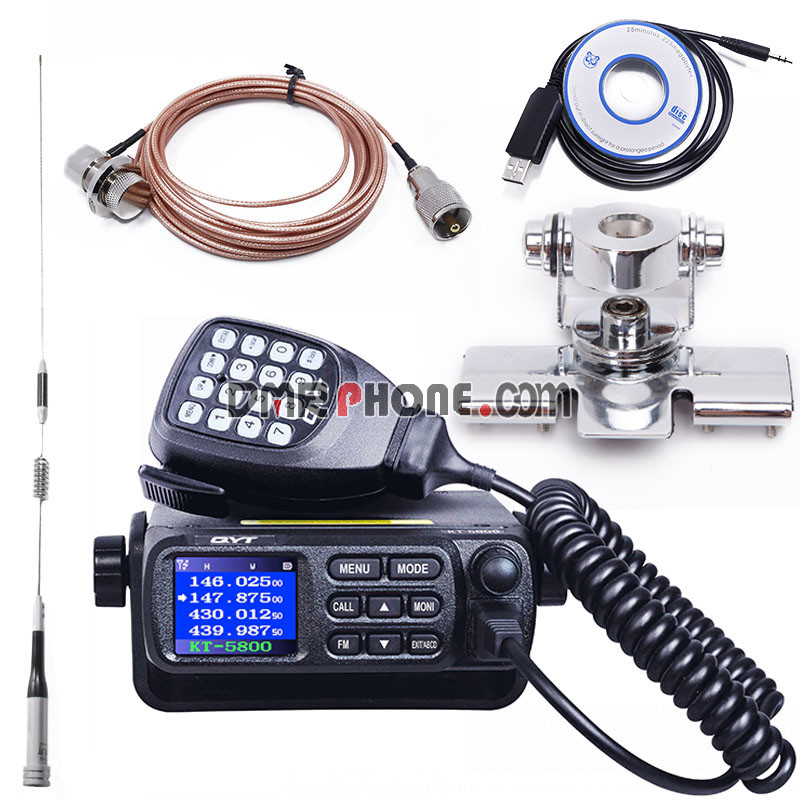

Add Other Optional Items

  1. Add USB Programming Cable
  2. Add Bluebooth Speaker Mic
  3. As pic show 1
  4. As pic show 2
  5. As pic show 3

Additional information

Weight 1.5 kg
Dimensions 450 × 300 × 100 mm
Type

Standard Package, Add USB Programming Cable, Add Bluebooth Speaker Mic, As pic show 1, As pic show 2, As pic show 3
