Icom IC-M25 Marine Walkie Talkie New Version

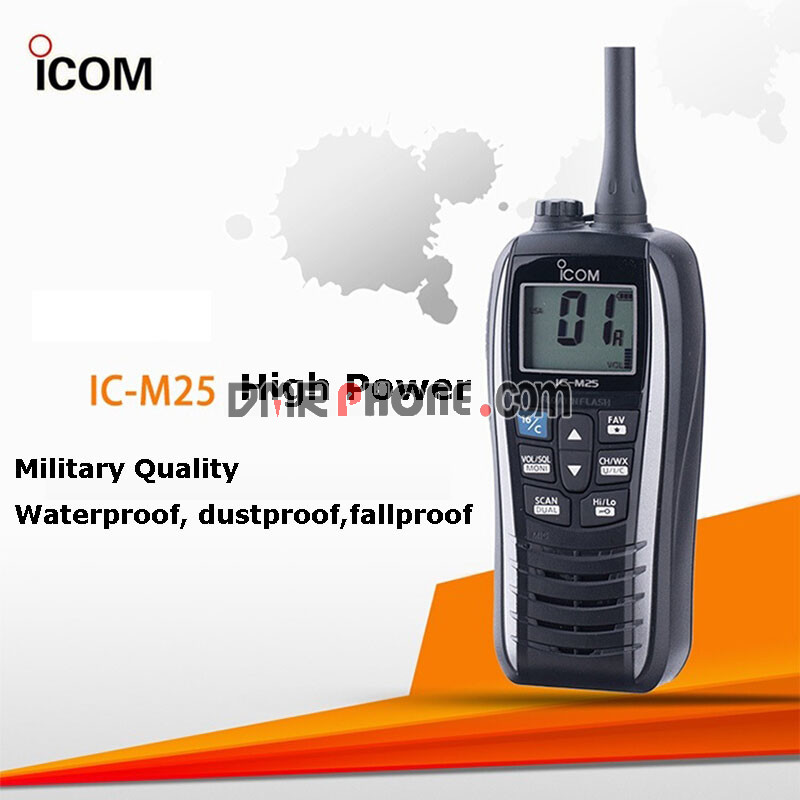

Icom IC-M25 VHF Marine Transceiver Floating 5W Handheld VHF Radio
Slim body, full-featured floating VHF radio has a micro USB charging port and requires no license for use.
Slim, Lightweight, High Performance
The IC-M25 has the slimmest (depth: 30.5 mm; 1.2 in) and lightest (220 g; 7.8 oz) body as a floating marine transceiver*. It also delivers uncompromised performance that will exceed expectations. *As of July, 2015, researched by Icom.
Large LCD, Simple User Interface
The IC-M25’s LCD is 30% larger than its predecessor, the IC-M24 and shows clearly large channel number and status icons. The buttons on the front panel are well laid out and provide simple and straightforward operation.
USB Charging (Micro-B USB type)
A standard USB connector (Micro-B type) is used for charging the IC-M25. Cigarette lighter cables or mobile batteries for charging smartphones or other devices can be used with the IC-M25*. * The IC-M25 accepts 5 V/1 A (Max.) input. Use of third-party products is not guaranteed
- Radio Application: Marine
- Radio Classification: General
- Radio Series: ICOM IC-M25
- Digital/Analog: Analog
- Band Type: VHF
- Number of Channels: 88
- Output Watts: 5w
- Waterproof: Yes
- Item: Portable Two Way Radios
- Frequency: 156.025 to 163.275 MHZ, 156.025 to 157.425 MHz
- Display Type: LCD
- License Required: No
- FCC Narrow Band Compliant: No
- Length: 2-5/16″
- Width: 5-3/64″
- Height: 1-23/64″
- Selectable Frequencies: No
- Battery Type: 1500mAh Li-Ion
- IP Rating: IPX7
- Channel Scan: Yes
- Battery: Life11 hr.
- Color: Gray
- Includes: USB Charger, Belt Clip, Antenna, Hand Strap
- Features: Slim Body, Floats, Micro USB Charging
- Standards: MIL-810C,D,E
- Radio Type: Handheld
Icom pioneered the floating VHF marine radio and others followed. Setting a new trend with the IC-M24 and now the IC-M25. The IC-M25 has a flashing light feature that activates when the radio hits water, even if the power is off! If you drop this floating radio overboard, it’s easier to find than ever, day or night.
The IC-M25 floats and lets you know where it is with the flashing red LED light and LCD/key backlight.
11 Hours long battery Life
The built-in 1500mAh lithium-ion battery allows 11 hours (approx.) of long operation.*
*Typical operation with Tx (Hi: Rx: standby = 5:5:90)
USB charging (Micro-B USB type)
A standard USB connector (Micro-B type) is used for charging the IC-M25. Cigarette lighter cables or mobile batteries for charging smartphones or other devices can be used with the IC-M25*.
*The IC-M25 accepts 5V/1A (Max.) input. Use of third-party products is not guaranteed.
AquaQuake™ draining function
When water is in the speaker grill, Icom’s unique AquaQuake™ emits a buzzing sound and sheds water from the speaker. This function assures clear sharp sound at all times.
Slim body and lightweight
The 7.76-ounce (220g) lightweight and 1.2 inch (30.5mm) slim body is the new benchmark for floating marine transceivers.
Large LCD, simple user interface
The IC-M25’s LCD is 30% larger than the IC-M24’s and clearly shows large channel number and status icons. The buttons on the front panel are well laid out and provide simple and straightforward operation.
550mW audio output
The IC-M25 provides a powerful 550mW audio output and received voice can be heard loud and clear. By holding the VOL/SQL button with ▲ (up) button, the volume is instantly turned up to the maximum level.
Optional speaker microphone, HM-213
The optional waterproof speaker microphone, HM-213, provides commercial grade convenience while mounting the radio around the waist.
- IPX7 waterproof construction (1m depth of water for 30 minutes)
- 4-step battery life indicator
- Weather channel with weather alert (USA version only)
- Dual/Tri-watch functions
- Instant access to Channel 16 or programmable call channel
- Favorite channel function
- Monitor function opens noise squelch
- Auto scan function
- LCD auto backlighting
|Icom M25 Specifications|
|Usable channels||INT, USA, CAN, WX channels|
|Type of emission||16K0G3E (FM)|
|Current drain (at 3.7V DC)
Rx (at AF max.)
|Operating temperature range||-20°C to +60°C; -4°F to +140°F|
(Projections not included)
|Weight (approx.)||220g; 7.8oz (With FA-SC59V and MB-133)|
|Output power (Hi/Mid/Low)||5W (High),1W (Low)|
|Max. frequency deviation||±5.0kHz|
|Spurious emissions||-68dBc typical|
|Adjacent channel power||70dB|
|Audio harmonic distortion||10% (at 60% dev.)|
|Sensitivity (at 12dB SINAD)||0.25µV typical|
|Squelch sensitivity||0.25µV typ. (at threshold)|
|Adjacent Channel Selectivity||70dB typical|
|Spurious response||70dB typical|
|Intermodulation Rejection||70dB typical|
|Hum and noise ratio||40dB typical|
|Audio output power
(at 10% distortion, 8 Ω)
|Internal SP: 550mW typ. (12Ω load)
External SP: 300mW typ. (4Ω load)
Measurement made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Applicable IP Rating and environment test
Ingeress protection standard: waterproof – IPX7 (submersible protection)
