CB270 Portable Citizens Band Radio 26.965 – 27.860MHz

82.00$

Out of stock

SKU: 190700 Category:

Description

CB Radio 27MHz MR999 PRO CB-270 Walkie Talkie with LCD diaplay 40 Channel AM FM Radio CB270 26.965 – 27.860MHz

This radio battery voltage is above 8V, they can work well.

CB270 is Citizens’ Band radio free license Radio support RX & TX,use 26-27MHz fixed channel do not need program you can use.

HTB1h09eKVXXXXbraXXXq6xXFXXXh

Quick Details

Place of Origin:
China (Mainland)
Brand Name: Model Number:
CB Radio CB-270
Type:
Vehicle Mouted
Dimensions:
30*70*140mm
Frequency Range:
26.565-27.99125MHz
Storage Channel:
40
Talk Range:
More than 5km
CB Radio Channel Spacing:
10KHz
Operating mode:
F3E(FM); A3E(AM)
Antenna impedance:
50 ohm
Loudspeaker:
0.5W 8ohm
Audio frequency response:
400-2400Hz
Current Drain:
900mA
Weight:
220g(without battery)
Dimension:
30*70*140mm
Sample Service:
Yes

CB-270 China Dual Frequency Standby 27MHz Ham Antenna CB Radio

Specification

Channel 40FM
Frequency range 26.565-27.99125MHz
Operating mode F3E(FM); A3E(AM)
Antenna impedance 50 ohm
Loudspeaker 0.5W 8ohm
Microphone condenser type
Power supply 7.2-13.2 nom 12V
Dimensions 30*70*140mm
Weight 220g(without battery)

Receiver

Sensitivity at 10dB S/N 0.5uV(AM); 0.25uV(FM)
Selectivity more than 60dB
Squelch range 0.25V-500uV
Audio output power 0.5W 8ohm (10% distortion)
Distortion at 1000uV 3%
Audio frequency response 400-2400Hz
Spuriour response More than 60dB
Current drain at standby 100mA when the save mode is off
45mA when the save mode is on

Transmitter

RF Output power Duty cycle 10% 4W AM/FM
Frequency Tolerance 0.005%
Harmonic Suppression More than 70dB
Current Drain 900mA
Modulation AM 90% (±5%)
FM dev.2.0KHz

Package Contact:

1 x Radio

1 x Battery Pack

1 x Belt Clip

1 x Antenna

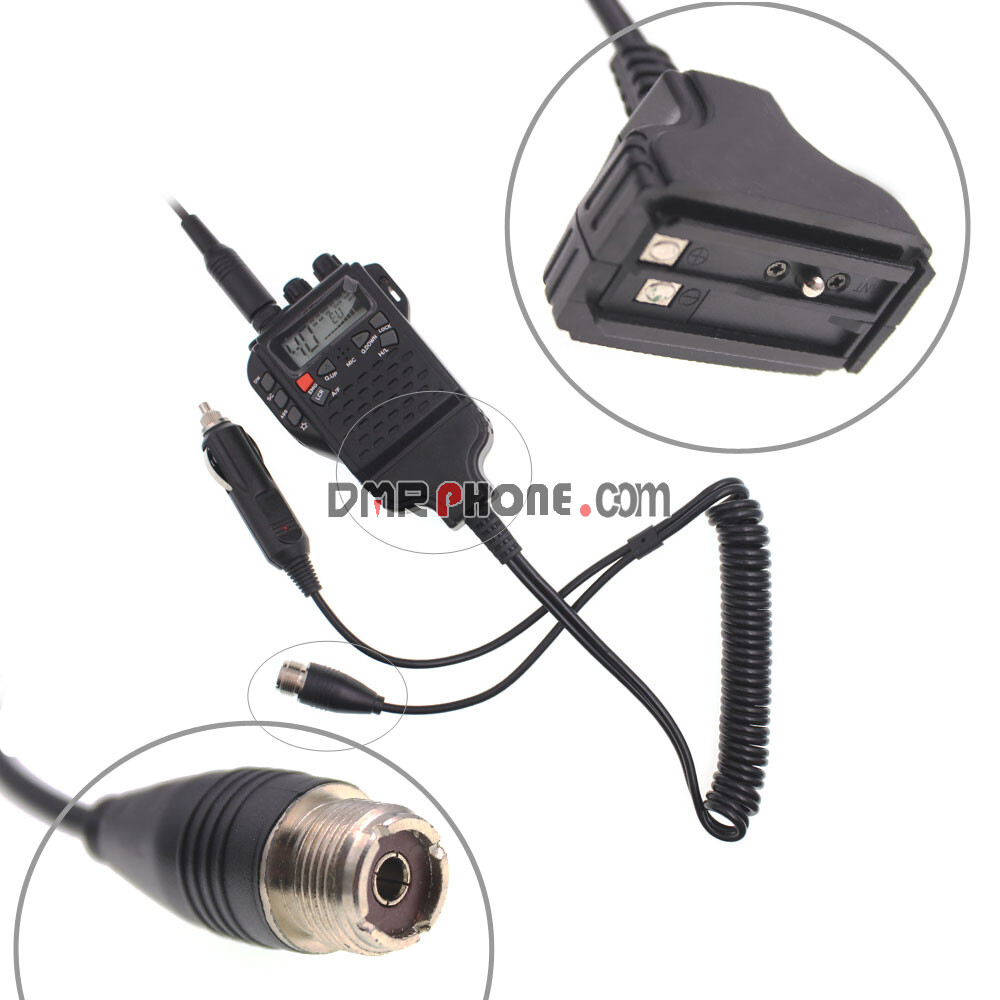

1 x Car Charger Cable

1 x Hand Strap

Additional information

Weight 0.6 kg
Dimensions 400 × 200 × 100 mm
