2020 New Baofeng DM-1706 DMR Digital Radio

Sale!

2020 New Baofeng DM-1706 DMR Digital Radio

$95.00 $83.00

SKU: 190866 Categories: ,

Description

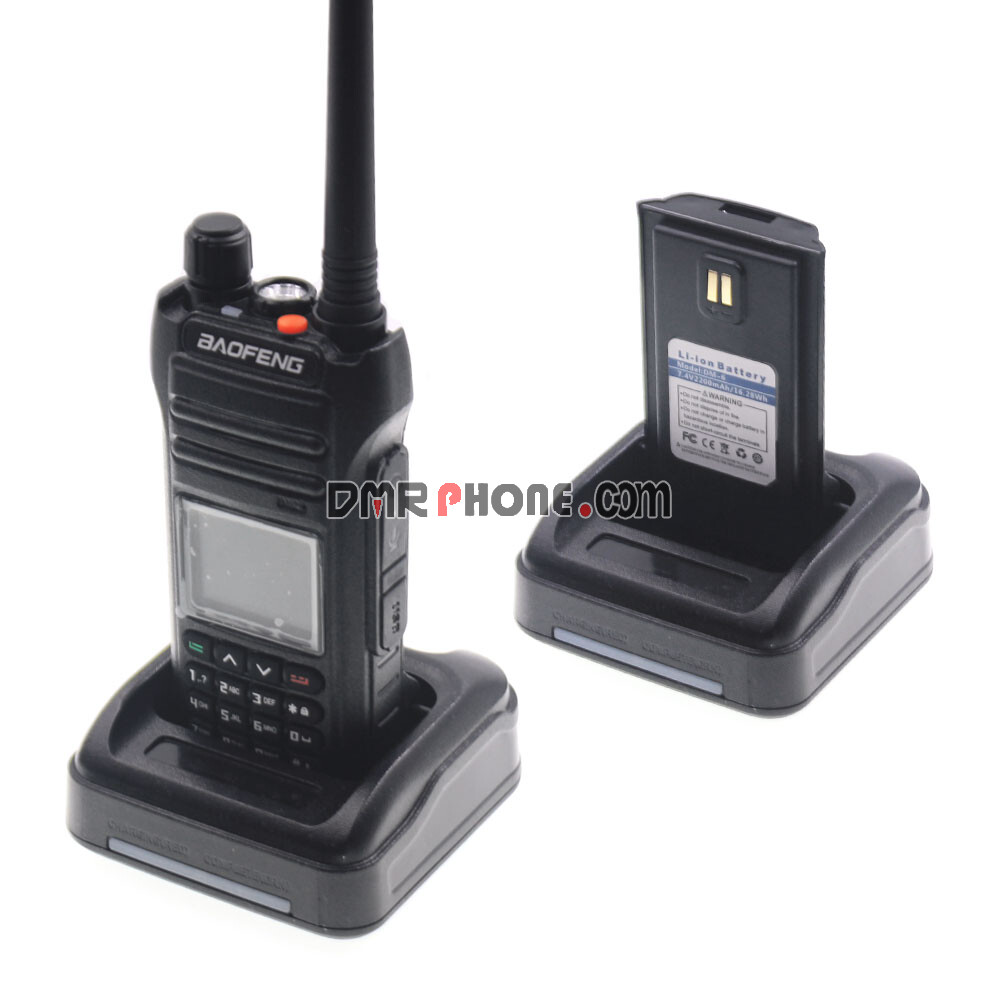

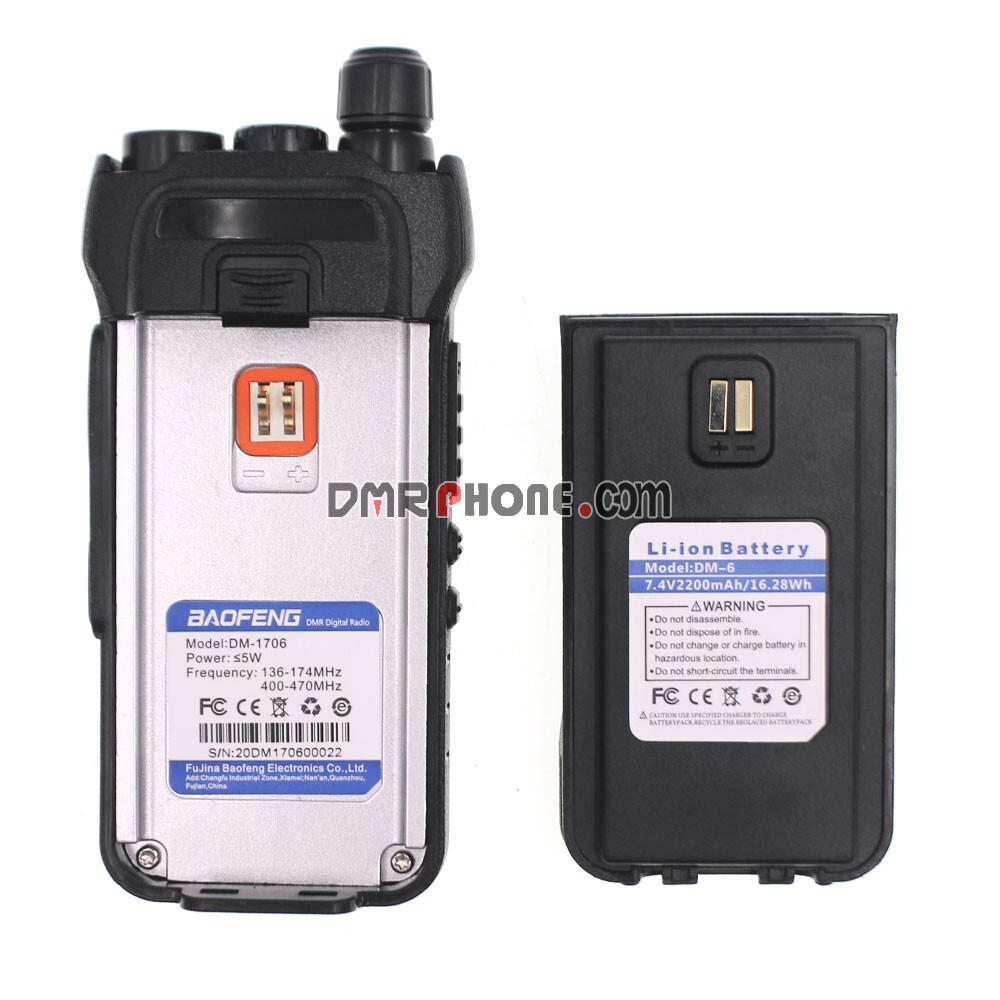

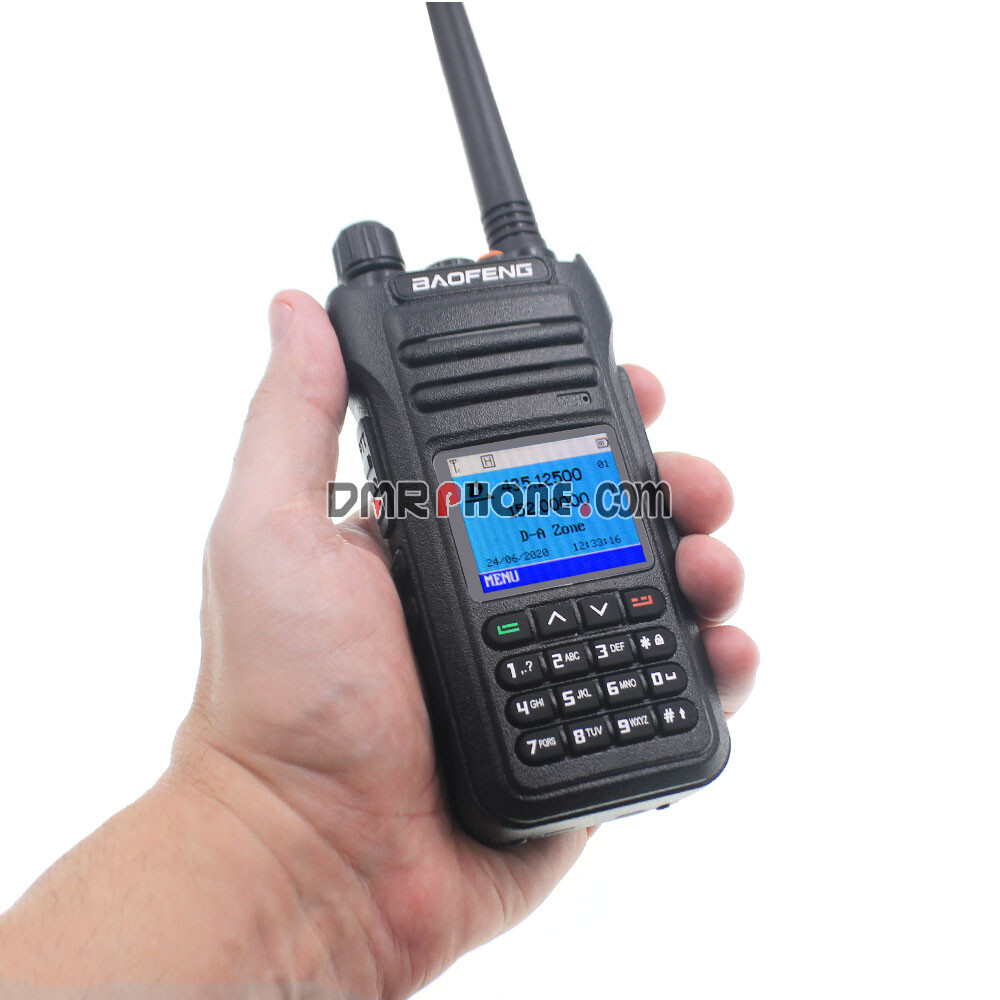

New Baofeng DM-1706 DMR Digital Radio UV Dual band 136-174 & 400-470mhz walkie talkie 5W Amateur Radio

If you need software, please contact us.



Specification

Frequency Range: VHF 136-174MHz &UHF 400-470MHz

Storage channel: up to 3000

Operating Voltage:DC 7.4V

Frequency Stability:±1.0ppm

Operating Temperature:-30°c ~ 60°c

Operating Mode:Same-frequency simple or different-frequency simplex

Antenna Impedance:50Ω

Battery Capacity:2200mAh

Weight: about 300g

Volume: 133*62*36mm

Transmitting

Output Power:1W/5W

Digital:Tier i&ii

Adjacent channel:≤-65dB ≤-60dB

Modulation Distortion:≤5%

Digital Protocol: etsi-ts102 361-1,-2,-3

Vocoder type: AMBE+2TM

Receiving

Analog sensitivity:-122dBm (12dB SINAD)

Digital sensitivity:-120dBm (BER ≤5%)

Audio Power:1W

Audio Distortion:<10%

Inter-mediation:≥62dB / ≥ 58dB

Adjacent channel selectivity:≥65dB /≥60dB

Receiving current:≤380mA

PM Noise :≥ 45dB*25KHz; ≥ 40dB*12.5KHz





baofeng-dm-1706_10baofeng-dm-1706_09baofeng-dm-1706_08baofeng-dm-1706_07baofeng-dm-1706_04baofeng-dm-1706_05baofeng-dm-1706_02

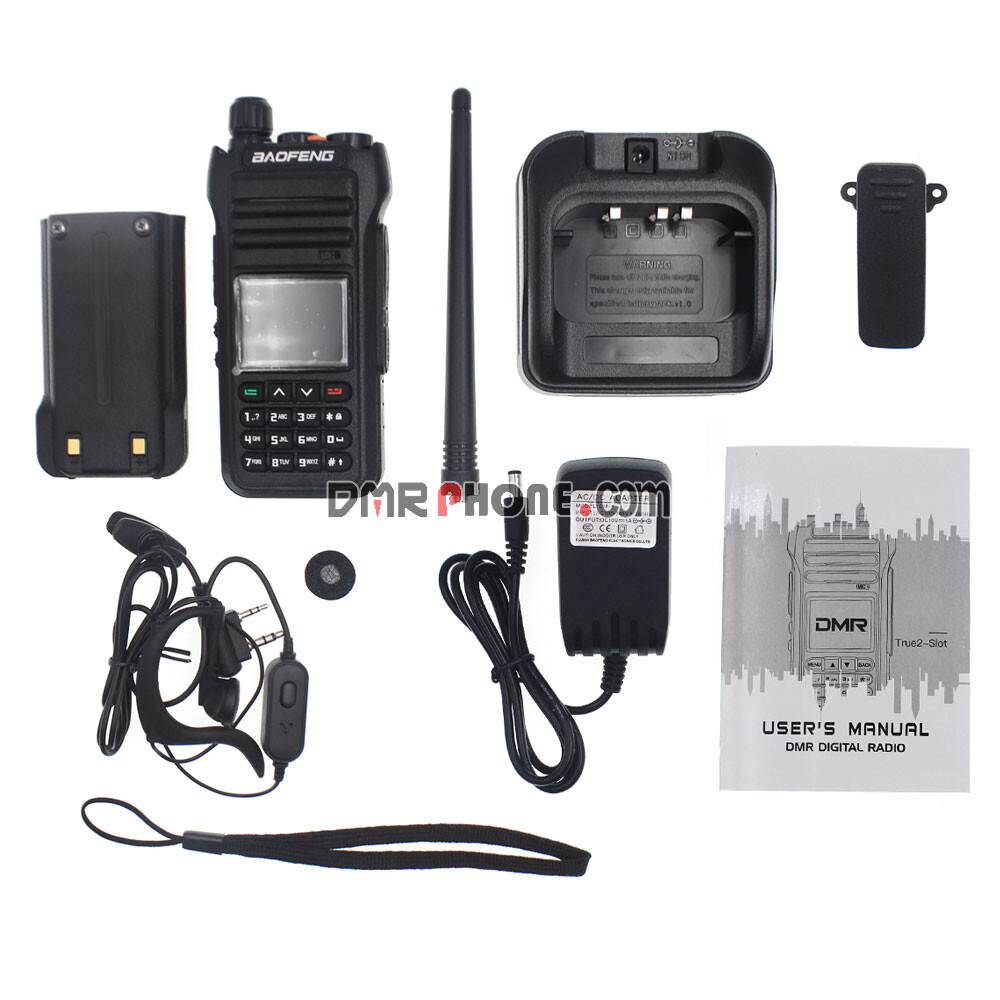

Standard Package:

1× Baofeng DM-1706 Radio

1× 2200mAh Li-ion Battery Pack

1× Desktop Charger

1x AC Adapter(100-240V)

1× Antenna

1× Hand Strap

1× Belt Clip

1× ear hock Earpiece

1× User Manual in EN

Additional information

Weight 0.6 kg
Dimensions 300 × 400 × 100 mm
